Abductor hallucis tendon

The abductor hallucis tendon is the terminal tendon of the abductor hallucis muscle, a superficial intrinsic muscle of the medial plantar foot. It contributes to the medial longitudinal arch and plays a role in stabilizing the first metatarsophalangeal (MTP) joint during walking and running. The tendon inserts onto the medial side of the great toe and provides both dynamic and static support to the medial foot.

This tendon is clinically important because of its role in hallux valgus deformity, plantar fasciitis, medial foot pain, and overuse injuries. It is frequently assessed on MRI when evaluating medial foot pathology.

Synonyms

Medial tendon of the hallux
Tendon of abductor hallucis

Origin, Course, and Insertion

Origin (muscle belly): Medial process of calcaneal tuberosity, flexor retinaculum, and plantar aponeurosis
Course (tendon): The tendon emerges from the medial aspect of the foot, running forward along the medial plantar margin
Insertion: Medial side of the base of the proximal phalanx of the great toe, often blending with the medial sesamoid bone and medial capsule of the first MTP joint

Tendon Attachments

Attaches firmly to the proximal phalanx of the hallux
Frequently associated with the medial sesamoid of the great toe
Provides reinforcement to the medial capsule of the first MTP joint

Relations

Superiorly: Medial head of the flexor hallucis brevis and medial capsule of the first MTP joint
Inferiorly: Medial plantar fascia and skin of medial sole
Medially: Subcutaneous tissue of the medial foot margin
Laterally: Flexor hallucis longus tendon and sesamoid apparatus

Function

Abduction of the hallux: Moves the great toe away from the midline of the foot
Support of medial longitudinal arch: Provides static and dynamic stabilization of the medial foot
First MTP joint stabilization: Reinforces the medial capsule and sesamoid complex
Assist in flexion: Contributes secondarily to toe flexion during push-off in gait

Clinical Significance

Hallux valgus: Dysfunction or attenuation contributes to medial drift of the first MTP joint
Plantar fasciitis: Closely related to plantar fascia and often symptomatic in medial heel pain
Overuse tendinopathy: Common in athletes, dancers, and runners due to repetitive stress
Imaging role: MRI and CT help assess tendon tears, inflammation, or entrapment in medial foot pain

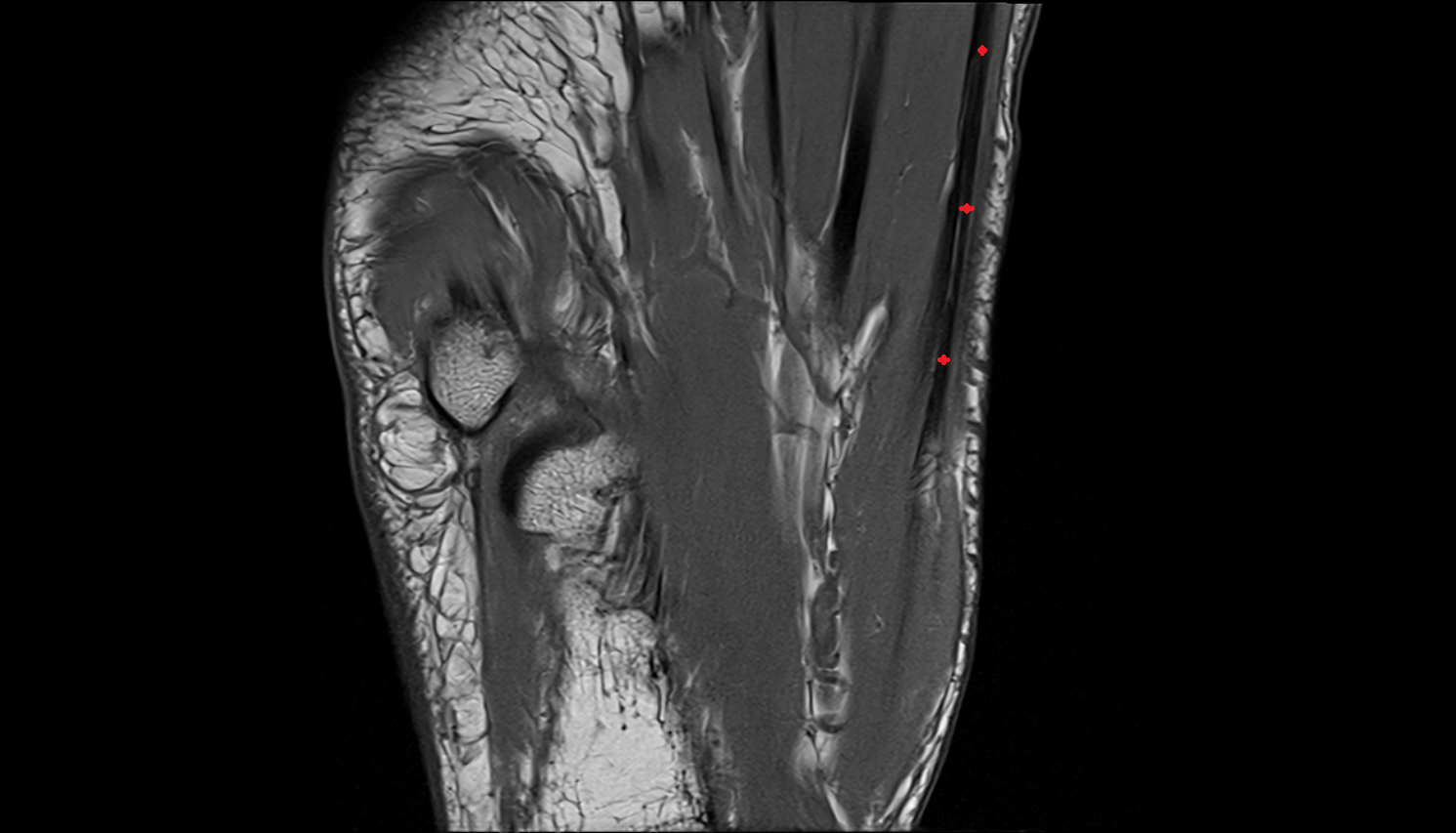

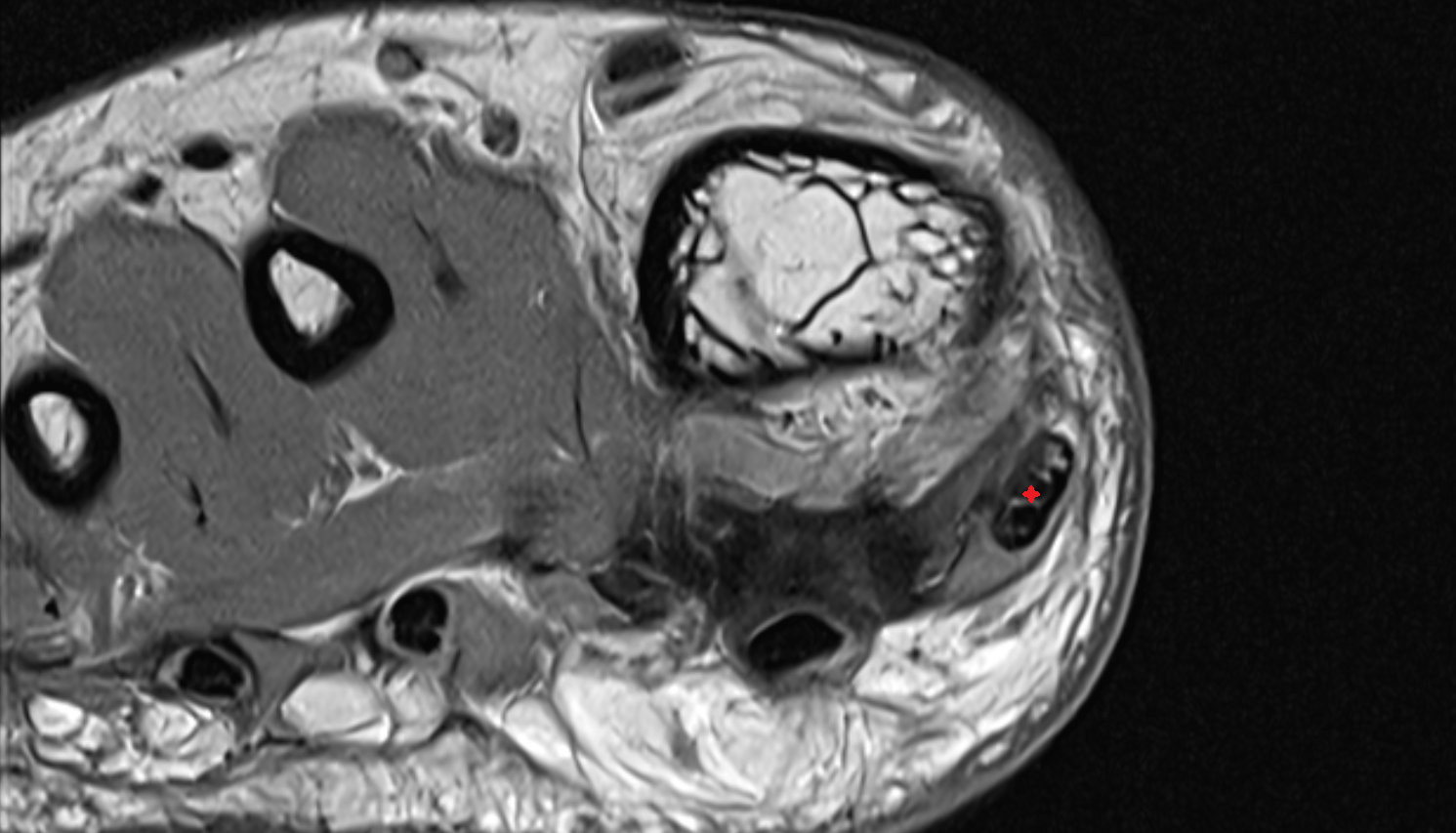

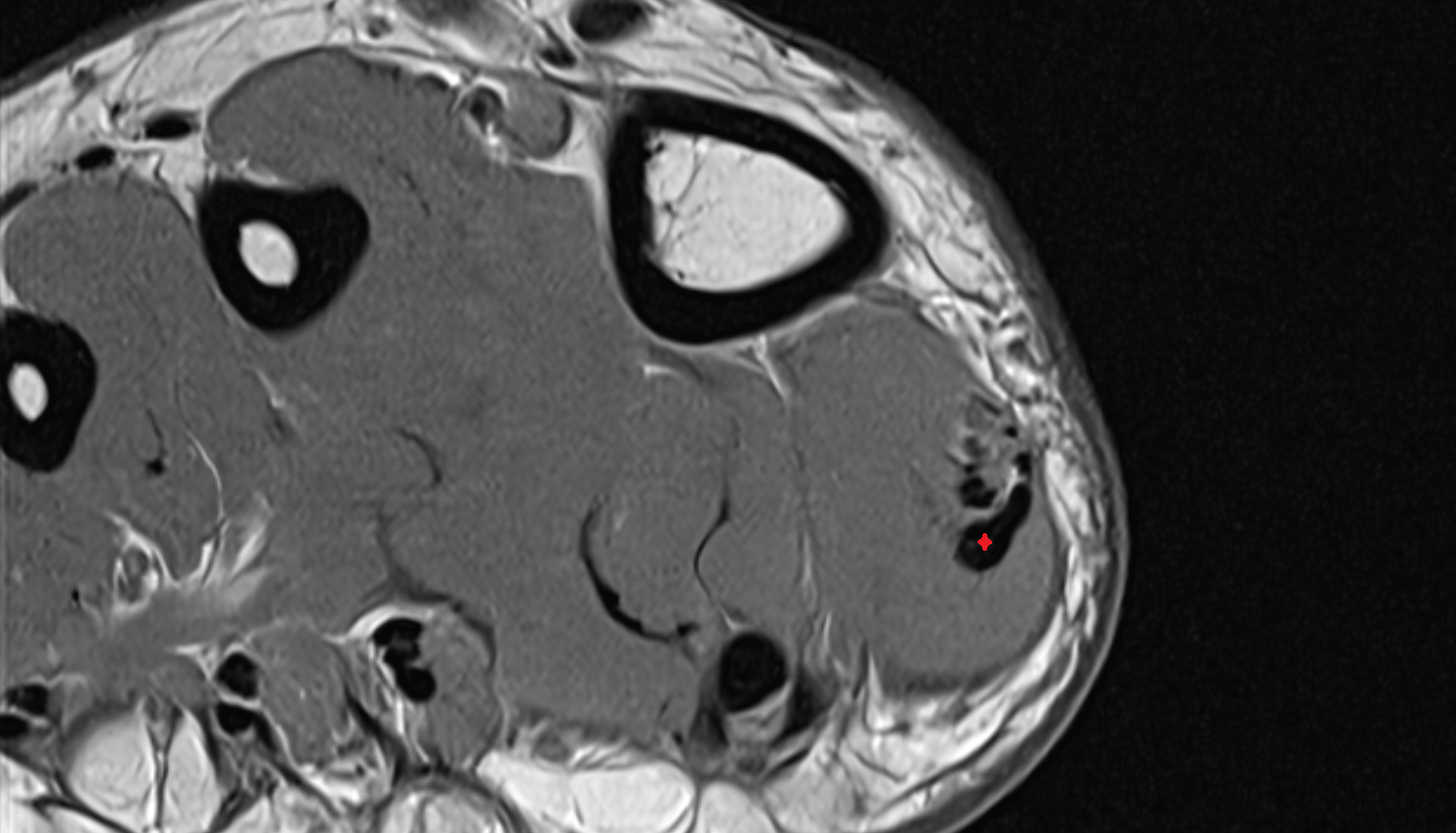

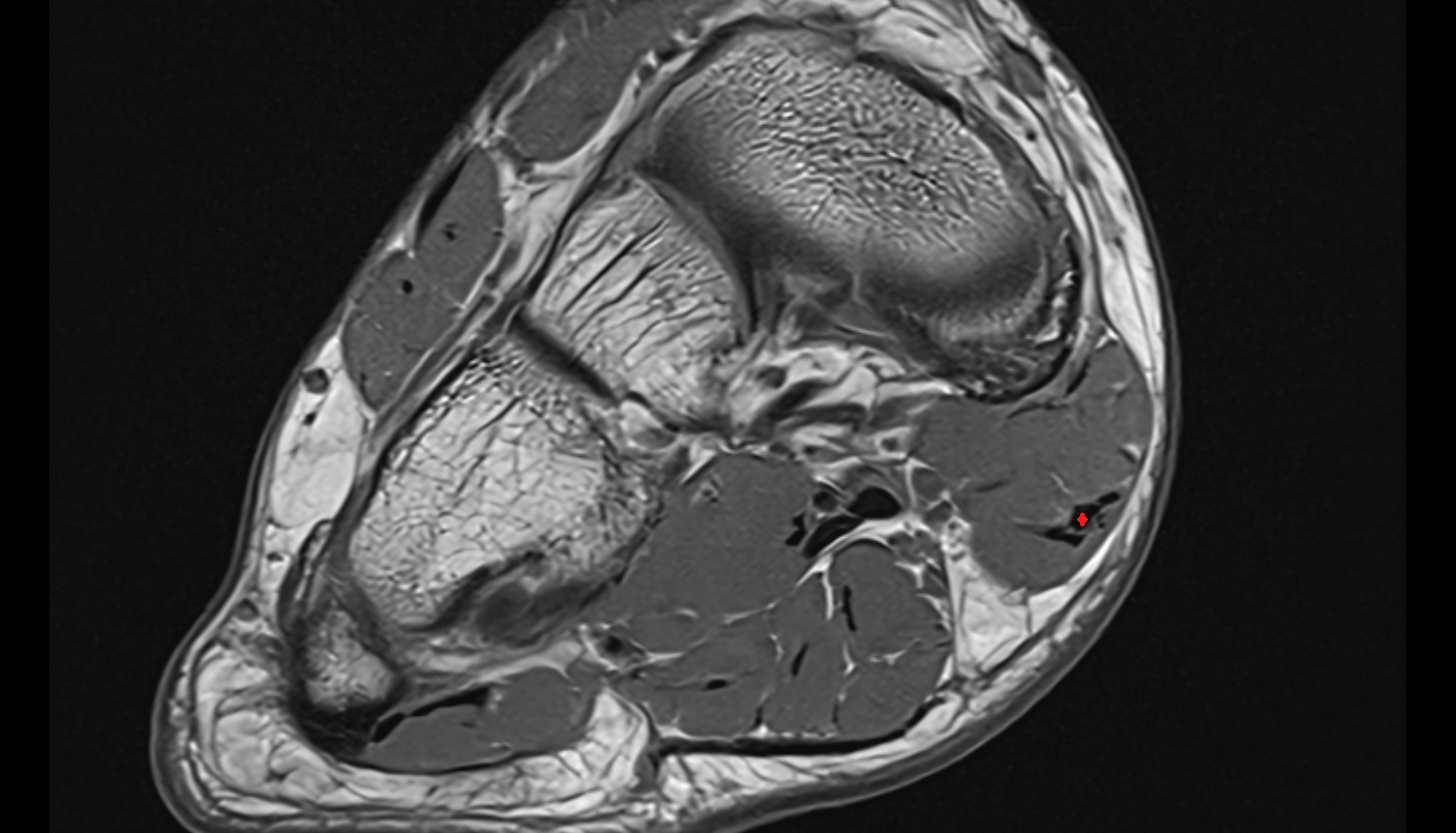

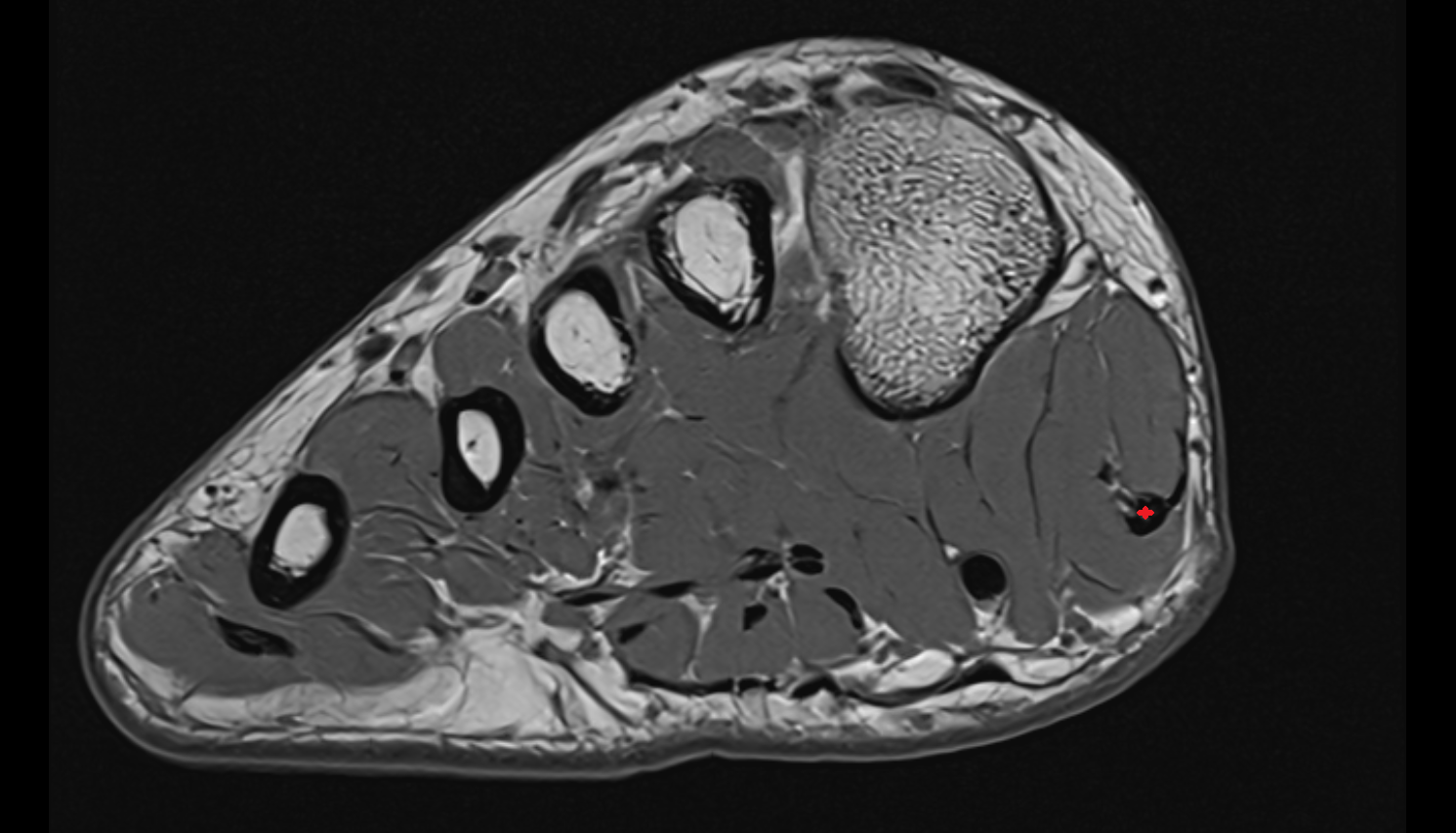

MRI Appearance

T1-weighted images:
- Normal tendon: uniform low signal (dark band) extending to proximal phalanx
- Normal muscle belly: intermediate signal
- Tears: discontinuity or focal hyperintense gap within tendon fibers
- Surrounding fat: bright, helping delineate tendon margins
T2-weighted images:
- Normal tendon: very dark (low signal)
- Normal muscle belly: intermediate, darker than T1
- Pathology: tendinitis or partial tear shows bright hyperintensity within tendon fibers
- Adjacent bursitis or capsular edema appears as hyperintense fluid signal
STIR:
- Normal tendon: dark
- Inflammation, edema, or partial tear: bright hyperintensity around or within tendon
Proton Density Fat-Saturated (PD FS):
- Normal tendon: uniform dark band
- Pathology: bright linear or focal signal changes indicating tendinopathy or fiber disruption
- Excellent for subtle partial-thickness tears and peritendinous inflammation
T1 Fat-Sat Post-Contrast:
- Normal tendon: no significant enhancement
- Pathology: enhancement in peritendinous tissue in tendinitis or bursitis
- Post-surgical repair: scar tissue enhances; recurrent tears remain non-enhancing

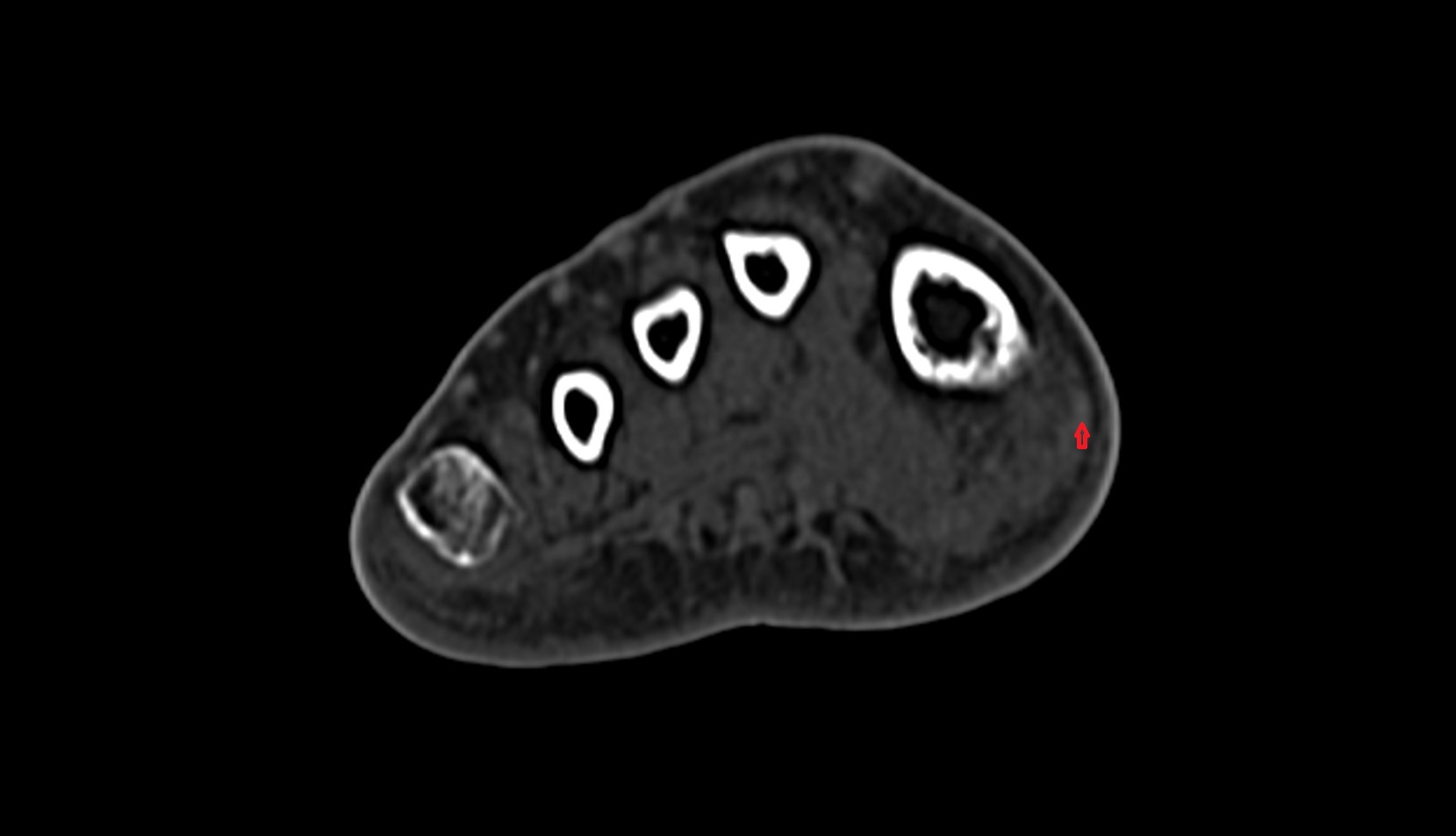

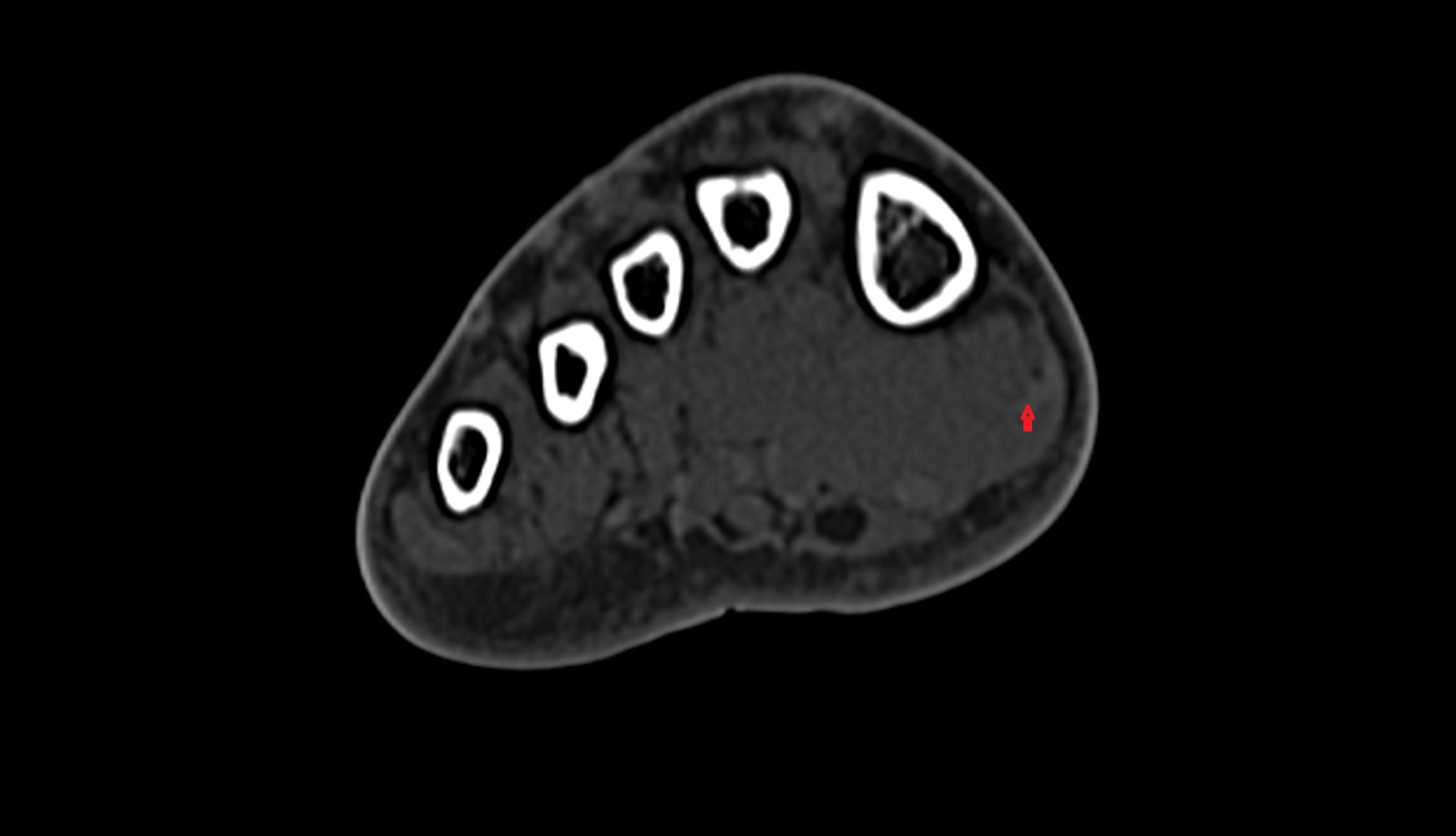

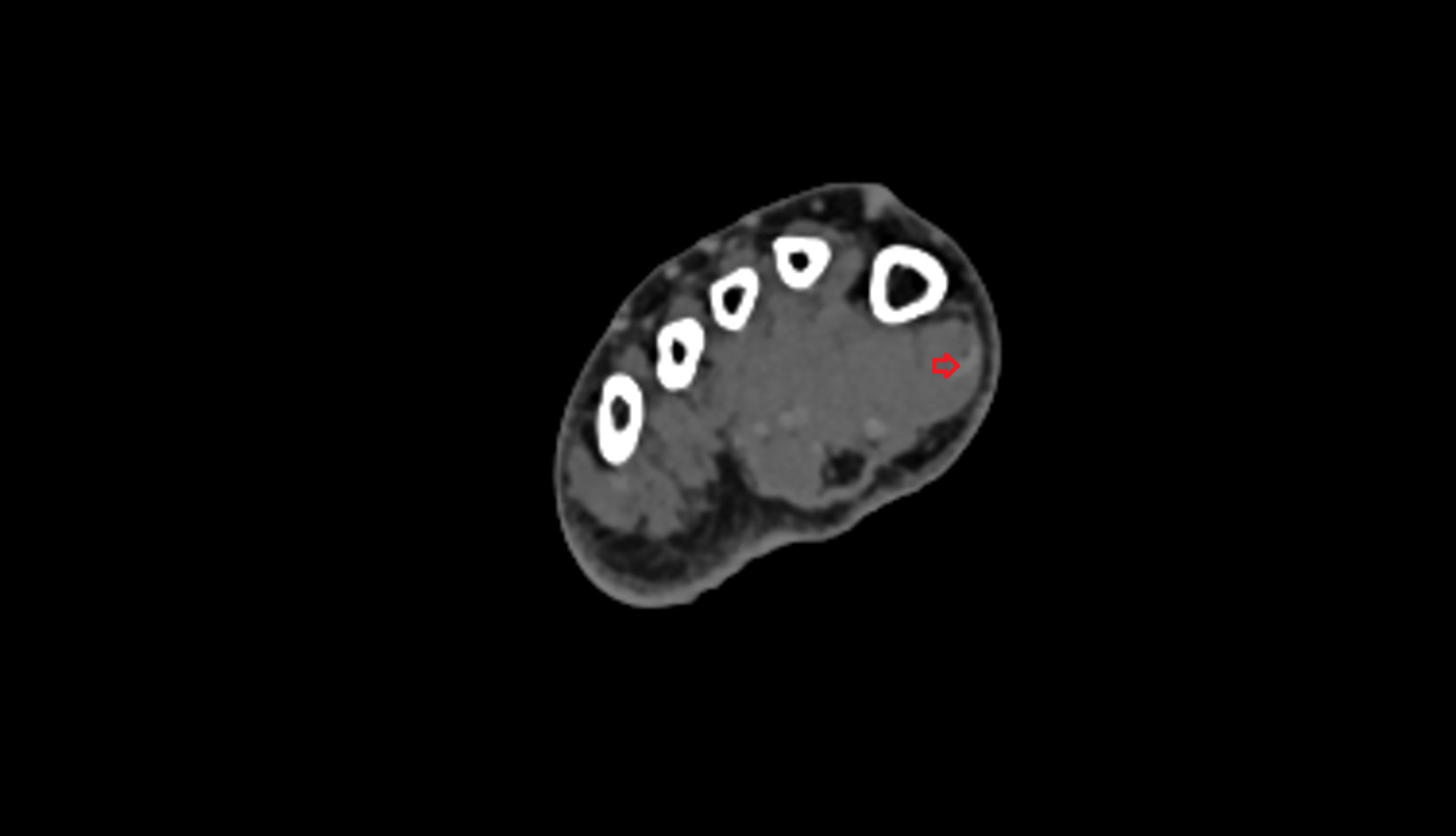

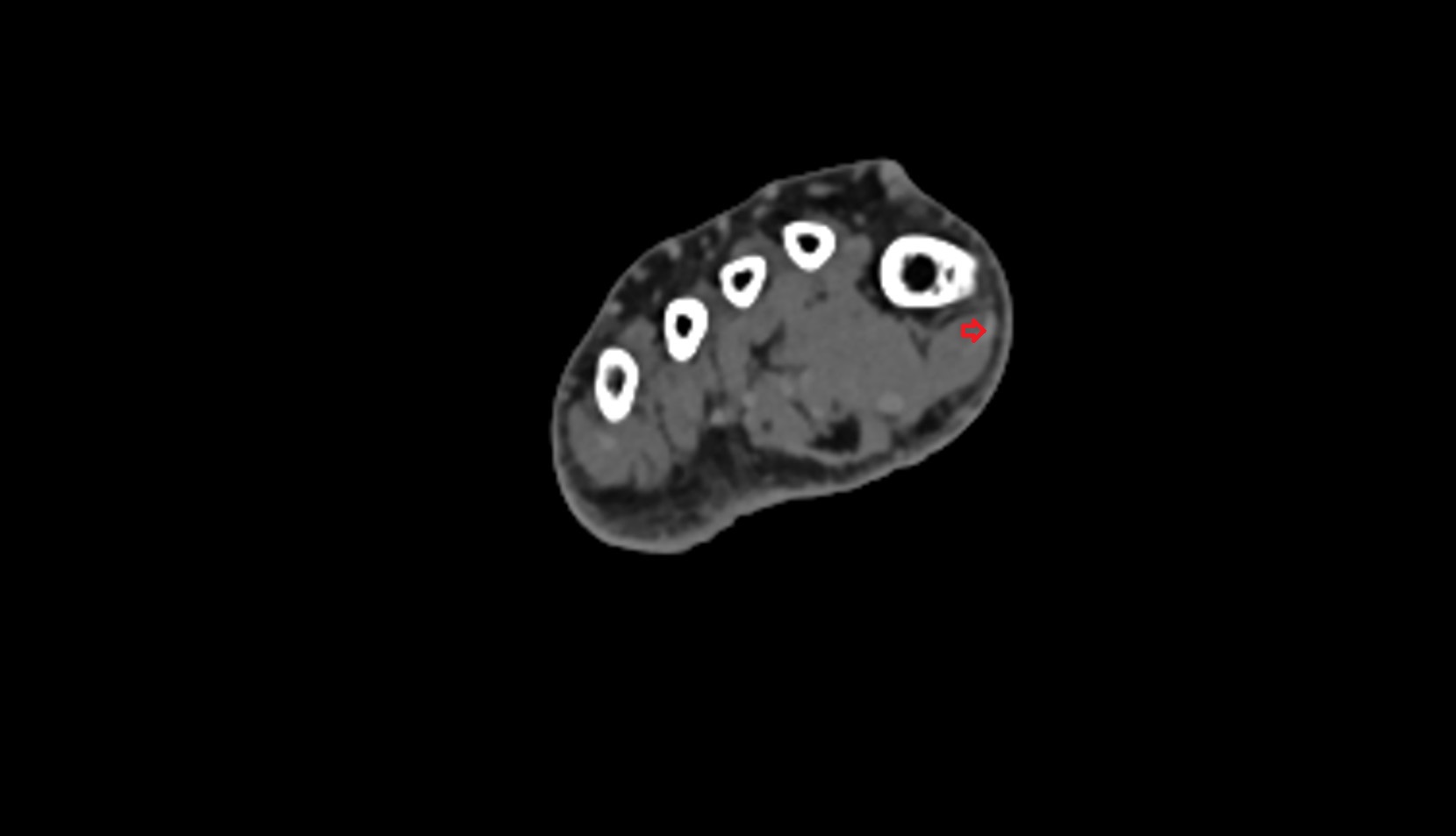

CT Appearance

Non-Contrast CT:

Tendon: appears as a fine soft-tissue density medial to the first MTP joint
Chronic changes: may show calcification or ossification in degenerative tendinopathy
Indirect signs: joint space narrowing or osteophytes in chronic hallux valgus

Post-Contrast CT (standard):
