Anterior acetabular wall

The anterior acetabular wall is the bony anterior margin of the acetabulum, extending from the anterior inferior iliac spine (AIIS) to the anterior aspect of the acetabular rim, curving inferiorly toward the acetabular notch. It contributes to the anterior boundary of the hip socket and provides attachment for the acetabular labrum and joint capsule.

This structure plays a crucial role in hip stability and load distribution, especially during flexion and internal rotation. Morphological variations in the anterior wall, such as overcoverage (pincer-type femoroacetabular impingement) or undercoverage (acetabular dysplasia), directly affect hip biomechanics.

The anterior wall is clinically important in anterior impingement syndromes, acetabular fractures, labral tears, and hip-preservation surgeries. Radiographically, the anterior wall sign on AP pelvis radiographs is used to evaluate acetabular orientation.

Synonyms

  • Anterior rim of acetabulum

  • Acetabular anterior wall

  • Anterior margin of acetabulum

Function

  • Forms the anterior bony boundary of the acetabulum

  • Provides attachment for anterior labrum and capsule

  • Contributes to hip joint congruency and stability

  • Determines coverage of the femoral head in the anterior direction

  • Serves as a key landmark in radiology and orthopedic surgery

MRI Appearance

T1-weighted images:

  • Bone cortex: hypointense, sharply outlined anterior rim

  • Bone marrow: intermediate signal; fat-filled marrow appears brighter

  • Labrum: hypointense triangle attached to rim

  • Useful for detecting fractures, marrow infiltration, and morphology

T2-weighted images:

  • Bone cortex: hypointense

  • Bone marrow: intermediate, with edema or cysts appearing hyperintense

  • Labrum: hypointense; tears seen as bright hyperintense clefts

  • Excellent for labral-chondral junction evaluation

PD Fat-Saturated (PD-FS):

  • Bone cortex: hypointense

  • Bone marrow: edema or inflammatory changes appear hyperintense

  • Cartilage and labrum: subtle defects (cartilage thinning, labral tears) stand out against suppressed fat

  • High sensitivity for anterior labral tears (common in FAI)

STIR:

  • Bone cortex: hypointense

  • Bone marrow: edema, fracture lines, or inflammatory infiltration hyperintense

  • Useful for detecting occult fractures or early arthritis at anterior acetabulum

T1 Fat-Saturated Post-Gadolinium (MR Arthrography):

  • Bone cortex: remains hypointense

  • Labrum/cartilage: contrast highlights labral detachments and chondral defects

  • Contrast penetration into abnormal clefts = labral tear

  • Excellent for detecting subtle anterior labral tears in impingement

3D T2-weighted Imaging:

  • Bone cortex: hypointense, smooth anterior rim

  • Provides isotropic images for multiplanar reconstructions

  • Crucial for acetabular version, coverage, and surgical planning

  • Visualizes anterior labrum, cartilage, and bony morphology for arthroscopy

CT Appearance

Non-contrast CT:

  • Bone cortex: hyperdense, sharply visualized anterior rim

  • Bone marrow: lower density relative to cortex; fatty marrow more hypodense

  • Best for fractures, dysplasia, acetabular retroversion, and pincer deformity

  • 3D reconstructions show anterior acetabular coverage and morphology

CT Post-Contrast (CT Arthrography):

  • Bone cortex: unchanged, hyperdense

  • Labrum and cartilage: intra-articular contrast outlines anterior labral tears and cartilage loss

  • Useful alternative to MRI in patients with contraindications

CT image

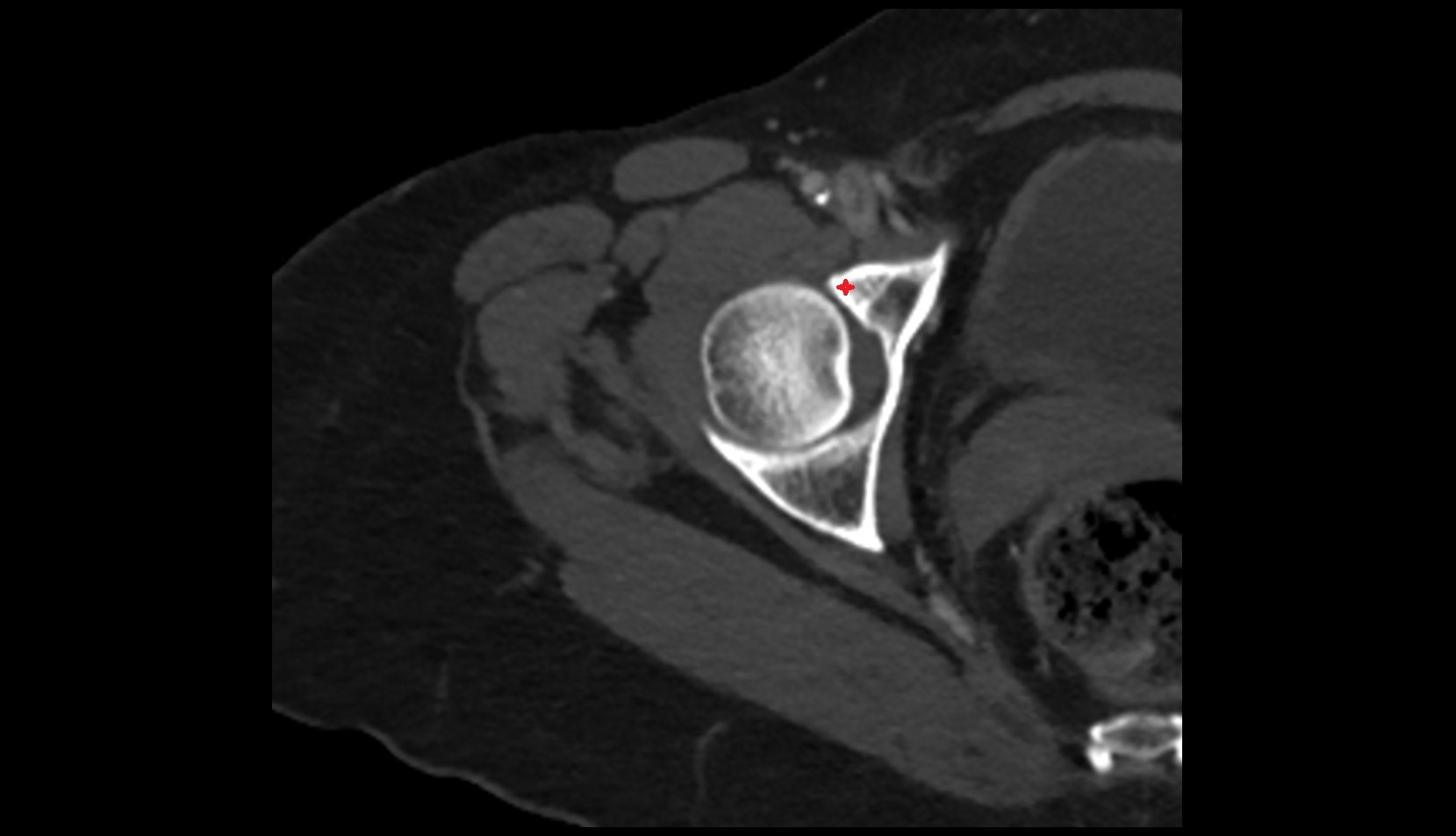

Anterior acetabular wall ct axial image

CT image

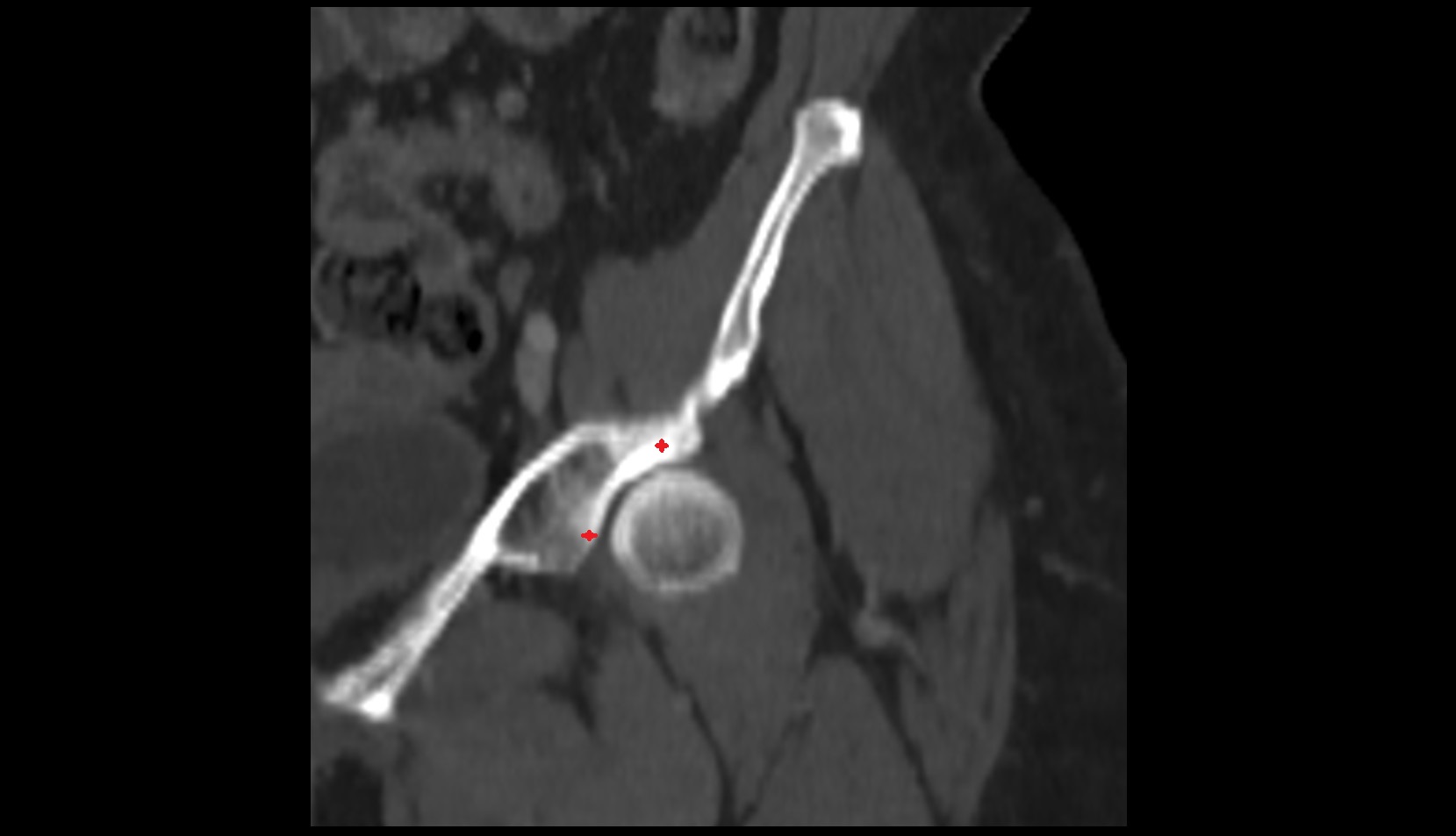

Anterior acetabular wall ct coronal image

CT VRT 3D image

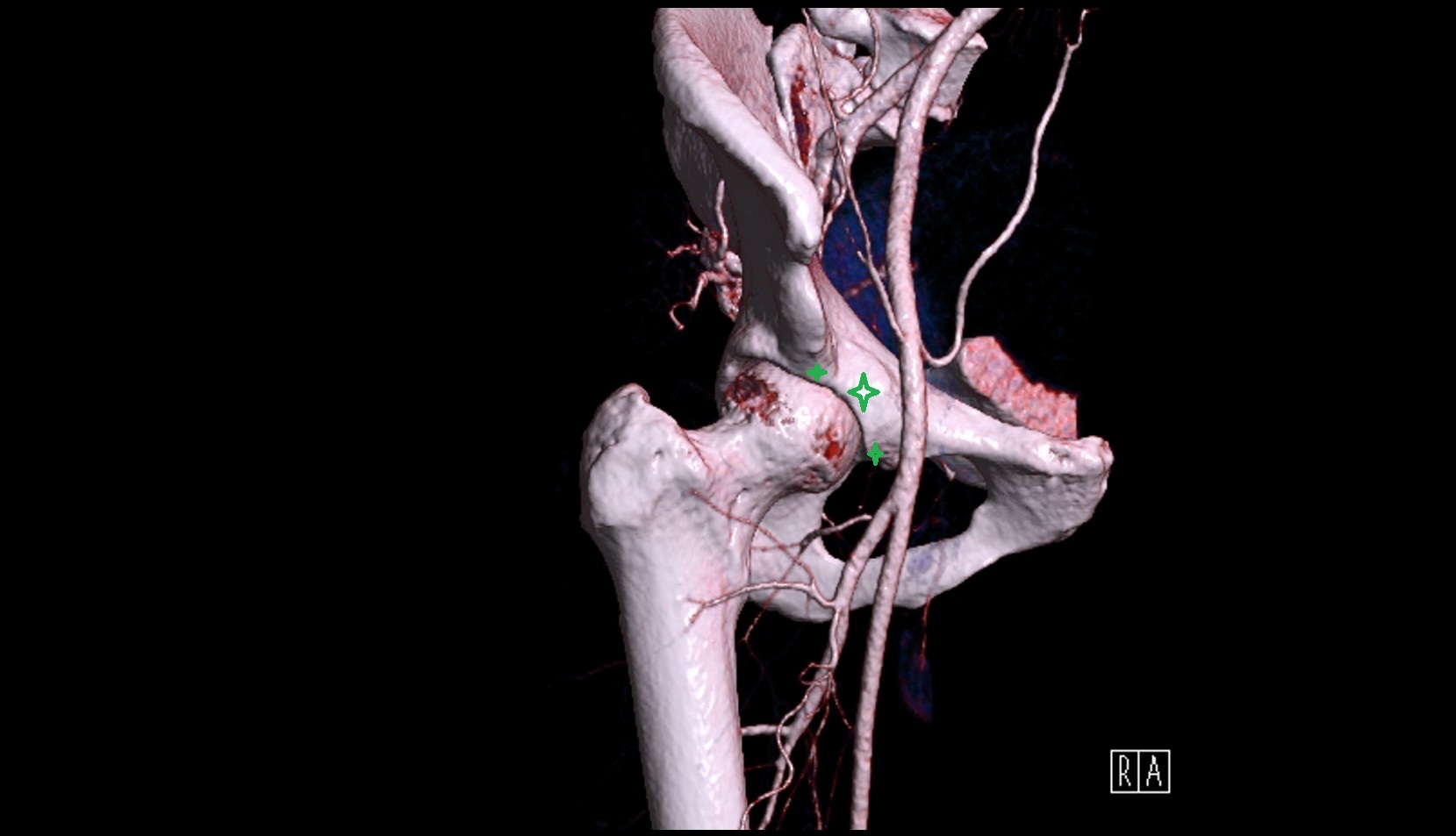

Anterior acetabular wall ct 3d image

MRI image

Anterior acetabular wall MRI axial anatomy image-img-00000-00000
