Anterior arch of atlas

The anterior arch of the atlas (C1) is the short, curved bony segment forming the anterior portion of the first cervical vertebra. It extends between the lateral masses of C1, creating the anterior boundary of the vertebral foramen, through which the spinal cord passes. The superior articular facets on its lateral ends articulate with the occipital condyles of the skull, while the inferior surface forms part of the atlanto-odontoid joint with the dens of the axis (C2). The anterior arch also serves as the attachment point for the transverse ligament, which spans posterior to the dens, stabilizing the atlantoaxial complex.

Synonyms

  • C1 anterior arch

  • Atlas anterior ring

  • Anterior portion of first cervical vertebra

  • Anterior atlantal arch

Function

  • Forms the anterior boundary of the vertebral foramen, protecting the spinal cord at C1 level

  • Provides an articulating surface for the odontoid process (dens) of C2, allowing rotational movement of the head

  • Supports the transverse ligament, maintaining atlantoaxial stability

  • Contributes to cervical spine load-bearing and mobility

MRI Appearance
T1-weighted images:

  • Bone appears low signal (dark)

  • Bone marrow within the arch appears intermediate to high signal depending on fatty content

  • Surrounding soft tissues, including ligaments and muscles, are intermediate signal, allowing differentiation of the anterior arch

  • Fractures or lesions may appear low signal with surrounding marrow edema

T2-weighted images:

  • Bone cortex remains low signal, marrow appears slightly hyperintense

  • Fluid, edema, or ligamentous injury appears bright, useful for trauma or inflammatory assessment

STIR (Short Tau Inversion Recovery):

  • Suppresses fat signal in bone marrow, highlighting edema, inflammation, or acute fractures

  • Normal anterior arch appears low signal; pathological changes appear hyperintense

CT Appearance

  • The anterior arch appears as a dense, hyperattenuating bony structure

  • The cortical bone is bright white, and the internal cancellous bone is slightly less dense

  • Fractures, lytic lesions, or congenital anomalies are easily detected

  • CT is particularly useful for trauma assessment, surgical planning, and detailed bony anatomy evaluation

MRI images

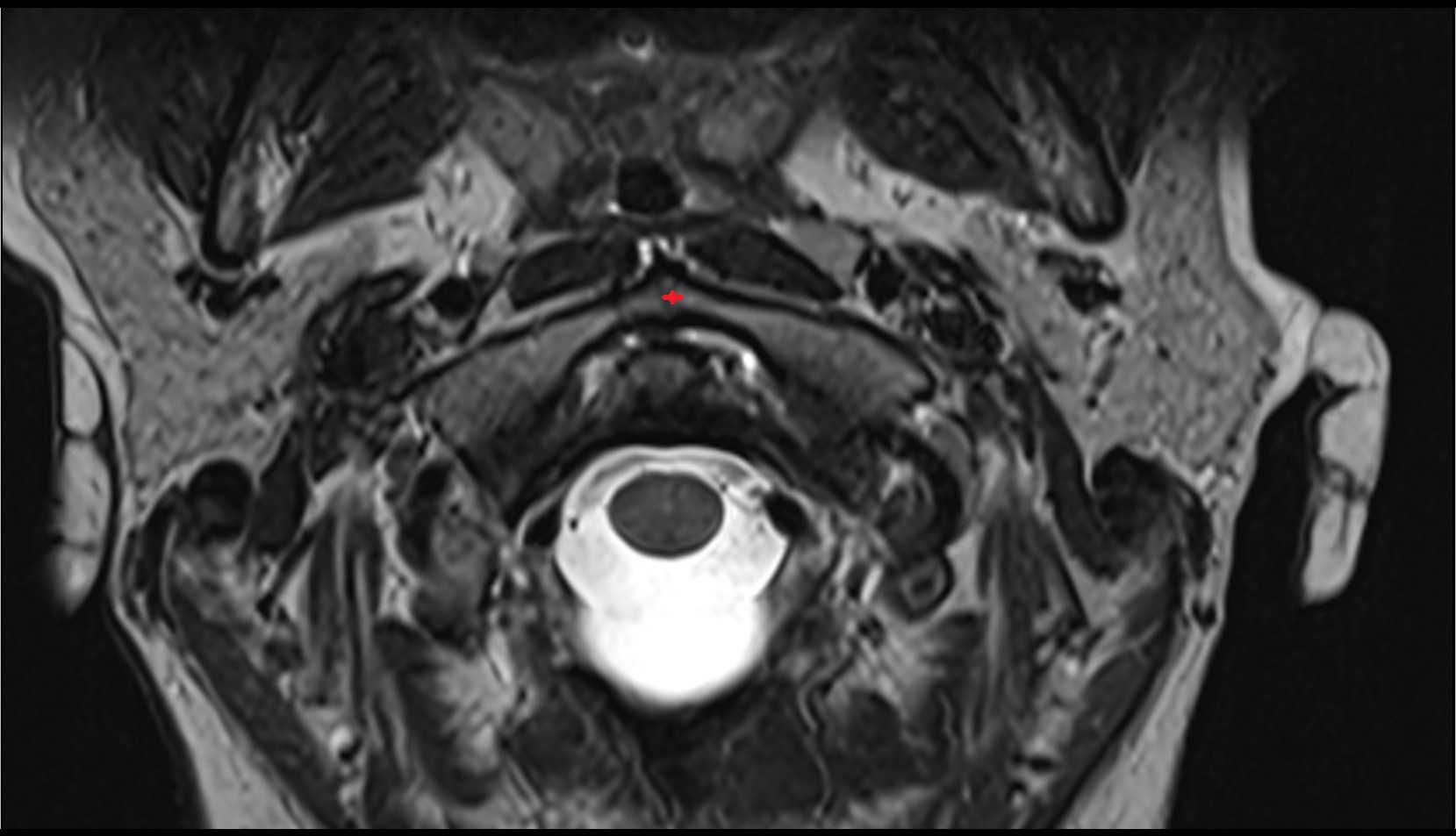

Anterior arch of atlas mri axial image

MRI images

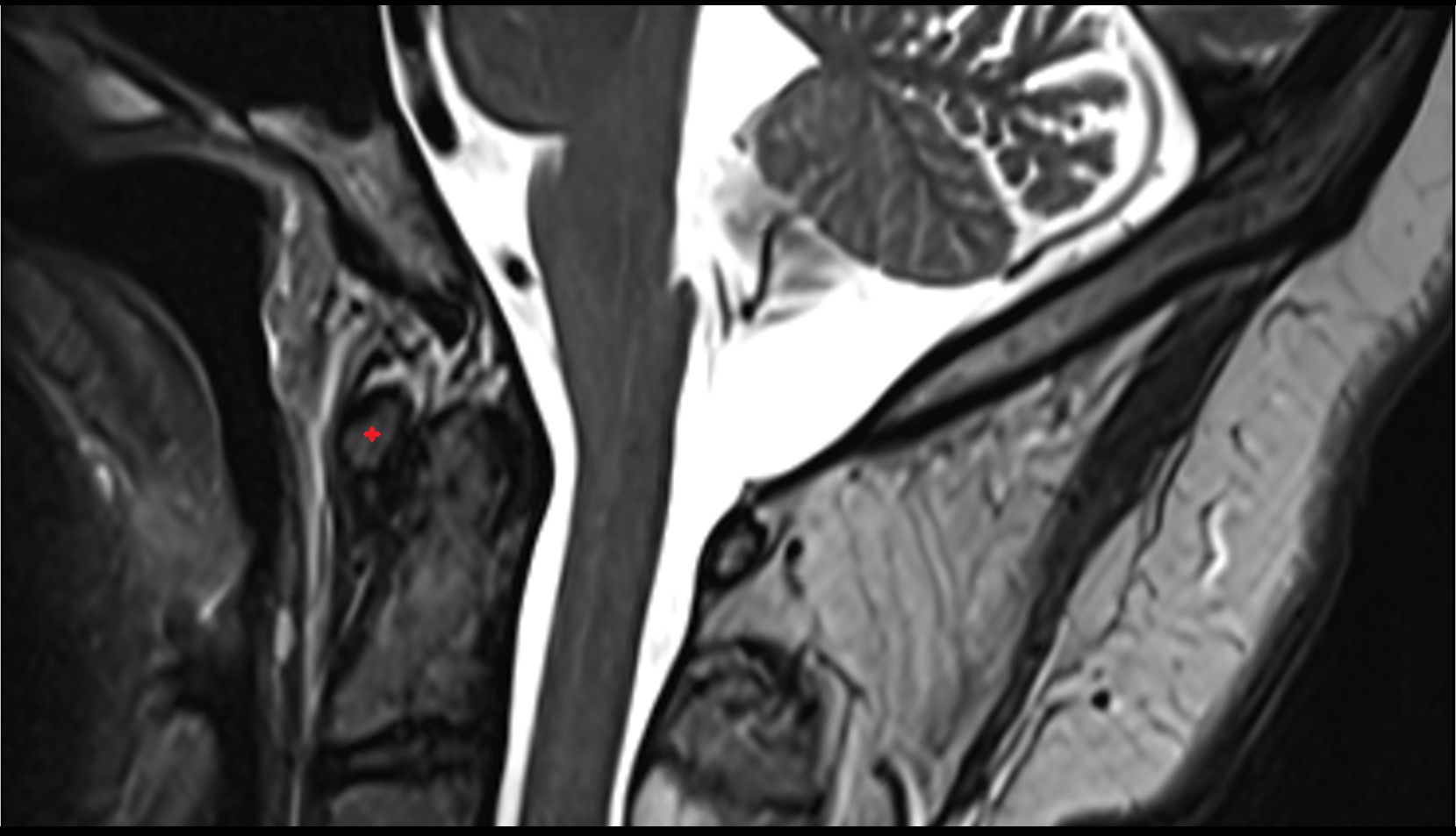

Anterior arch of atlas mri sagittal image
