Anterior branch of right hepatic duct

The anterior branch of the right hepatic duct is one of the two major segmental branches of the right hepatic duct. It drains bile from the anterior segments of the right lobe of the liver (segments V and VIII). It joins with the posterior branch of the right hepatic duct to form the right hepatic duct, which then unites with the left hepatic duct to form the common hepatic duct.

It is an important anatomical structure in hepatobiliary surgery, liver transplantation, and radiology because of its variability and its role in segmental bile drainage.

Synonyms

  • Anterior segmental duct of right hepatic duct

  • Right anterior intrahepatic duct

  • Segment V–VIII hepatic duct

Origin, Course, and Termination

  • Origin: Arises within the liver parenchyma from bile radicals draining hepatic segments V and VIII

  • Course: Runs in the right anterior sectoral pedicle, accompanying the right anterior branch of the portal vein and right anterior hepatic artery branch

  • Termination: Joins the posterior branch of the right hepatic duct to form the right hepatic duct at the liver hilum

Relations

  • Anteriorly: Parenchyma of segments V and VIII

  • Posteriorly: Portal vein and posterior ductal system

  • Medially: Left hepatic duct and hilar plate

  • Laterally: Posterior segmental bile ducts (segments VI and VII)

Function

  • Drains bile from the anterior segments of the right hepatic lobe (segments V and VIII)

  • Contributes to the formation of the right hepatic duct and extrahepatic biliary drainage

  • Plays a critical role in segmental resections and living-donor liver transplantation

Clinical Significance

  • Anatomic variation: Highly variable in branching; may drain independently into the left hepatic duct or common hepatic duct (surgical importance)

  • Cholangiocarcinoma: Tumors at the hilum (Klatskin tumors) often involve this duct → obstructive jaundice

  • Iatrogenic injury: Vulnerable during hepatic resections, bile duct surgery, and transplantation

  • Biliary obstruction: May result from stones, strictures, or tumors within or near the duct

  • Segmental cholestasis: Imaging shows dilatation of anterior intrahepatic ducts when obstructed

MRI Appearance

T1-weighted images:

  • Duct lumen appears dark (low signal intensity)

  • Wall is thin and barely visible unless inflamed

T2-weighted images:

  • Lumen appears bright (high signal intensity due to bile)

  • Wall is a thin dark rim

STIR (Short Tau Inversion Recovery):

  • Bile appears bright

  • Fat signal suppressed, aiding duct visualization

T1 Fat-Sat Post-Contrast:

  • Normal duct wall: minimal or no enhancement

  • Pathology: wall thickening, irregular enhancement in cholangitis or cholangiocarcinoma

T2 Fat-Saturated HASTE (single-shot):

  • Duct lumen: very bright

  • Used for rapid biliary screening and obstruction detection

  • Filling defects (stones, air bubbles): dark signal voids

T2 TSE Fat-Saturated 3D (MRCP):

  • Duct appears as a high-signal tubular structure

  • Allows 3D reconstruction of the intrahepatic biliary tree

  • Excellent for mapping anatomic variations or obstructions

Thick-slab T2 Fat-Saturated HASTE:

  • Duct visualized as a bright tubular structure on projectional MRCP images

  • Useful for overview of biliary anatomy in one thick slice

  • Filling defects appear dark against bright bile

CT Appearance

Non-Contrast CT:

  • Normal ducts not usually seen unless dilated

  • Dilated ducts: low-attenuation tubular structures within liver parenchyma

  • Stones: hyperdense if calcified

Post-Contrast CT:

  • Duct wall may enhance faintly

  • Dilatation or obstruction easily visible

  • Tumors (cholangiocarcinoma) appear as irregular enhancing soft tissue causing ductal narrowing or obstruction

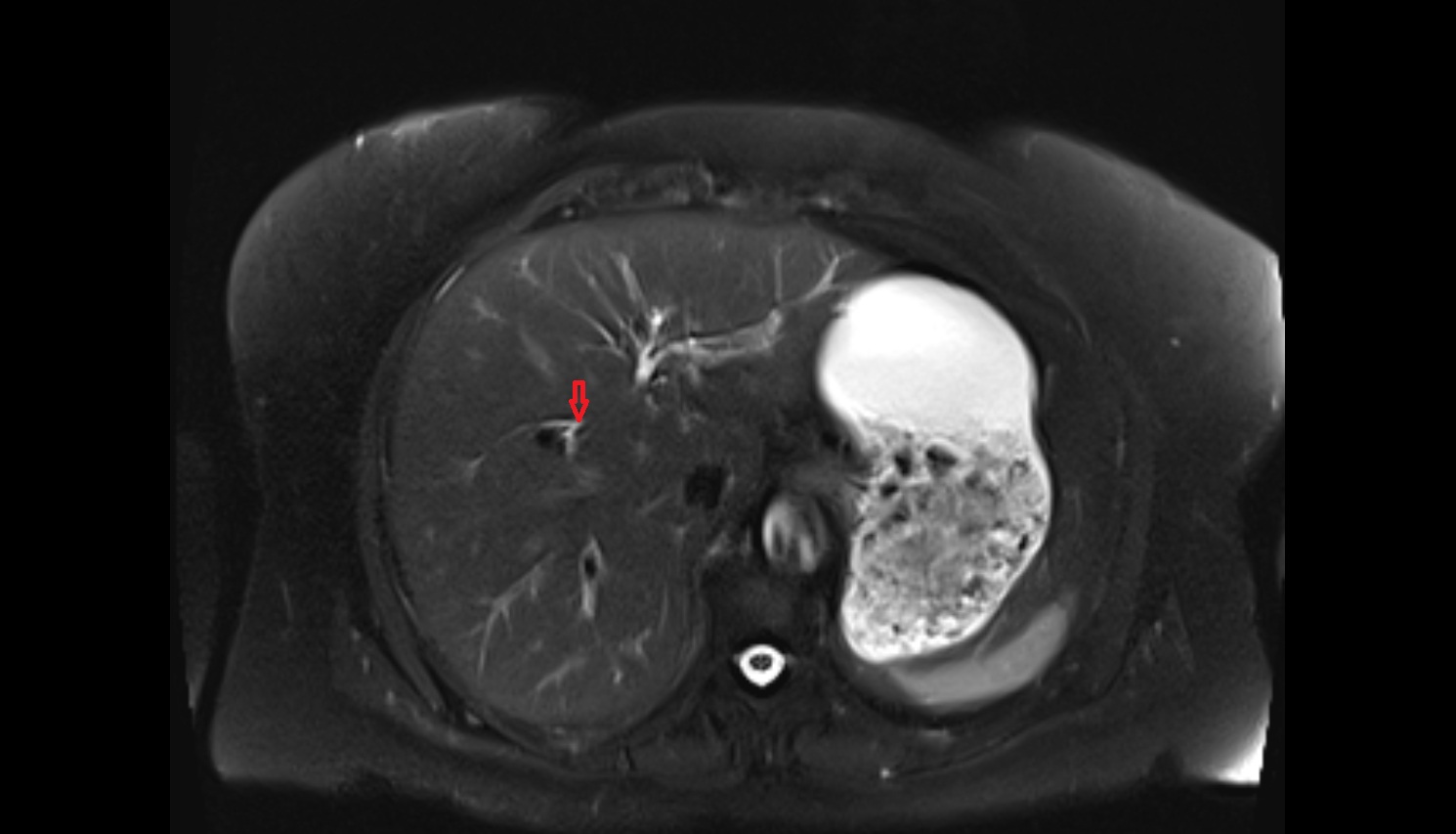

MRI image

Anterior branch of right hepatic duct mri coronal anatomy image-img-00000-00000
