Anterior clinoid process

The anterior clinoid process (ACP) is a bony projection extending from the lesser wing of the sphenoid, forming a key landmark in the central skull base. It projects posteriorly and medially toward the sella turcica and partially forms the roof of the cavernous sinus and the lateral wall of the optic canal.

The ACP overlies the clinoid segment (C5) of the internal carotid artery (ICA) and is closely associated with the optic nerve, making it critically important in neurosurgical procedures such as clinoidectomy, optic nerve decompression, and aneurysm surgery.

Its relationship to the optic canal, superior orbital fissure, and cavernous sinus makes it one of the most important surgical and radiologic landmarks in the skull base.

Synonyms

  • Processus clinoideus anterior

  • Anterior sphenoid clinoid

  • Medial tip of the lesser sphenoid wing

Location and Structure

  • Position: Arises from the medial aspect of the lesser wing of the sphenoid.

  • Orientation: Projects posteromedially toward the sella.

  • Components:

    • Compact cortical bone with minimal cancellous marrow

    • Forms roof of cavernous sinus

    • Forms superolateral boundary of the optic canal

  • Related apertures:

    • Optic canal: Immediately inferior and medial to the ACP

    • Carotico–clinoid foramen (variant): Formed if ACP fuses with the middle clinoid process

Relations

  • Superiorly: Frontal lobe and anterior cranial fossa dura

  • Inferiorly: Cavernous sinus and internal carotid artery (clinoid segment)

  • Medially: Optic canal and optic nerve

  • Laterally: Lesser wing of sphenoid and superior orbital fissure

  • Posteriorly: Roof of cavernous sinus and middle clinoid region

Attachments

  • Dural attachments:

    • Tentorium cerebelli attaches between anterior and posterior clinoid processes

    • Anterior cranial fossa dura anchors along superior margin

  • Fibrous/membranous structures:

    • Forms lateral boundary of optic canal with optic strut

    • Contributes to cranial periosteum and sphenoid sinus roof

Function

  • Provides protection and support for the optic nerve and internal carotid artery

  • Acts as a key anchoring point for tentorial attachments

  • Serves as an essential surgical landmark during skull base and orbital procedures

  • Contributes to the architecture of the optic canal and cavernous sinus roof

Clinical Significance

  • Optic nerve compression: Hyperostosis, fractures, or meningioma may narrow the optic canal

  • Sphenoid wing meningiomas: Frequently involve or engulf the ACP, often causing hyperostosis

  • Clinoid segment ICA aneurysms: ACP must often be removed for exposure

  • Clinoidectomy: Required in optic nerve decompression or tumor resections

  • Trauma: Skull base fractures may extend into ACP, risking ICA or optic nerve injury

  • Carotico–clinoid foramen variant: Can compress ICA or complicate surgery

MRI Appearance

T1-weighted images:

  • Cortical bone: Very low signal (black)

  • Marrow: Usually minimal; when present appears bright

  • Optic nerve: Intermediate signal within optic canal adjacent to ACP

  • Pathology:

    • Meningioma: Iso- to hypointense soft-tissue mass with broad dural attachment

    • Hyperostosis: Thickened low-signal bone

    • ICA aneurysm: Flow void adjacent to ACP

T2-weighted images:

  • Bone: Very low signal

  • Marrow: Bright when present

  • Adjacent structures:

    • Optic nerve: Intermediate signal

    • ICA: Flow void (dark)

  • Pathology:

    • Tumors: Hyperintense masses extending from sphenoid wing or cavernous sinus

    • Inflammation or edema: Hyperintense dural thickening near ACP

FLAIR:

  • Bone: Dark

  • Adjacent frontal lobe: Intermediate gray

  • Pathology:

    • Meningiomas: Iso- to slightly hyperintense

    • Edema around infiltrative lesions: Hyperintense

    • Encephalomalacia near ACP (post-surgical): Mixed signal

T1 Fat-Sat Post-Contrast:

  • Normal ACP: No enhancement

  • Enhancing lesions:

    • Meningioma: Intense homogeneous enhancement with possible dural tail

    • Cavernous sinus tumors: Strong enhancement extending around ACP

    • Inflammatory tissue: Patchy enhancement

    • ICA pathology: Vascular enhancement adjacent to ACP

  • Hyperostosis-related enhancement: Enhancing dura overlying thickened bone

CT Appearance

Non-Contrast CT:

  • Cortical bone: Very high attenuation; clearly defines ACP margins

  • Marrow: Low-density pocket if present

  • Advantages:

    • Best for visualizing fractures, hyperostosis, bony variants

    • Excellent delineation of the optic canal and superior orbital fissure

    • Identifies carotico–clinoid foramen or ossification variants

  • Pathology:

    • Fractures: Sharp lucent lines or displaced fragments

    • Hyperostosis (meningioma): Thickened dense ACP

    • Tumor invasion: Bone erosion or irregular contour

Post-Contrast CT (standard):

  • Bone: No enhancement

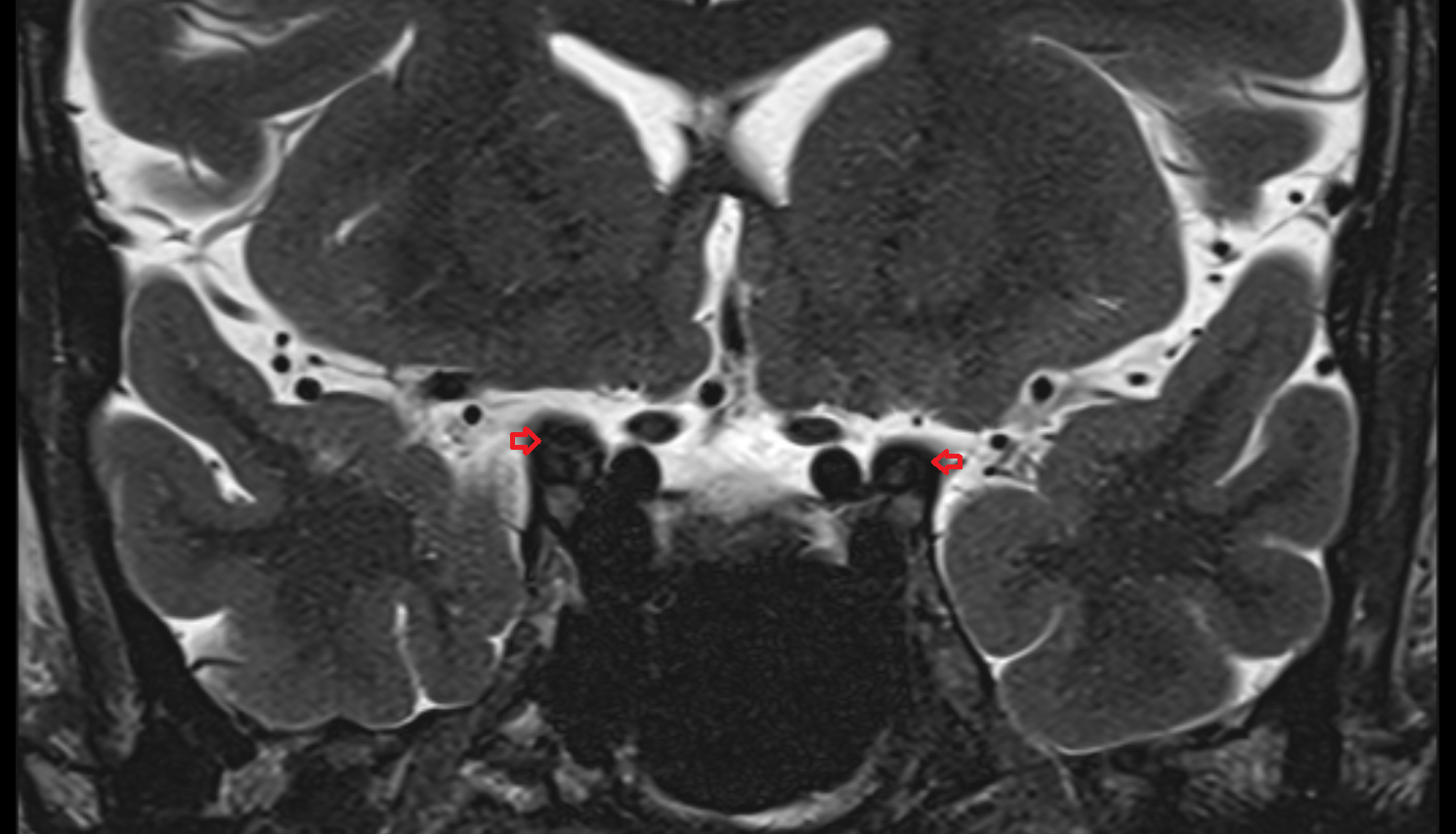

MRI image

Anterior clinoid process MRI -img-00000-00000

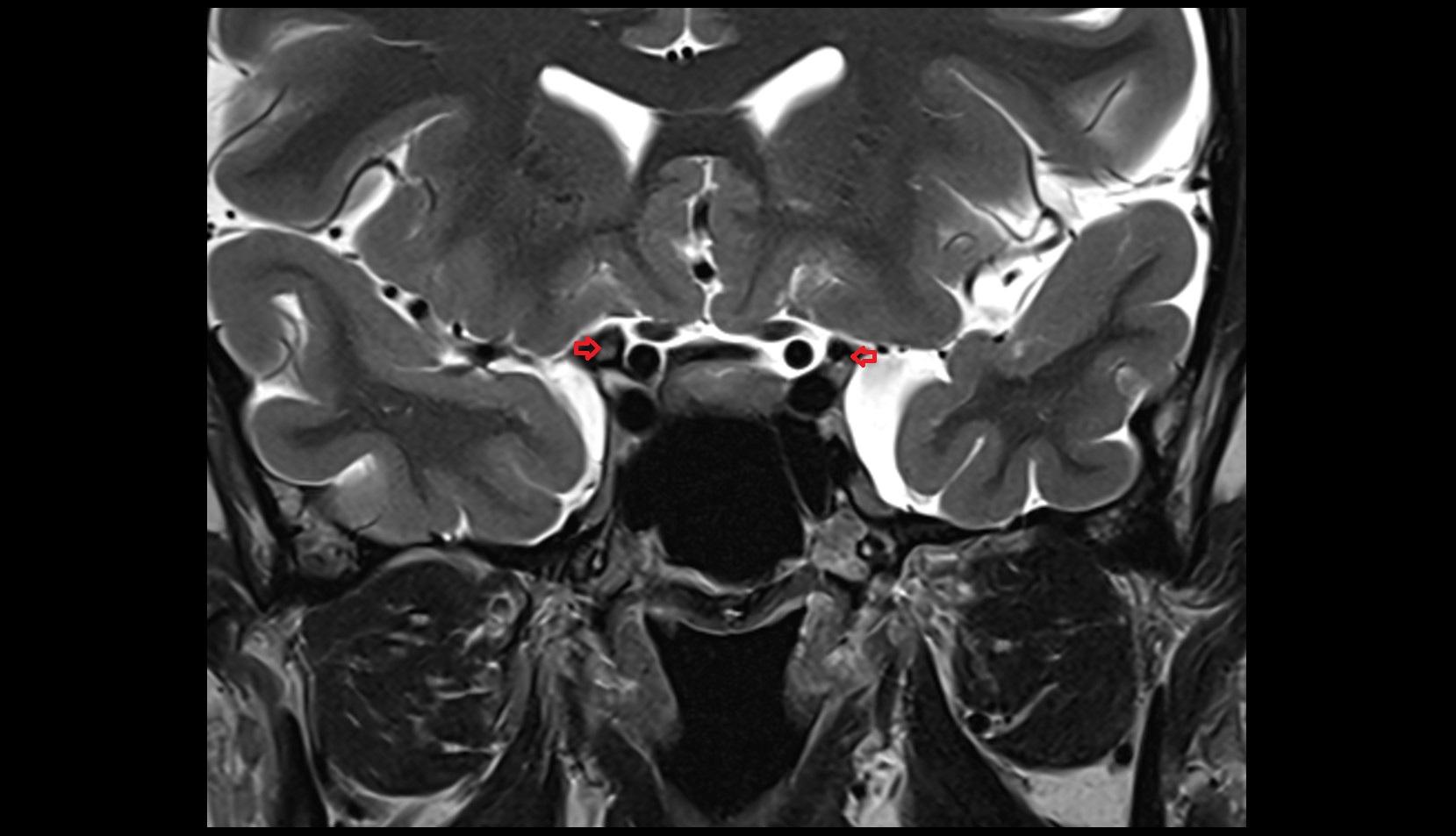

MRI image

Anterior clinoid process MRI

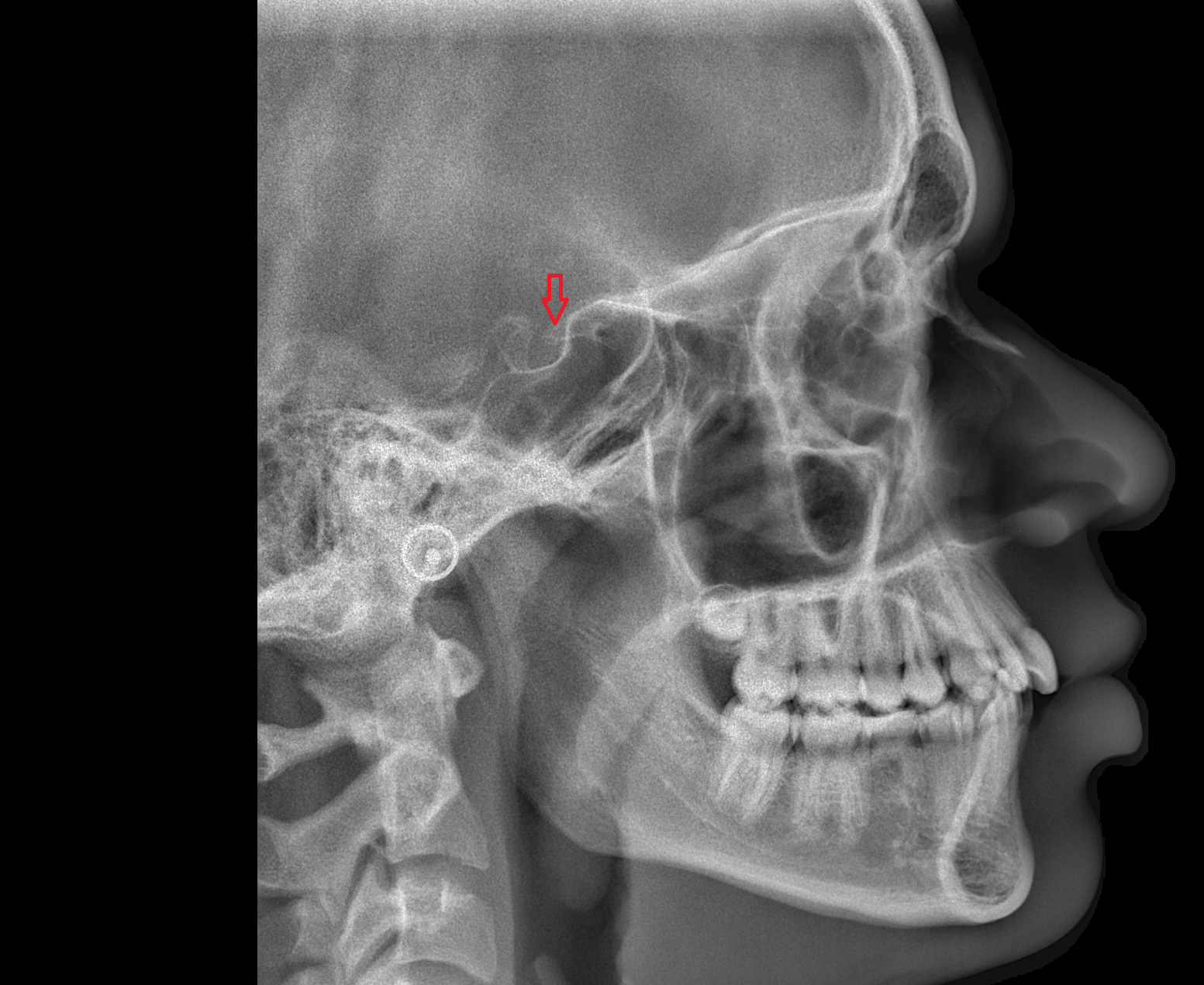

X ray image

Anterior clinoid process
