Anterior oblique ligament (beak ligament)

The anterior oblique ligament (AOL), also known as the beak ligament, is a thick, fibrous band forming part of the capsuloligamentous complex of the first carpometacarpal (CMC) joint at the base of the thumb. It extends from the palmar tubercle of the trapezium to the palmar beak of the first metacarpal base.

It is one of the primary stabilizers of the thumb CMC joint, especially against dorsoradial subluxation during pinch and grip activities. The ligament acts as a checkrein, preventing excessive dorsal translation and rotation of the metacarpal on the trapezium. Degeneration or attenuation of this ligament is strongly associated with thumb CMC osteoarthritis (basal joint arthritis).

Synonyms

  • Beak ligament

  • Palmar oblique ligament of the thumb

  • Volar trapeziometacarpal ligament

Location and Structure

  • Joint: First carpometacarpal (CMC) joint of the thumb

  • Attachments:

    • Proximal attachment: Palmar tubercle of the trapezium

    • Distal attachment: Palmar beak (ulnar-volar aspect) of the base of the first metacarpal

  • Orientation: Obliquely oriented in a proximal-ulnar to distal-radial direction

  • Composition: Dense collagenous connective tissue with fibrocartilaginous enthesis at both ends

  • Thickness: Typically 2–4 mm, though varies with hand dominance and repetitive loading

  • Associated structures: Lies deep to the abductor pollicis longus tendon and superficial to the joint capsule

Relations

  • Anteriorly: Thenar muscles, especially flexor pollicis brevis and abductor pollicis longus tendons

  • Posteriorly: Articular surface of the trapezium and base of the first metacarpal

  • Medially: Adductor pollicis tendon

  • Laterally: Joint capsule and the lateral oblique ligament

  • Superiorly: Joint synovium and palmar fat pad

Function

  • Primary stabilizer: Prevents dorsal and radial subluxation of the first metacarpal during thumb motion

  • Joint constraint: Maintains congruence of the trapeziometacarpal joint under load

  • Dynamic balance: Works synergistically with dorsal and intermetacarpal ligaments

  • Grip and pinch control: Provides stability during key and tip pinch actions

  • Shock absorption: Distributes stress across the palmar base of the metacarpal during axial loading

Clinical Significance

  • Ligament degeneration: Common in early thumb CMC osteoarthritis, leading to dorsal subluxation

  • Ligament tear: Traumatic or degenerative tears cause pain, instability, and weakness in pinch grip

  • Chronic attenuation: Seen in repetitive overuse (texting, gripping, manual labor)

  • Surgical relevance: Reconstruction or repair (ligament reconstruction tendon interposition – LRTI) often targets this structure

  • Imaging role: MRI and CT arthrography are key for detecting partial tears, degeneration, and joint instability

MRI Appearance

T1-weighted images:

  • Ligament appears as a thin, low-signal (dark) band connecting the trapezium and first metacarpal base

  • Fat and muscle surrounding the ligament: bright on T1, improving contrast

  • Partial tear or degeneration: shows thickening and intermediate signal intensity

  • Complete tear: discontinuity or retraction of the low-signal band

T2-weighted images:

  • Normal ligament: low signal (dark) linear structure

  • Degeneration: intermediate-to-bright signal with irregular margins

  • Tear: hyperintense gap or wavy contour with surrounding joint effusion

  • Joint fluid: bright hyperintense signal delineating torn ligament edges

STIR:

  • Normal ligament: dark signal

  • Pathology: bright hyperintense signal indicating edema or partial tear

  • Useful for detecting associated bone marrow edema in metacarpal base or trapezium

Proton Density Fat-Saturated (PD FS):

  • Normal: low-signal, well-defined ligament band

  • Degenerative change or tear: focal or diffuse bright hyperintensity

  • Highlights small fluid collections and adjacent synovial thickening

  • Ideal for early detection of ligamentous microtears and CMC instability

T1 Fat-Sat Post-Contrast:

  • Normal ligament: minimal enhancement

  • Inflamed or torn ligament: peripheral or diffuse enhancement due to synovitis or scar formation

  • Enhancing periligamentous tissue may indicate active inflammatory arthropathy

MRI Arthrography Appearance

  • Intra-articular contrast outlines the CMC joint capsule and ligament margins

  • Normal ligament: remains as a continuous low-signal band, excluding contrast

  • Partial tear: contrast insinuates between ligament fibers or undercuts its attachment

  • Complete tear: contrast fills defect and extends between trapezium and metacarpal base

  • Degenerative attenuation: irregular ligament contour with contrast outlining frayed edges

  • Improves visualization of early osteoarthritic changes and subtle instability

CT Appearance

Non-Contrast CT:

  • Ligament itself not well visualized directly (soft-tissue density)

  • Indirect signs: subchondral sclerosis or marginal osteophytes at trapeziometacarpal joint

  • Chronic injury: flattening of metacarpal base and joint space narrowing

  • Small calcifications at ligament insertion may indicate chronic stress

Post-Contrast CT (standard):

  • Enhancing periligamentous soft tissues indicate inflammation or fibrosis

  • Joint capsule and articular surface changes better visualized in axial and coronal reconstructions

  • Useful in evaluating post-surgical reconstructions and joint prostheses

CT Arthrography Appearance

  • Contrast outlines the trapeziometacarpal joint cavity

  • Normal ligament: smooth low-density band preventing contrast leakage into soft tissues

  • Partial tear: focal contrast tracking along ligament fibers or beneath insertion

  • Complete tear: contrast extravasation between metacarpal base and trapezium

  • Degeneration: irregular contour and contrast pooling at ligament attachment sites

  • Excellent for assessing early CMC joint instability, small avulsion fragments, and associated cartilage defects

MRI images

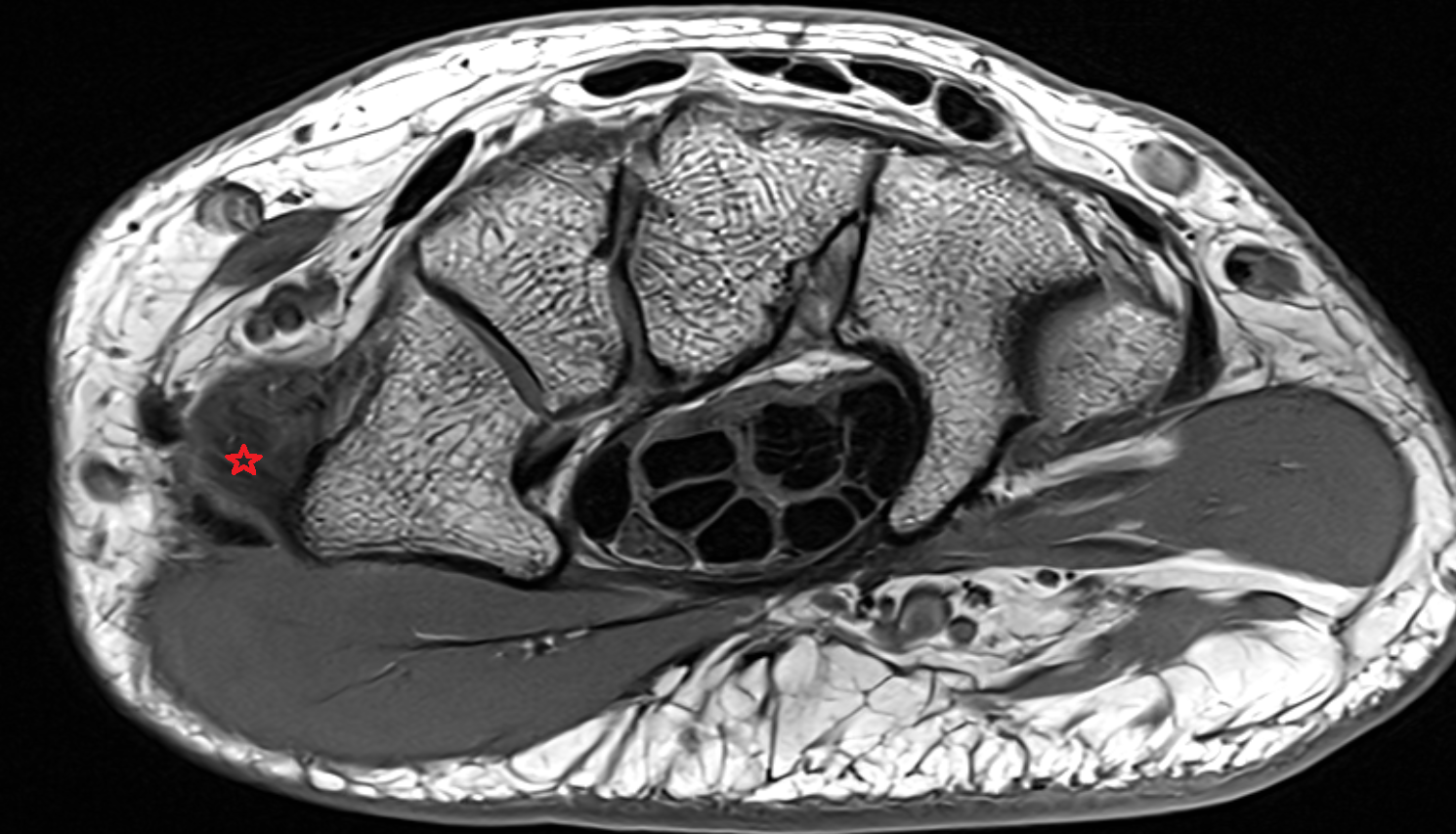

Anterior Oblique (Beak) Ligament axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

MRI images

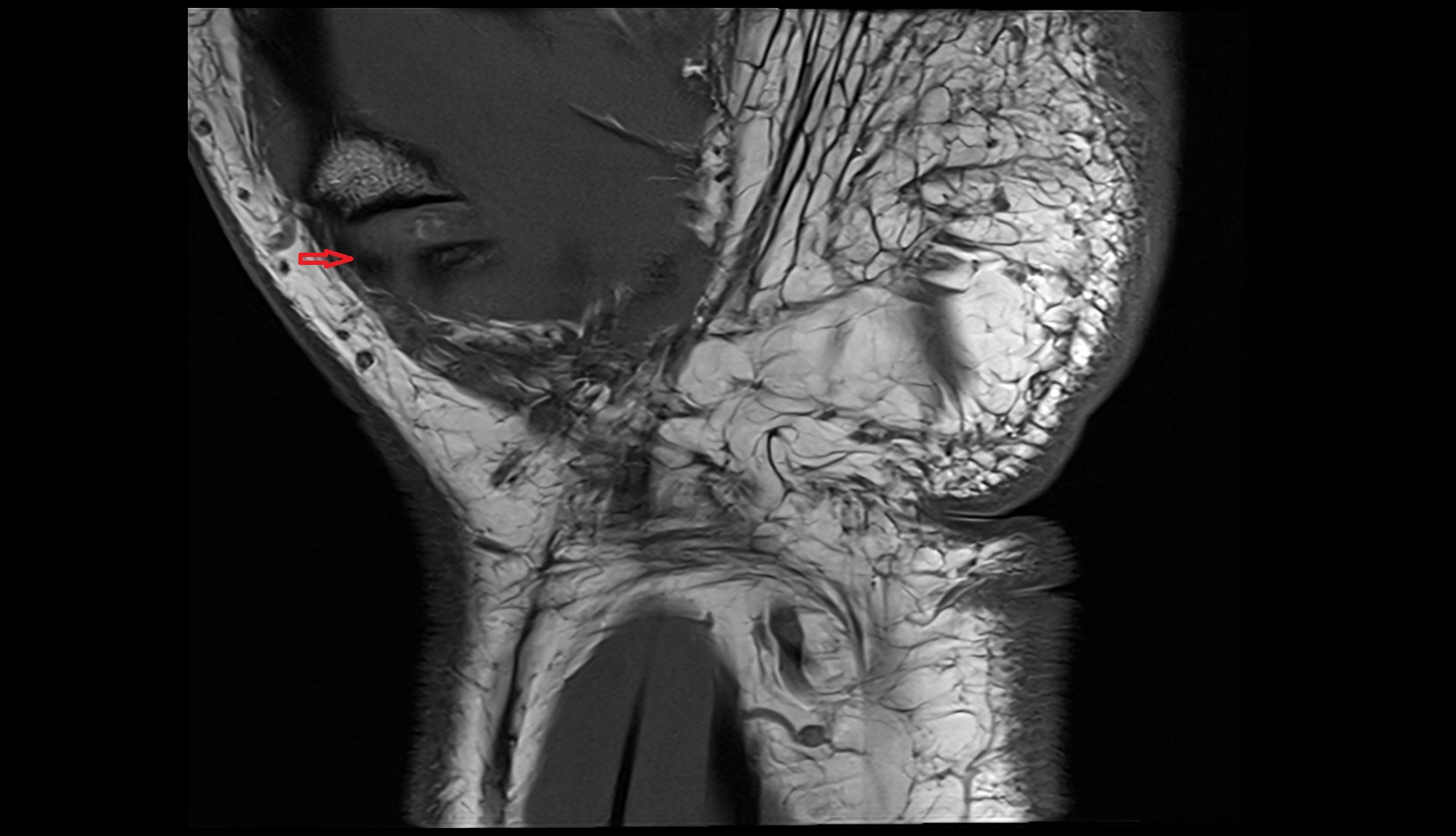

Anterior Oblique (Beak) Ligament CORONAL MRI image

MRI images

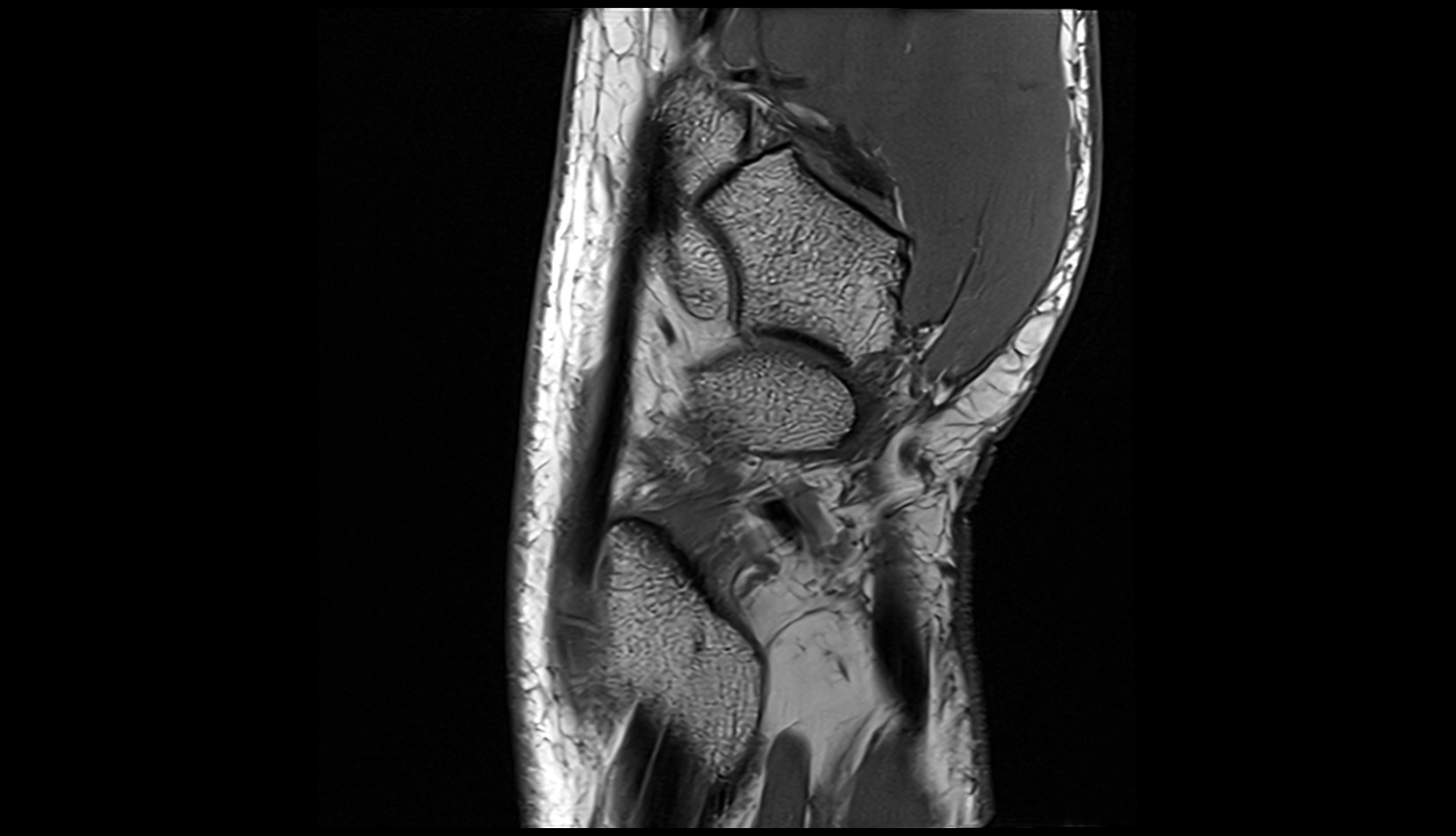

Anterior Oblique (Beak) Ligament sag image
