Anterior process of calcaneus

The anterior process of the calcaneus is a bony projection extending from the superior anterolateral aspect of the calcaneus. It articulates with the cuboid bone and supports the calcaneocuboid joint, forming part of the transverse tarsal joint. It also provides attachment for key stabilizing ligaments, making it an important structure in midfoot and hindfoot mechanics.

Fractures of the anterior process are often misdiagnosed as ankle sprains, but they can cause significant pain and instability if untreated.

Joints

  • Calcaneocuboid joint: Articulates with the cuboid anteriorly

  • Forms part of the transverse tarsal (Chopart) joint

Ligament Attachments

  • Bifurcate ligament: Strong Y-shaped ligament with two bands:

    • Calcaneonavicular part (to navicular)

    • Calcaneocuboid part (to cuboid)

  • Capsular ligaments: Reinforce calcaneocuboid joint capsule

Tendon and Muscle Relations

  • Inferiorly: Plantar fascia fibers extend near anterior calcaneus

  • Laterally: Extensor digitorum brevis muscle originates near the anterior process

  • Anteriorly/Superiorly: Close relation to extensor digitorum longus tendons crossing toward toes

Nerve Supply

  • Sural nerve: Lateral calcaneal branches provide cutaneous innervation nearby

  • Deep peroneal nerve: Contributes to articular innervation of calcaneocuboid joint

  • Tibial nerve (medial calcaneal branches): Minor articular supply

Arterial Supply

  • Lateral tarsal and arcuate branches of dorsalis pedis artery

  • Peroneal artery branches supply lateral calcaneus

  • Medial calcaneal branches of posterior tibial artery contribute anastomoses

Venous Drainage

  • Drains into lateral marginal vein, great and small saphenous veins

  • Deep drainage via peroneal and posterior tibial veins

Function

  • Contributes to stability of the calcaneocuboid joint

  • Provides ligament attachment site for bifurcate ligament stabilizing midfoot

  • Supports transverse tarsal joint mechanics during gait and weight transfer

Clinical Significance

  • Fractures: Often confused with ankle sprains; may result from inversion injuries

  • Avulsion fractures: Commonly involve bifurcate ligament pulling off the process

  • Symptoms: Pain, swelling, tenderness anterolateral to calcaneus; difficulty in push-off during gait

  • Chronic instability: May lead to midfoot arthritis if untreated

  • Imaging role: MRI and CT are critical for detecting fractures, avulsions, and joint involvement

MRI Appearance

  • T1-weighted images:

    • Normal marrow: intermediate-to-high signal depending on fat content

    • Cortical bone: low signal (dark rim)

    • Fractures: linear low-signal lines through process

    • Avulsion injuries: irregular low-signal cortical disruption with adjacent intermediate signal from soft tissue injury

  • T2-weighted images:

    • Normal marrow: intermediate to high signal depending on fat composition

    • Cortical bone: dark low-signal outline

    • Acute fracture or edema: bright hyperintense signal within marrow

    • Ligamentous avulsions: bright signal at bifurcate ligament attachment

  • STIR:

    • Normal: marrow suppressed, appears dark

    • Pathology: fractures, marrow edema, and ligament injuries appear bright hyperintense

  • Proton Density Fat-Saturated (PD FS):

    • Normal: homogeneous dark marrow with cortical rim low signal

    • Pathology: bright signal abnormalities indicating fracture lines, edema, or avulsions

  • T1 Fat-Sat Post-Contrast:

    • Normal: mild uniform enhancement of marrow

    • Pathology: enhancement at fracture edges or inflamed ligaments; non-enhancing necrotic fragments

MRI Arthrogram Appearance

  • Contrast outlines calcaneocuboid joint adjacent to anterior process

  • Avulsion or fracture: contrast extends into joint space or fracture line

  • Useful to differentiate intra-articular fractures from isolated extra-articular injuries

CT Appearance

Non-Contrast CT:

  • Provides excellent cortical detail

  • Normal: dense cortical bone with clear trabecular pattern

  • Fracture: sharply defined cortical disruption, comminution, or avulsed fragment

  • Helpful for differentiating true fracture from accessory ossicles (calcaneus secundarius)

CT Arthrogram Appearance:

  • Contrast outlines calcaneocuboid articulation

  • Intra-articular fractures: contrast penetration into fracture cleft

  • Improves detection of subtle avulsion and joint surface irregularities

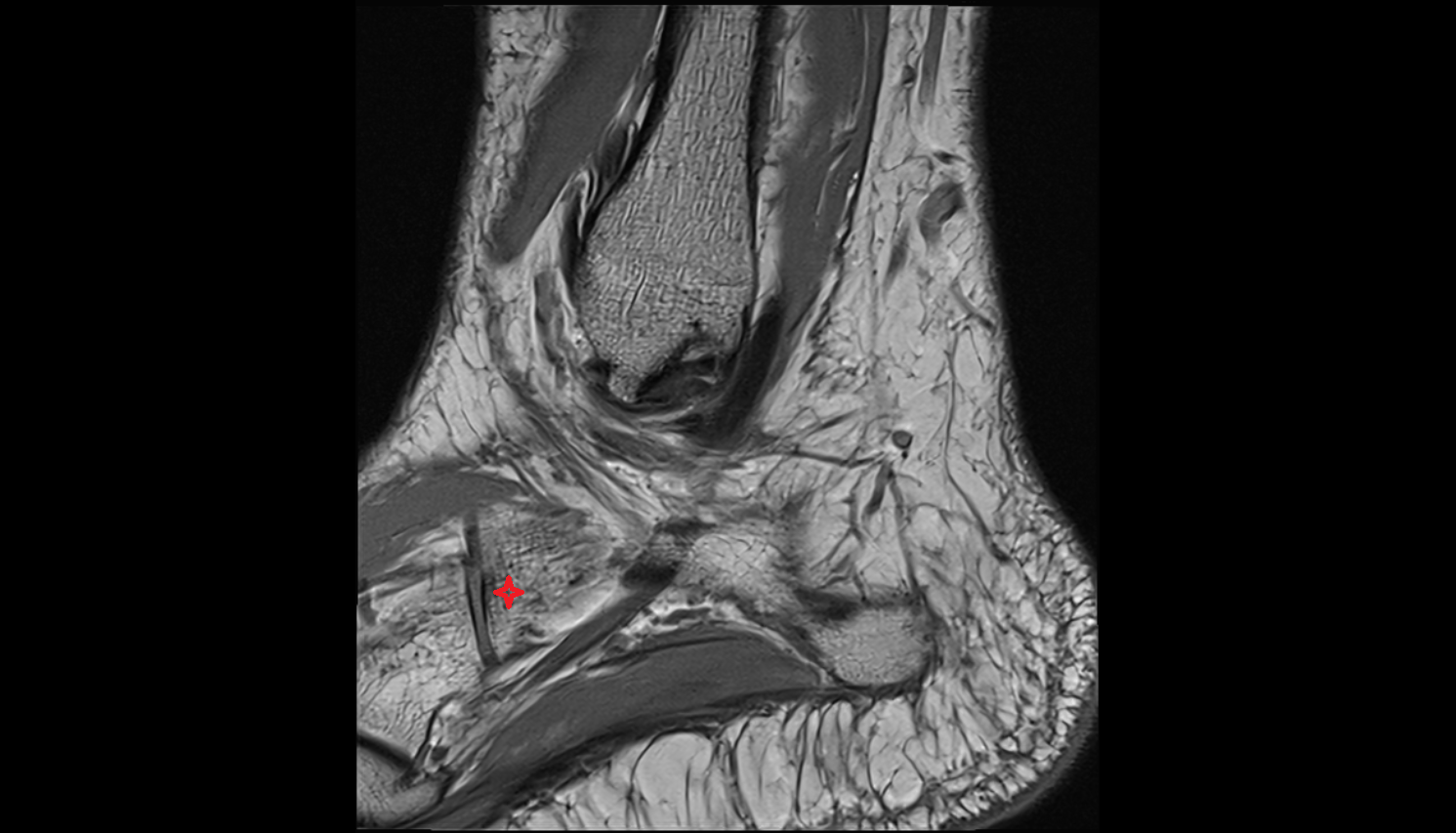

MRI image

Anterior process of calcaneus MRI cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

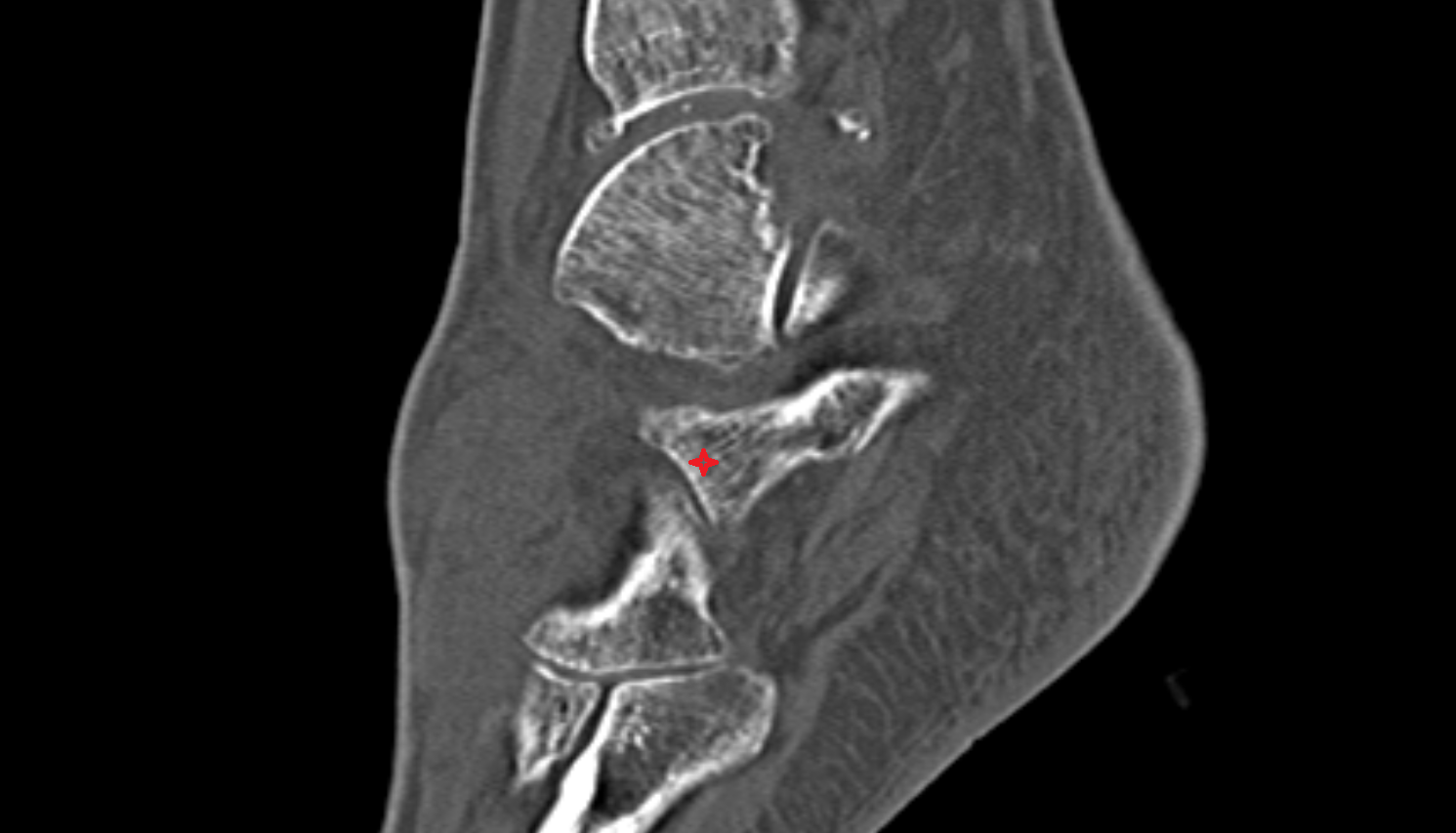

CT image
