Anterior tibial artery

The anterior tibial artery (ATA) is one of the two terminal branches of the popliteal artery, the other being the posterior tibial artery. It supplies blood to the anterior compartment of the leg, the dorsum of the foot, and contributes to the dorsalis pedis artery distally.

It is the first branch of the popliteal artery to arise after passing through the interosseous membrane, entering the anterior compartment to descend on the interosseous membrane between the tibialis anterior and extensor digitorum longus muscles. The ATA is clinically important as it is commonly evaluated in arterial occlusive disease, trauma, compartment syndrome, and vascular reconstruction procedures.

Synonyms

  • Anterior crural artery

  • Pre-tibial artery

Origin, Course, and Termination

  • Origin: From the popliteal artery at the lower border of the popliteus muscle in the posterior compartment of the leg

  • Course:

    • Passes anteriorly through the aperture in the interosseous membrane to enter the anterior compartment

    • Descends vertically along the anterior surface of the interosseous membrane

    • Lies between the tibialis anterior (medial) and the extensor digitorum longus (lateral) in the proximal leg

    • Distally, lies between the tibialis anterior and extensor hallucis longus, becoming more superficial as it approaches the ankle

  • Termination: Continues as the dorsalis pedis artery at the level of the ankle joint, midway between the malleoli

Relations

  • Superiorly: Popliteus muscle and interosseous membrane

  • Inferiorly: Anterior ankle joint and dorsalis pedis artery

  • Anteriorly: Deep fascia, tibialis anterior, and skin

  • Posteriorly: Interosseous membrane and posterior tibial vessels

  • Laterally: Deep fibular nerve in the upper leg

  • Medially: Tibialis anterior muscle

Branches

  • Posterior tibial recurrent artery

  • Anterior tibial recurrent artery

  • Muscular branches to tibialis anterior, extensor digitorum longus, and extensor hallucis longus

  • Anterior medial and lateral malleolar arteries near the ankle joint

  • Dorsalis pedis artery (terminal continuation)

Function

  • Primary arterial supply to the anterior compartment of the leg and dorsum of the foot

  • Provides nutritional blood flow to the tibia, fibula, and anterior musculature

  • Maintains collateral circulation around the knee and ankle

  • Serves as a pulse point at the ankle (dorsalis pedis pulse) for assessing peripheral arterial perfusion

Clinical Significance

  • Peripheral arterial disease (PAD): Common site for atherosclerotic stenosis in diabetic and vascular patients

  • Trauma: May be injured in tibial and ankle fractures or compartment syndrome

  • Ischemia: Occlusion leads to reduced perfusion of anterior compartment and foot

  • Surgical importance: Used in bypass grafting and flap reconstructions

  • Palpation site: Dorsalis pedis pulse—important for evaluating distal limb perfusion

  • Imaging relevance: Evaluated in angiography, MRI, MRA, and CTA for vascular pathologies

MRI Appearance

  • T1-weighted images:

    • Lumen appears flow void (dark) due to rapid blood flow

    • Vessel wall is thin and dark, surrounded by intermediate signal muscle

    • Adjacent fat: bright, enhancing vessel contrast

  • T2-weighted images:

    • Lumen remains dark (flow void)

    • In slow flow or thrombosis: may appear intermediate or hyperintense

    • Vessel wall: may show mild hyperintensity in inflammation or vascular injury

  • STIR:

    • Normal artery: signal void

    • Perivascular edema or inflammation: bright signal

  • Proton Density Fat-Saturated (PD FS):

    • Normal vessel: low signal lumen

    • Thrombosed or stenotic segment: intraluminal intermediate-to-bright signal

  • T1 Fat-Sat Post-Contrast (Axial):

    • Normal: strong enhancement of the vessel lumen after gadolinium contrast

    • Vessel wall and branches well delineated against suppressed fat

    • Useful for evaluating stenosis, aneurysm, or dissection

    • Post-contrast mural enhancement indicates arteritis or post-traumatic change

MRA (Magnetic Resonance Angiography) Appearance

  • Contrast-enhanced MRA: Produces brilliant enhancement of the anterior tibial artery and its branches

  • 3D MRA reconstructions provide detailed visualization of the course, stenosis, and collaterals

  • Ideal for detecting occlusions, aneurysms, and postoperative graft patency

CT Appearance

Non-Contrast CT:

  • Artery seen as a linear soft-tissue density between tibia and fibula

  • Vascular calcifications appear as dense linear opacities in chronic disease

  • Adjacent muscles show soft-tissue attenuation; vessel differentiation limited

Post-Contrast CT:

  • Artery shows bright contrast enhancement

  • Differentiates artery from veins and adjacent structures

  • Useful for detecting traumatic laceration, pseudoaneurysm, or dissection

CTA (CT Angiography) Appearance

  • Normal artery: well-opacified, smooth, and continuous lumen

  • High-resolution CTA demonstrates the entire arterial tree from popliteal bifurcation to dorsalis pedis

  • Stenosis: focal luminal narrowing with post-stenotic dilatation

  • Aneurysm: focal outpouching of the vessel wall

  • Thrombosis: intraluminal filling defect

  • Dissection: linear intraluminal flap separating true and false lumen

  • CTA also allows 3D volume-rendered images for surgical planning and vascular mapping

MRI images

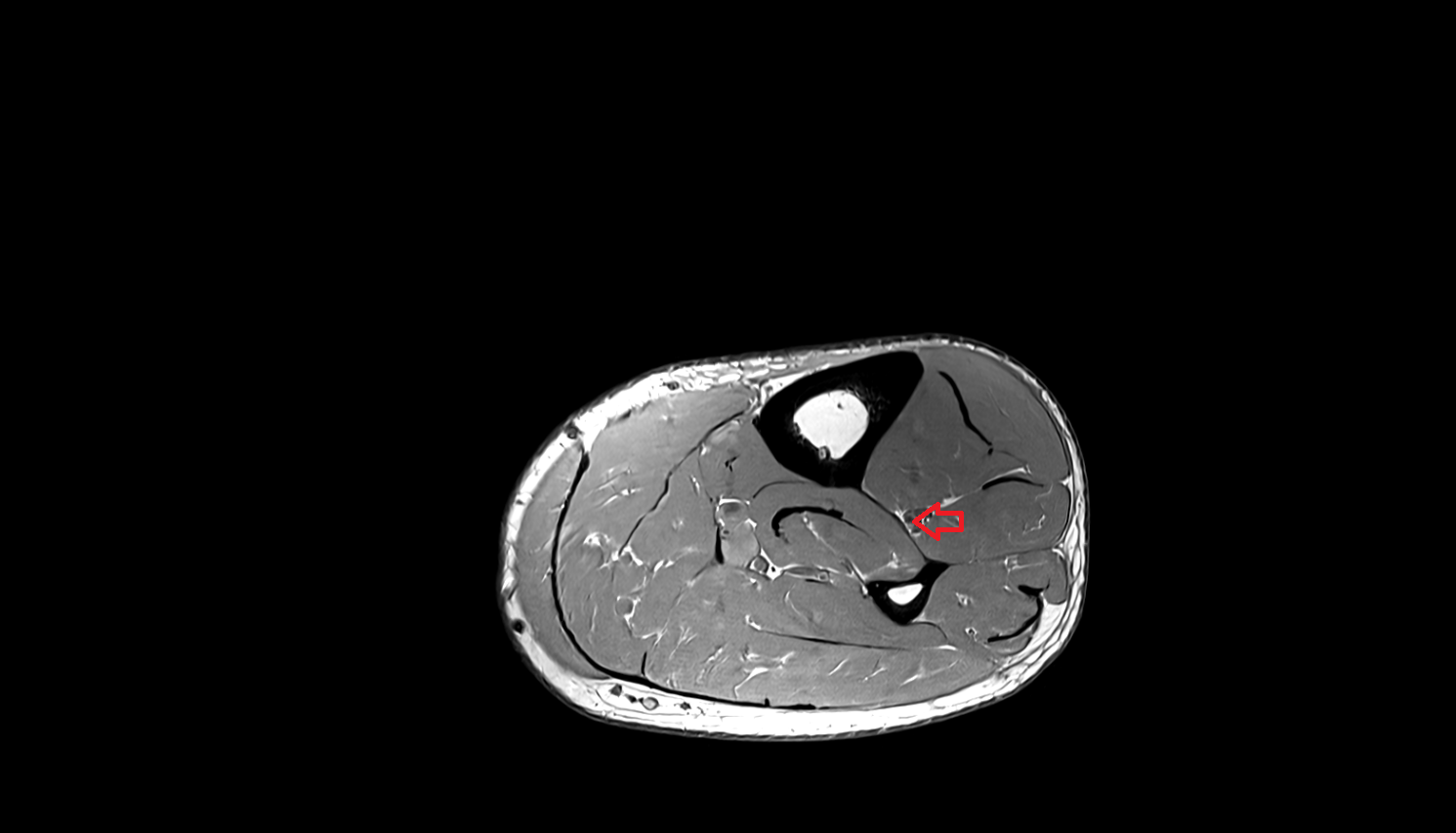

Anterior tibial artery axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000_00001

MRI images

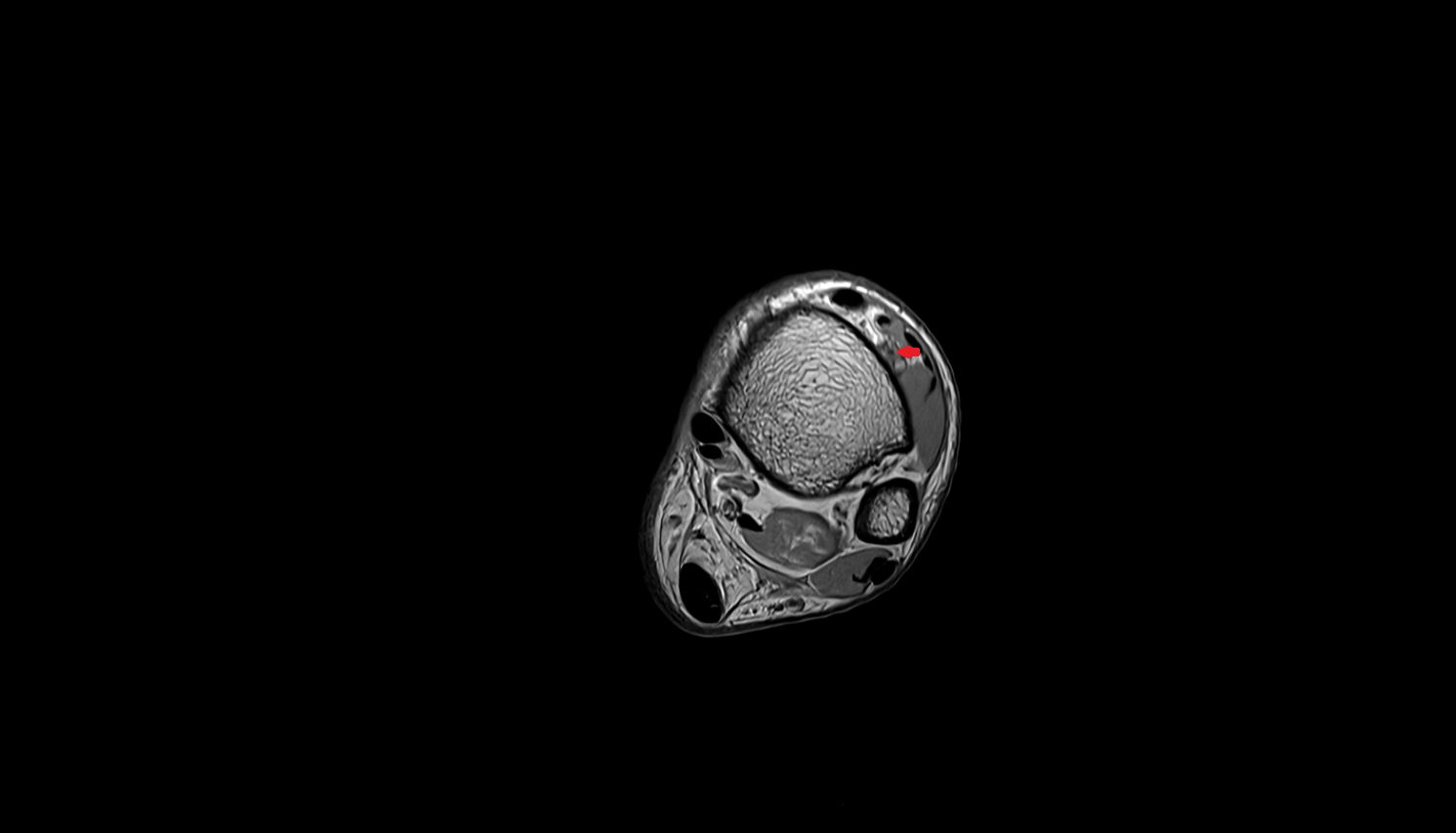

Anterior tibial artery axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000_00002

MRI images

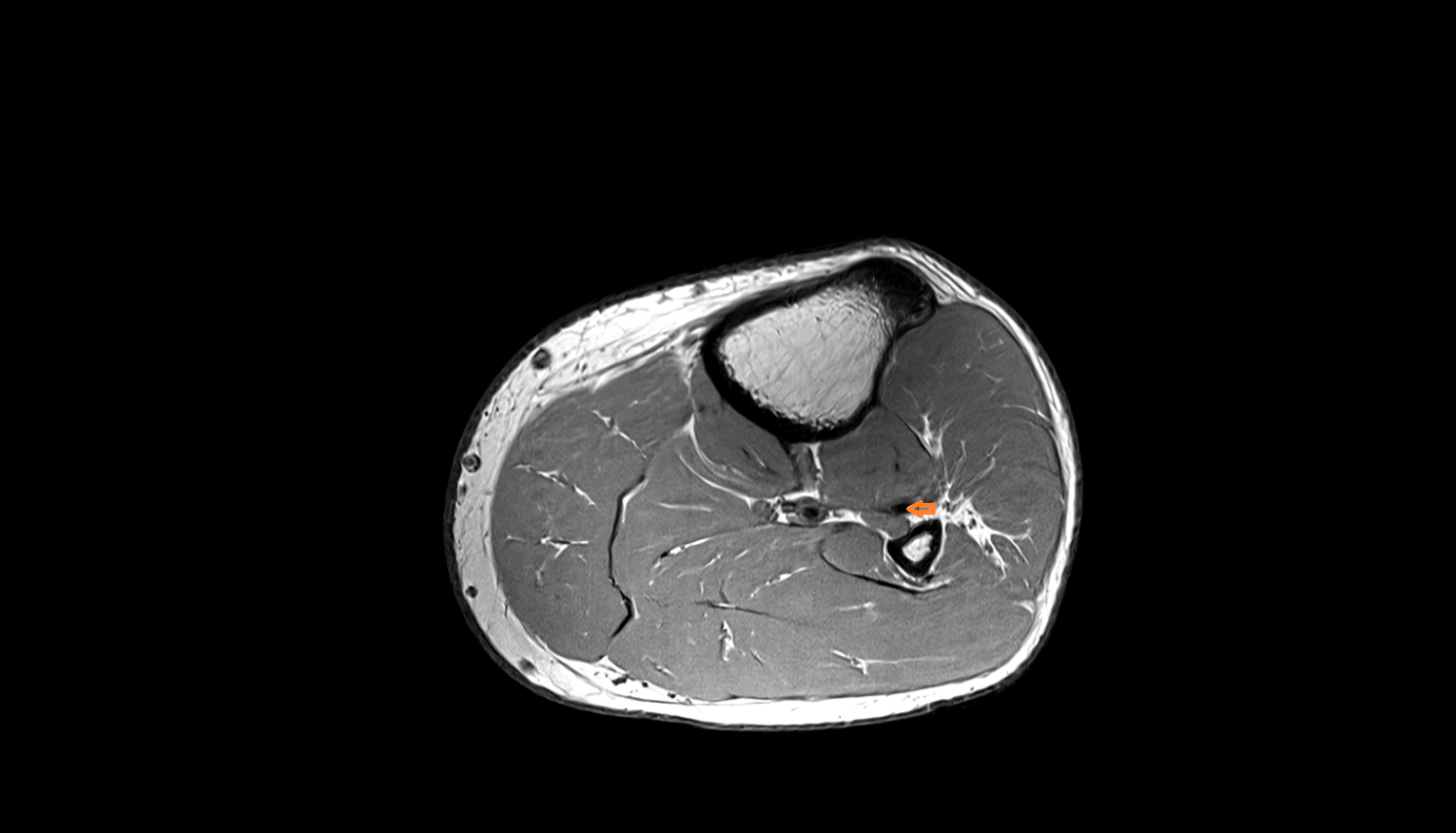

Anterior tibial artery axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

CT images

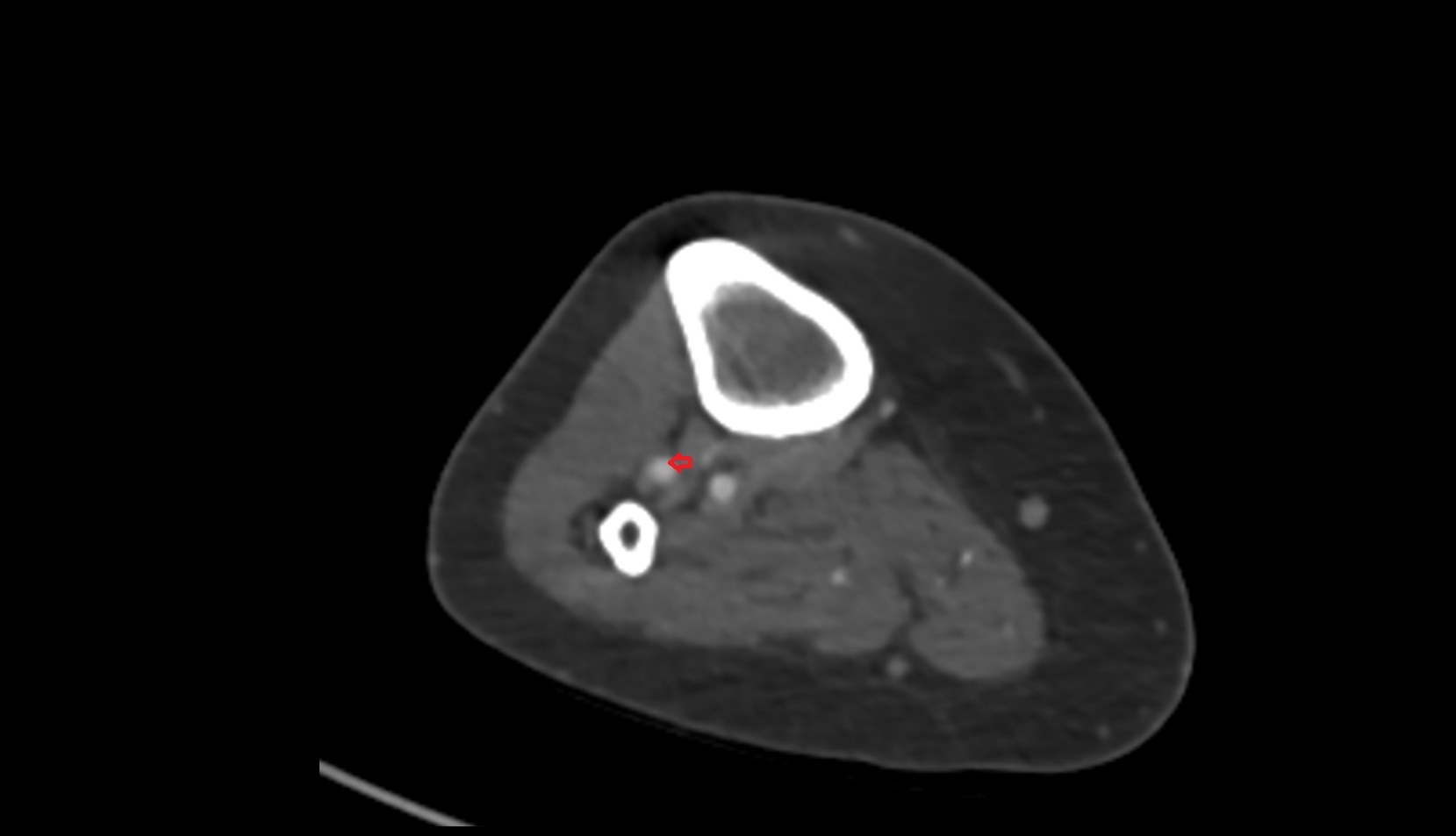

Anterior tibial artery ct axial 0

CT images

Anterior tibial artery ct axial 1

CT images

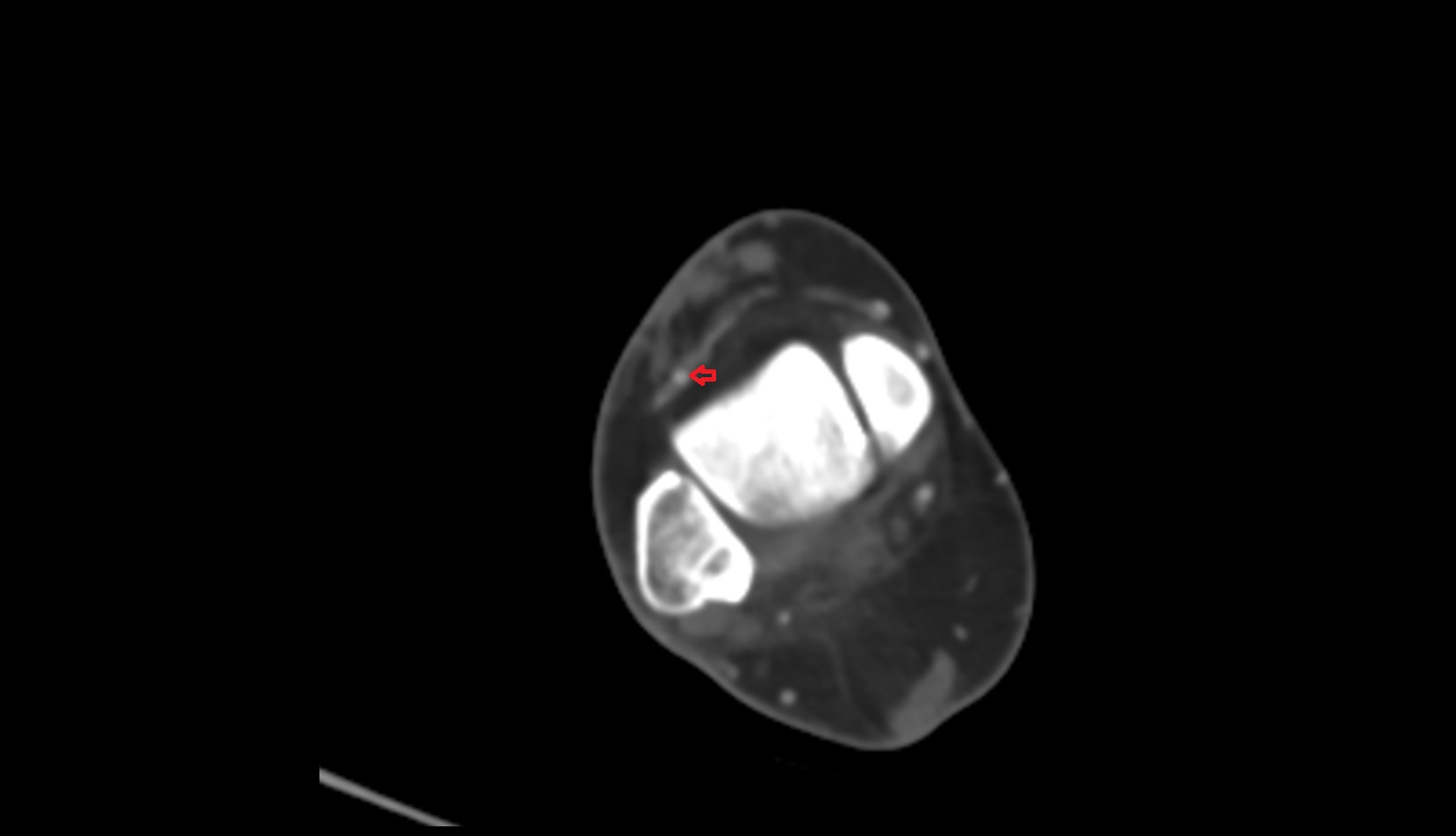

Anterior tibial artery ct axial 2

CT images

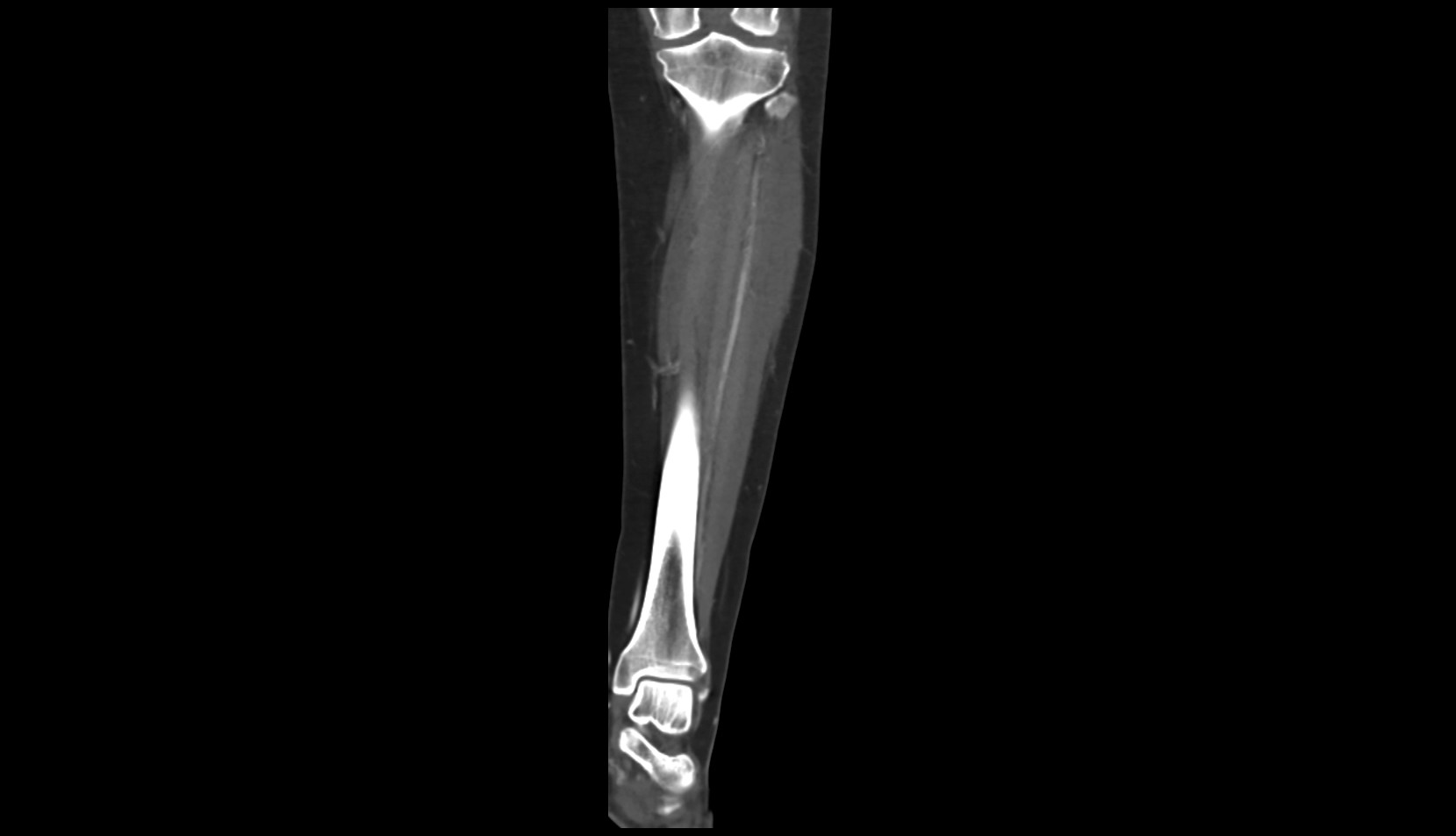

Anterior tibial artery ct coronal

CT images

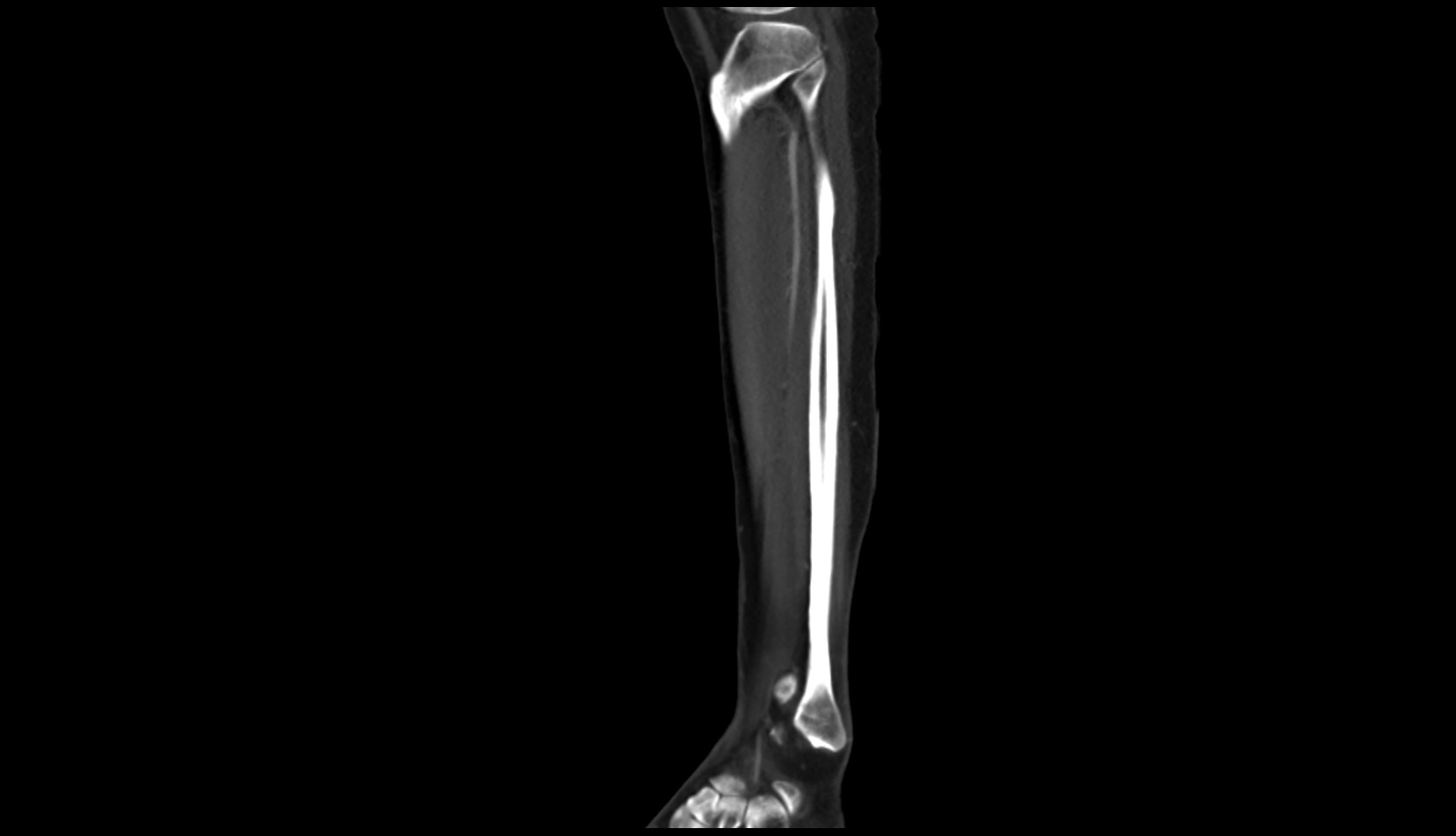

Anterior tibial artery ct sagittal image
