Anterior wall of acetabulum

The anterior wall of the acetabulum represents the anterolateral bony margin of the acetabulum formed mainly by the anterior ilium and the superior pubic ramus. It contributes to the acetabular rim, anterior joint stability, and articulation with the femoral head. It forms part of the anterior column described in acetabular fracture classification systems.

Its oblique orientation provides support to the anterolateral hip joint, guiding femoral head movement and forming the anterior boundary of the acetabular cavity. The anterior wall is clinically important in evaluating femoroacetabular impingement (FAI), anterior hip instability, and acetabular fractures.

Synonyms

  • Anterior acetabular rim

  • Anterior column rim

  • Anterosuperior acetabular wall

Location and Structure

  • Position: Anterior margin of the acetabulum extending from the acetabular notch inferomedially to the superior acetabular roof superolaterally.

  • Composition: Curved cortical bone forming the anterolateral boundary of the acetabulum.

  • Morphology:

    • Thick superiorly, thinner inferiorly

    • Contributes to anterior acetabular coverage of the femoral head

  • Development: Formed by contributions from ilium, pubis, and the triradiate cartilage (in youth).

Relations

  • Anteriorly: Iliopsoas tendon, iliacus muscle, psoas bursa

  • Posteriorly: Acetabular fossa and femoral head

  • Superiorly: Acetabular roof (superior dome)

  • Inferiorly: Acetabular notch and obturator foramen structures

  • Medially: Pelvic brim and quadrilateral surface

  • Laterally: Hip joint capsule, labrum, and femoral head–neck junction

Attachments

  • Capsular attachment: Hip joint capsule firmly attaches to the anterior rim

  • Labrum: The anterior acetabular labrum attaches along the margin

  • Ligamentous relations: Adjacent to the iliofemoral ligament

  • Musculotendinous proximity: Iliopsoas tendon crosses anteriorly

Function

  • Provides anterior containment of the femoral head

  • Supports hip joint stability in extension and external rotation

  • Contributes to load transmission across the hip joint

  • Acts as a structural element of the anterior acetabular coverage

  • Important landmark for orthopedic and arthroscopic hip procedures

Clinical Significance

  • Acetabular fractures: Anterior wall and anterior column fractures frequently assessed in trauma

  • FAI (pincer-type): Overcoverage of anterior wall may cause labral injury

  • Anterior hip instability: Occurs with deficient anterior wall

  • Arthroscopy: Landmark for portal placement and labral repair procedures

  • Degeneration: Early osteophyte formation may occur along the anterior rim

MRI Appearance

T1-weighted images:

  • Cortex: Low signal (dark)

  • Marrow of anterior wall: Bright due to fatty content

  • Labrum: Low signal triangular structure along rim

  • Joint capsule: Thin low-to-intermediate signal band anterior to acetabulum

  • Provides clear depiction of bone morphology

T2-weighted images:

  • Cortex: Dark signal

  • Bone marrow: Bright but slightly less than T1

  • Labrum: Low signal

  • Joint fluid: Very bright, outlining acetabular cavity and labrum

  • Distinguishes articular cartilage and subtle subchondral changes

STIR:

  • Bone marrow: Intermediate-to-dark signal

  • Adjacent soft tissues: Dark except fluid or edema

  • Highlights subtle pericapsular or marrow edema when present

  • Labrum remains low signal

T1 Fat-Saturated Post-Contrast:

  • Normal marrow: Mild uniform enhancement

  • Labrum: Minimal to no enhancement

  • Capsule: Thin, smooth enhancement

  • Synovium and surrounding soft tissue: Shows expected low-level enhancement

  • Outlines anatomic contours of anterior wall and adjacent structures

CT Appearance

Non-Contrast CT:

  • Cortex: High-density, sharply defined anterior acetabular rim

  • Marrow: Lower-density cancellous bone interior

  • Morphology: Excellent visualization of anterior wall thickness, tilt, and curvature

  • Articular surfaces: Smooth concave acetabular contour

  • Ideal for assessing fractures, structural abnormalities, and rim morphology

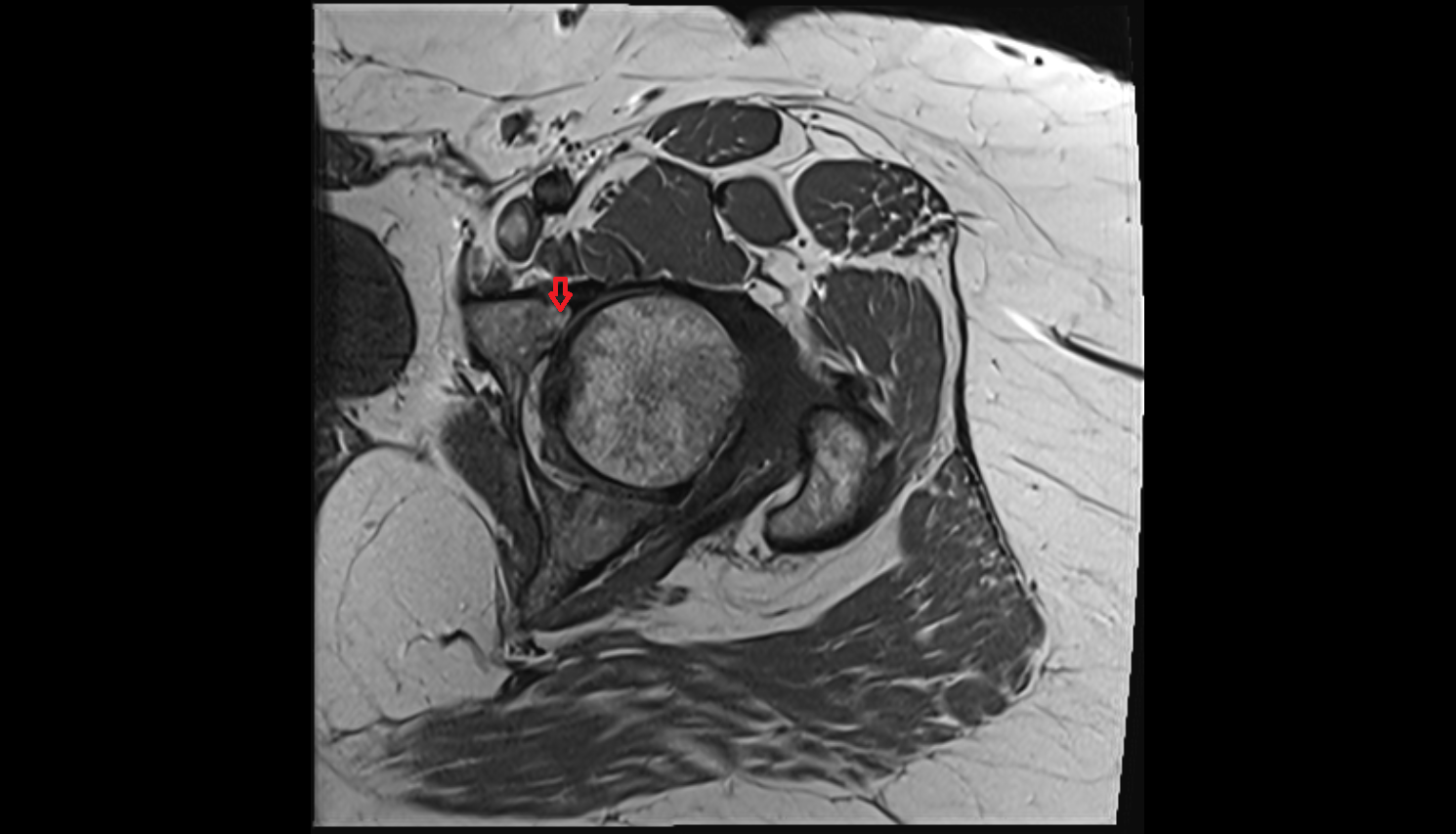

MRI image

anterior wall of acetabulum MRI axial image-img-00000-00000
