Anterolateral pontine vein

The anterolateral pontine vein is an important superficial venous channel of the pons that drains the anterolateral surface of the brainstem. It forms part of the pontine venous system and provides a key connection between intrinsic pontine veins and the major posterior fossa venous sinuses.

This vein is clinically relevant in posterior fossa surgery, vascular compression syndromes, venous thrombosis, and imaging interpretation, where it may be mistaken for pathology if its normal course is not recognized.

Synonyms

  • Anterolateral vein of the pons

  • Lateral pontine vein (used variably in literature)

Location

  • Located on the anterolateral surface of the pons

  • Courses along the lateral margin of the basilar part of the pons

  • Situated anterior to the middle cerebellar peduncle

  • Lies within the prepontine and cerebellopontine cisternal regions

  • Extends from the mid-pons toward the cerebellopontine angle

Anatomical components

  • Superficial pontine vein:

    • Thin-walled, valveless venous structure

  • Tributaries:

    • Drains small superficial and intrapontine veins

    • Receives blood from the anterolateral pontine surface

  • Venous continuity:

    • Forms part of the anterior pontomesencephalic and transverse pontine venous networks

Relations

Anteriorly:

  • Prepontine cistern

  • Basilar artery and pontine perforators

Posteriorly:

  • Pontine parenchyma

Laterally:

  • Middle cerebellar peduncle

  • Cerebellopontine angle cistern

Medially:

  • Basilar part of the pons

Superiorly:

  • Pontomesencephalic region

Inferiorly:

  • Lower pontine surface toward the pontomedullary junction

Venous drainage

  • Primary drainage pathways:

    • Superior petrosal vein or superior petrosal sinus

    • Petrosal venous complex

  • Alternative connections:

    • Anterior pontomesencephalic vein

    • Transverse pontine veins

  • Functional role:

    • Provides superficial venous outflow from the pons

    • Acts as a collateral pathway during venous flow redistribution

Function

  • Venous drainage of the pons: Removes deoxygenated blood from anterolateral pontine surfaces

  • Pressure modulation: Assists in balancing venous pressure within posterior fossa veins

  • Collateral circulation: Contributes to redundancy in brainstem venous drainage

Clinical significance

  • Surgical relevance: At risk of injury during cerebellopontine angle and petroclival approaches

  • Venous compression syndromes: Can contribute to neurovascular conflicts involving cranial nerves

  • Venous thrombosis: Rare; may lead to pontine venous congestion or edema

  • Imaging pitfall: May mimic enhancing nodules or vascular malformations if unrecognized

  • Tumor displacement: May be stretched or displaced by CPA tumors (e.g., vestibular schwannoma)

MRI appearance

T1-weighted images:

  • Normal vein: Low signal intensity or flow void

  • Slow flow: Isointense to mildly hyperintense signal

T2-weighted images (including 3T MRI):

  • Normal: Linear or curvilinear dark flow void along the anterolateral surface of the pons

  • Best seen at 3T: Improved spatial resolution enhances visualization

  • Abnormality: Loss of flow void or intraluminal hyperintensity suggests slow flow or thrombosis

FLAIR:

  • Normal: Typically inconspicuous due to flowing blood

Post-contrast T1-weighted images:

  • Normal: Linear or serpiginous enhancement corresponding to the venous lumen

CT appearance

Non-contrast CT:

  • Normal: Usually not visible

  • Thrombosis: Rare hyperdensity along venous course

Post-contrast CT / CT venography:

  • Normal: Enhancing linear venous structure in the cerebellopontine angle region

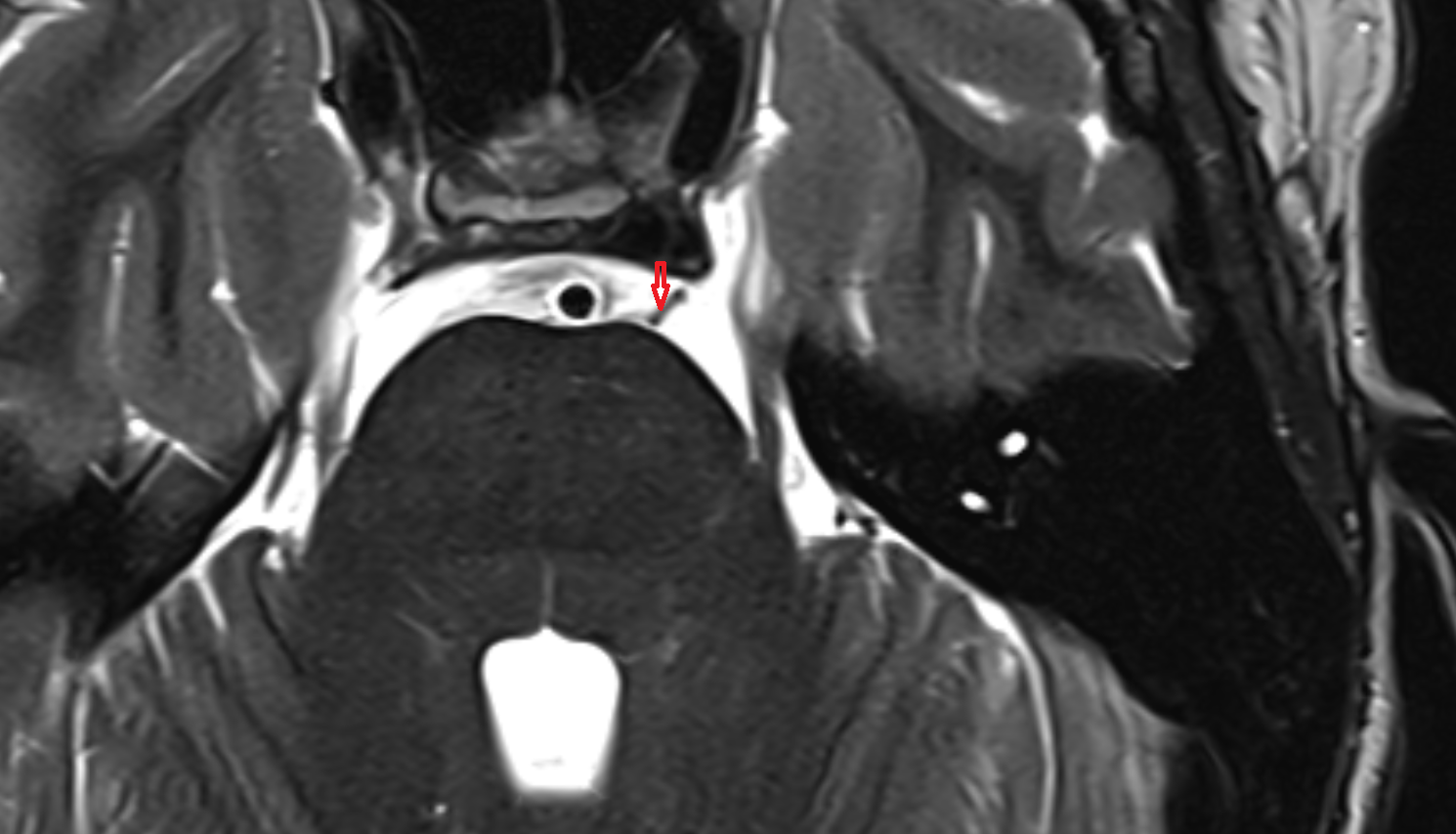

MRI image

MRI Anterolateral pontine vein axial anatomy image -img-00000-00000

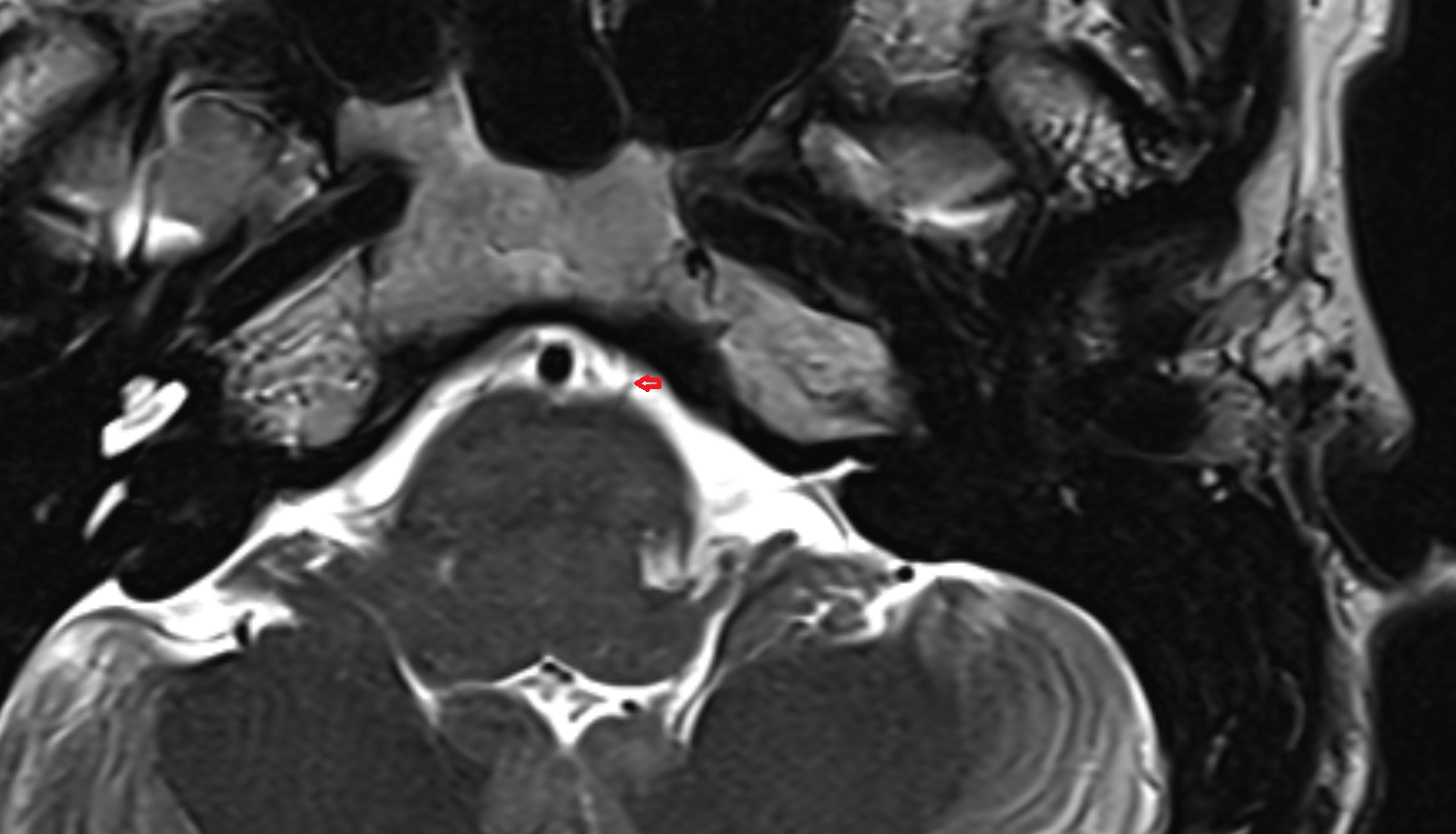

MRI image

MRI Anterolateral pontine vein axial anatomy image -img-00000-00000_00001
