Apical foramen

The apical foramen is the natural opening at the apex of the tooth root through which the neurovascular bundle enters and exits the pulp cavity. It represents the terminal communication between the pulp canal system and the periapical tissues and is essential for tooth vitality and nutrition.

Anatomically, the apical foramen is not always located exactly at the anatomic apex of the root; it may be positioned slightly eccentrically due to cementum deposition and root development. Its size and shape vary depending on age, tooth type, and degree of root maturation.

Synonyms

  • Apical opening of tooth

  • Root apex foramen

  • Apical canal opening

Location and Structure

  • Position: Located at or near the tip of the tooth root

  • Relation to apex: Often offset from the anatomic apex, especially in mature teeth

  • Shape: Usually round or oval; may be slit-like in some teeth

  • Size: Smallest in fully developed adult teeth; wider in immature teeth

  • Composition: Lined by cementum and continuous with dentin of the root canal

Relations

  • Internally: Continuous with the root canal system

  • Externally: Opens into the periapical periodontal ligament space

  • Surrounding structures: Cementum, alveolar bone, and periodontal ligament

  • Adjacent anatomy: Apical third of the tooth root

Function

  • Neurovascular passage: Allows entry and exit of blood vessels and nerves supplying the dental pulp

  • Nutrient exchange: Maintains pulp vitality through vascular communication

  • Developmental role: Plays a key role in root formation and maturation

  • Physiologic communication: Connects pulp space with periapical tissues

Clinical Significance

  • Endodontic relevance: Critical landmark for determining working length during root canal treatment

  • Root development: Wide and funnel-shaped in immature teeth

  • Age-related changes: May narrow or shift position due to cementum deposition

  • Imaging importance: Precise identification helps differentiate normal anatomy from periapical pathology

MRI Appearance

T1-weighted images:

  • Tooth structure (enamel and dentin): Low signal (dark)

  • Pulp canal approaching the apical foramen: Intermediate-to-bright signal due to soft tissue and fat content

  • Apical foramen itself: Appears as a tiny interruption in the low-signal root apex

  • Surrounding marrow of alveolar bone: Bright (fatty marrow)

T2-weighted images:

  • Tooth hard tissues: Low signal

  • Pulp canal and apical soft tissue: Bright signal

  • Apical foramen: Seen as a small hyperintense focus at the root tip corresponding to fluid-containing canal continuity

  • Periodontal ligament space: Thin hyperintense line

STIR:

  • Tooth hard tissues: Dark

  • Pulp tissue: Intermediate signal

  • Apical foramen and periodontal ligament: Intermediate-to-dark signal under normal conditions

  • Surrounding bone marrow: Suppressed (dark), allowing clear visualization of normal anatomy

T1 Fat-Saturated Post-Contrast:

  • Pulp tissue: Homogeneous mild enhancement reflecting normal vascularity

  • Apical foramen region: Subtle enhancement corresponding to normal neurovascular structures

  • Surrounding periodontal ligament: Thin linear enhancement

  • No abnormal focal enhancement at the root apex

CT Appearance

Non-Contrast CT:

  • Tooth enamel and dentin: Very high attenuation (hyperdense)

  • Root canal: Linear low-density channel within the root

  • Apical foramen: Appears as a small round or oval opening at the root apex

  • Periodontal ligament space: Thin low-attenuation line around the root

  • Alveolar bone: Normal trabecular pattern surrounding the apex

X-Ray Appearance (Periapical Radiograph)

  • Apical foramen: Not directly visualized due to small size

  • Root apex: Appears as a smooth tapered end of the root

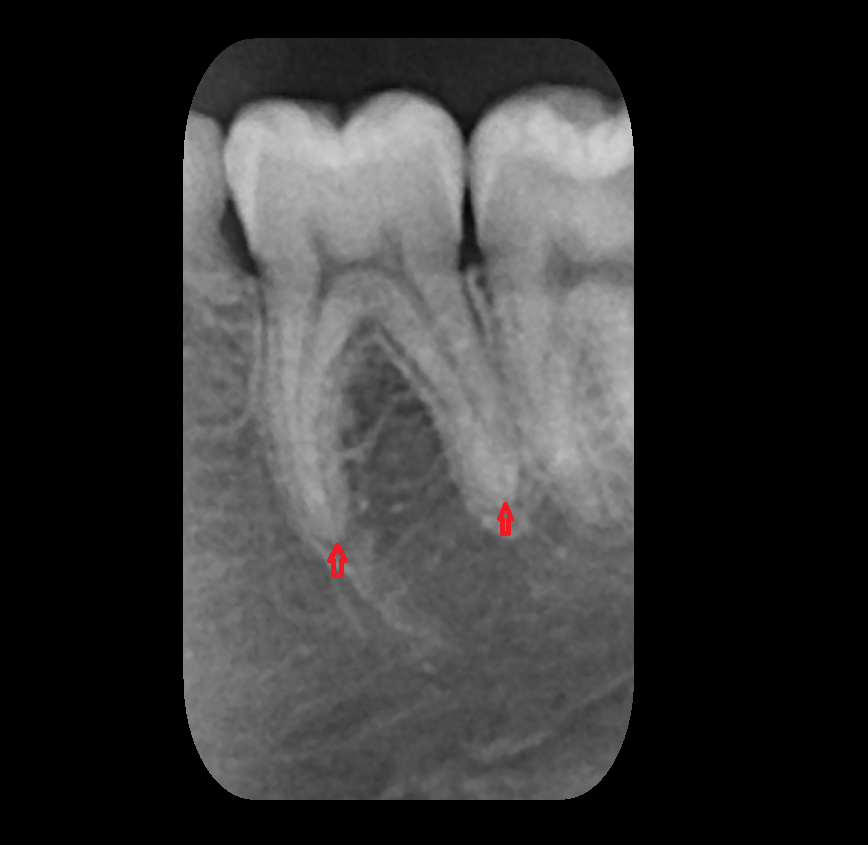

X ray image

Apical foramen
