Basilar venous plexus

The basilar venous plexus is a complex network of interconnected veins located on the clivus, posterior to the dorsum sellae and anterior to the brainstem. It forms an important venous communication system between intracranial dural venous sinuses and extracranial venous pathways, playing a key role in venous drainage of the posterior cranial fossa.

This plexus is clinically significant due to its role in venous outflow, intracranial pressure dynamics, and its relevance in skull base surgery, infection spread, thrombosis, and imaging interpretation.

Synonyms

  • Basilar venous plexus of the clivus

  • Clival venous plexus

Location

  • Located on the posterior surface of the clivus

  • Situated between layers of clival dura mater

  • Anterior to the pons and upper medulla

  • Posterior to the dorsum sellae

  • Extends from the cavernous sinus region superiorly to the foramen magnum inferiorly

  • Occupies the midline of the posterior cranial fossa

Anatomical components

  • Interconnecting venous channels:

    • Thin-walled, valveless veins

    • Arranged in a plexiform configuration

  • Venous communications:

    • Interconnects the paired inferior petrosal sinuses

    • Communicates with the internal vertebral venous plexus

  • Dural venous element:

    • Embedded within the meningeal layers of the clival dura

Relations

Anteriorly:

  • Clivus (basiocciput and basisphenoid)

Posteriorly:

  • Pons and upper medulla oblongata

Superiorly:

  • Cavernous sinuses

  • Posterior intercavernous sinus

Inferiorly:

  • Foramen magnum

  • Internal vertebral venous plexus

Laterally:

  • Inferior petrosal sinuses

  • Petrous apices of the temporal bones

Venous connections and drainage

  • Superior connections:

    • Inferior petrosal sinuses

    • Cavernous sinuses

  • Inferior connections:

    • Internal vertebral venous plexus

  • Functional role:

    • Provides collateral venous outflow

    • Equalizes venous pressure between cranial and spinal systems

Function

  • Venous drainage: Facilitates venous return from posterior cranial fossa structures

  • Pressure regulation: Acts as a capacitance system during intracranial pressure changes

  • Collateral circulation: Serves as an alternative pathway when major sinuses are compromised

  • Postural adaptation: Allows redistribution of venous flow with head and neck position

Clinical significance

  • Infection spread: Potential pathway between cavernous sinus and vertebral venous system

  • Venous thrombosis: Rare; may cause posterior fossa venous congestion

  • Skull base surgery: Important source of bleeding risk in clival or endoscopic approaches

  • Raised intracranial pressure: Engorgement may reflect venous hypertension

  • Tumor involvement: May be displaced or invaded by clival tumors (e.g., chordoma)

  • Imaging pitfall: Can mimic enhancing soft tissue if not correctly identified

MRI appearance

T1-weighted images:

  • Normal plexus: Flow voids or low-signal serpiginous structures

  • Slow flow: Isointense to mildly hyperintense signal

  • Thrombosis: Intermediate-to-high signal depending on stage

T2-weighted images:

  • Normal: Flow voids or low-to-intermediate signal

  • Slow or turbulent flow: Mild hyperintensity

  • Thrombosis or congestion: Hyperintense signal within venous channels

FLAIR:

  • Normal: Minimal visibility due to flowing blood

  • Pathology: Hyperintense signal in thrombosis or marked engorgement

Diffusion-weighted imaging (DWI):

  • Normal: No diffusion restriction

  • Acute thrombosis: Possible restricted diffusion

  • Secondary effects: Adjacent brainstem restriction if venous infarction develops

Post-contrast T1-weighted images:

  • Normal: Linear or plexiform enhancement along the clivus

  • Venous engorgement: Prominent homogeneous enhancement

  • Thrombosis: Filling defects or heterogeneous/non-enhancement

CT appearance

Non-contrast CT:

  • Normal: Often inapparent or subtle soft-tissue density along the clivus

Post-contrast CT / CT venography:

  • Normal: Enhancing venous plexiform channels

  • Engorgement: Prominent enhancement

  • Thrombosis: Filling defects or asymmetric non-opacification

MRI images

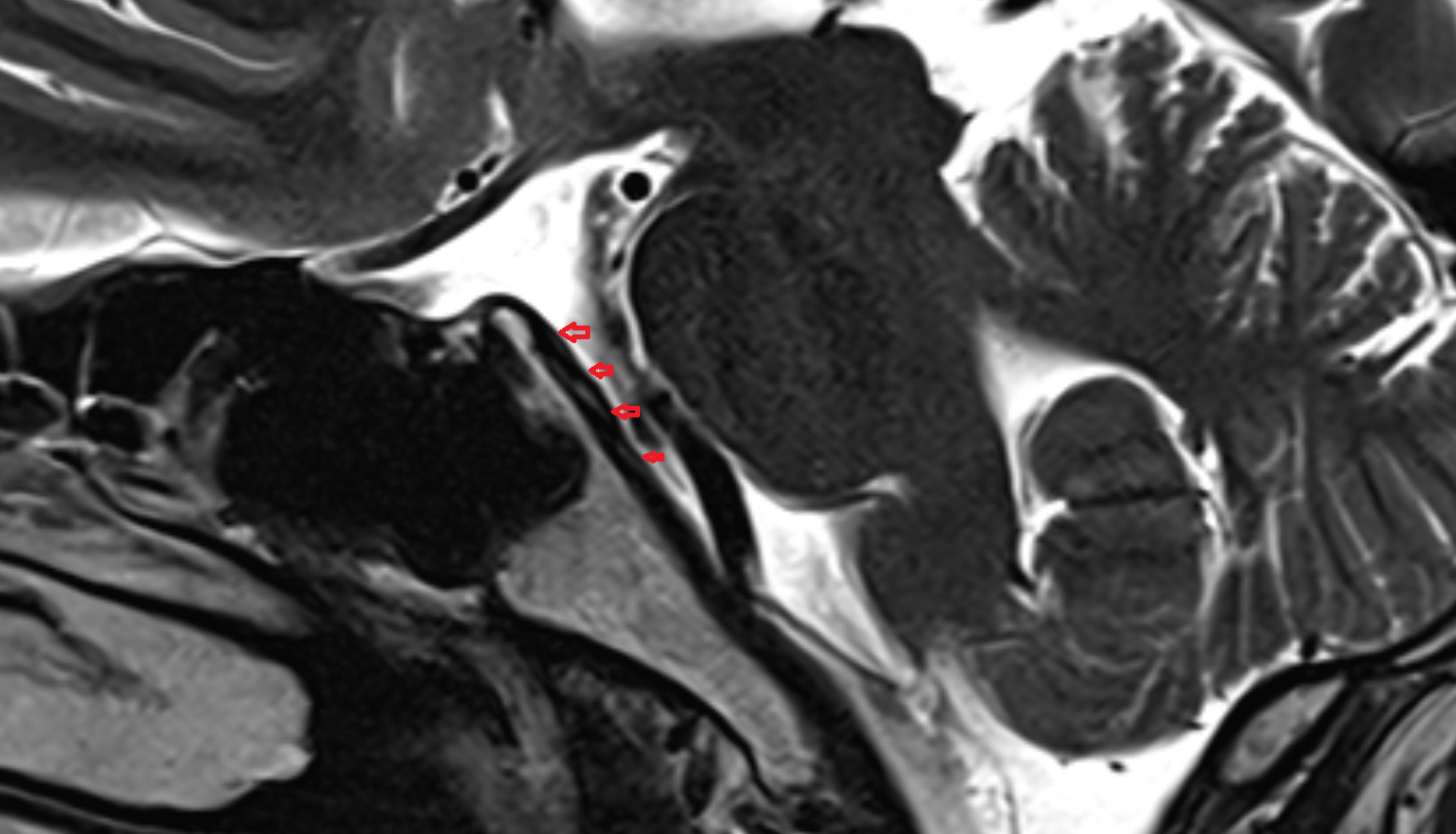

mri Basilar venous plexus sag anatomy image -img-00000-00000

CT images

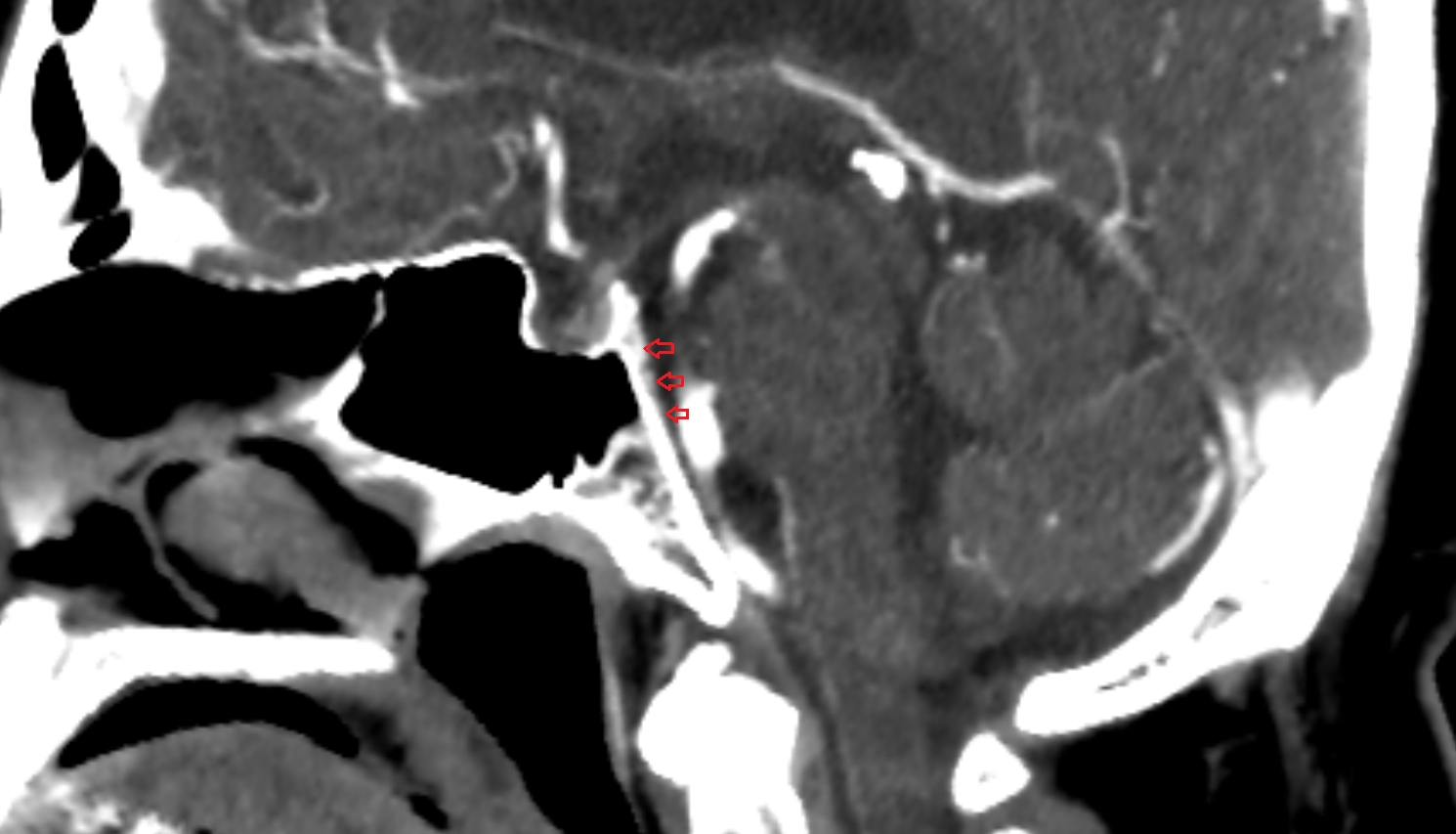

CT Basilar venous plexus sag anatomy image -img-00000-00000
