Basivertebral veins

The basivertebral veins are large venous channels within the vertebral bodies, forming a crucial part of the internal vertebral venous plexus. They originate from small venules in the spongy bone of the vertebral body, converge into larger veins that pass through the basivertebral foramen (nutrient foramen), and drain posteriorly into the anterior internal vertebral venous plexus.

They have no valves, allowing bidirectional blood flow. This feature makes them an important route for collateral circulation and a potential pathway for the spread of infections, metastases, or emboli within the spine and into the cranial cavity (via Batson’s plexus).

Anatomically, they are most prominent in the lumbar vertebrae, but are present throughout the vertebral column. They course through the trabecular bone of the vertebral body, with a distinctive H- or Y-shaped appearance when filled with contrast on imaging.

Synonyms

  • Vertebral body veins

  • Venous foramina veins

  • Basivertebral venous plexus

Function

  • Drain venous blood from the vertebral bodies into the internal vertebral venous plexus

  • Provide collateral venous pathways between thoracic, abdominal, and cranial venous systems

  • Permit bidirectional venous flow due to lack of valves

  • Clinical significance: route for spread of infection, metastasis, and increased venous pressure transmission

Venous Drainage

  • Into the anterior internal vertebral venous plexus

  • Connections to external vertebral venous plexus, azygos system, pelvic veins, and cranial venous sinuses via Batson’s plexus

MRI Appearance

T1-weighted images:

  • Basivertebral vein channels appear as linear or H-shaped hypointense areas within vertebral bodies

  • Marrow fat provides background hyperintensity

T2-weighted images:

  • Veins appear as linear hypointense channels

  • Adjacent marrow hyperintensity helps define their course

  • Pathology (tumor invasion, inflammation) may obscure or distort venous channels

STIR:

  • Suppresses fat, increasing conspicuity of the low-signal venous channels

  • Enhances visualization of edema, infection, or tumor infiltration around veins

T1 Post-Gadolinium (Gd-enhanced MRI):

  • Basivertebral veins may enhance, showing H-shaped enhancing structures within vertebral bodies

  • Useful in distinguishing normal venous anatomy from marrow pathology

MRI Non-Contrast 3D Imaging:

  • Depicts the venous channels and foramina within vertebral bodies

  • Helpful in surgical planning or evaluating abnormal flow patterns

CT Appearance

Non-contrast CT:

  • Basivertebral foramina appear as radiolucent channels within the posterior aspect of vertebral bodies

  • Can mimic lytic lesions if misinterpreted

CT Post-Contrast (CT Venography):

  • Basivertebral veins enhance as linear or branching structures within vertebral bodies

  • Distinguishes veins from pathological lytic lesions

  • Important in mapping venous drainage pathways and collateral channels

MRI images

Basivertebral veins MRI axial image

MRI images

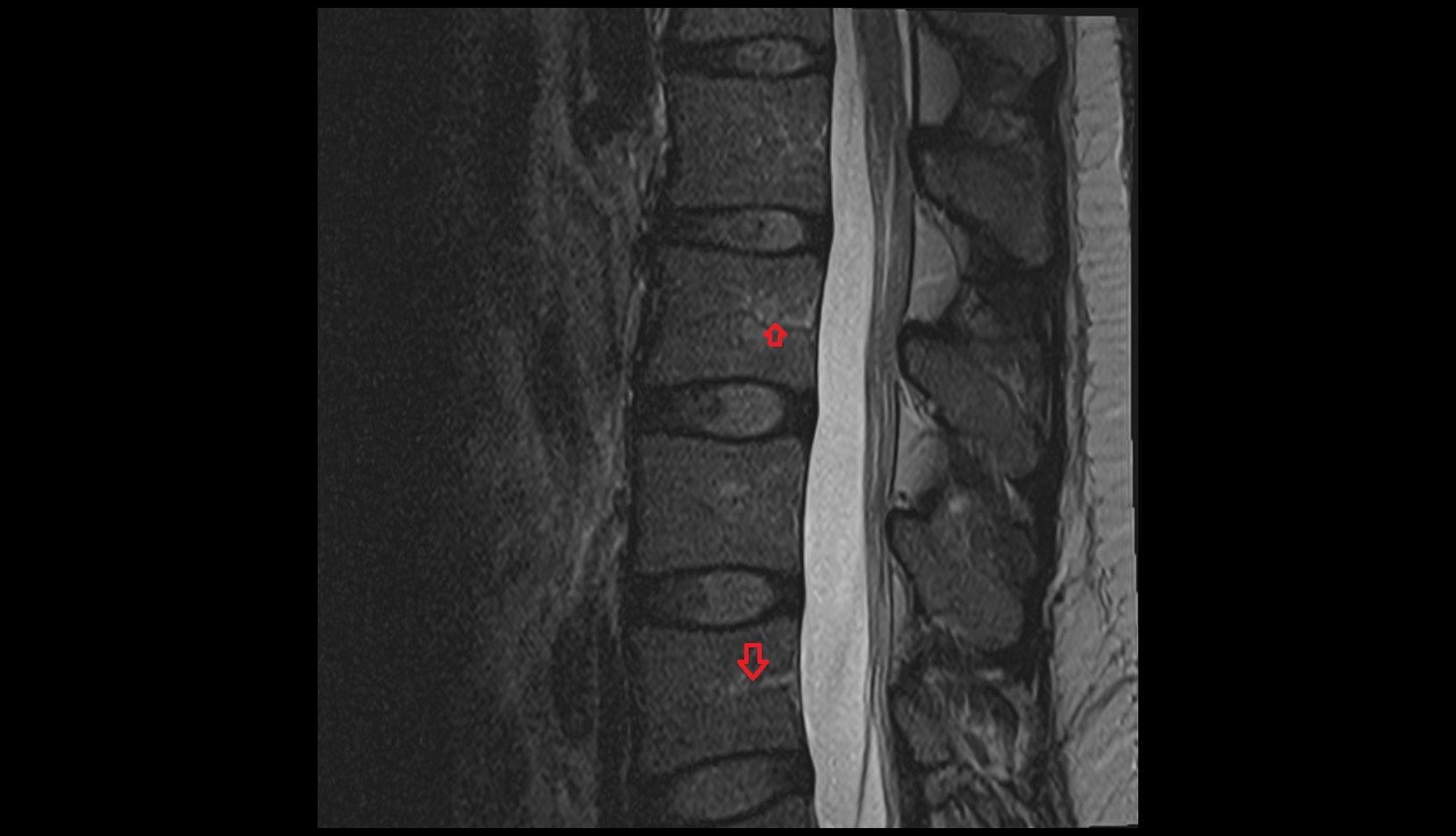

Basivertebral veins SAGITTAL MRI IMAGE

CT image

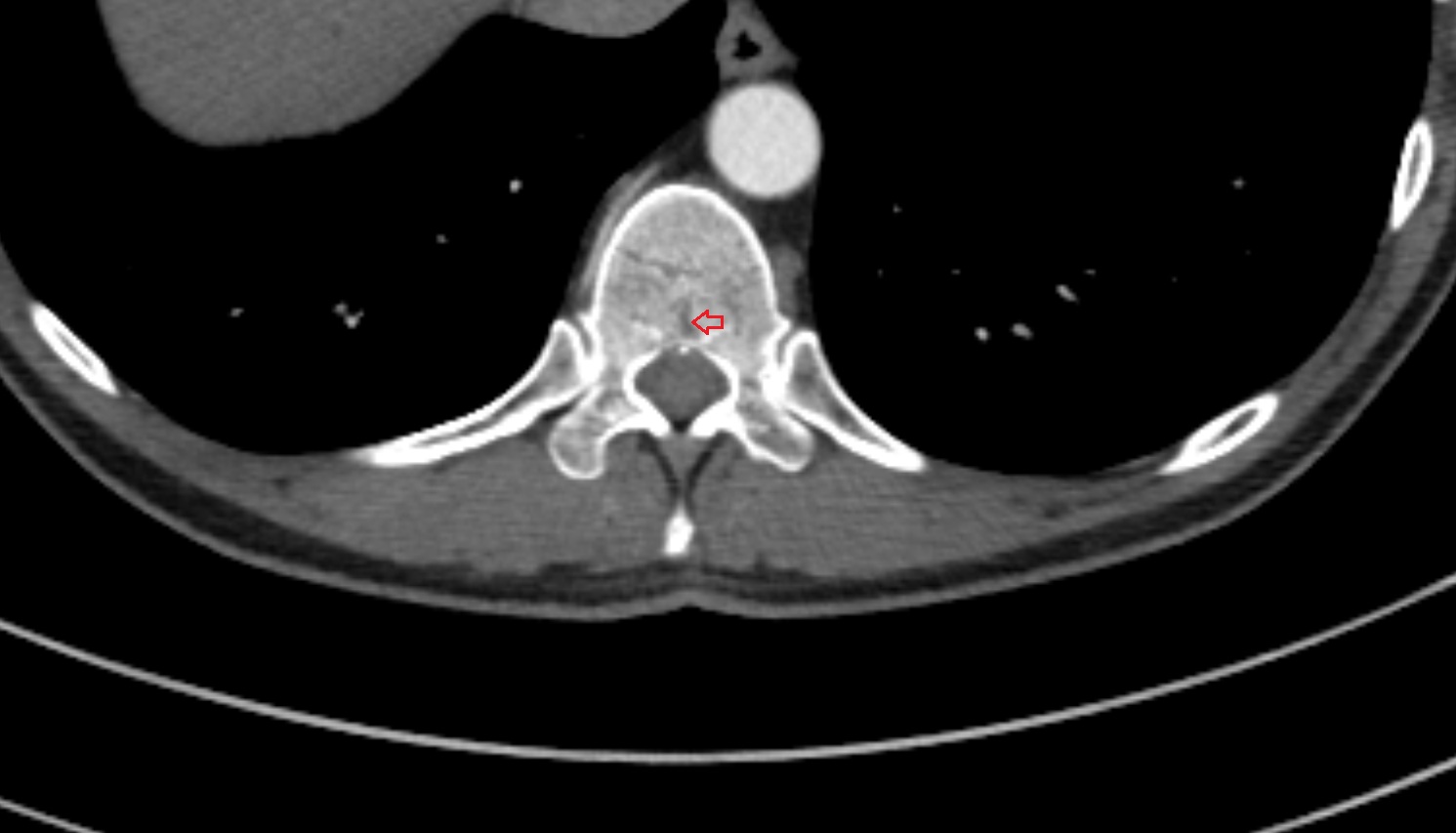

Basivertebral veins CT axial image -img-00000-00000

MRI image

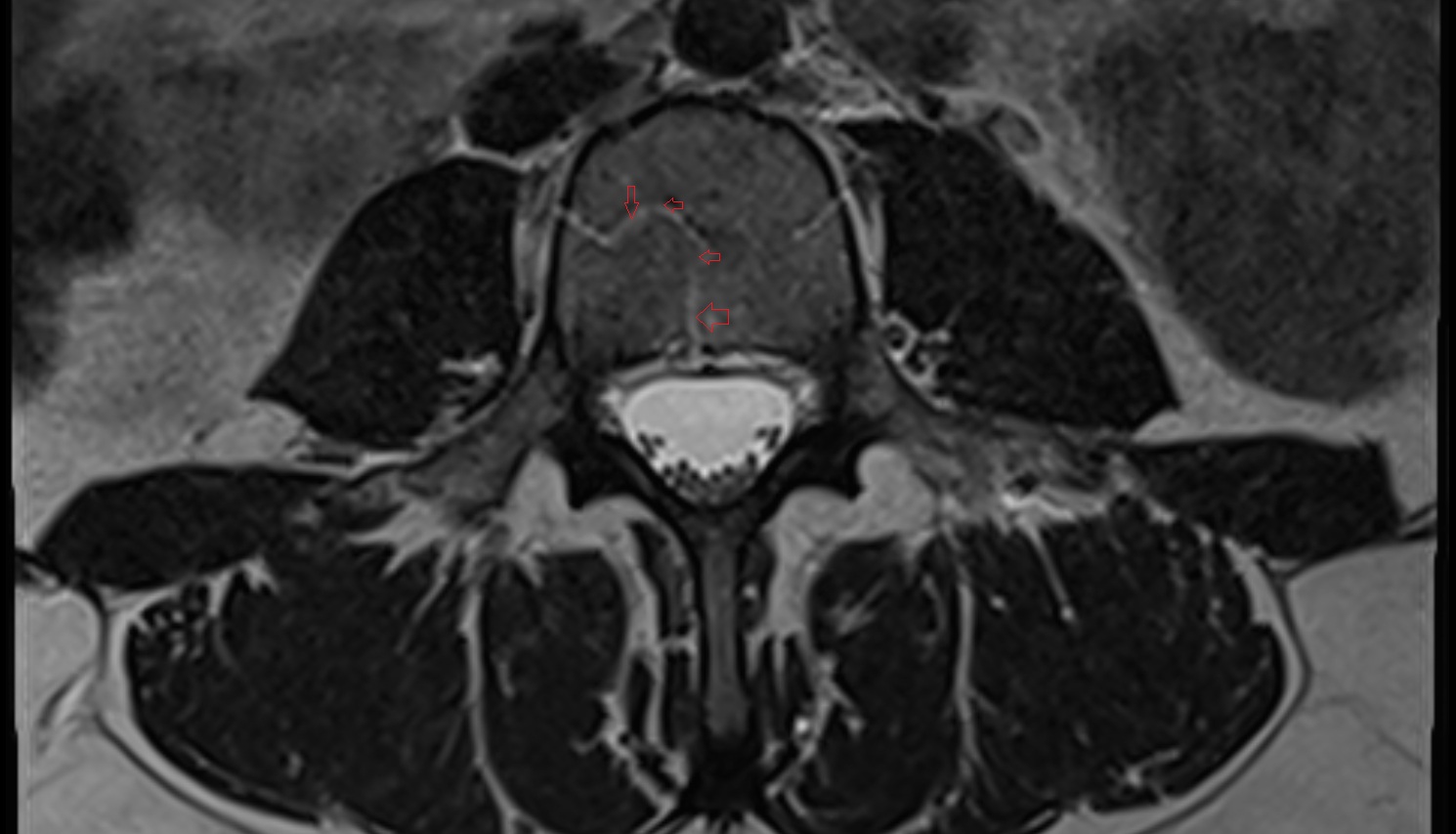

Basivertebral veins mri axial anatomy image-img-00000-00000
