Bile duct serving liver segment I

The bile duct of liver segment I (caudate lobe) is a small but clinically important duct that drains bile from the caudate lobe into the main biliary system. Unlike other hepatic segments, the caudate lobe (segment I) has a variable and independent biliary drainage pattern, often emptying directly into the right or left hepatic duct, or occasionally into the confluence itself.

Understanding its anatomy is critical in liver transplantation, hepatic resections, and cholangiographic interpretation, since unrecognized caudate ducts may be injured or obstructed, leading to bile leaks or strictures.

Synonyms

  • Caudate lobe bile duct

  • Segment I duct

  • Biliary drainage of caudate lobe

Origin, Course, and Drainage

  • Origin: Arises from bile canaliculi and intrahepatic ducts within segment I (caudate lobe)

  • Course:

    • Runs short and variable, often coursing posteriorly toward the hepatic hilum

    • May join the left hepatic duct, right hepatic duct, or directly drain into the common hepatic duct near the hilum

  • Drainage:

    • Most frequently drains into the left hepatic duct (60–70%)

    • Less often drains into the right hepatic duct or the biliary confluence (20–30%)

    • Rarely drains directly into the common hepatic duct

Relations

  • Anteriorly: Caudate process and portal vein bifurcation

  • Posteriorly: Inferior vena cava

  • Superiorly: Ligamentum venosum

  • Inferiorly: Hilum of the liver and bile duct confluence

Function

  • Collects and drains bile specifically from the caudate lobe (segment I)

  • Maintains bile flow into main extrahepatic ducts

  • Plays a crucial role in surgical planning for segmental liver resections and transplantations

Clinical Significance

  • Anatomic variation: Highly variable drainage pattern; must be carefully mapped preoperatively with MRCP or intraoperative cholangiography

  • Bile leaks: Risk after caudate lobectomy if segment I duct is not identified and ligated

  • Strictures/obstruction: Small caliber makes it susceptible to unnoticed obstruction leading to localized cholestasis

  • Transplant relevance: Essential in living donor liver transplantation where bile duct anastomosis may require reconstruction of segment I ducts

MRI Appearance

T1-weighted images:

  • Duct lumen: low signal intensity

  • Wall: thin, barely perceptible

T2-weighted images:

  • Duct lumen: bright high signal intensity due to bile fluid

  • Wall: thin hypointense line

STIR (Short Tau Inversion Recovery):

  • Bile within duct: bright signal intensity

  • Fat around hilum: suppressed (dark), improving duct conspicuity

T1 Fat-Sat Post-Contrast:

  • Normal duct: minimal enhancement of wall

  • Pathology (inflammation, stricture, tumor): wall thickening or irregular enhancement

T2 Fat-Saturated HASTE:

  • Duct lumen: very bright high signal intensity

  • Excellent for rapid survey of biliary drainage

  • Obstruction or stones: appear as dark filling defects

T2 TSE Fat-Saturated 3D (MRCP):

  • Segment I duct visualized as a small, bright tubular branch connecting to left, right, or common hepatic duct

  • Allows 3D reconstruction of biliary anatomy and detection of drainage variants

Thick-slab T2 Fat-Saturated HASTE:

  • Duct appears bright on projectional image

  • Useful for identifying drainage into confluence or left hepatic duct in one overview slice

  • Filling defects (stones, sludge): dark areas within bright duct fluid

CT Appearance

Non-Contrast CT:

  • Normally not visible unless dilated

  • Appears as a tiny low-attenuation tubular structure at hilum if enlarged

Post-Contrast CT:

  • Duct lumen: remains low attenuation (fluid density)

  • Duct wall: may show minimal enhancement

  • Pathology (strictures, cholangiocarcinoma): appear as irregular wall thickening or enhancing nodules near hilum

  • Dilated segment I duct may appear as small tubular low-density structure near left or right hepatic duct

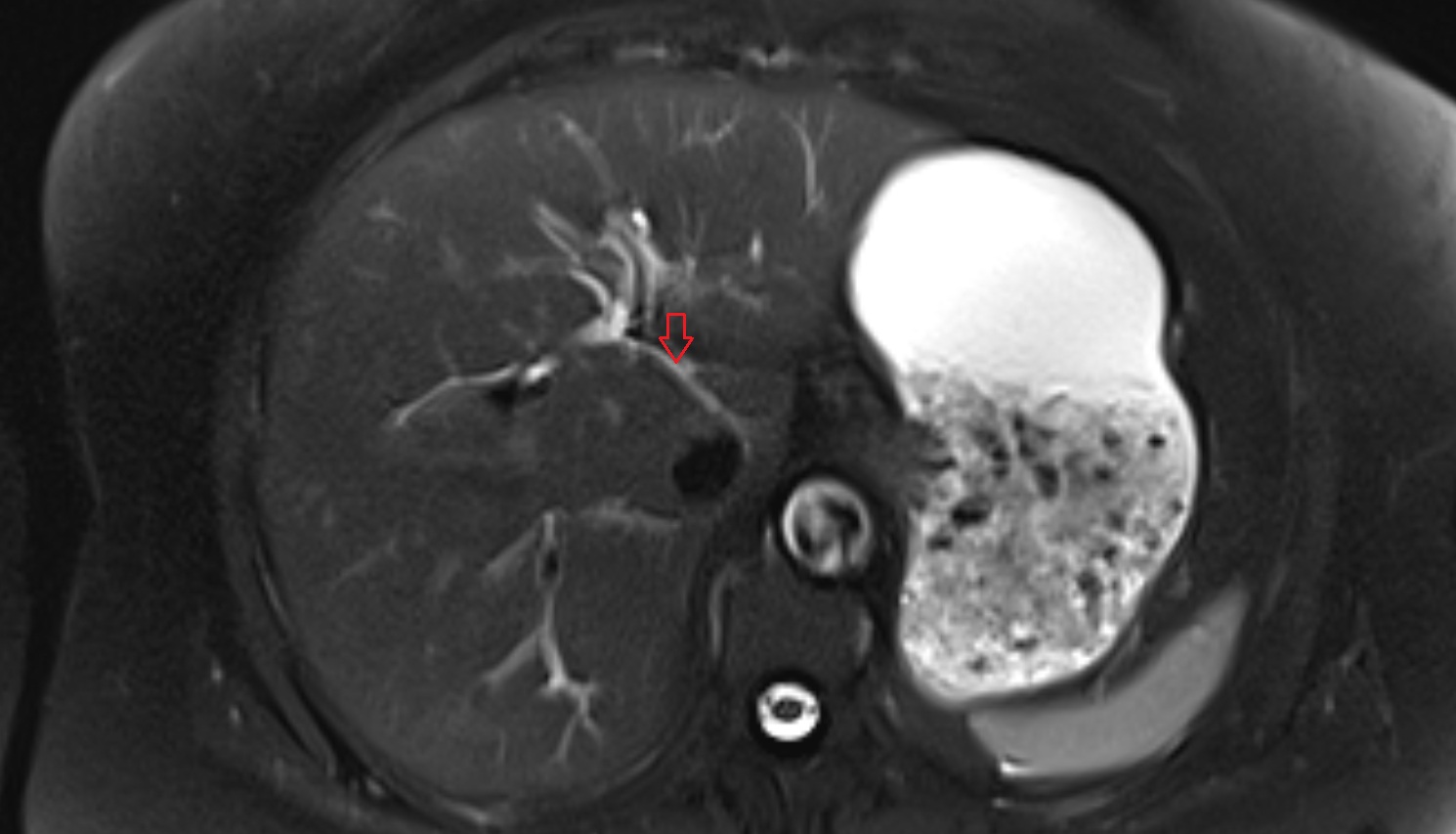

MRI image

Bile duct serving liver segment I MRI axial anatomy image-img-00000-00000
