Bile duct serving liver segment IVa

The bile duct of segment IVa (Couinaud classification) is a small intrahepatic bile duct that drains bile from the superior part of the medial segment of the left lobe of the liver. It is part of the intrahepatic biliary tree, joining other segmental ducts to form larger ducts that eventually drain into the left hepatic duct.

It is an important structure in segmental liver anatomy, critical for hepatic surgery, transplantation, and radiology. Recognition of this duct is especially important in segmentectomy IVa resections and in evaluating intrahepatic biliary obstruction.

Synonyms

  • Segment IVa bile duct

  • Superior medial segment duct of left lobe

  • Intrahepatic duct of Couinaud segment IVa

Origin, Course, and Termination

  • Origin: Collects bile from hepatocytes of liver segment IVa (superior medial segment of left lobe).

  • Course: Runs within the liver parenchyma toward the porta hepatis, closely related to branches of the portal vein and hepatic artery (portal triad).

  • Termination: Joins the duct of segment IVb (inferior medial segment) → forms the medial sectoral duct, which then drains into the left hepatic duct.

Relations

  • Anteriorly: Liver capsule and diaphragm (segment IVa surface)

  • Posteriorly: Left portal vein branch and hepatic artery branches

  • Medially: Falciform ligament and ligamentum teres fissure

  • Laterally: Parenchyma of liver segment IVb and segment VIII

Function

  • Drains bile from hepatocytes of liver segment IVa

  • Contributes to left hepatic duct and common hepatic duct formation

  • Maintains bile transport pathway for digestion and excretion

  • Serves as a surgical and imaging landmark in segmental liver anatomy

Clinical Significance

  • Obstruction: Stones, tumors, or strictures can cause segmental cholestasis of IVa

  • Surgery: Must be preserved or reconstructed during segment IVa resections or left hepatectomy

  • Transplantation: Important in split-liver transplantation where segment IV ducts may require separate anastomosis

  • Imaging: Careful evaluation needed in MRCP and CT cholangiography to avoid misdiagnosis of small strictures

MRI Appearance

T1-weighted images:

  • Lumen: dark (low signal)

  • Wall: thin hypointense line

  • Surrounding fat: bright, aiding localization

T2-weighted images:

  • Lumen: bright (high signal, bile fluid)

  • Wall: thin, dark hypointense rim

STIR (Short Tau Inversion Recovery):

  • Bile: bright hyperintense

  • Surrounding fat: suppressed and dark, improving contrast

T1 Fat-Sat Post-Contrast:

  • Normal duct wall: minimal enhancement

  • Pathology (inflammation, tumor, cholangitis): irregular or nodular wall enhancement

T2 Fat-Saturated HASTE:

  • Segment IVa duct appears as a bright thin tubular structure within the left lobe parenchyma

  • Stones: dark filling defects

  • Useful for quick overview of intrahepatic ducts

T2 TSE Fat-Saturated 3D (MRCP):

  • Segment IVa duct visualized as part of left intrahepatic biliary anatomy

  • High-signal lumen, sharp depiction in 3D reconstructions

  • Excellent for detecting strictures or segmental obstruction

Thick-slab T2 Fat-Saturated HASTE:

  • Duct appears as bright tubular structure in projectional view

  • Allows visualization of IVa duct continuity with left hepatic duct

  • Stones or debris: dark intraluminal defects

CT Appearance

Non-Contrast CT:

  • Duct usually not visible unless dilated

  • Dilatation appears as a low-attenuation tubular structure within liver segment IVa

Post-Contrast CT:

  • Normal duct wall: minimal enhancement

  • Dilated ducts: better visualized due to surrounding enhancing liver parenchyma

  • Obstruction (stone, tumor, cholangitis): enhancing wall thickening, intraductal filling defect, or abrupt cutoff

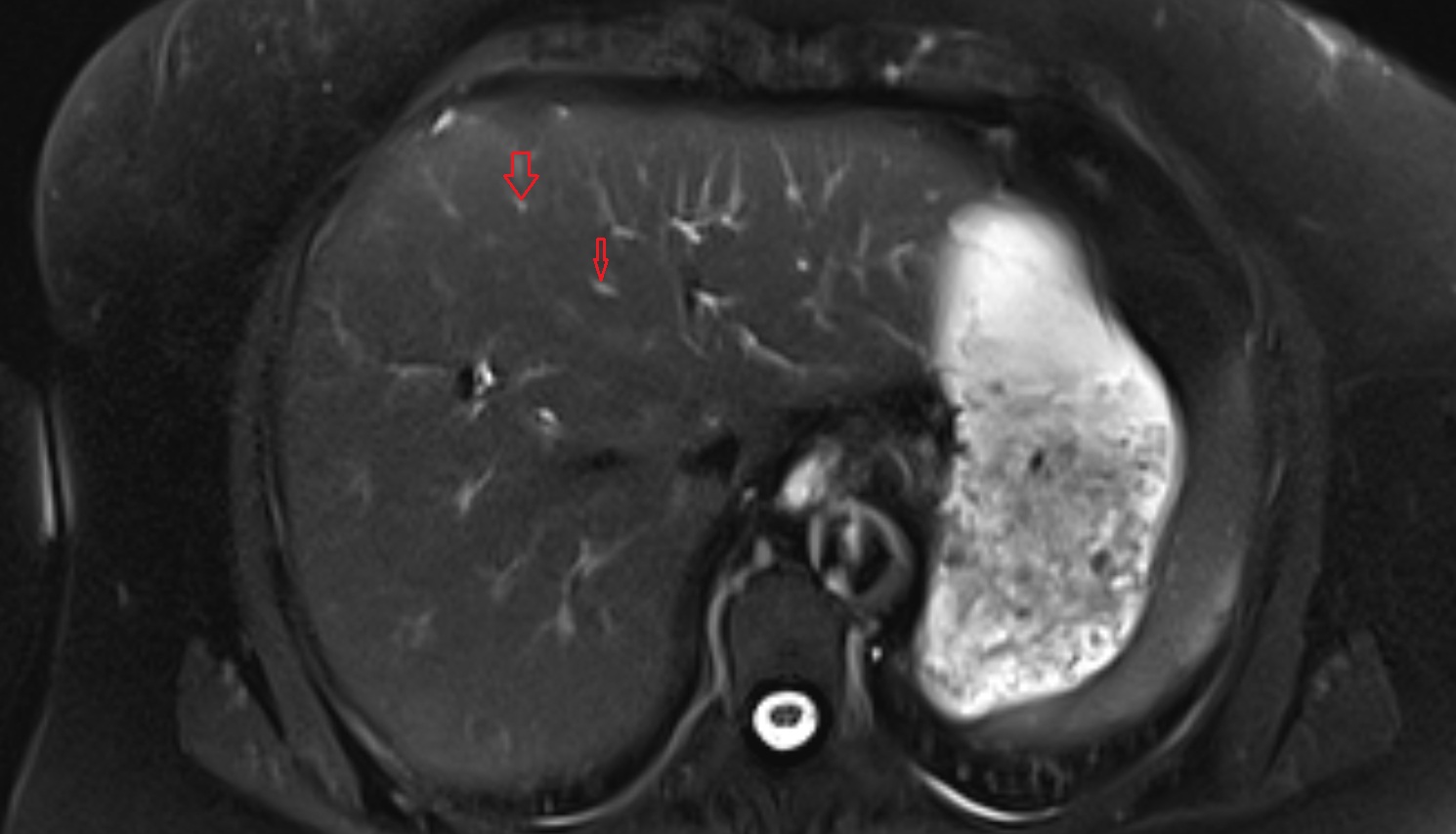

MRI image

Bile duct serving liver segment IVa MRI axial anatomy image-img-00000-00000
