Bile duct serving liver segment IVb

The bile duct of liver segment IVb (inferior medial segment of the left lobe) is a segmental branch of the left hepatic duct system. It collects bile from hepatocytes within segment IVb and channels it toward the left hepatic duct, ultimately contributing to the common hepatic duct and extrahepatic biliary system.

This duct is particularly important in segmental liver surgery and transplantation, as precise knowledge of its course prevents bile duct injury during left hepatectomy or cholecystectomy. It is also evaluated in imaging for strictures, stones, and cholangiocarcinoma.

Synonyms

  • Segment IVb bile duct

  • Medial inferior left lobe bile duct

  • Segmental hepatic duct (IVb)

Origin, Course, and Termination

  • Origin: Intrahepatic bile canaliculi of segment IVb hepatocytes

  • Course: Small intrahepatic radicles converge to form a segmental bile duct within Couinaud segment IVb; courses medially within the liver parenchyma

  • Termination: Drains into the left hepatic duct, which then joins the right hepatic duct to form the common hepatic duct

Relations

  • Anteriorly: Liver capsule at the inferior surface of segment IVb, close to gallbladder fossa

  • Posteriorly: Left portal vein branches

  • Laterally: Adjacent bile ducts of segment IVa and segment V

  • Medially: Porta hepatis structures (hepatic artery branches and portal vein tributaries)

Function

  • Drains bile produced in liver segment IVb

  • Contributes to flow of bile into the left hepatic duct and onward to the extrahepatic biliary system

  • Provides a surgically important segmental drainage pathway in resections and transplants

Clinical Significance

  • Surgical importance: Must be preserved or carefully ligated in left hepatectomy, split-liver transplantation, and cholecystectomy involving gallbladder bed near IVb

  • Bile duct injury: Risk of leakage or stricture if damaged during surgery

  • Obstruction: May be blocked by stones, strictures, or tumors (segmental cholangiocarcinoma) → localized cholestasis

  • Imaging relevance: Segmental ducts, including IVb, are key in MRCP evaluation of intrahepatic cholangiopathies

MRI Appearance

T1-weighted images:

  • Lumen: low signal (dark) when fluid-filled

  • Wall: very thin, low signal; not usually seen unless enhanced

T2-weighted images:

  • Lumen: bright signal due to bile fluid

  • Wall: hypointense rim, very thin

STIR (Short Tau Inversion Recovery):

  • Duct fluid appears hyperintense

  • Fat suppressed, making duct more conspicuous against background liver tissue

T1 Fat-Sat Post-Contrast:

  • Duct wall may show minimal thin enhancement

  • Pathology (inflammation, tumor, cholangitis): irregular or nodular wall enhancement

T2 Fat-Saturated HASTE (single-shot):

  • Duct lumen: very bright signal

  • Rapid sequence: excellent for screening segmental bile duct dilatation or stones

  • Stones: dark filling defects within bright duct

T2 TSE Fat-Saturated 3D (MRCP sequence):

  • Depicts the IVb duct as part of the segmental branching network with high signal lumen

  • Allows 3D reconstruction of intrahepatic bile ducts for surgical planning

  • Strictures or focal dilatations easily identified

Thick-slab T2 Fat-Saturated HASTE:

  • Projectional image shows IVb duct as part of the left hepatic ductal system

  • Useful for quick overview of ductal continuity and obstruction

  • Stones or air appear as dark voids against bright lumen

CT Appearance

Non-Contrast CT:

  • Normal ducts usually not seen unless dilated

  • Dilated IVb duct appears as low-attenuation tubular structure within left lobe parenchyma

  • Calcified stones: hyperdense foci within duct

Post-Contrast CT:

  • Duct lumen remains low attenuation (non-enhancing fluid)

  • Wall may enhance subtly if inflamed

  • Strictures, tumors, or cholangitis: enhancing wall thickening or soft tissue filling defect

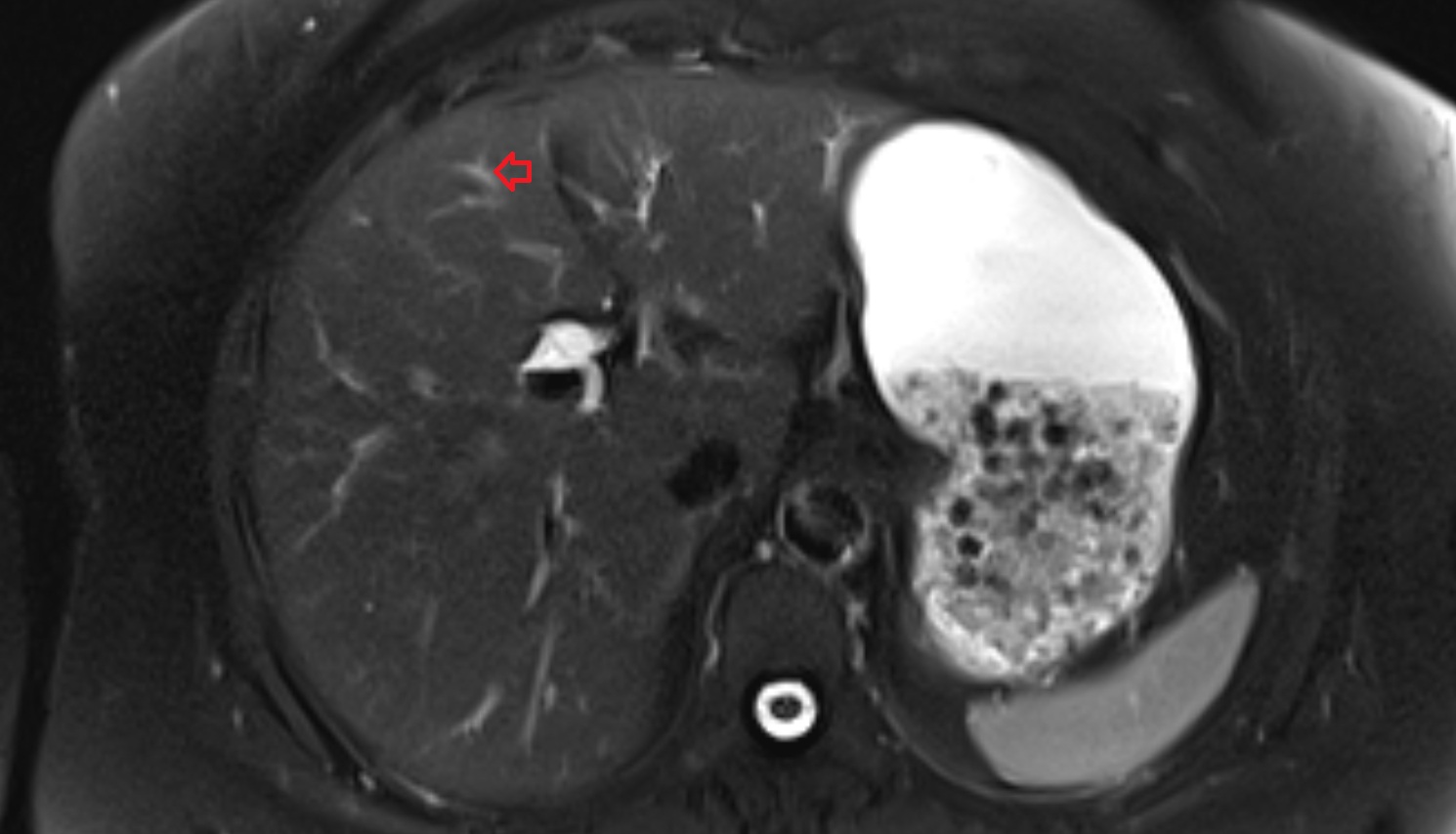

MRI image

Bile duct serving liver segment IVb MRI axial anatomy image-img-00000-00000
