Calcaneal perforator veins

The calcaneal perforator veins are small but clinically important communicating veins that connect the posterior tibial and fibular (peroneal) deep venous systems with the superficial venous network over the heel and lower calf. These perforators play a vital role in maintaining unidirectional venous return from superficial to deep veins and in preventing venous pooling within the distal lower limb.

Located near the medial and lateral aspects of the calcaneus, these veins are supported by muscular and fascial structures that aid venous pumping during ankle motion. They are of major clinical importance in chronic venous insufficiency, varicosities, and post-thrombotic changes, and are often visualized in MR or CT venography when assessing perforator incompetence or reflux.

Synonyms

  • Heel perforating veins

  • Calcaneal communicating veins

  • Perforators of the posterior heel

Origin, Course, and Termination

  • Origin: Superficial venous network of the heel and posterior ankle region (usually from tributaries of the small saphenous vein)

  • Course: Penetrate the deep fascia and traverse the posterior compartment near the Achilles tendon, communicating with the deep venous plexus and the fibular or posterior tibial veins

  • Termination: Join the posterior tibial or fibular veins, forming part of the distal communicating venous network

Relations

  • Anteriorly: Achilles tendon and deep posterior fascia

  • Posteriorly: Subcutaneous tissue of the heel and skin venules

  • Medially: Posterior tibial vein and artery

  • Laterally: Fibular vein and lateral calcaneal perforators

  • Superiorly: Muscular fascia of the distal posterior leg

  • Inferiorly: Venous plexus of the plantar heel region

Function

  • Venous communication: Connect deep and superficial venous systems of the distal leg and heel

  • Pressure regulation: Equalize venous pressure between superficial and deep veins

  • Venous return: Facilitate upward flow toward posterior tibial and fibular veins during calf muscle contraction

  • Unidirectional valves: Prevent reflux from deep to superficial veins

  • Clinical relevance: Common site for perforator incompetence, chronic venous stasis, and varicosities in the heel region

MRI Appearance

  • T1-weighted images:

    • Normal perforator veins: intermediate signal intensity with smooth round or linear appearance

    • Slow venous flow: may appear bright due to flow-related enhancement

    • Thrombosed or dilated veins: intermediate-to-bright signal with loss of normal flow void

  • T2-weighted images:

    • Normal veins: intermediate to low signal lumen

    • Slow flow: appears bright, mimicking thrombus

    • Thrombus: bright signal in acute phase, dark in chronic organized stage

  • STIR:

    • Normal: low to intermediate signal

    • Thrombosed or inflamed perforators: hyperintense, surrounded by soft-tissue edema

    • Helpful in differentiating acute vs. chronic venous inflammation

  • Proton Density Fat-Saturated (PD FS):

    • Normal: low signal circular structures

    • Slow flow: hyperintense appearance within the lumen

    • Thrombus or wall inflammation: bright signal surrounded by fat-suppressed background

  • T1 Fat-Sat Post-Contrast:

    • Normal veins: homogeneous enhancement of lumen

    • Thrombus: appears as non-enhancing intraluminal defect

    • Perivenular inflammation: enhances brightly with surrounding hyperemia

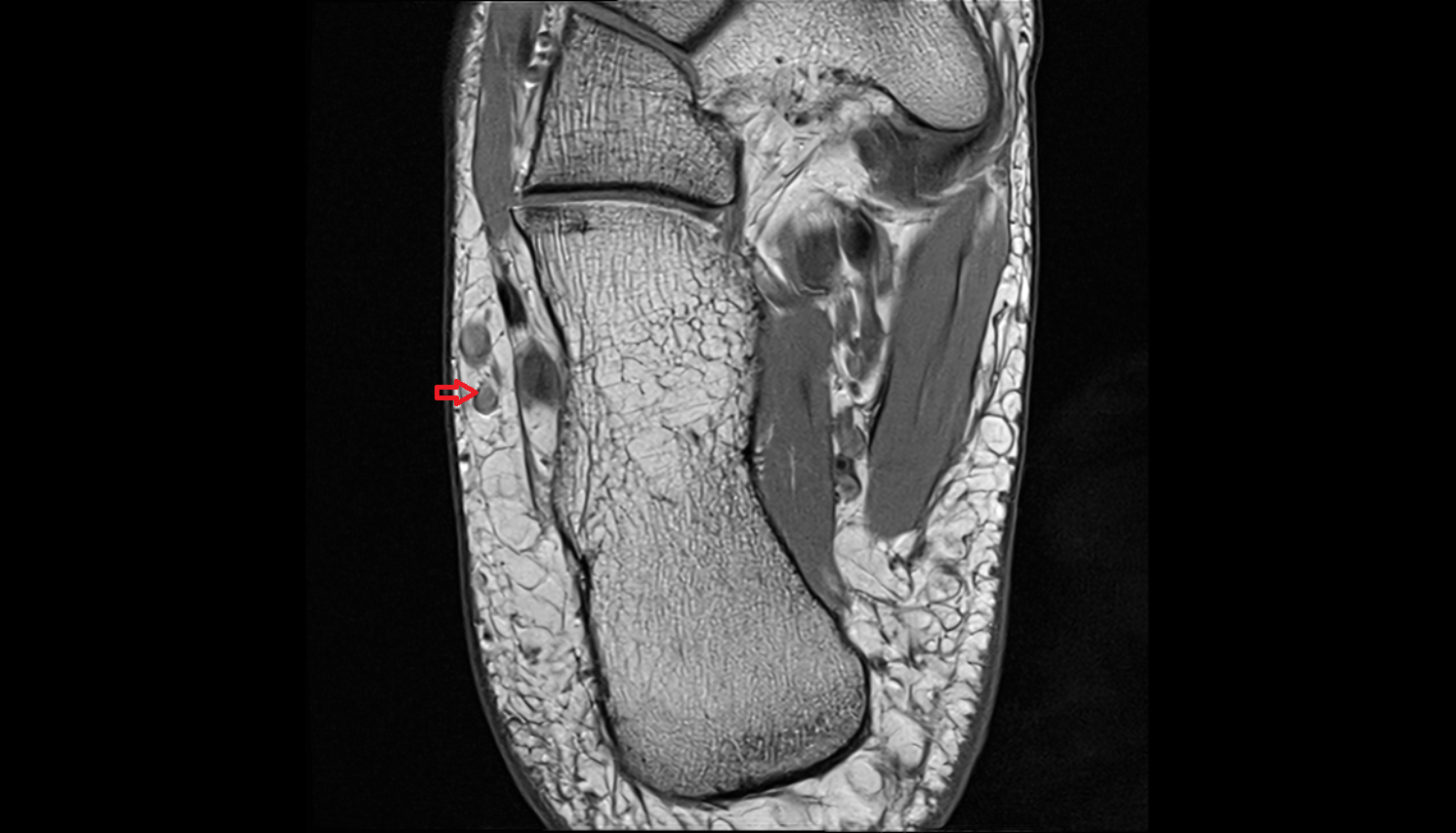

MRI image

Calcaneal perforator veins veins AXIAL cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000
