Carotid siphon

The carotid siphon refers to the characteristic S-shaped intracranial segment of the internal carotid artery (ICA) as it courses through the cavernous sinus and paraclinoid region before reaching the supraclinoid ICA. This curved configuration helps regulate pulsatile flow entering the brain and provides flexibility as the artery passes through rigid skull base compartments.

The siphon includes the cavernous, clinoid, and ophthalmic/paraclinoid segments, each surrounded by critical neurovascular structures including cranial nerves III, IV, V1, V2, and VI, the cavernous sinus, and the optic nerve. It is a key site for aneurysms, atherosclerotic stenosis, dissections, and skull base pathology.

Synonyms

  • Intracavernous internal carotid artery

  • Paraclinoid ICA

  • S-shaped ICA loop

Location and Structure

  • Position: Located within the cavernous sinus and adjacent skull base between the petrous ICA and supraclinoid ICA.

  • Shape: Characteristic S-shaped curve allowing compliance during intracranial pressure changes.

  • Segments:

    • Cavernous ICA: Horizontal and vertical bends inside the cavernous sinus

    • Clinoid ICA: Short segment between proximal and distal dural rings

    • Ophthalmic/Paraclinoid ICA: Extends from distal dural ring to origin of posterior communicating artery

  • Key osseous boundaries:

    • Carotid sulcus of the sphenoid

    • Anterior clinoid process

    • Optic strut

Relations

  • Medially: Pituitary gland, sphenoid sinus

  • Laterally: Cavernous sinus wall, cranial nerves III, IV, V1, V2

  • Inferiorly: Sphenoid body, fixed bone structures of skull base

  • Superiorly: Optic nerve, ophthalmic artery origin, anterior clinoid process

  • Posteriorly: Dorsum sellae and posterior clinoids

Branches

  • From Cavernous ICA:

    • Meningohypophyseal trunk

    • Inferolateral trunk

  • From Ophthalmic/Paraclinoid ICA:

    • Ophthalmic artery

    • Superior hypophyseal arteries

    • Posterior communicating artery

    • Anterior choroidal artery

Function

  • Supplies key intracranial structures: optic apparatus, anterior circulation, pituitary region

  • Cushions and modulates pulsatile arterial flow entering the brain

  • Provides flexible arterial pathway within rigid skull base spaces

  • Supports numerous collateral and anastomotic pathways

Clinical Significance

  • Aneurysms: Common in cavernous and paraclinoid segments; may cause cranial nerve palsies

  • Atherosclerotic stenosis: Significant site of intracranial ICA calcification

  • Dissection: Cavernous ICA dissections may cause painful oculomotor palsy

  • Cavernous sinus syndrome: Lesions compressing the carotid siphon and surrounding cranial nerves

  • Pituitary or skull base tumors: May encase or displace the siphon

  • Surgical relevance: Critical landmark in skull base surgery, clinoidectomy, and aneurysm clipping

MRI Appearance

T1-weighted images

  • Flowing blood: Appears as a dark flow void within the carotid siphon.

  • Wall: Thin low-signal contour; mural thickening appears intermediate.

  • Surroundings:

    • Cavernous sinus: intermediate signal

    • Sphenoid sinus: low signal (air)

    • Optic nerve: intermediate signal

  • Pathology:

    • Thrombosis or very slow flow may produce loss of flow void and intraluminal intermediate signal

    • Aneurysm sac may show heterogeneous signal depending on thrombus age

T2-weighted images

  • Lumen: Dark flow void in normal fast flow

  • Walls: Thin low-signal rim

  • Pathology:

    • Aneurysms: flow-related signal heterogeneity or mural thrombus (mixed bright/dark)

    • Atherosclerotic plaque: intermediate-to-low signal wall thickening

    • Cavernous sinus mass effect: displacement or compression of siphon

FLAIR

  • Artery itself: Dark due to flow void

  • Adjacent brain: Hyperintense in edema or mass effect

  • Pathology:

    • Inflammatory lesions (e.g., Tolosa–Hunt): hyperintense cavernous sinus expansion

    • Tumor infiltration: asymmetric hyperintense soft tissue around siphon

    • Post-ischemic changes in ICA territory: cortical/subcortical hyperintensity

T1 Fat-Sat Post-Contrast

  • Normal artery: Strong intraluminal enhancement (bright signal)

  • Arterial wall: Thin enhancing rim; vasa vasorum may be visible at high resolution

CT Appearance

Non-Contrast CT (NCCT)

  • Lumen: Appears as a circular low-density structure within cavernous sinus

  • Wall: Not directly visible unless calcified

  • Normal features:

    • Curved course through sphenoid body seen on axial and coronal images

  • Pathology:

    • Calcified atherosclerotic plaque: High-density curvilinear calcifications

    • Acute thrombosis: Hyperdense ICA segment

    • Skull base fractures: May involve carotid canal or cavernous segment

    • Bony remodeling: Seen in long-standing aneurysms

Post-Contrast CT (CTA timing NOT included since excluded)

  • Normal artery: Homogeneous, bright enhancement of ICA lumen

  • Pathology:

    • Aneurysm: Round or lobulated contrast-filled mass

    • Stenosis: Narrowed lumen with post-stenotic dilation

    • Occlusion: Non-enhancing segment with collateral filling elsewhere

    • Cavernous sinus lesions: Enhancing masses displacing or engulfing the siphon

    • Pituitary tumors or clinoid meningiomas: Compress or encase siphon with strong adjacent enhancement

MRI images

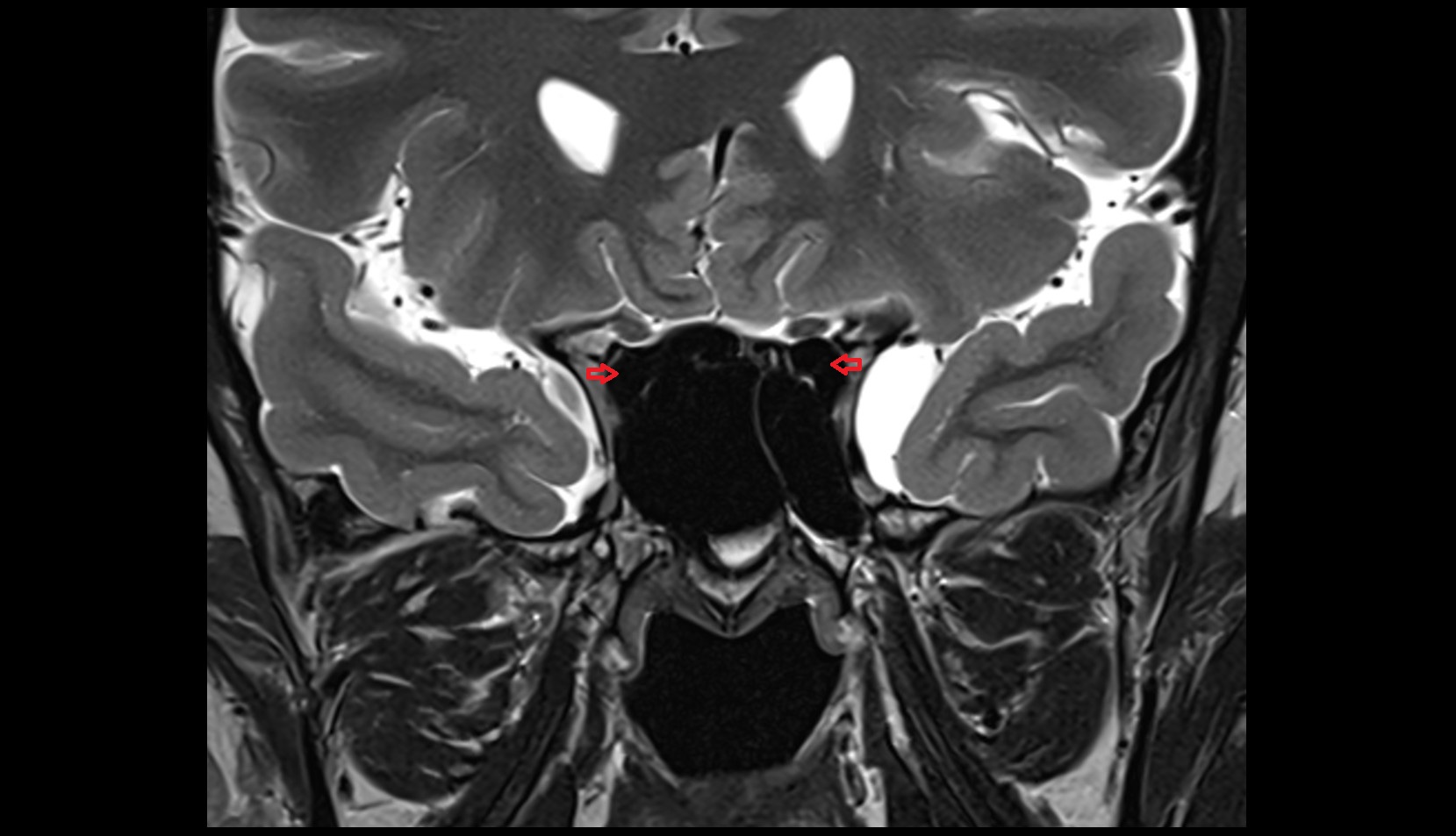

Carotid siphon
