Common basal vein of right lung

The common basal vein of the right lung is a major venous trunk draining the basal segments of the right lower lobe. It is formed by the confluence of the anterior basal vein (V8), lateral basal vein (V9), and posterior basal vein (V10), and sometimes receives contributions from the superior segment vein (V6). The common basal vein then joins the right inferior pulmonary vein (RIPV) near its entry into the left atrium.

It courses medially within the right lower lobe toward the hilum, traveling parallel to the segmental bronchi and arteries. Anatomical variations are common, including separate entry of segmental veins into the RIPV or fusion with V6 before reaching the hilum.

Synonyms

  • Right lower lobe basal vein

  • Inferior pulmonary basal vein

  • V8–V9–V10 trunk of right lung

Function

  • Drains oxygenated blood from the basal segments (S8–S10) of the right lower lobe

  • Contributes to venous return via the right inferior pulmonary vein → left atrium

  • Provides venous landmarks for lobectomy and segmentectomy planning

  • Important in electrophysiology for mapping pulmonary vein ostia in atrial fibrillation ablation

Tributaries

  • Anterior basal vein (V8) – drains segment VIII

  • Lateral basal vein (V9) – drains segment IX

  • Posterior basal vein (V10) – drains segment X

  • Occasionally receives superior segment vein (V6) before RIPV junction

MRI Appearance

T1-weighted images:

  • Appears as a linear signal void (black lumen) within the right lower lobe coursing toward the hilum.

T2-weighted images (normal):

  • Flowing blood seen as a signal void; surrounding parenchyma provides contrast.

  • Intraluminal thrombus may appear intermediate to hyperintense depending on age.

T2 TRUFISP (cardiac/respiratory-gated):

  • Clearly depicts the common basal vein as a bright, continuous venous lumen draining into the RIPV.

  • Cine visualization demonstrates confluence of V8–V10 and flow dynamics.

STIR:

  • Fat suppression enhances conspicuity against mediastinal and hilar fat.

  • Perivascular edema/inflammation appears hyperintense.

T1 Post-Contrast (Gadolinium-enhanced MRI):

  • Homogeneous bright enhancement of the venous lumen.

  • Filling defects signal thrombosis or extrinsic compression.

  • Defines junction with RIPV for ablation or surgical planning.

MRI Non-Contrast Cardiac-Gated 3D (whole-heart):

  • Provides 3D reconstruction of venous drainage pattern: V8–V10 convergence into common basal vein → RIPV.

  • Excellent for mapping pulmonary venous ostia before AF ablation or right lower lobectomy.

CT Appearance

CT Coronary Angiography (CCTA) / Pulmonary Venography:

  • Contrast opacifies common basal vein and RIPV, allowing clear identification of confluence and segmental tributaries.

  • Multiplanar and 3D reconstructions demonstrate variations (separate entry, fusion with V6, common trunks).

  • Essential for pre-ablation planning, lobectomy/segmentectomy, and venous anomaly detection.

  • Differentiates normal venous drainage from extrinsic compression, thrombus, or anomalous pulmonary venous return (APVR).

CT image

Common basal vein of right lung anatomy CT axial image -img-00000-00000

MRI image

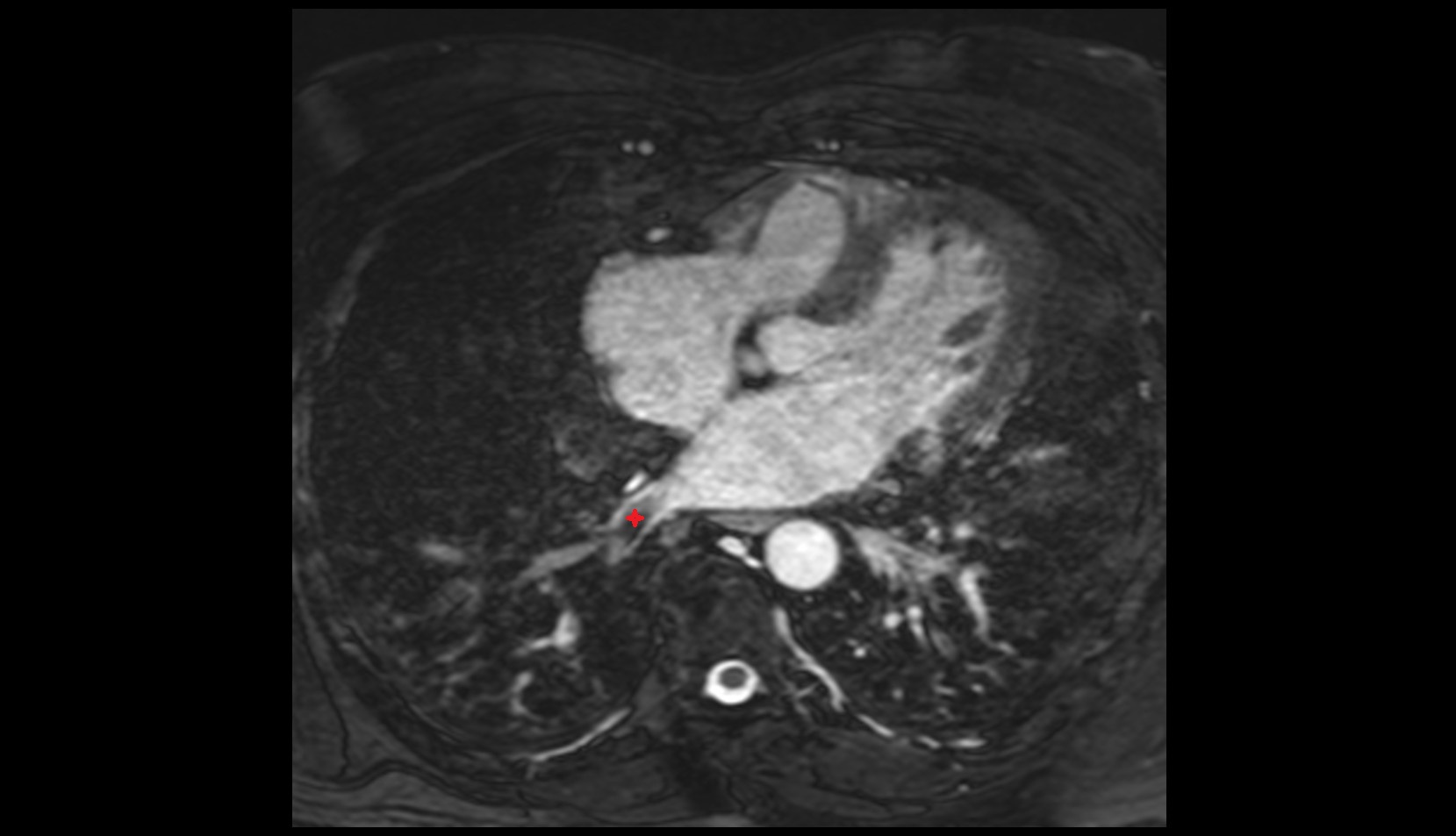

Common basal vein of right lung mri axial image
