Costotransverse joint of twelfth rib

The costotransverse joint is normally a synovial articulation between the tubercle of a rib and the transverse process of the corresponding vertebra. However, the twelfth rib is atypical: it usually lacks a tubercle and does not articulate with the transverse process of T12. Therefore, the costotransverse joint of the 12th rib is generally absent or rudimentary.

This anatomical distinction makes the 12th rib more mobile compared to upper ribs and clinically relevant in thoracolumbar mechanics, rib fractures, and certain pain syndromes.

Synonyms

  • Costotransverse articulation of 12th rib (rudimentary)

  • Rib–transverse process joint (T12 level)

  • Posterior rib-vertebral junction of 12th rib

Anatomy and Articulation

  • Typical costotransverse joints (ribs 1–10): Synovial plane joints between rib tubercle and transverse process of the corresponding vertebra, supported by ligaments (costotransverse, superior costotransverse, and lateral costotransverse ligaments).

  • Twelfth rib:

    • Lacks a distinct tubercle

    • Usually no true costotransverse joint is present

    • May have small fibrous connections to the transverse process of T12 instead of a synovial joint

Relations

  • Anteriorly: T12 vertebral body and diaphragm crura

  • Posteriorly: Muscles of the back (erector spinae, quadratus lumborum attachments on 12th rib)

  • Superiorly: 11th rib and its articulations

  • Inferiorly: Upper lumbar vertebrae and psoas muscle attachments

  • Laterally: Shaft of 12th rib extending to thoracolumbar fascia

Function

  • Since the costotransverse joint is absent or rudimentary at the 12th rib, mobility is greater compared to typical ribs

  • Contributes to thoracolumbar flexibility and diaphragmatic expansion

  • Provides muscular attachment (quadratus lumborum, diaphragm, erector spinae) for stabilization and movement

Clinical Significance

  • Anatomic variation: Absence of the joint is normal, but must be recognized in imaging to avoid misinterpretation

  • Rib fractures: 12th rib fractures may appear displaced due to lack of posterior joint stabilization

  • Pain syndromes: Hypermobile 12th rib can contribute to “slipping rib syndrome” or thoracolumbar pain

  • Surgical relevance: Acts as a landmark in retroperitoneal approaches (e.g., renal, adrenal, spinal surgeries)

MRI Appearance

T1-weighted images:

  • If present, joint capsule shows low signal; surrounding fat appears bright

  • In most cases, joint is absent → posterior rib ends blend smoothly with transverse process

T2-weighted images:

  • If a rudimentary articulation exists, joint line may appear as low-signal interface

  • Inflammation or pathology shows bright hyperintense signal

STIR (Short Tau Inversion Recovery):

  • Normal capsule (if present) remains dark

  • Edema or inflammation at posterior rib end appears bright

T1 Fat-Sat Post-Contrast:

  • Normal joint (if present) shows minimal enhancement

  • Inflammatory or infectious processes show focal or rim enhancement

CT Appearance

Non-Contrast CT:

  • In most individuals: no costotransverse joint visible at 12th rib

  • Bony anatomy shows smooth posterior rib contour adjacent to transverse process

  • Variants: fibrous or bony pseudoarticulations may be visible

Post-Contrast CT:

  • No specific enhancement of the joint (if absent)

  • Pathology (infection, tumor) may cause adjacent soft tissue enhancement or irregularity

  • Rib fractures or pseudoarthrosis easily detected

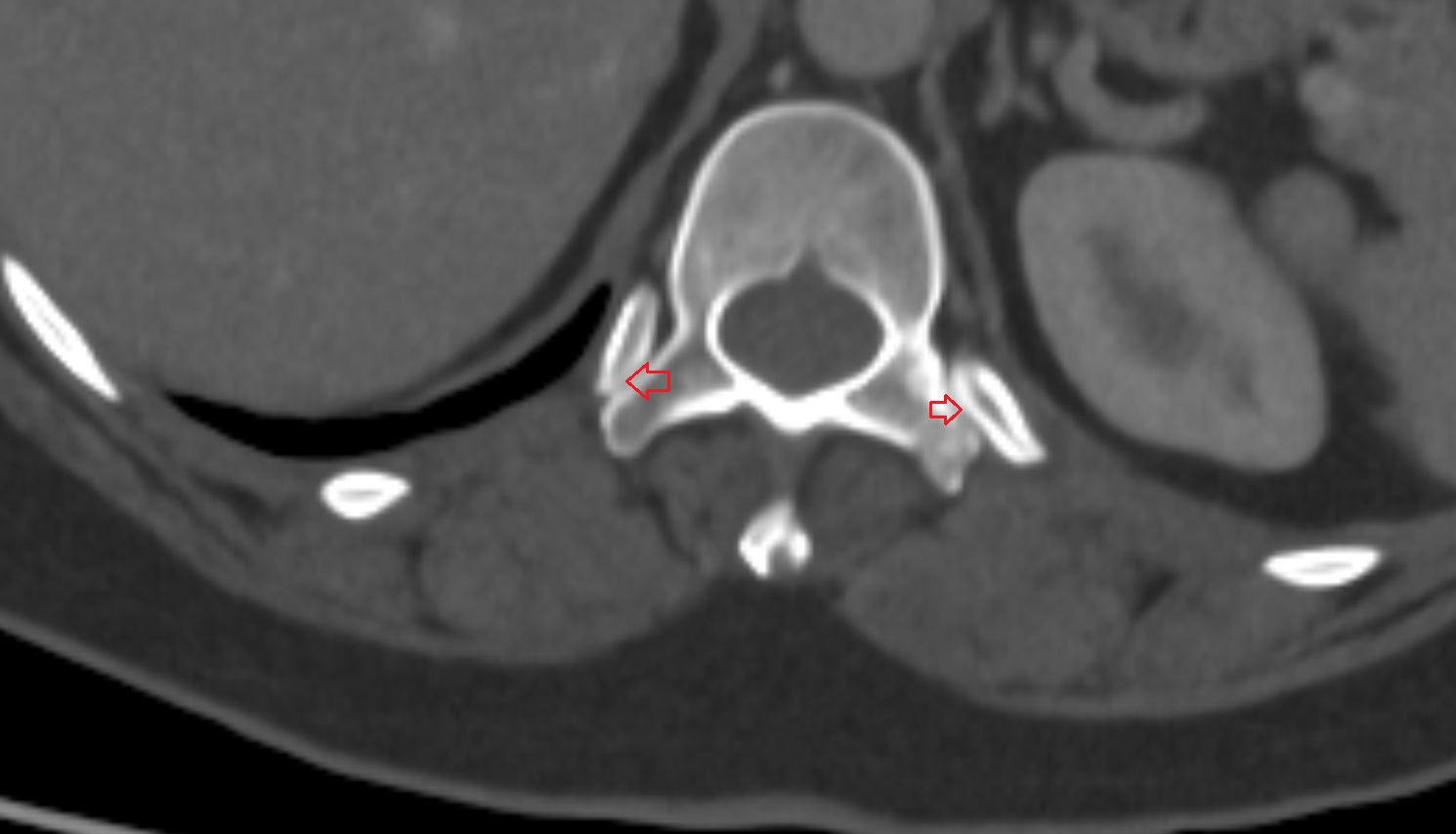

CT image

Costotransverse joint of twelfth rib CT AXIAL anatomy image-img-00000-00000
