Costovertebral joint of twelfth rib

The costovertebral joint of the twelfth rib is a synovial articulation that connects the head of the twelfth rib with the twelfth thoracic vertebral body. Unlike the upper ribs, the eleventh and twelfth ribs articulate only with their corresponding vertebral body, without involvement of the intervertebral disc or adjacent vertebra. This joint plays a role in respiratory mechanics and spinal stability, and is clinically significant in trauma, degenerative disease, and rib-related pain syndromes.

Synonyms

  • T12 costovertebral articulation

  • Twelfth rib vertebral joint

  • Rib 12–thoracic vertebra joint

Origin, Course, and Articulations

  • Origin/Formation:

    • Formed between the head of the twelfth rib and the costal facet of the body of the twelfth thoracic vertebra (T12)

  • Course/Features:

    • The joint is a simple synovial plane joint

    • It contains a thin joint capsule and is lined by synovium

    • The capsule is reinforced by the radiate ligament

  • Articulations:

    • Head of the twelfth rib with the costal facet of T12 vertebral body

    • No articulation with intervertebral disc or adjacent vertebra (unlike ribs 2–10)

Relations

  • Anteriorly: Diaphragmatic crura, retroperitoneal structures (kidneys, adrenal glands)

  • Posteriorly: Erector spinae muscles and posterior thoracolumbar fascia

  • Superiorly: T11 vertebra and eleventh rib joint

  • Inferiorly: Quadratus lumborum muscle and abdominal wall

Function

  • Provides mobility and stability to the twelfth rib during respiration

  • Serves as a pivot for diaphragmatic attachments and thoracolumbar fascia

  • Distributes mechanical forces between rib cage and vertebral column

Clinical Significance

  • Trauma: Twelfth rib fractures may involve the joint and destabilize the thoracolumbar junction

  • Arthritis: Degenerative changes can cause localized rib or flank pain

  • Surgical relevance: Important landmark in retroperitoneal surgery and renal procedures

  • Pain syndromes: Costovertebral joint dysfunction can mimic renal or abdominal pathology

MRI Appearance

T1-weighted images:

  • Joint surfaces show low signal intensity (cortical bone)

  • Marrow of rib and vertebra shows intermediate signal intensity

  • Fat in adjacent retroperitoneum is bright

T2-weighted images:

  • Articular cartilage and joint fluid appear bright

  • Normal bone cortex remains dark

  • Degenerative changes may show irregular joint surface with bright fluid or edema

STIR (Short Tau Inversion Recovery):

  • Normal joint capsule: low signal

  • Inflammation or edema: bright hyperintensity in periarticular soft tissues or marrow

T1 Fat-Sat Post-Contrast:

  • Normal joint capsule enhances minimally

  • Synovitis, arthritis, or infection shows intense enhancement of capsule and periarticular tissues

3D T2 SPACE / CISS:

  • Joint space and fluid appear bright

  • Bony margins appear dark

  • Allows high-resolution multiplanar evaluation of small joint structures

CT Appearance

Non-Contrast CT:

  • Bony articulating surfaces clearly seen

  • Joint space visible as a thin lucency

  • Degenerative changes show osteophytes, sclerosis, or joint narrowing

  • Fractures of rib or T12 vertebral body easily detected

Post-Contrast CT:

  • Joint itself does not enhance significantly

  • Surrounding soft tissues may enhance if inflamed or infiltrated

  • Helpful in detecting tumor extension, abscess, or postoperative changes

MRI images

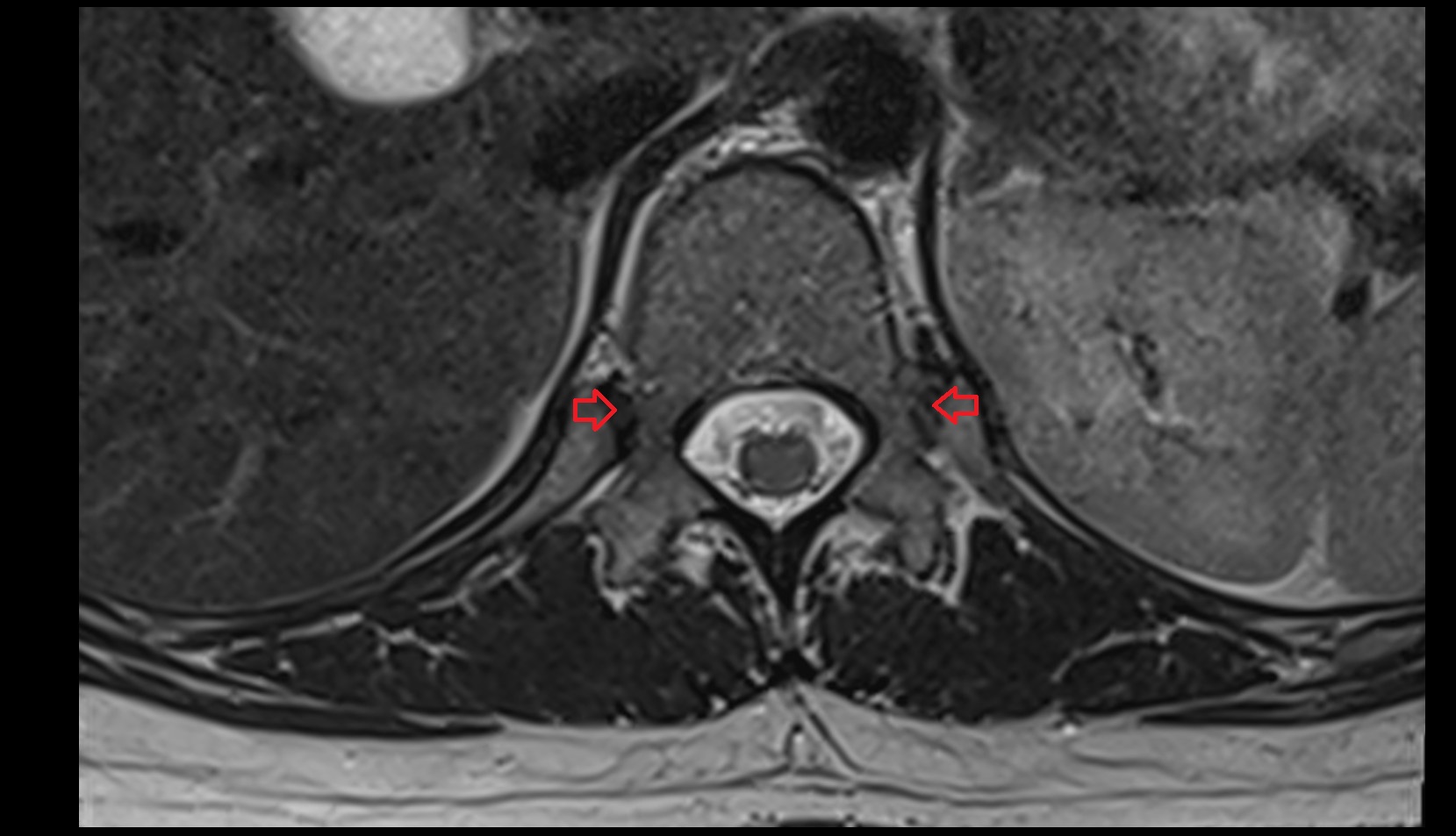

Costovertebral joint of twelfth rib mri axial

CT images

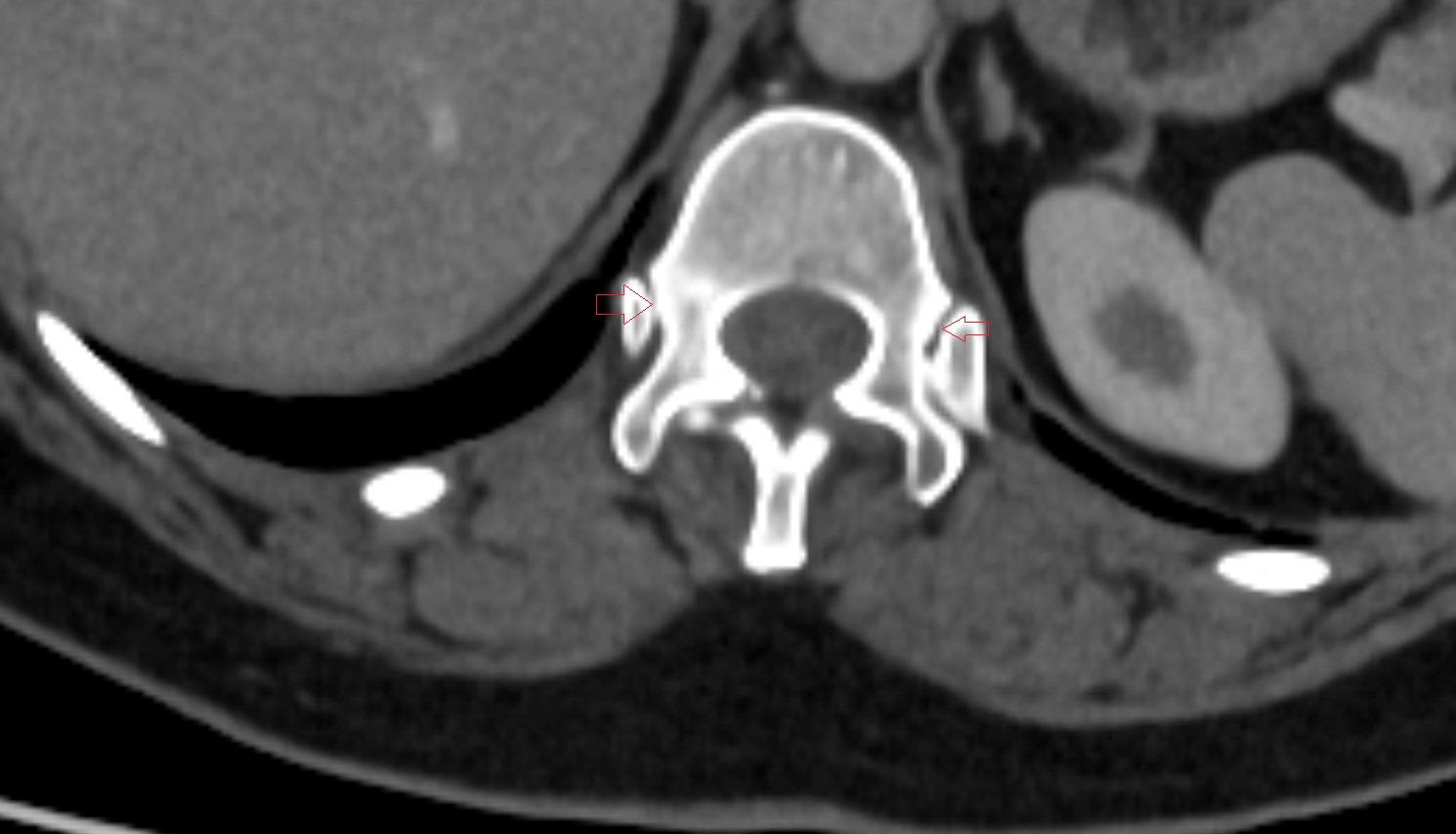

Costovertebral joint of twelfth rib CT AXIAL anatomy image-img-00000-00000
