Cubital tunnel

The cubital tunnel is a fibro-osseous canal located on the posteromedial aspect of the elbow, serving as a passageway for the ulnar nerve as it transitions from the arm to the forearm. It plays a vital role in protecting and guiding the ulnar nerve during elbow flexion and extension.

The tunnel is clinically significant as a common site for ulnar nerve entrapment, leading to cubital tunnel syndrome—the second most common compressive neuropathy of the upper limb after carpal tunnel syndrome.

Synonyms

Ulnar groove
Ulnar nerve tunnel at the elbow
Osborne’s canal

Location and Boundaries

Roof: Formed by Osborne’s ligament (arcuate ligament of Osborne), continuous with the fascial fibers between the humeral and ulnar heads of the flexor carpi ulnaris (FCU).
Floor: Formed by the posterior band of the medial collateral ligament of the elbow and the joint capsule.
Medial wall: Medial epicondyle of the humerus.
Lateral wall: Olecranon process of the ulna.
Proximal limit: Posterior to the medial epicondyle, continuous with the ulnar groove.
Distal limit: Where the ulnar nerve passes beneath the fibrous aponeurosis between the two heads of the flexor carpi ulnaris.

Ulnar nerve: The primary structure traversing the tunnel.
Small vascular branches: Accompanying branches of the superior ulnar collateral artery and vein (minimal in size).
Loose connective tissue: Surrounds the nerve, allowing gliding motion.

Relations

Superficial: Skin and superficial fascia overlying the medial elbow.
Deep: Medial collateral ligament and elbow joint capsule.
Medial: Medial intermuscular septum.
Lateral: Olecranon process.
Distal: Flexor carpi ulnaris muscle (ulnar and humeral heads).

Function

Provides protection and guidance for the ulnar nerve during elbow movement.
Allows nerve gliding without compression as the elbow flexes.
Facilitates transmission of motor and sensory fibers from the arm to the forearm and hand.
Maintains nerve stability within the fibro-osseous groove, preventing subluxation.

Clinical Significance

Cubital tunnel syndrome: Entrapment or compression of the ulnar nerve within the tunnel, often due to elbow flexion, trauma, osteophytes, or fibrosis.
Symptoms: Numbness and tingling in the ring and little fingers, hand weakness, and ulnar nerve tenderness at the medial elbow.
Ulnar nerve subluxation: May occur with a shallow groove or lax Osborne’s ligament.
Post-traumatic fibrosis: Scarring or thickening following elbow fractures or surgery.
Anatomical variants: Hypertrophied FCU, accessory anconeus epitrochlearis muscle, or tight fascial bands can alter tunnel configuration.
Surgical relevance: Important site for ulnar nerve decompression or transposition procedures.

MRI Appearance

T1-weighted images:

Ulnar nerve: intermediate-to-low signal with smooth contour.
Surrounding fat: bright, outlining the cubital tunnel borders.
Osseous landmarks (medial epicondyle, olecranon): low signal cortex.
Pathology:
- Nerve compression: focal flattening or signal change (intermediate-to-bright).
- Fibrosis or scarring: low signal intensity within tunnel.

T2-weighted images:

Normal nerve: intermediate signal, darker than muscle.
Pathologic nerve: bright hyperintense signal due to edema or neuritis.
Surrounding fat: high signal intensity enhances visualization of nerve borders.
Osborne’s ligament and FCU fascia: low signal, forming tunnel roof.

STIR:

Normal tunnel: intermediate-to-dark signal background.
Entrapped or inflamed ulnar nerve: bright hyperintensity indicating neuritis.
Excellent for detecting perineural edema, fluid accumulation, and fascial thickening.

Proton Density Fat-Saturated (PD FS):

Ulnar nerve: dark linear structure in normal state.
Pathology: bright hyperintense areas along nerve trajectory signifying edema or compression.
Useful for identifying subtle nerve irritation or scarring.

T1 Fat-Sat Post-Contrast:

Normal: minimal enhancement of nerve and surrounding tissue.
Pathology:
- Inflammation or fibrosis: focal or diffuse enhancement around nerve.
- Post-surgical scar: enhancing low-signal band.
- Recurrent entrapment: enhancement localized to compression site.

MRI Arthrogram Appearance

Contrast injected into the elbow joint capsule outlines the floor of the cubital tunnel.
Normal: No contrast leakage beyond capsule margins.
Pathologic:
- Capsular defect or communication allows contrast to seep beneath the tunnel floor.
- Perineural enhancement or contrast accumulation may indicate scarring, postsurgical adhesions, or chronic inflammation.
- Associated findings: fluid tracking around ulnar nerve or signal continuity with joint effusion in cases of capsular tears.

CT Appearance

Non-Contrast CT:

Bony margins (medial epicondyle, olecranon): high-density structures forming tunnel walls.
Osborne’s ligament: not well visualized directly; inferred from soft-tissue density between muscle planes.
Ulnar nerve: poorly seen unless displaced or surrounded by abnormal density.
Useful for evaluating bony spurs, osteophytes, fractures, or deformities causing nerve compression.

Post-Contrast CT (standard):

Enhancing soft-tissue structures delineate the tunnel boundaries.
Inflammatory or fibrotic tissue: focal enhancement around the nerve path.
Chronic entrapment: thickened fascia and reduced tunnel volume may be appreciated.

CT Arthrogram Appearance

Contrast injected into the elbow joint outlines articular recesses and the cubital tunnel floor.
Normal: No contrast outside joint capsule.
Pathology:
- Capsular tear or communication: contrast extends beneath the tunnel, outlining ulnar nerve sheath.
- Peritendinous or perineural contrast indicates chronic fibrosis or tunnel inflammation.
- Detects small osteophytes or irregularities impinging upon tunnel space.

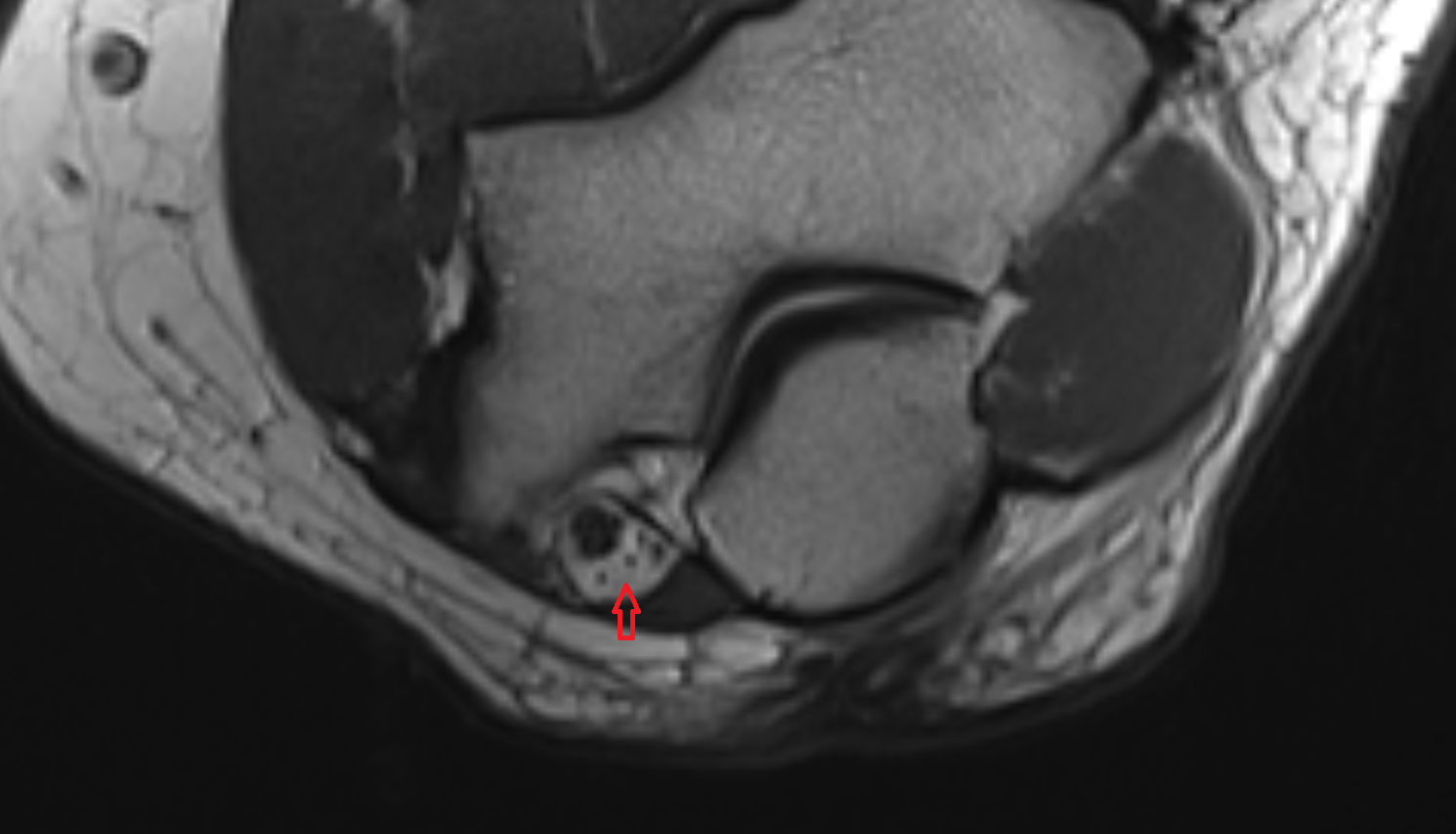

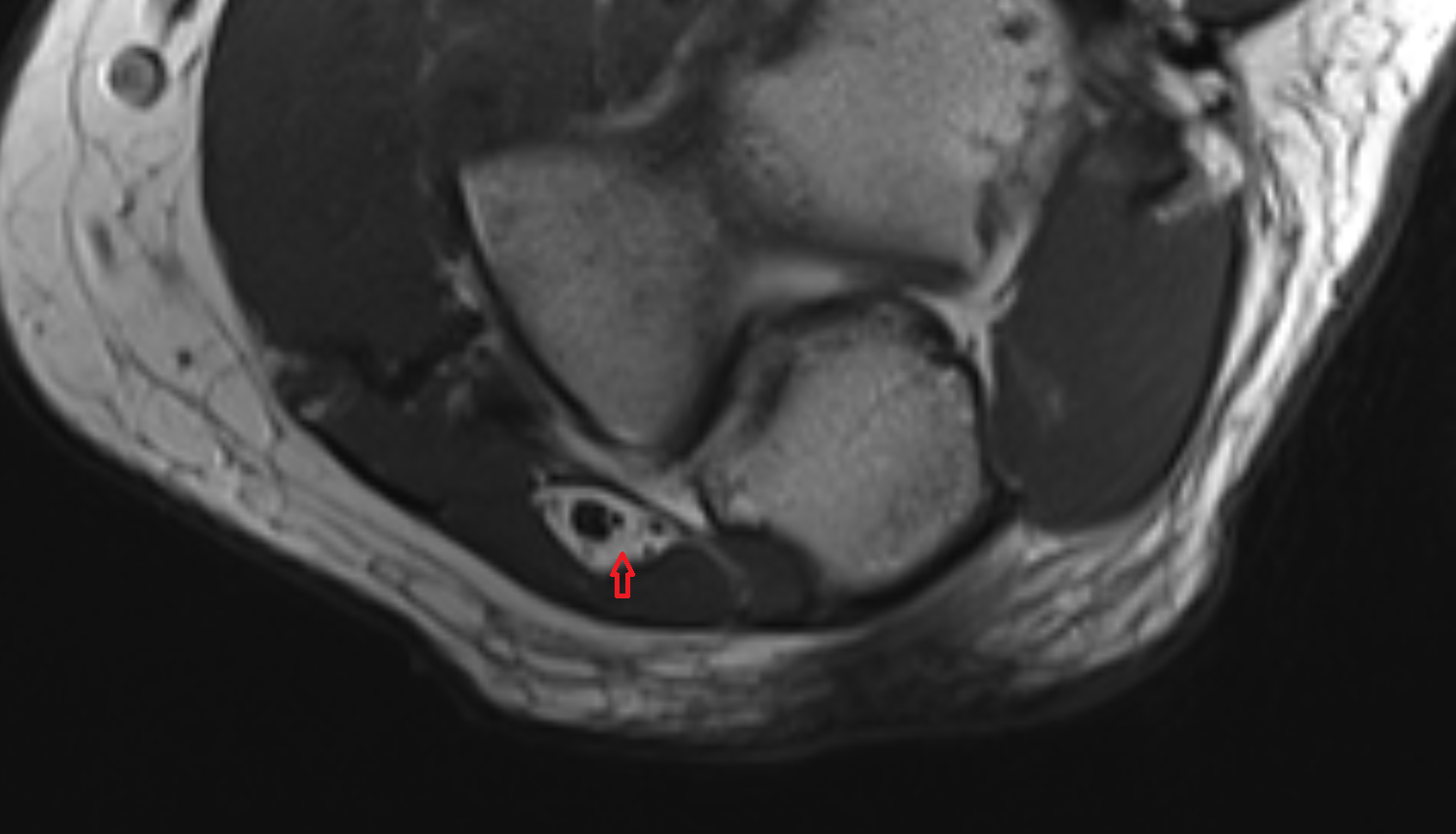

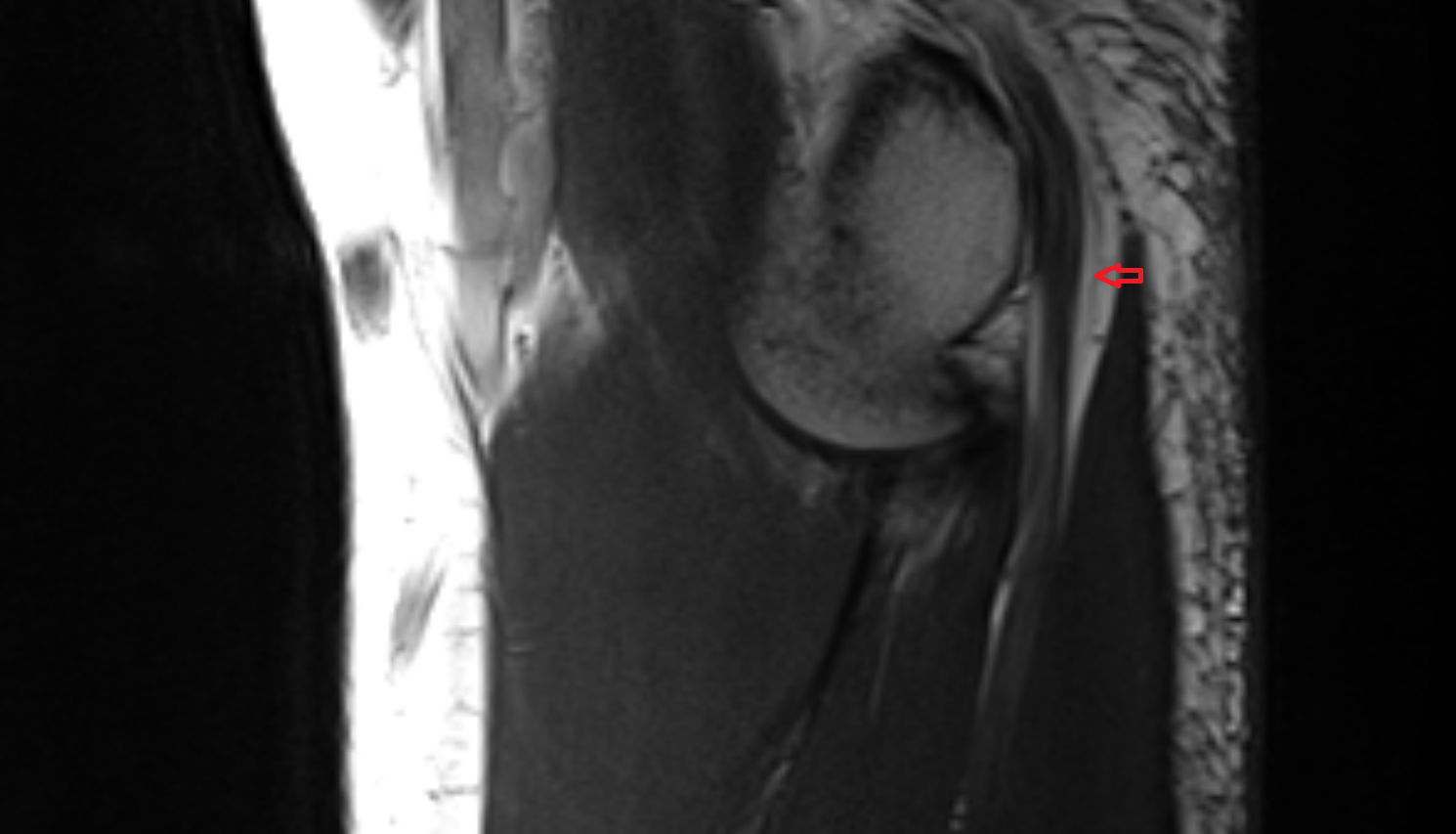

MRI image
