Deep posterior tibiotalar ligament

The deep posterior tibiotalar ligament is the strongest and deepest component of the deep layer of the deltoid ligament complex of the ankle. It provides powerful medial ankle stability by connecting the tibia to the talus and resisting excessive eversion and external rotation forces.

This ligament plays a critical role in stabilizing the talus within the mortise during weight-bearing and locomotion. Injury to the deep posterior tibiotalar ligament is often associated with deltoid ligament sprains, ankle fractures, and chronic instability.

Synonyms

  • Deep posterior deltoid ligament

  • Deep tibiotalar ligament (posterior band)

  • Posterior deep deltoid

Origin, Course, and Insertion

  • Origin: Medial (posterior colliculus) of the medial malleolus of the tibia

  • Course: Thick, strong fibers pass obliquely posteroinferiorly

  • Insertion: Medial surface of the talus, just posterior to the medial talar articular surface

Relations

  • Superiorly: Posterior colliculus of medial malleolus and posterior tibiotalar structures

  • Inferiorly: Talus and ankle joint capsule

  • Anteriorly: Deep anterior tibiotalar ligament and ankle joint cavity

  • Posteriorly: Flexor retinaculum and posterior tibial tendon structures

  • Laterally: Medial talar articular surface

Function

  • Primary medial stabilizer: Strongest stabilizing band of the deep deltoid ligament

  • Prevents talar eversion: Resists valgus forces at the ankle joint

  • Restrains external rotation: Limits excessive external rotation of talus relative to tibia

  • Weight-bearing support: Keeps talus centered in the mortise during gait

  • Injury prevention: Protects ankle from medial instability during high-impact stress

Clinical Significance

  • Ligament sprains: Frequently injured in severe ankle sprains with valgus/eversion stress

  • Ankle fractures: Tears often occur with bimalleolar-equivalent fractures (fibular fracture + deltoid rupture)

  • Chronic instability: Deficient posterior deep deltoid causes persistent medial ankle instability

  • Surgical relevance: Repair/reconstruction is vital for restoring medial ankle stability in ligament and fracture repair

  • Imaging role: MRI is the gold standard for detecting ligament tears, thickening, and degeneration

MRI Appearance

  • T1-weighted images:

    • Normal ligament: low signal (dark band) running from medial malleolus to talus

    • Acute tear: focal discontinuity with intermediate signal intensity

    • Chronic degeneration: thickened band with patchy intermediate signal

  • T2-weighted images:

    • Normal: low signal, darker than on T1

    • Partial tear: hyperintense streaks within ligament fibers

    • Complete tear: discontinuity with bright fluid signal at rupture site

    • Associated bone marrow edema in medial malleolus or talus visible as bright signal

  • STIR:

    • Normal ligament: dark

    • Pathology: bright hyperintense signal indicating edema, partial tear, or periligamentous inflammation

  • Proton Density Fat-Saturated (PD FS):

    • Normal: uniformly dark ligament fibers

    • Tears: bright linear or focal hyperintensity disrupting continuity

    • Subtle degeneration or thickening best seen in this sequence

  • T1 Fat-Sat Post-Contrast:

    • Normal ligament: minimal or no enhancement

    • Pathology: enhancement in cases of ligamentous inflammation, synovitis, or scar tissue formation

    • Post-surgical or chronic changes may show patchy enhancement

CT Appearance

Non-Contrast CT:

  • Ligament itself poorly visualized due to soft-tissue density

  • Indirect signs: medial clear space widening, talar shift, or avulsion fragments at ligament insertion sites

Post-Contrast CT (standard):

  • Deltoid ligament fibers remain indistinct

  • Useful primarily for detecting associated bone and joint pathology, not ligament details

MRI images

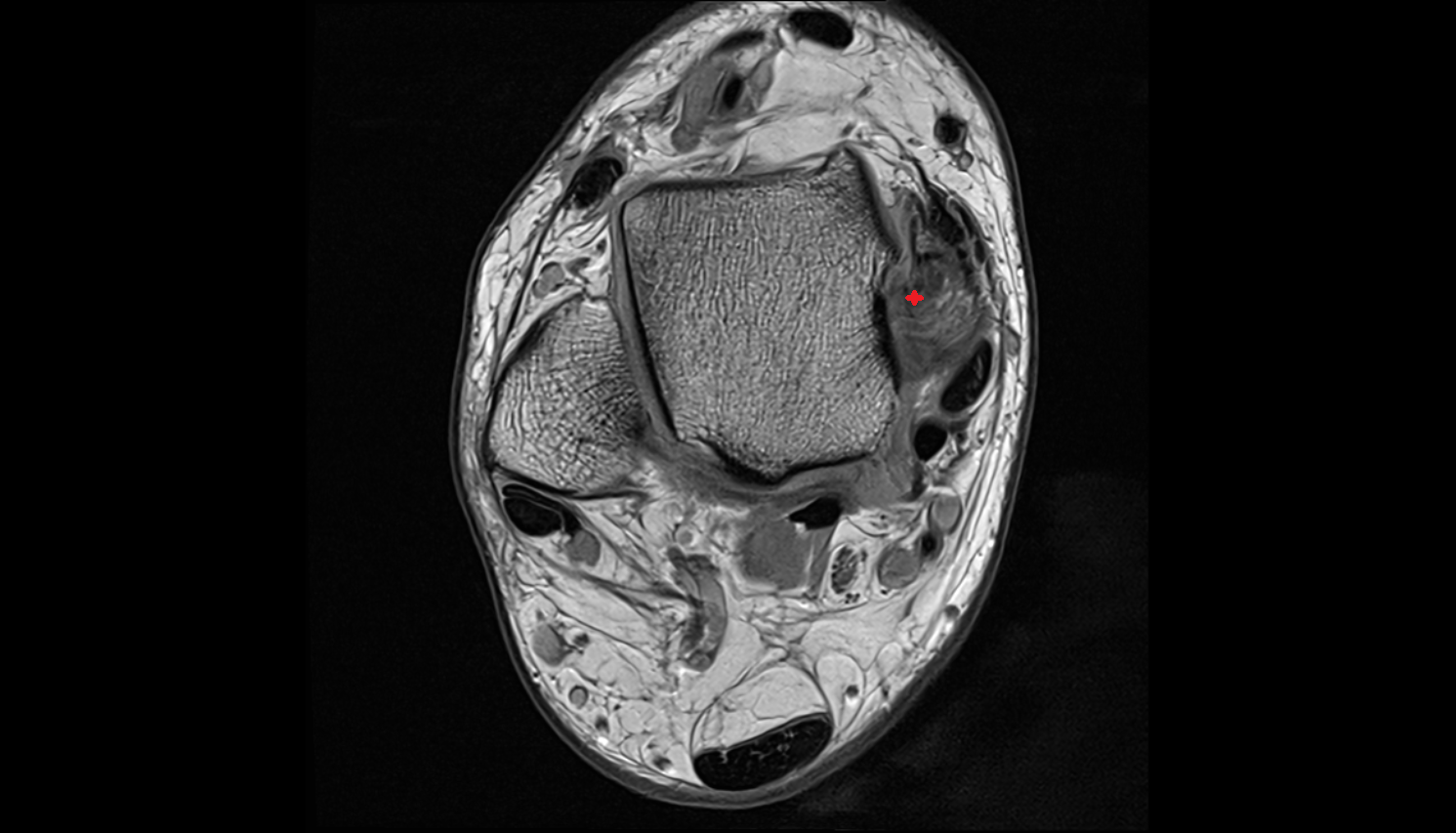

Deep posterior tibiotalar ligament (Deep deltoid) axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

MRI images

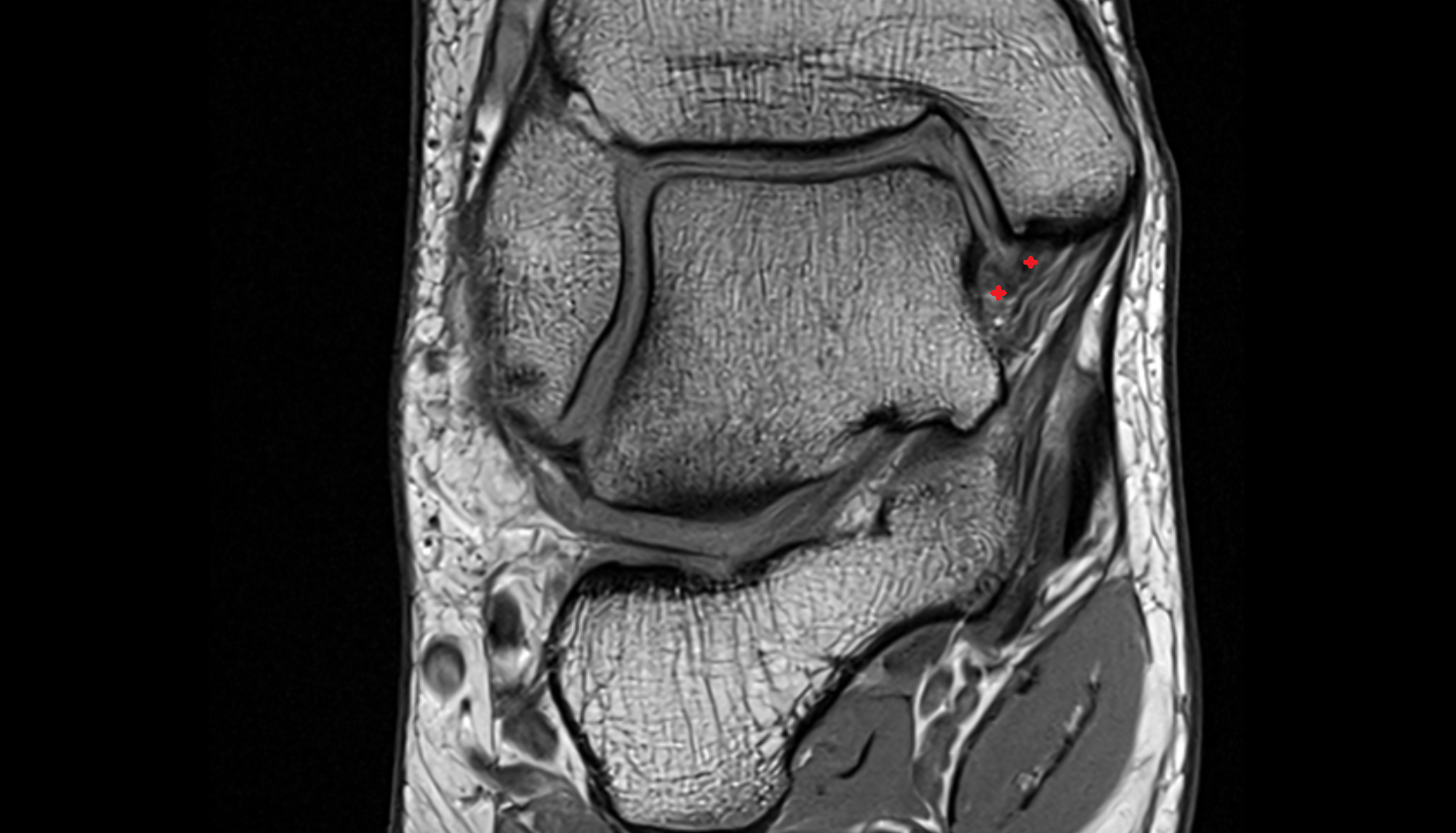

Deep posterior tibiotalar ligament (Deep deltoid) coronal cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000
