Deep Venous Palmar Arch: Anatomy, Drainage, Relations, Imaging

Topic

Deep venous palmar arch

The deep venous palmar arch is a venous network located in the deep layer of the palm, accompanying the deep palmar arterial arch. It serves as a critical component of the deep venous drainage system of the hand, collecting blood from the deep structures of the palm, including interosseous spaces and deep muscles, before channeling it proximally toward the forearm.

It lies deep to the flexor tendons and lumbrical muscles and superficial to the interosseous muscles and metacarpal bones. The arch is highly variable in pattern but generally mirrors the course of the deep palmar arterial arch, forming paired venae comitantes around it.

Synonyms

Deep palmar venous arch
Deep venous arch of the palm
Palmar deep venous plexus

Formation and Course

Formation: The deep venous palmar arch is formed by the union of the venae comitantes of the radial artery’s deep branches and the deep communicating veins from the palmar metacarpal veins.
Course:
- Lies deep in the palm, at the level of the bases of the metacarpal bones.
- Travels transversely across the palm, parallel to and accompanying the deep palmar arterial arch.
- Communicates extensively with the superficial venous palmar arch and dorsal venous network via perforating veins.
Termination:
- Drains into the radial veins on the lateral side and the ulnar veins on the medial side, continuing into the deep veins of the forearm.

Relations

Anteriorly: Flexor tendons of the fingers and lumbrical muscles
Posteriorly: Palmar interossei and metacarpal bones
Medially: Deep branch of the basilic venous network
Laterally: Deep branch of the cephalic venous network
Superiorly: Deep palmar arterial arch (accompanied by venae comitantes)
Inferiorly: Interosseous fascia and adductor pollicis muscle

Drainage Pattern

Receives venous return from the deep structures of the palm, including:
- Palmar interosseous muscles
- Metacarpal spaces
- Deep portions of the flexor tendons and lumbricals
Communicates with:
- Superficial palmar venous arch (via perforating veins)
- Dorsal venous arch of the hand
- Deep veins of the forearm, including radial and ulnar venae comitantes
Contributes to venous return of the hand, ensuring efficient drainage during both rest and grip activity.

Function

Venous return: Collects blood from deep muscles and bones of the palm
Collateral circulation: Provides communication between deep and superficial venous systems
Pressure equalization: Helps maintain uniform venous outflow during hand motion and grip
Thermoregulation: Assists in modulating venous return and temperature balance in the palm

Clinical Significance

Venous thrombosis: Rare but may occur in deep palmar veins, presenting as hand swelling and pain
Arteriovenous malformations (AVMs): Involving the deep venous system can cause pulsatile masses or ischemic symptoms
Venous congestion: Can contribute to edema or discoloration in chronic venous insufficiency
Trauma or surgery: Awareness of deep venous arch is critical during deep palmar incisions, tendon repairs, or vascular graft procedures
Imaging role: Deep venous arch evaluation helps identify thrombosis, venous malformations, or postsurgical complications

MRI Appearance

T1-weighted images:
- Normal veins show flow voids (dark signal) due to fast venous flow
- Perivascular fat appears bright, enhancing visualization
- Thrombosed veins: intermediate-to-bright signal depending on clot age
- Surrounding muscles: intermediate signal intensity
T2-weighted images:
- Flowing veins: dark flow voids
- Subacute thrombosis: bright intraluminal signal
- Chronic thrombosis: organized low-signal fibrotic lumen
- Adjacent soft tissues and tendons provide contrast differentiation
STIR:
- Normal veins: dark or intermediate due to flow void
- Perivenous edema or inflammation: bright hyperintense
- Excellent for early thrombophlebitis detection
Proton Density Fat-Saturated (PD FS):
- Normal veins: dark, thin linear structures
- Thrombosis or perivenous edema: bright high-signal intensity
- Useful for identifying small thrombi or subtle venous wall inflammation
T1 Fat-Sat Post-Contrast:
- Normal veins: homogeneous enhancement following contrast injection
- Occluded or thrombosed veins: non-enhancing lumen with peripheral wall enhancement
- Perivenous inflammatory changes: bright rim enhancement
- Distinguishes acute thrombosis (enhancing rim) from chronic organized thrombus (low signal core)

MR Venography (MRV) Appearance

Normal:
- The deep venous palmar arch appears as paired, enhancing veins following the course of the deep palmar arterial arch.
- Best visualized with contrast-enhanced MRV.
Pathology:
- Thrombosis: Focal or segmental loss of flow signal or filling defect.
- Venous malformation: Tortuous, dilated venous channels with slow enhancement.
- Post-surgical changes: Collateral formation or asymmetrical filling patterns.

CT Appearance

Non-Contrast CT:

Veins poorly visualized without contrast due to soft-tissue density similarity
May show indirect signs such as soft-tissue swelling or perivenous fat stranding
Phleboliths or calcifications may occasionally be seen in chronic venous lesions

Post-Contrast CT (standard):

Deep venous arch appears as paired enhancing channels at the level of metacarpal bases
Enhances simultaneously with deep palmar arterial arch (arterial phase)
Thrombosis: Non-enhancing or partially filling defect
Venous malformation: Enhancing serpiginous vascular structures in deep palm

CT Venography (CTV) Appearance

Normal:
- The deep venous palmar arch enhances symmetrically as two parallel veins curving across the palm.
- Communicating perforators with superficial veins are visible on thin-section reconstructions.
Pathology:
- Thrombosis: Segmental filling defect or complete non-opacification.
- Aneurysmal dilatation: Focal venous enlargement with homogeneous contrast filling.
- AV fistula: Early venous opacification during arterial phase.

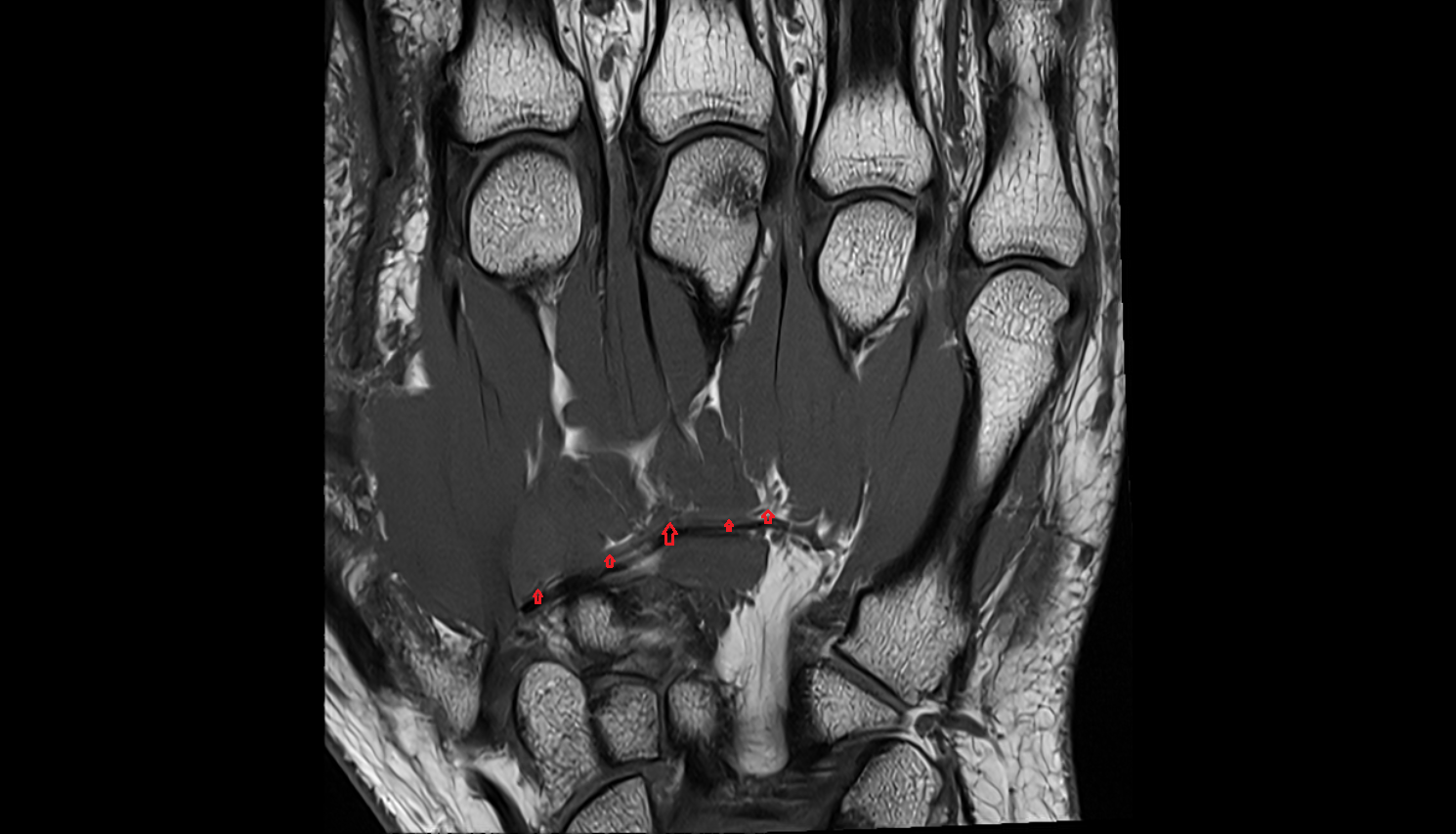

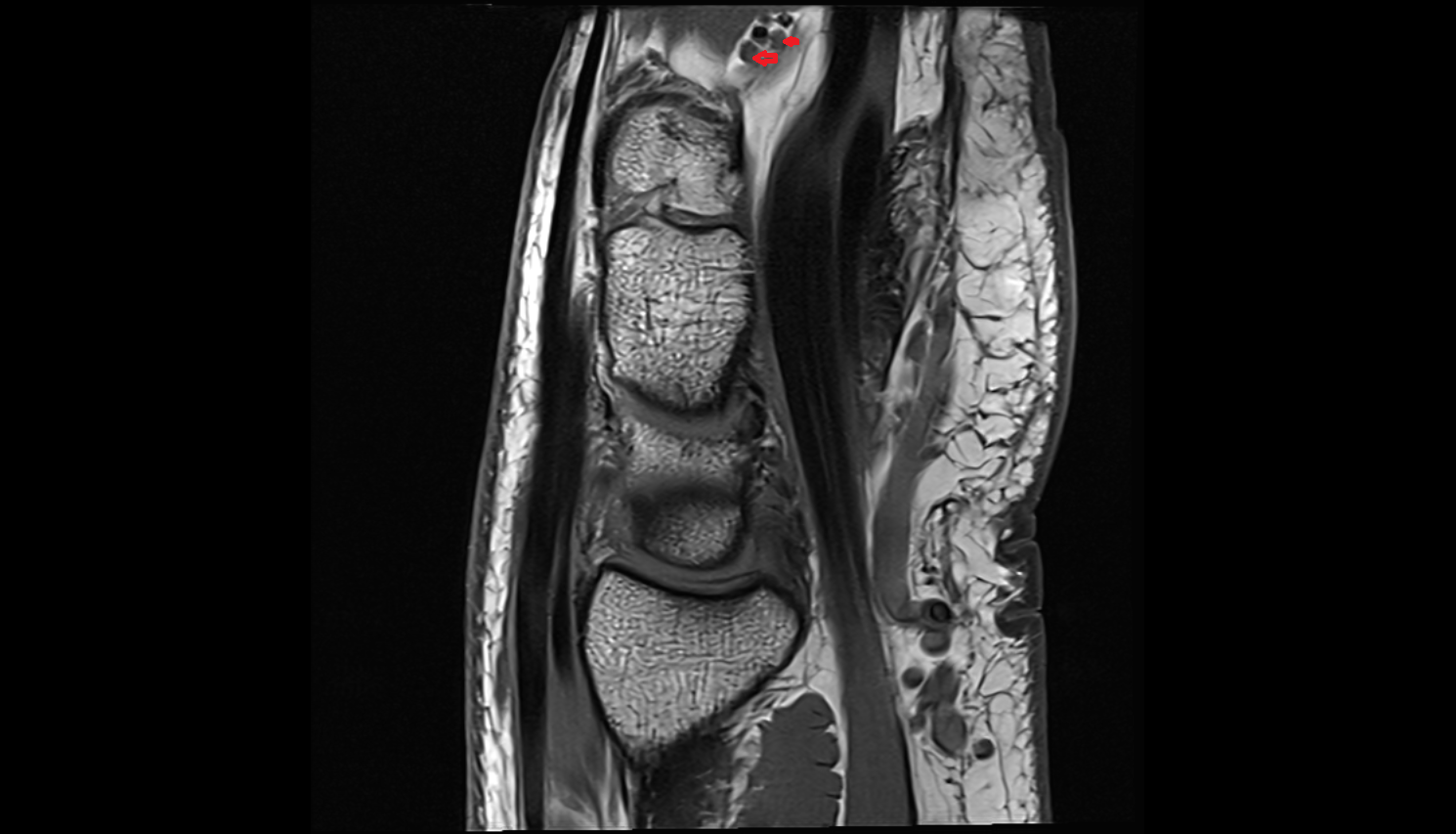

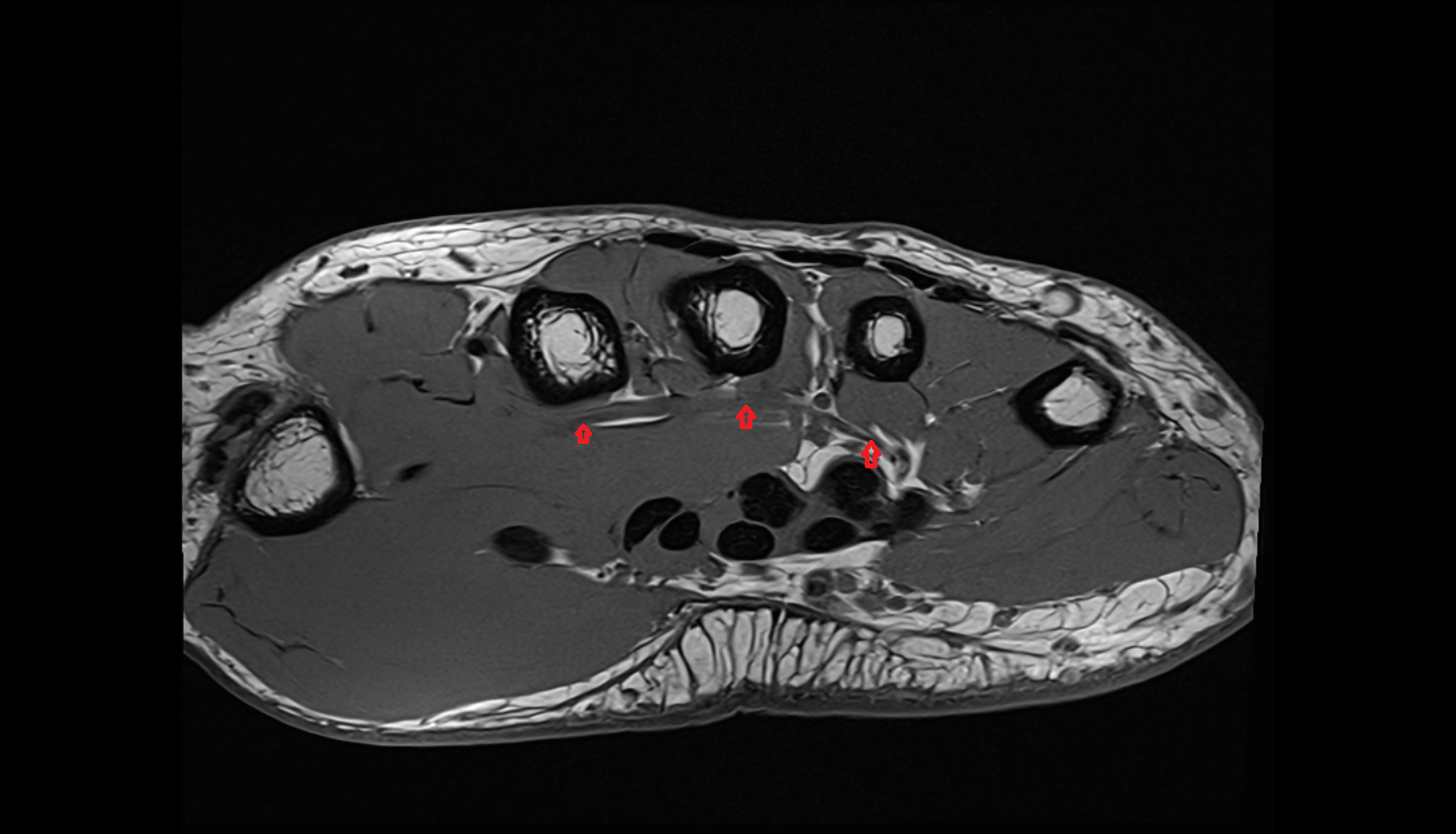

MRI images
