Deltoid ligament complex

The deltoid ligament complex is the strong, triangular-shaped ligament located on the medial side of the ankle. It provides critical stability to the ankle joint, resisting excessive eversion and external rotation. The deltoid ligament is composed of superficial and deep layers, which attach from the medial malleolus of the tibia to the talus, calcaneus, and navicular bones.

It functions as the primary medial stabilizer of the ankle, working synergistically with the lateral ligaments and syndesmotic structures. Injury to the deltoid ligament occurs in severe ankle sprains, eversion injuries, or in association with ankle fractures, and is clinically significant because it compromises medial stability.

Synonyms

  • Medial collateral ligament of the ankle

  • Tibial collateral ligament

Components and Attachments

  • Superficial layer:

    • Tibionavicular ligament → medial malleolus to navicular

    • Tibiocalcaneal ligament → medial malleolus to sustentaculum tali of calcaneus

    • Posterior superficial tibiotalar ligament → medial malleolus to talus (posterior aspect)

  • Deep layer:

    • Anterior deep tibiotalar ligament → medial malleolus to talus (anteromedial aspect)

    • Posterior deep tibiotalar ligament → medial malleolus to talus (medial aspect)

Relations

  • Superiorly: Medial malleolus of tibia

  • Inferiorly: Talus, calcaneus, and navicular bones

  • Anteriorly: Navicular bone and tibionavicular fibers

  • Posteriorly: Posterior tibiotalar fibers and flexor tendons of the foot

  • Laterally: Talus (medial aspect of body and neck)

Function

  • Medial ankle stabilizer: Primary restraint against excessive eversion

  • Limits external rotation and valgus tilt of the talus within the ankle mortise

  • Maintains congruency between talus and tibia during weight-bearing

  • Prevents medial translation of the talus

  • Works with the syndesmotic ligaments for ankle stability during gait

Clinical Significance

  • Deltoid ligament tears: Occur with eversion ankle injuries, severe pronation, or high-energy trauma

  • Isolated injuries are rare; usually associated with lateral ligament injury, syndesmotic disruption, or ankle fractures

  • Signs and symptoms: Medial ankle pain, swelling, ecchymosis, and instability

  • Chronic insufficiency: Can cause medial ankle instability and predispose to osteoarthritis

  • Imaging role: MRI is the gold standard for ligament assessment; CT is useful for associated fractures and alignment

MRI Appearance

  • T1-weighted images:

    • Normal ligament: low signal (dark), cord-like band

    • Tears: thickened and irregular ligament with focal intermediate to high signal

    • Hematoma or adjacent edema: intermediate-to-bright signal replacing normal fat planes

  • T2-weighted images:

    • Normal ligament: low signal intensity, thin linear band

    • Acute tear: bright hyperintense signal within fibers or discontinuity

    • Chronic injury: ligament appears attenuated, thinned, or wavy with surrounding edema

  • STIR:

    • Normal ligament: dark linear band

    • Injury: hyperintense edema or hematoma surrounding torn fibers

  • Proton Density Fat-Saturated (PD FS):

    • Normal ligament: uniformly low signal

    • Tears: bright hyperintense clefts or irregularity within ligament substance

    • Best sequence for detecting partial-thickness tears and periligamentous edema

  • T1 Fat-Sat Post-Contrast:

    • Normal: minimal enhancement

    • Injury: contrast enhancement in torn ligament fibers and surrounding edema, indicating inflammatory or healing response

CT Appearance

Non-Contrast CT:

  • Deltoid ligament itself poorly visualized due to soft tissue density

  • Indirect signs: medial joint space widening, avulsion fragments at medial malleolus or talus, subtle malalignment

Post-Contrast CT:

  • Ligament not distinctly enhanced

  • Useful for evaluating associated fractures or medial malleolar avulsions rather than the ligament itself

MRI images

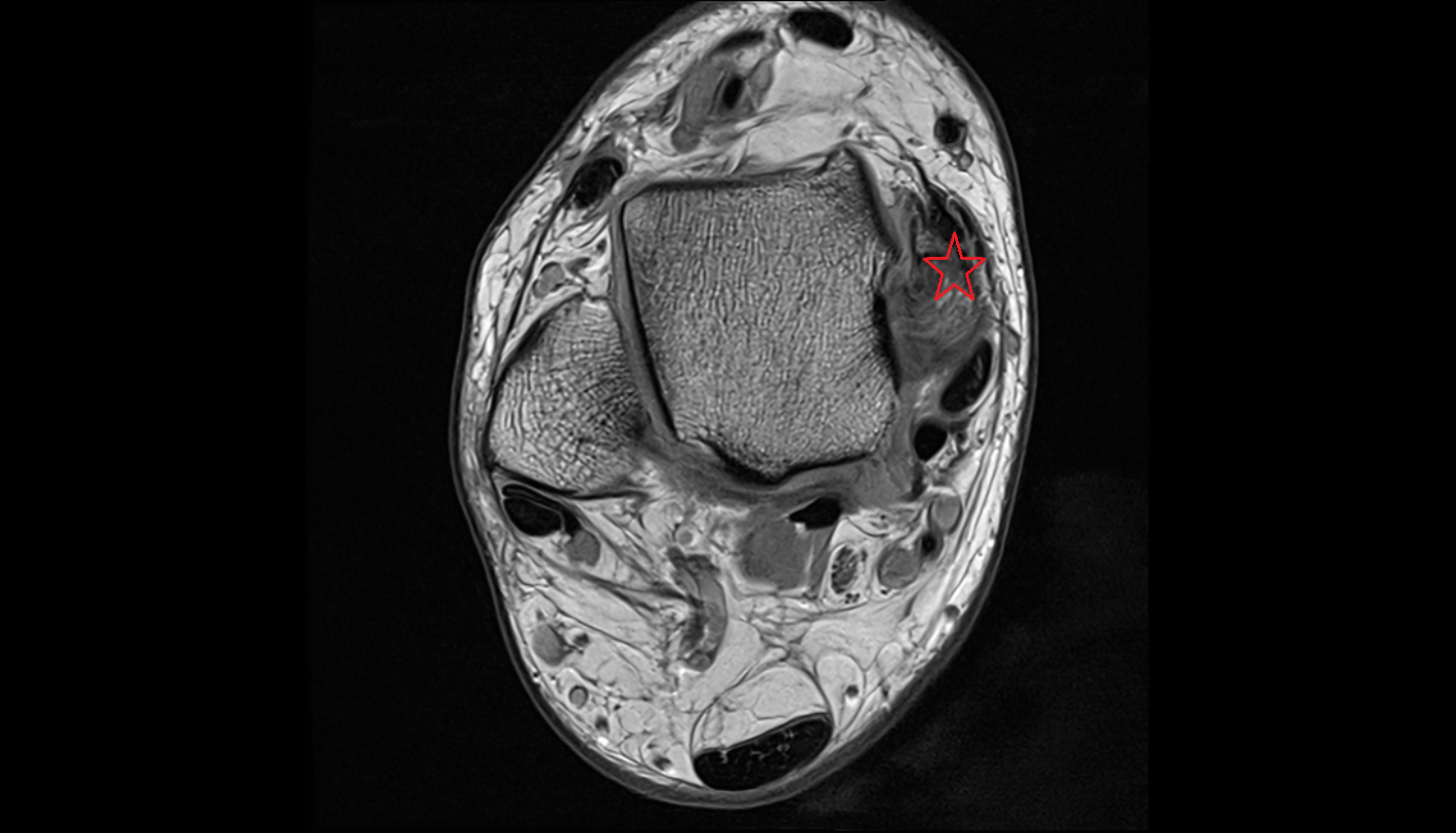

deltoid ligament complex axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

MRI images

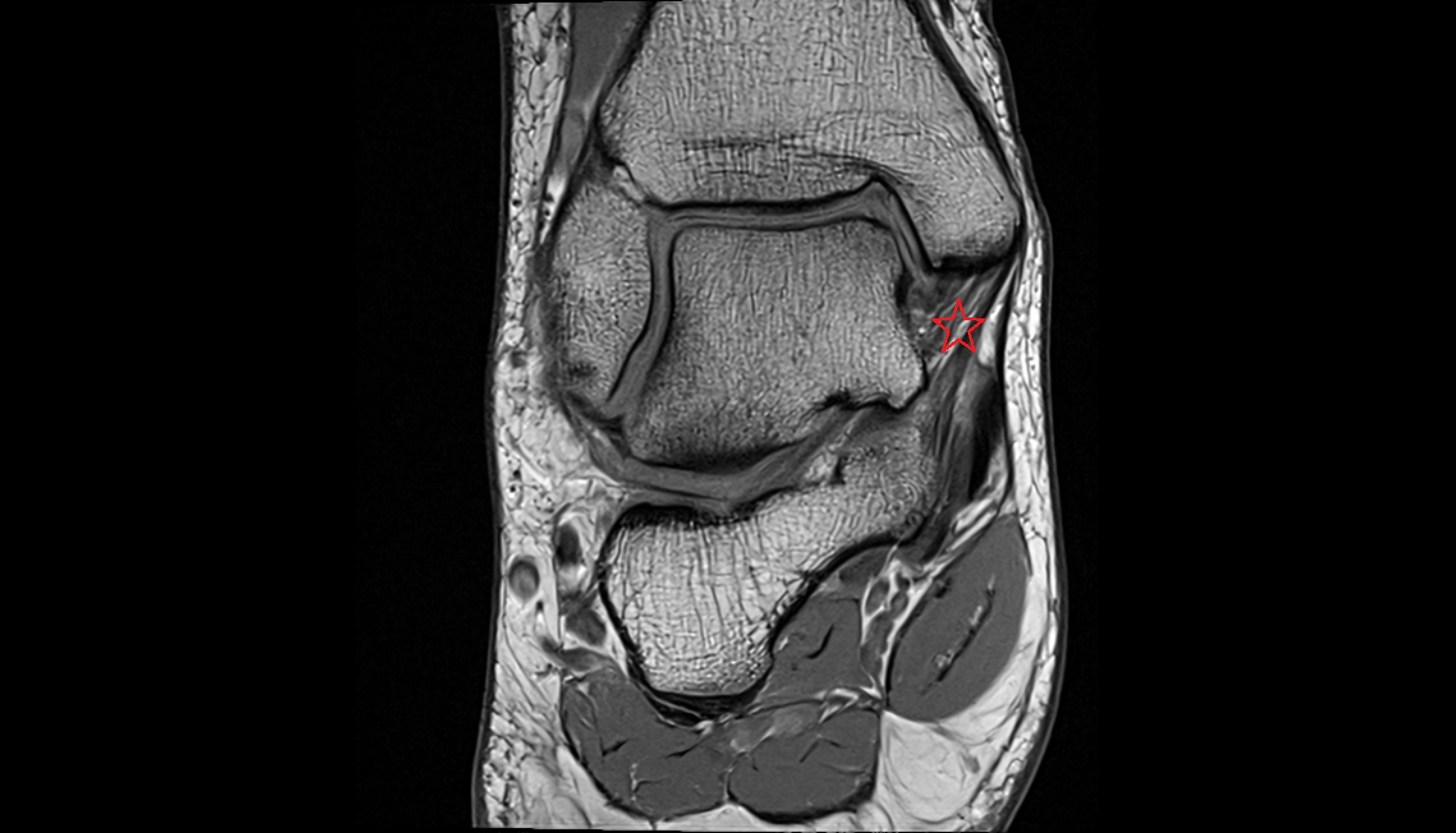

deltoid ligament complex coronal cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

MRI images

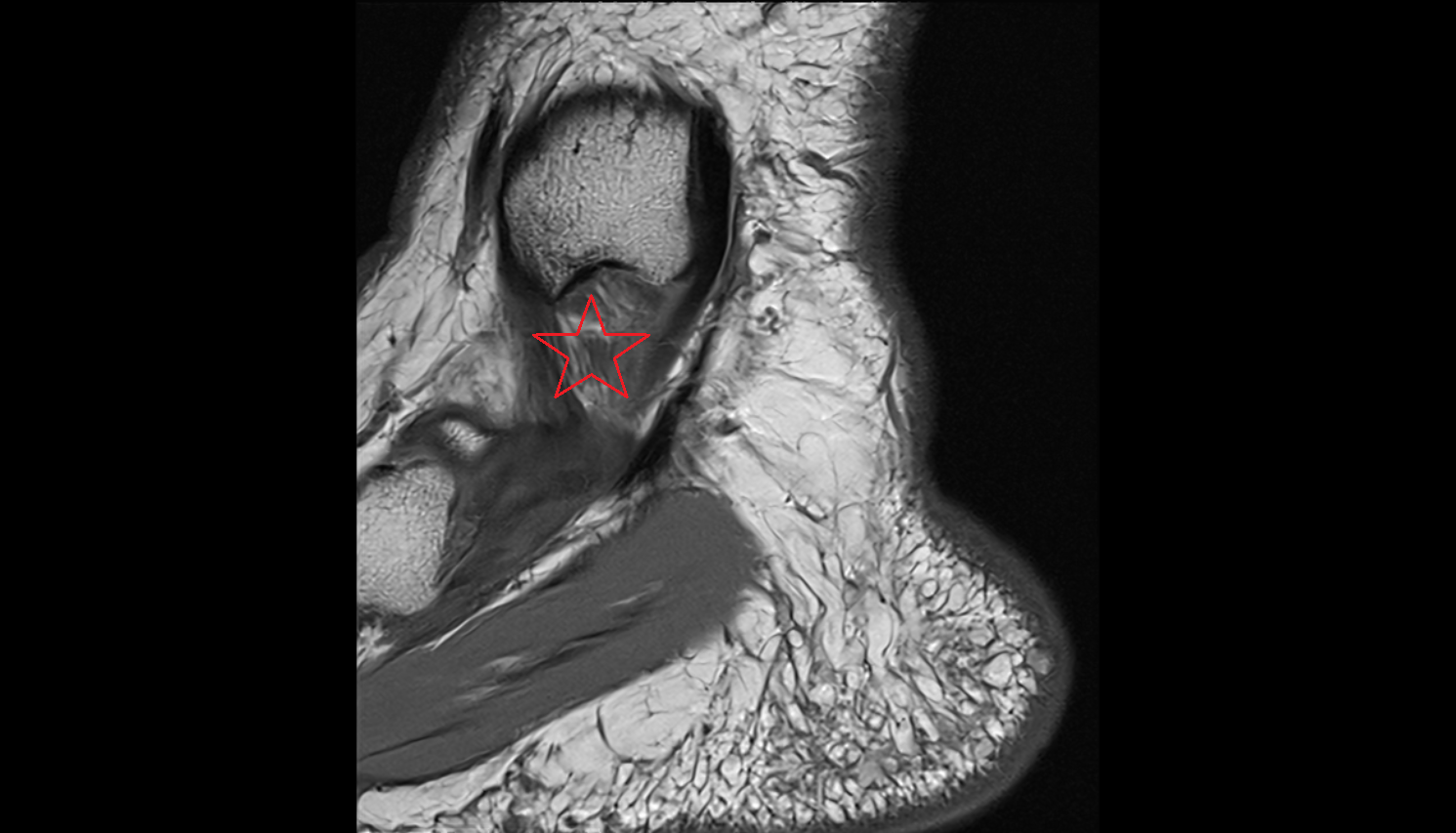

deltoid ligament complex sagittal cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

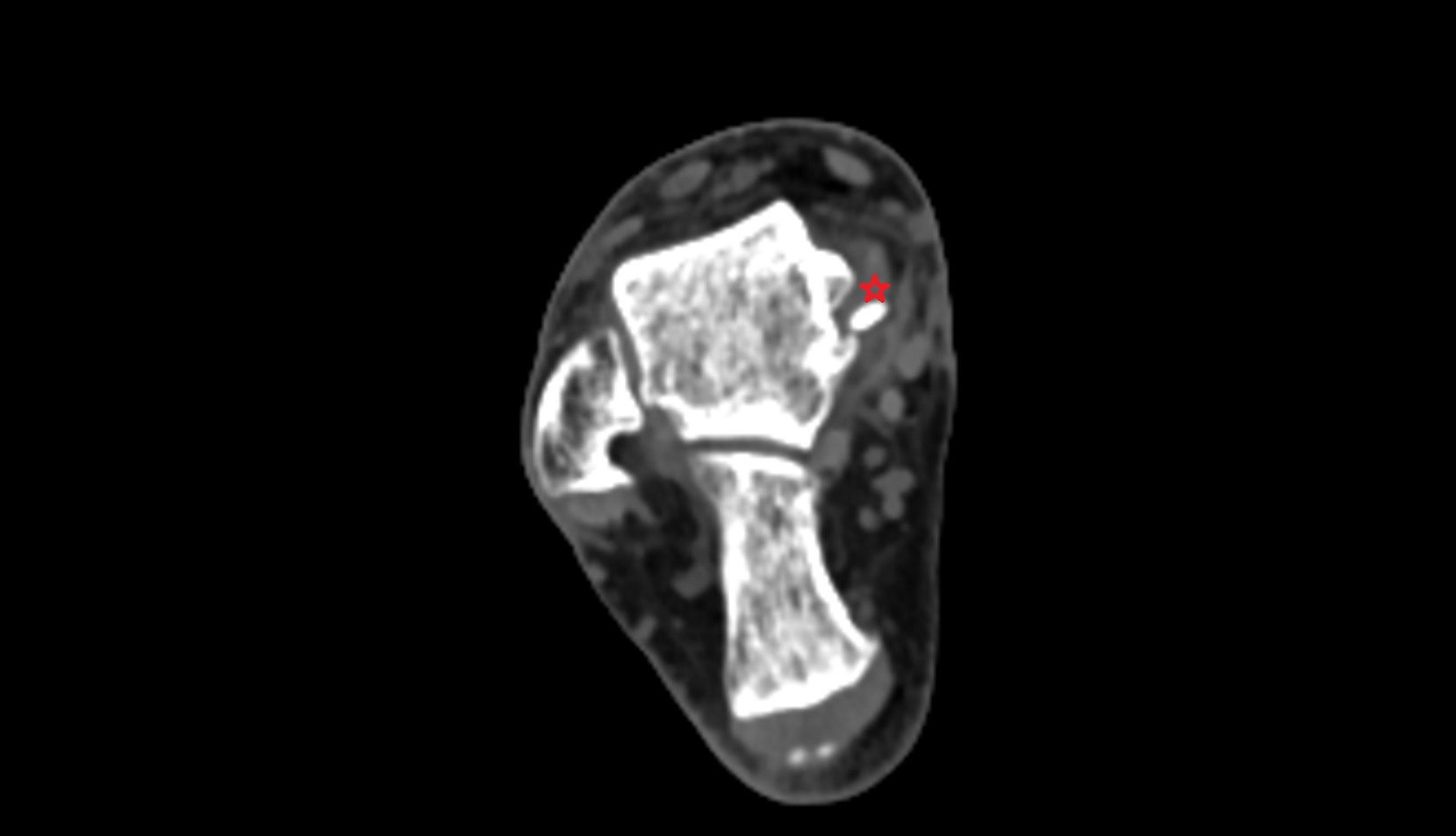

deltoid ligament complex ct axial
