Deltoid Tendon (Distal): Anatomy, Function, Clinical Significance, Imaging

Topic

Deltoid tendon (Distal)

The distal deltoid tendon represents the terminal tendinous attachment of the deltoid muscle to the deltoid tuberosity of the humerus. It serves as the primary anchoring point for transmitting the deltoid’s powerful abduction, flexion, and extension forces from the shoulder to the humeral shaft.

The tendon is broad, thick, and robust, composed of converging fibers from the anterior, middle, and posterior heads of the deltoid muscle. It inserts into the lateral surface of the midshaft of the humerus, forming a strong fibrotendinous junction that endures significant mechanical stress during lifting and arm elevation.

Distal deltoid tendon pathology is uncommon but clinically significant in athletes, weightlifters, and trauma patients, often presenting as partial or complete avulsion, tendinopathy, or calcific degeneration.

Synonyms

Distal deltoid insertion
Deltoid tuberosity attachment
Inferior deltoid tendon

Origin and Course

Origin of muscle: The deltoid arises proximally from three heads:
- Anterior fibers: Lateral third of the clavicle
- Middle fibers: Acromion process of the scapula
- Posterior fibers: Spine of the scapula
Course: Fibers converge laterally and inferiorly to form a broad, tapering tendon that inserts on the humerus.
Distal course: The tendon passes superficially along the lateral arm, fusing into the deep fascia before inserting at the deltoid tuberosity.

Insertion (Distal Attachment)

Site: Deltoid tuberosity, located on the lateral aspect of the humeral shaft, midway between the shoulder and elbow.
The insertion forms a V-shaped area, with the anterior fibers lying more superior and the posterior fibers inserting slightly lower and posteriorly.
Tendon fibers interdigitate with the lateral intermuscular septum and occasionally with fibers of the brachialis muscle.

Relations

Superficial: Subcutaneous tissue and skin of the lateral arm
Deep: Lateral humeral cortex, brachialis muscle
Anteriorly: Biceps brachii and brachialis
Posteriorly: Triceps brachii (lateral head)
Proximally: Deltoid muscle belly
Distally: Continuous with fascia of the lateral arm

Nerve Supply

Axillary nerve (C5–C6), providing both motor innervation and proprioceptive feedback to the deltoid muscle and tendon.

Function

Abduction: Primary abductor of the shoulder beyond 15°.
Flexion (anterior fibers): Assists pectoralis major in forward elevation of the arm.
Extension (posterior fibers): Assists latissimus dorsi and teres major in backward arm movement.
Stabilization: Maintains humeral head position during shoulder motion.
Force transmission: Transfers muscular contraction to humerus for elevation and dynamic control.

Clinical Significance

Tendinopathy: Overuse or repetitive overhead activity can cause tendinosis or partial tearing at insertion.
Avulsion injury: High-impact trauma (fall, direct blow) can cause complete detachment from the humerus, sometimes with bony fragment.
Calcific tendinitis: Chronic degenerative changes with intratendinous calcium deposition.
Post-surgical relevance: Critical landmark in deltoid-splitting and shoulder arthroplasty approaches.
Imaging role: MRI and CT essential for evaluating deltoid avulsion, muscle retraction, fibrosis, and calcification.

MRI Appearance

T1-weighted images:
- Tendon: Low signal (dark band) attaching to humeral cortex.
- Muscle: Intermediate signal, with visible fascicular pattern.
- Marrow: Bright, fatty signal in normal humerus.
- Pathology: Partial tear—focal tendon thickening with small high-signal zones; complete tear—discontinuity and retraction of tendon edge.
- Peritendinous fat planes: Bright signal separating tendon and muscle from surrounding tissues.
T2-weighted images:
- Tendon: Low-to-intermediate signal; intact fibers remain dark.
- Muscle: Intermediate, darker than T1 but clearly defined.
- Pathology:
  - Tendinopathy—patchy hyperintense signal within tendon substance.
  - Partial tear—linear bright zone at insertion.
  - Complete tear—fluid-bright gap with retracted tendon stump.
- Edema: Peritendinous or marrow hyperintensity near deltoid tuberosity.
STIR:
- Normal tendon and muscle: Intermediate-to-dark signal.
- Abnormal: Bright hyperintensity in tendon or muscle (edema, tear, contusion).
- Sensitive for early tendinopathy and post-traumatic changes.
Proton Density Fat-Saturated (PD FS):
- Normal tendon: Uniformly dark.
- Pathology: Bright focal or linear signal in partial tears; diffuse bright signal in tendinitis.
- Highlights peritendinous fluid and edema extending into deltoid muscle belly.
T1 Fat-Sat Post-Contrast:
- Normal tendon: Minimal or no enhancement.
- Tendinitis or tenosynovitis: Shows diffuse enhancement.
- Post-traumatic fibrosis: Peripheral rim enhancement.
- Infection or inflammation: Irregular, intense enhancement of adjacent soft tissues.

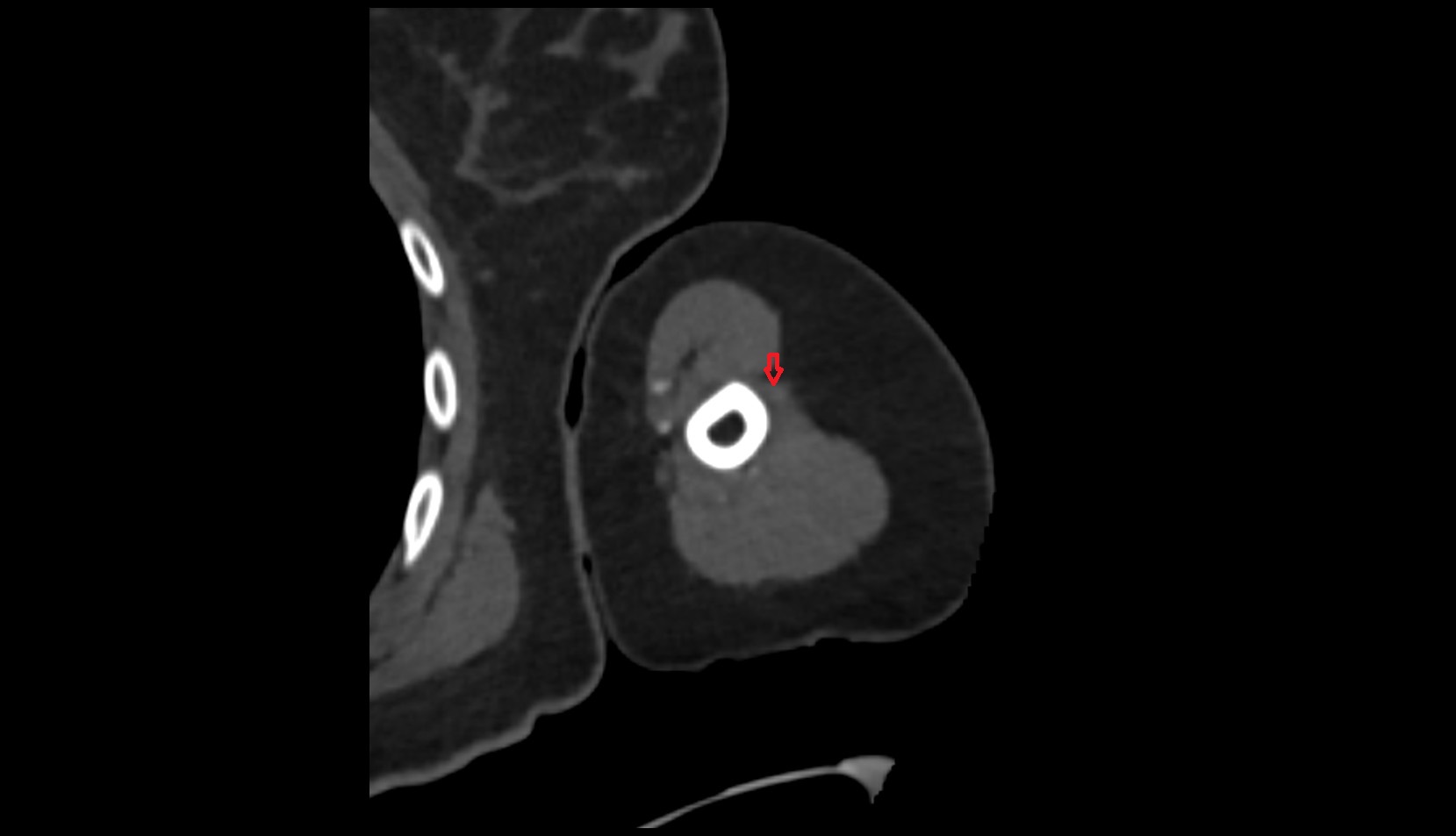

CT Appearance

Non-Contrast CT:

Tendon: Seen as a thin, soft-tissue density band inserting at the deltoid tuberosity.
Cortex: High-attenuation, sharply defined humeral surface.
Pathology:
- Avulsion fractures: cortical fragment separated from deltoid tuberosity.
- Calcific tendinitis: discrete or amorphous high-density foci within tendon.
- Chronic traction changes: cortical thickening or enthesophyte formation.

Post-Contrast CT (standard):

Muscle and tendon: Mild homogeneous enhancement.
Inflamed tendon or peritendinous tissues: Focal enhancement along insertion site.
Useful for evaluating calcifications, ossifications, and avulsion injuries when MRI is contraindicated.

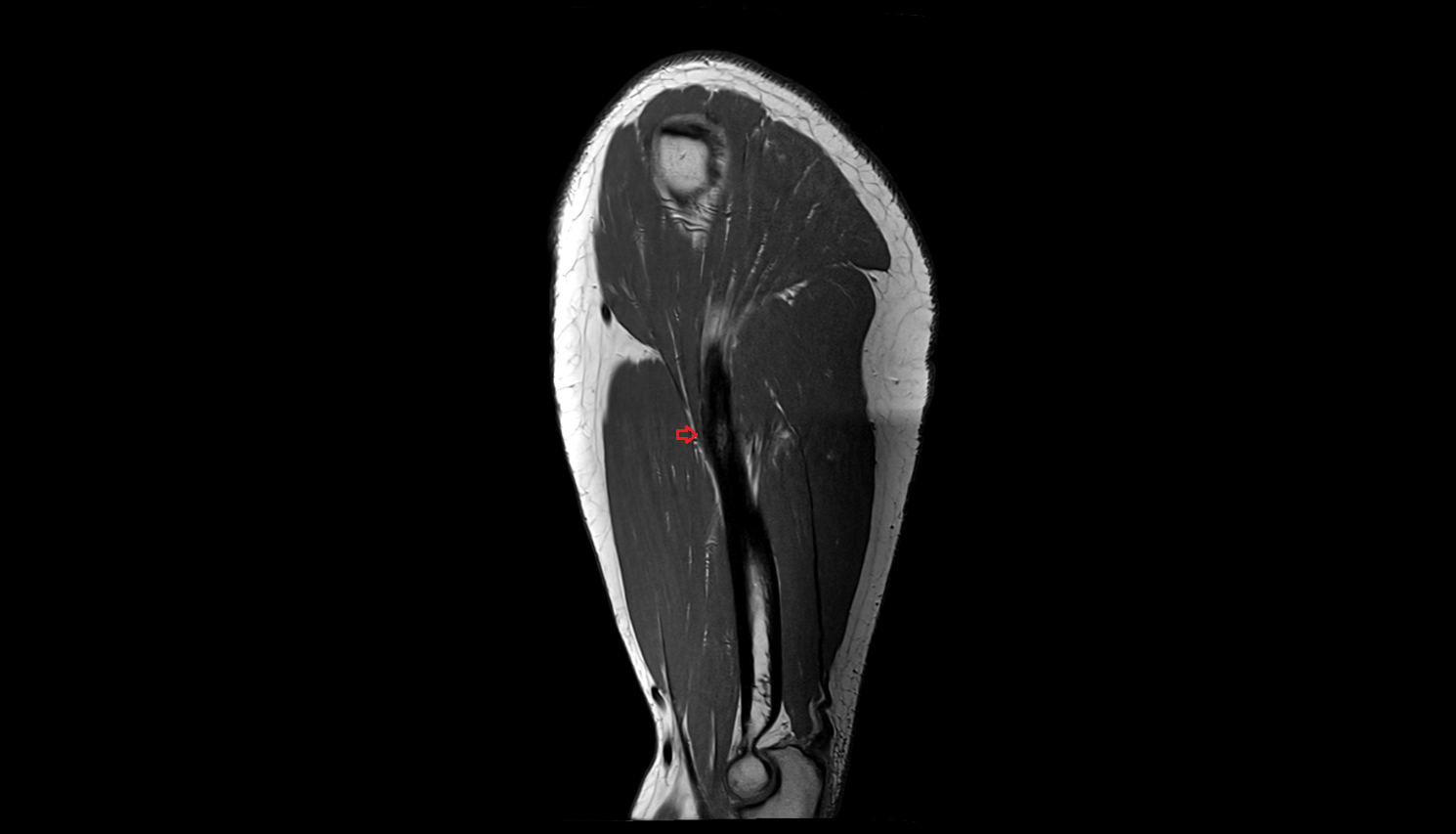

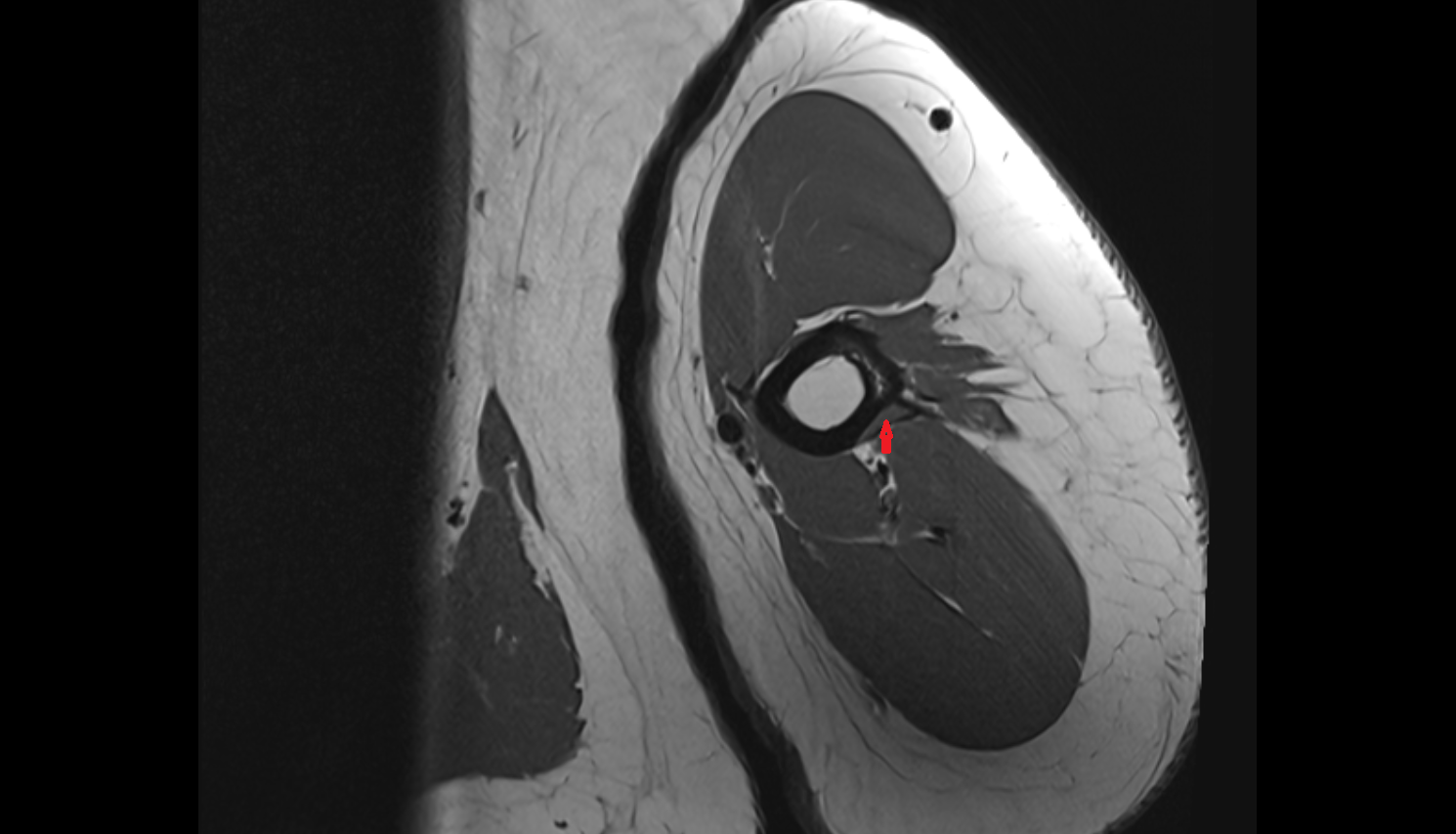

MRI image
