Dorsal Venous Network of Hand: Anatomy, Function, Imaging

Topic

Dorsal venous network of hand

The dorsal venous network of the hand (also called the dorsal venous arch) is a prominent subcutaneous venous plexus located on the dorsum of the hand, just superficial to the dorsal fascia and extensor tendons. It serves as the principal superficial venous drainage pathway for the hand and fingers, providing a key connection between the deep and superficial venous systems of the upper limb.

It plays a crucial role in thermoregulation, venous return, and clinical venipuncture access. The dorsal venous network acts as the origin of the cephalic and basilic veins, which ascend in the forearm to form major superficial veins of the upper limb.

Synonyms

Dorsal venous arch of hand
Superficial dorsal hand veins
Dorsal hand venous plexus

Location and Structure

Lies within the subcutaneous tissue on the dorsum of the hand, superficial to the extensor tendons of the metacarpals.
Formed by the dorsal digital veins from the fingers, which unite to form common dorsal digital veins between the metacarpals.
These veins converge to form a transverse venous arch across the dorsum of the hand near the metacarpal heads.
The arch drains laterally into the cephalic vein and medially into the basilic vein.
Small communicating branches connect to the deep venous system through perforating veins.

Relations

Superficial: Skin of the dorsum of the hand
Deep: Dorsal fascia, interosseous muscles, and extensor tendons
Medially: Basilic vein (ascending along the ulnar side)
Laterally: Cephalic vein (ascending along the radial side)
Anteriorly: Dorsal carpal branches and subcutaneous adipose tissue

Tributaries and Drainage Pattern

Dorsal digital veins: Drain blood from dorsal aspects of fingers
Common dorsal digital veins: Formed by union of adjacent dorsal digital veins between metacarpals
Dorsal venous arch (network): Receives the common dorsal digital veins and small veins from the dorsal hand and wrist
Lateral end: Continues as the cephalic vein
Medial end: Continues as the basilic vein
Communicating veins: Connect with deep veins of the hand, including dorsal metacarpal veins and palmar venous plexuses

Function

Venous return: Drains superficial structures of the fingers, hand, and dorsum of the wrist into the cephalic and basilic veins
Thermoregulation: Facilitates heat dissipation through superficial venous blood flow
Collateral pathway: Provides alternative drainage when deep veins are obstructed
Clinical relevance: Common site for intravenous access, venipuncture, and cannulation due to its superficial location and accessibility

Clinical Significance

Venipuncture site: Frequently used for IV access, blood draws, and cannulation
Thrombophlebitis: Inflammation or thrombosis due to IV catheters, trauma, or infection
Varicosities: Can develop in patients with chronic venous insufficiency
Venous congestion: Seen in upper limb edema, cardiac failure, or proximal venous obstruction
Injury or laceration: May cause hematoma formation due to subcutaneous location
Surgical relevance: Important in reconstructive flap surgeries and venous grafting procedures

MRI Appearance

T1-weighted images:
- Flowing blood: Appears as signal void (dark) due to rapid flow.
- Perivascular fat: Bright, outlining the venous structures.
- Thrombosed veins: Show intermediate or bright signal filling the lumen.
- Vein walls appear as thin low-signal margins within the subcutaneous tissue.
T2-weighted images:
- Normal veins: Flow void (dark linear channels) due to high-velocity flow.
- Slow flow or thrombosis: Intermediate-to-bright intraluminal signal.
- Perivenous inflammation or edema: Hyperintense surrounding soft tissue.
STIR:
- Normal vein: Intermediate-to-dark flow void.
- Inflammatory or edematous changes: Bright hyperintense perivascular signal.
Proton Density Fat-Saturated (PD FS):
- Normal veins: Dark linear channels.
- Thrombosis: Bright or intermediate signal filling the lumen.
- Highlights soft-tissue edema or inflammation around cannulation or trauma sites.
T1 Fat-Sat Post-Contrast:
- Patent veins: Show homogeneous enhancement corresponding to blood flow.
- Thrombosed veins: Show absence of luminal enhancement with peripheral wall enhancement.
- Useful in identifying superficial thrombophlebitis and post-IV infiltration changes.

MR Venography (MRV) Appearance

Normal: The dorsal venous network appears as a superficial branching plexus over the metacarpals, connecting laterally to the cephalic vein and medially to the basilic vein.
Techniques: Best seen with contrast-enhanced MRV or 2D TOF sequences.
Pathology:
- Thrombosis: Segmental loss of signal or filling defect.
- Varicosities: Dilated tortuous channels with irregular enhancement.
- Collateral flow: Prominent secondary channels in proximal venous obstruction.

CT Appearance

Non-Contrast CT:

Veins are not well visualized unless distended or thrombosed.
Subcutaneous location and soft-tissue plane may show subtle tubular structures.
Calcified thrombus (rare) may appear as linear hyperdensity.

Post-Contrast CT (standard):

Veins appear as enhancing superficial tubular channels over the dorsum of the hand.
Easily distinguished from arteries based on timing (venous phase imaging).
Detects venous engorgement, thrombosis, or collateral formation.

CT Venography (CTV) Appearance

Normal: Shows a superficial venous plexus draining into cephalic and basilic veins.
Thrombosis: Focal or segmental non-opacification with perivenous enhancement.
Varicosities: Tortuous, dilated enhancing channels.
Venous obstruction: Prominent collateral veins over dorsum of hand and wrist.
High-resolution CTV delineates venous anatomy for planning reconstructive or vascular procedures.

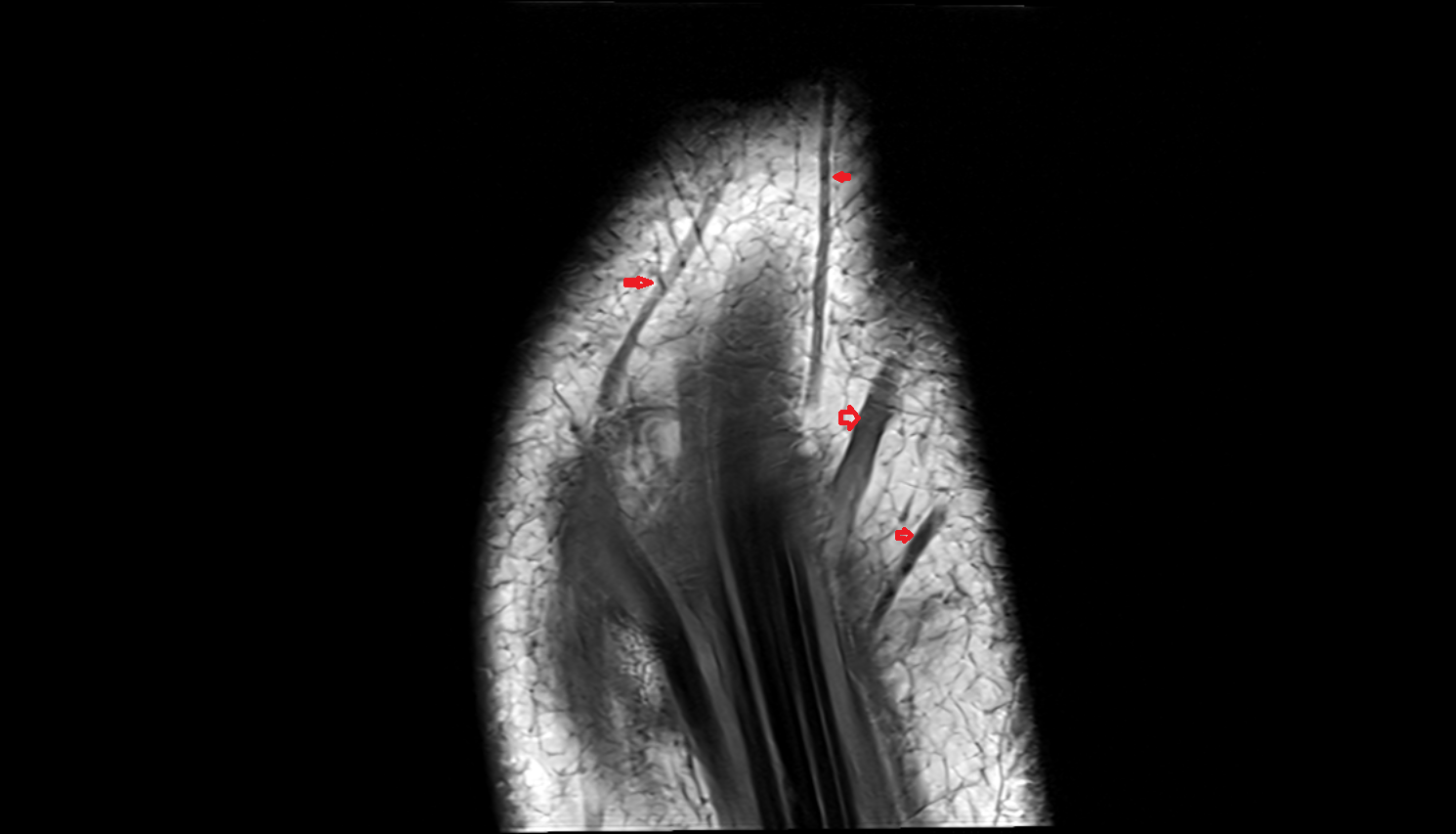

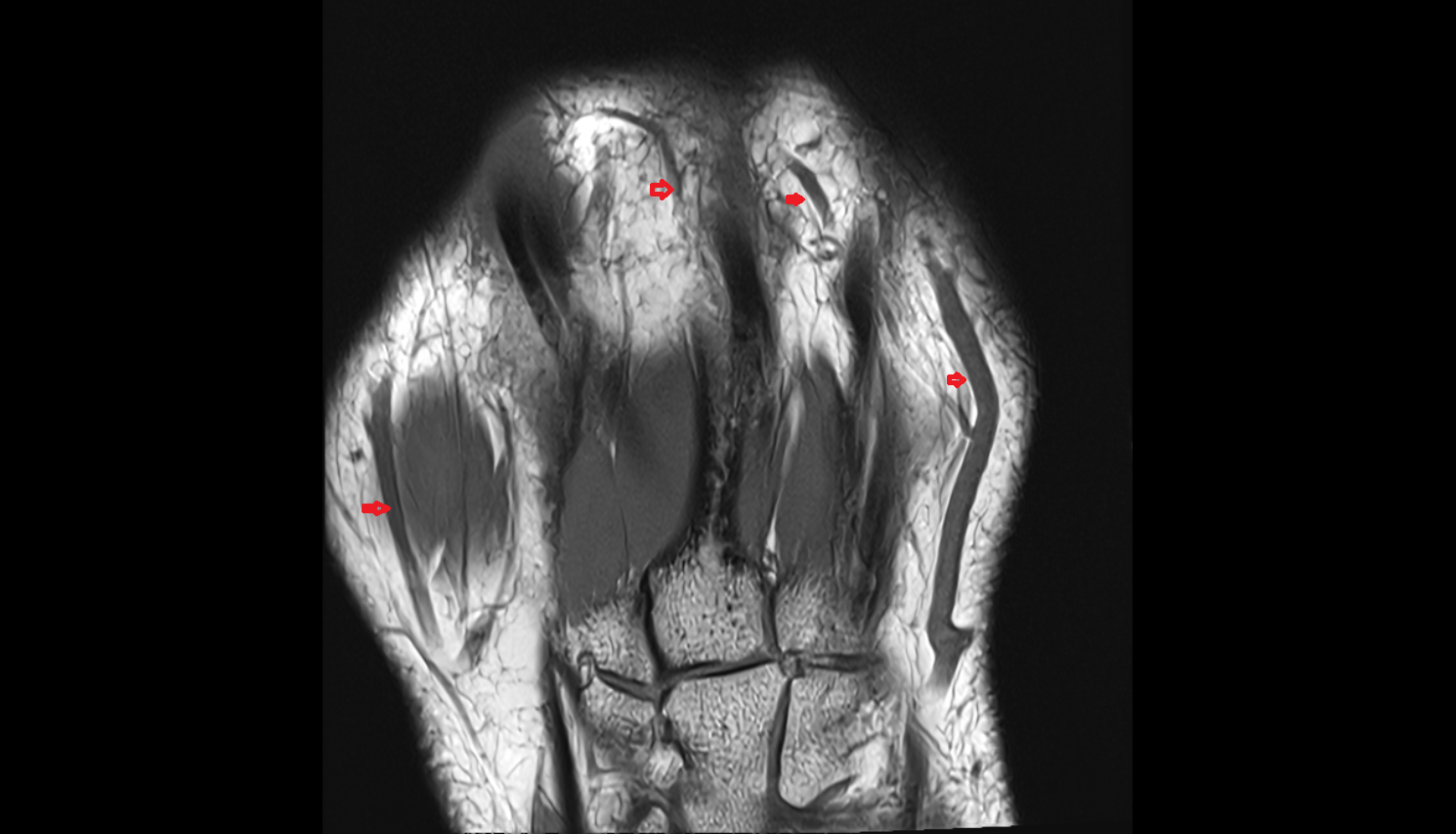

MRI images
