Exit foramina

Exit foramina are natural openings in bones through which nerves, blood vessels, or other structures leave the bone to reach soft tissue targets. They are critical for the passage of cranial nerves, spinal nerves, and segmental vessels, ensuring proper neurovascular communication between the central skeleton and peripheral structures. Each foramen is anatomically tailored to the structure it transmits, with variations in size, shape, and orientation depending on its location.

In the spine, exit foramina (intervertebral foramina) are formed between adjacent vertebrae by the superior and inferior vertebral notches of pedicles and allow spinal nerve roots and radicular vessels to exit the vertebral canal. In the cranial base, exit foramina like the optic canal, jugular foramen, and foramen ovale transmit cranial nerves and vessels to specific regions of the head and neck. Exit foramina are clinically significant for evaluating nerve compression, foraminal stenosis, tumors, fractures, or vascular anomalies.

Function

  • Provide safe passage for nerves, arteries, veins, and lymphatics

  • Protect neurovascular structures from mechanical compression by bone

  • Maintain neurovascular connectivity between central skeleton and peripheral tissues

  • Serve as key landmarks in surgical planning, imaging, and trauma assessment

  • Facilitate spinal nerve exit in vertebrae and cranial nerve exit in skull base

Synonyms

  • Neural foramina

  • Intervertebral foramina (spine)

  • Cranial foramina

  • Neurovascular exit points

MRI Appearance

T1-weighted images:

  • Bony margins appear low signal intensity (hypointense) due to dense cortical bone

  • The soft tissue structures passing through foramina (nerves, vessels, fat) are intermediate to high signal, depending on composition

  • Pathological conditions such as nerve compression, tumors, or inflammation may appear as focal enlargement or abnormal signal within the foramen

T2-weighted images:

  • Cortical bone of foramina remains hypointense

  • Nerves are typically intermediate signal, fat and CSF appear hyperintense, providing natural contrast

  • Useful for detecting nerve root compression, foraminal stenosis, or soft tissue masses

STIR (Short Tau Inversion Recovery):

  • Bone remains low signal, while edema, inflammation, or nerve swelling appear hyperintense

  • Sensitive for acute trauma, infection, or inflammatory processes affecting the foramen

T1 Post-Contrast (Gadolinium-enhanced):

  • Normal nerves and vessels may show mild enhancement if vascularized

  • Pathological enhancement highlights tumors, inflamed tissues, or vascular anomalies passing through the foramen

CT Appearance:

  • Exit foramina are visualized as well-defined openings in the bone

  • Cortical bone is hyperdense, trabecular bone inside is lower density, creating natural contrast

  • Excellent for assessing bony stenosis, fractures, bone lesions, and anatomical variations

  • 3D and multiplanar reconstructions help visualize foraminal size, orientation, and neurovascular relationships

MRI images

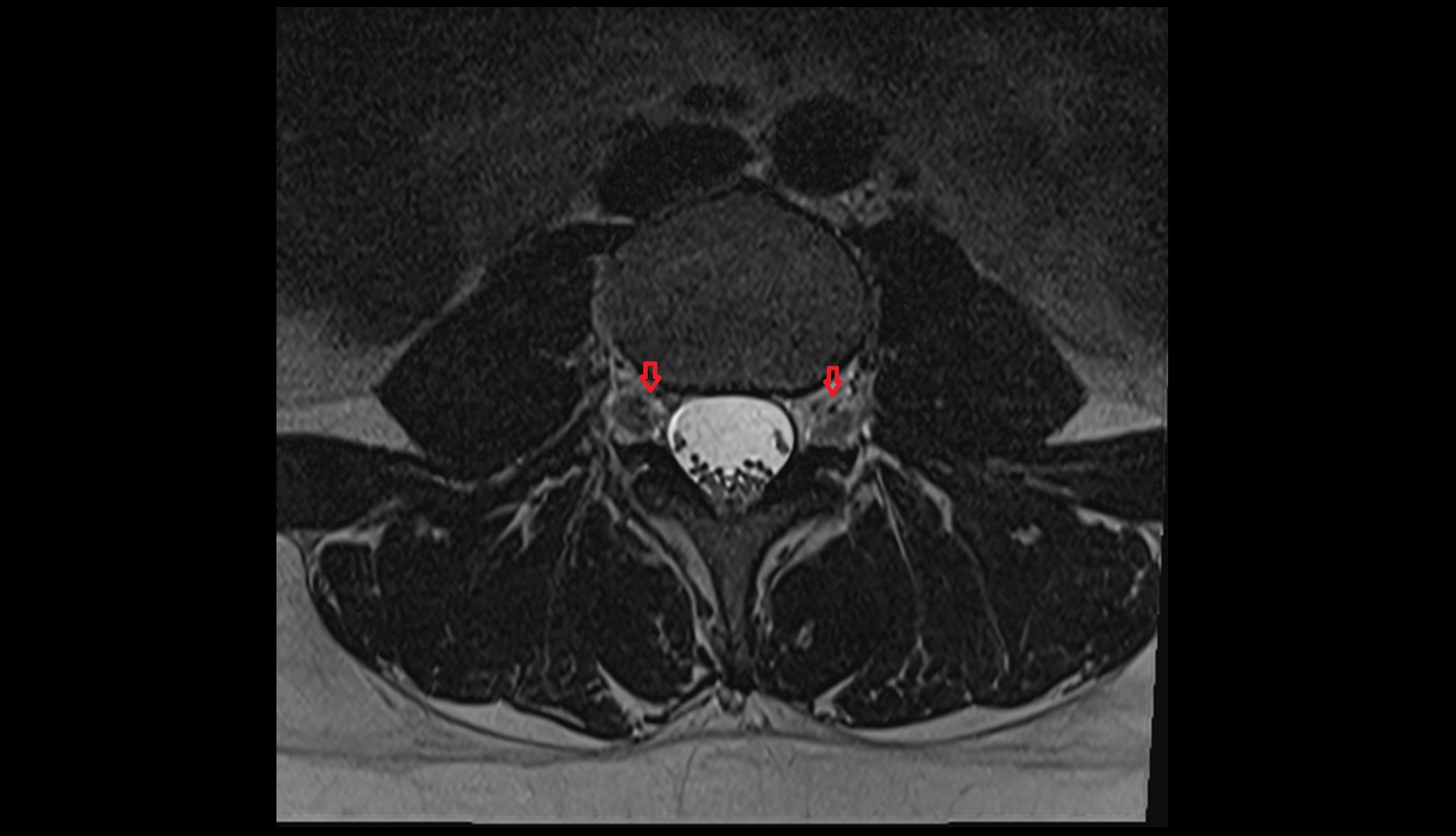

Exit foramina axial image

MRI images

Exit foramina mri axial image -img-00000-00000
