Extensor Carpi Radialis Brevis Muscle: Anatomy, Function, Imaging

Topic

Extensor carpi radialis brevis muscle

The extensor carpi radialis brevis (ECRB) is a key muscle in the posterior compartment of the forearm, belonging to the superficial extensor group. It acts as a primary wrist extensor and stabilizer, particularly during gripping and lifting.

ECRB lies deep to the extensor carpi radialis longus (ECRL) and superficial to the supinator. Its tendon inserts onto the base of the third metacarpal bone, contributing significantly to wrist extension and radial deviation. The muscle is clinically important because of its involvement in lateral epicondylitis (tennis elbow) — the most common site of pain over the lateral elbow.

Synonyms

Short radial wrist extensor
Brevis extensor of the wrist

Origin, Course, and Insertion

Origin: Lateral epicondyle of the humerus via the common extensor tendon and adjacent lateral intermuscular septum.
Course: Fibers pass distally, deep to the extensor carpi radialis longus, forming a strong flat tendon in the lower forearm.
Insertion: Dorsal surface of the base of the third metacarpal bone, occasionally sending slips to the second metacarpal.

Tendon Attachments

The ECRB tendon passes deep to the extensor retinaculum through the second dorsal compartment of the wrist, along with the tendon of extensor carpi radialis longus.
It inserts primarily on the base of the third metacarpal, providing mechanical stability during wrist extension and hand gripping.

Relations

Superficial: Extensor carpi radialis longus and brachioradialis
Deep: Supinator and capsule of the elbow joint
Medially: Extensor digitorum and extensor digiti minimi
Laterally: Extensor carpi radialis longus tendon
Posteriorly: Deep fascia of the forearm

Nerve Supply

Deep branch of the radial nerve (posterior interosseous nerve), roots C7–C8, before the nerve passes through the supinator.

Arterial Supply

Radial artery (muscular branches)
Radial recurrent artery supplying the proximal portion
Minor contributions from the posterior interosseous artery

Venous Drainage

Radial veins and venae comitantes accompanying the radial artery
Drainage continues into the brachial vein and cephalic vein

Function

Extension of wrist: Main function, especially when the fingers are flexed.
Radial deviation: Works with extensor carpi radialis longus to abduct the wrist.
Stabilization: Maintains wrist position during gripping or forceful finger flexion.
Synergistic role: Acts with finger extensors to balance wrist and hand tension.

Clinical Significance

Lateral epicondylitis (tennis elbow): Overuse or microtears at the ECRB origin on the lateral epicondyle; hallmark of pain during wrist extension.
Muscle or tendon tear: May result from chronic overuse or direct trauma.
Radial tunnel syndrome: Entrapment of the posterior interosseous nerve affecting ECRB function.
Surgical relevance: ECRB is a key structure during lateral elbow decompression, tendon repair, and radial nerve exploration.
Imaging relevance: MRI crucial for detecting tendinopathy, partial tears, and peritendinous edema.

MRI Appearance

T1-weighted images:
- Muscle belly: Intermediate signal intensity with visible fascicular pattern.
- Tendon: Low signal (dark) extending to base of third metacarpal.
- Fat planes: Bright and well-differentiated from muscle.
- Pathology: Tendinopathy shows focal intermediate signal increase near lateral epicondyle.
T2-weighted images:
- Normal muscle: Intermediate-to-dark signal, slightly darker than on T1.
- Normal tendon: Low signal (black, continuous band).
- Pathology: Bright hyperintense signal at common extensor tendon origin indicates inflammation or partial tear.
- Chronic injury: May show tendon thickening, irregularity, and surrounding edema.
STIR:
- Normal muscle: Intermediate-to-dark signal intensity.
- Acute tendinitis or strain: Bright hyperintense signal in tendon or peritendinous region.
- Useful for: Detecting early edema or subtle muscle strain near the lateral epicondyle.
Proton Density Fat-Saturated (PD FS):
- Normal: Intermediate-to-dark homogeneous muscle signal; tendon appears uniformly dark.
- Pathology: Bright hyperintense regions indicating tendinopathy, partial tears, or myotendinous junction inflammation.
- Excellent for evaluating tennis elbow and subtle lateral epicondylar lesions.
T1 Fat-Sat Post-Contrast:
- Normal: Homogeneous mild muscle enhancement.
- Tendinitis: Enhancing thickened tendon and peritendinous tissues.
- Partial tears: Peripheral or focal enhancement with central low signal.
- Chronic scarring: Minimal enhancement with low-signal fibrosis.

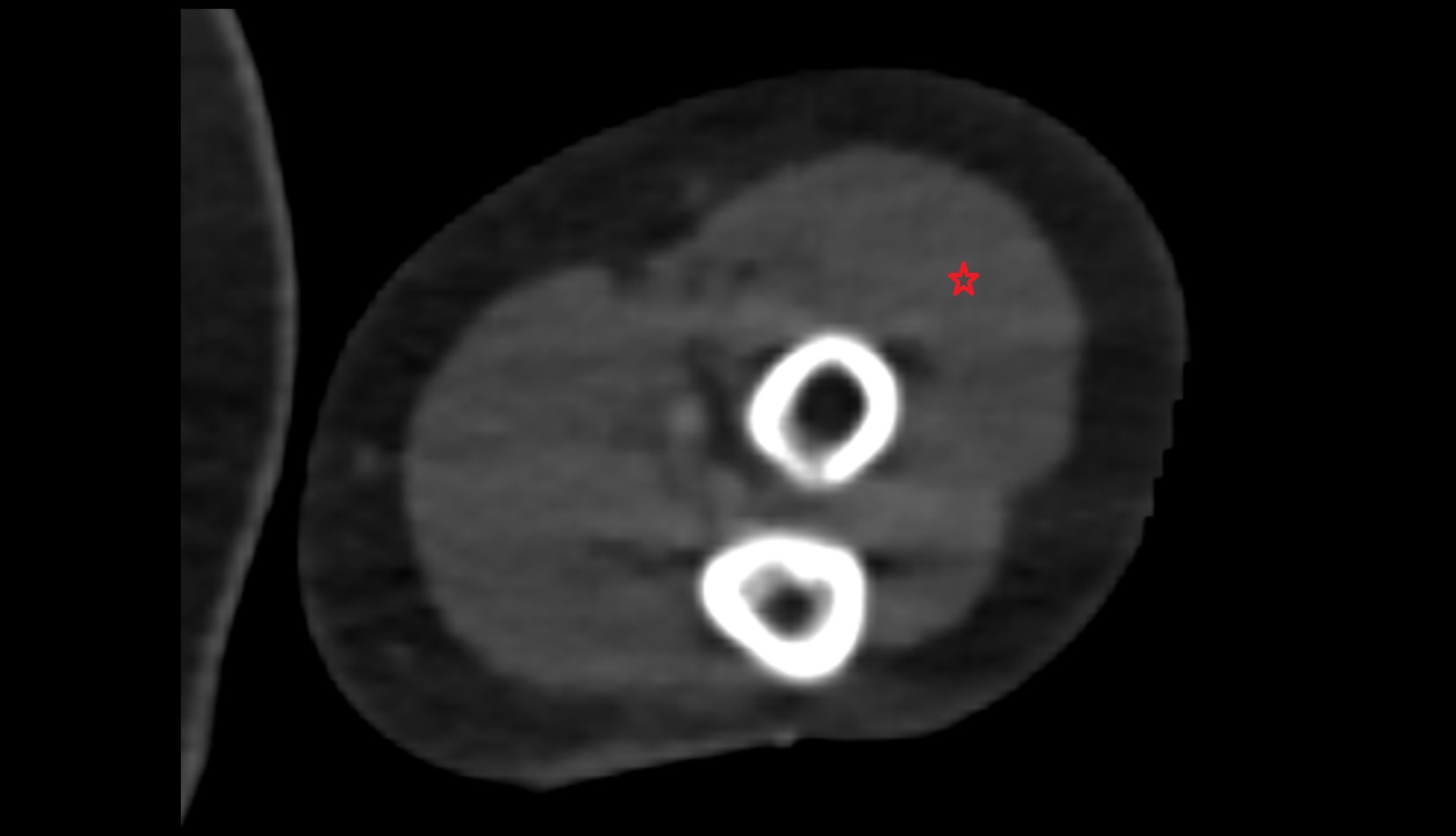

CT Appearance

Non-Contrast CT:

Muscle: Soft-tissue density, distinguishable from overlying fascia.
Tendon: Linear soft-tissue structure at lateral forearm, inserting onto metacarpal base.
Bony origin: Smooth contour at lateral epicondyle; chronic tendinopathy may show enthesophyte formation or cortical irregularity.
Acute injury: Soft-tissue swelling or loss of tendon continuity.

Post-Contrast CT (standard):

Normal muscle: Homogeneous enhancement.
Inflammatory changes: Enhanced peritendinous region and muscle belly.
Tear or rupture: Non-enhancing gap with peripheral enhancement representing reactive tissue or hematoma.

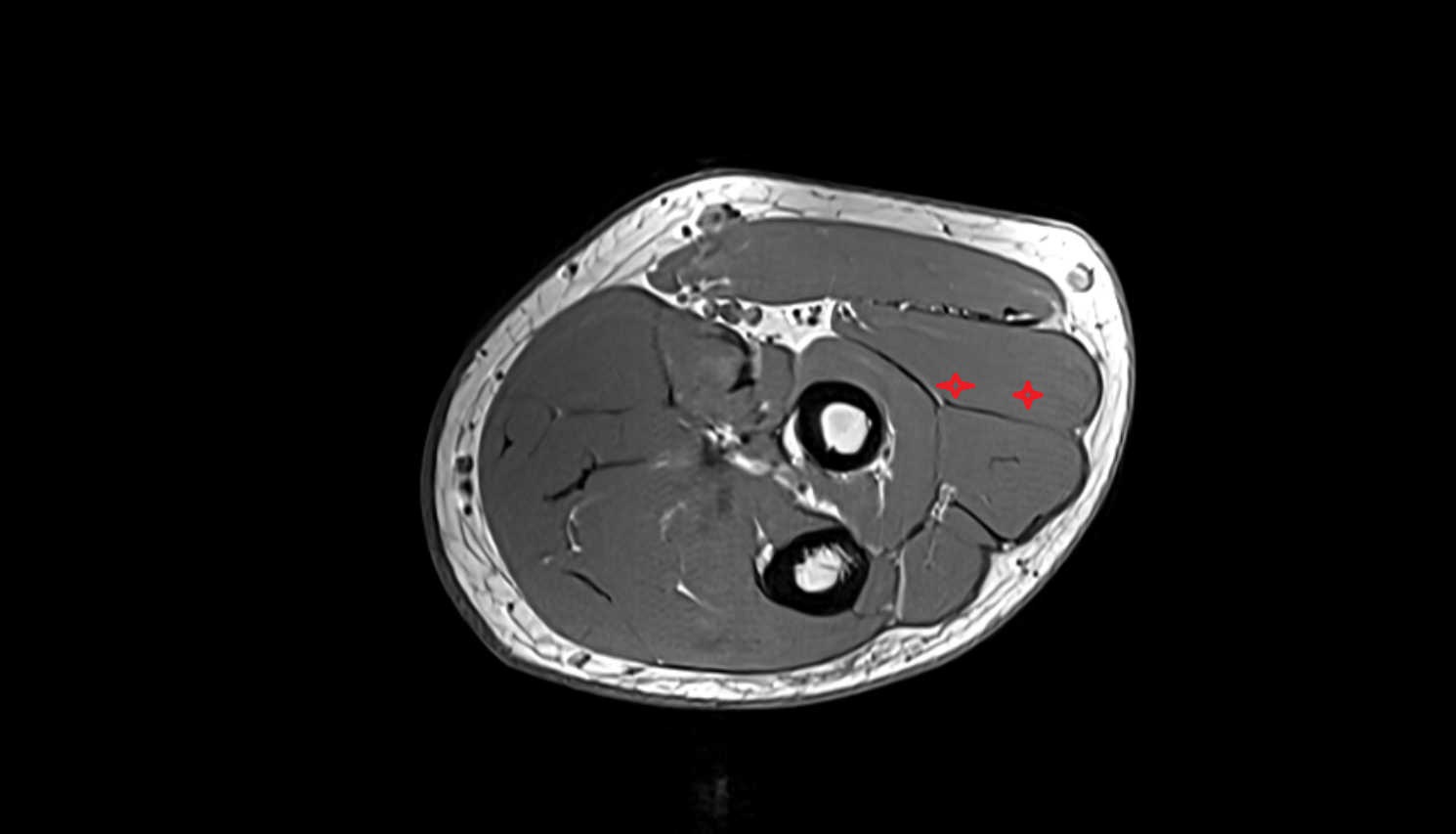

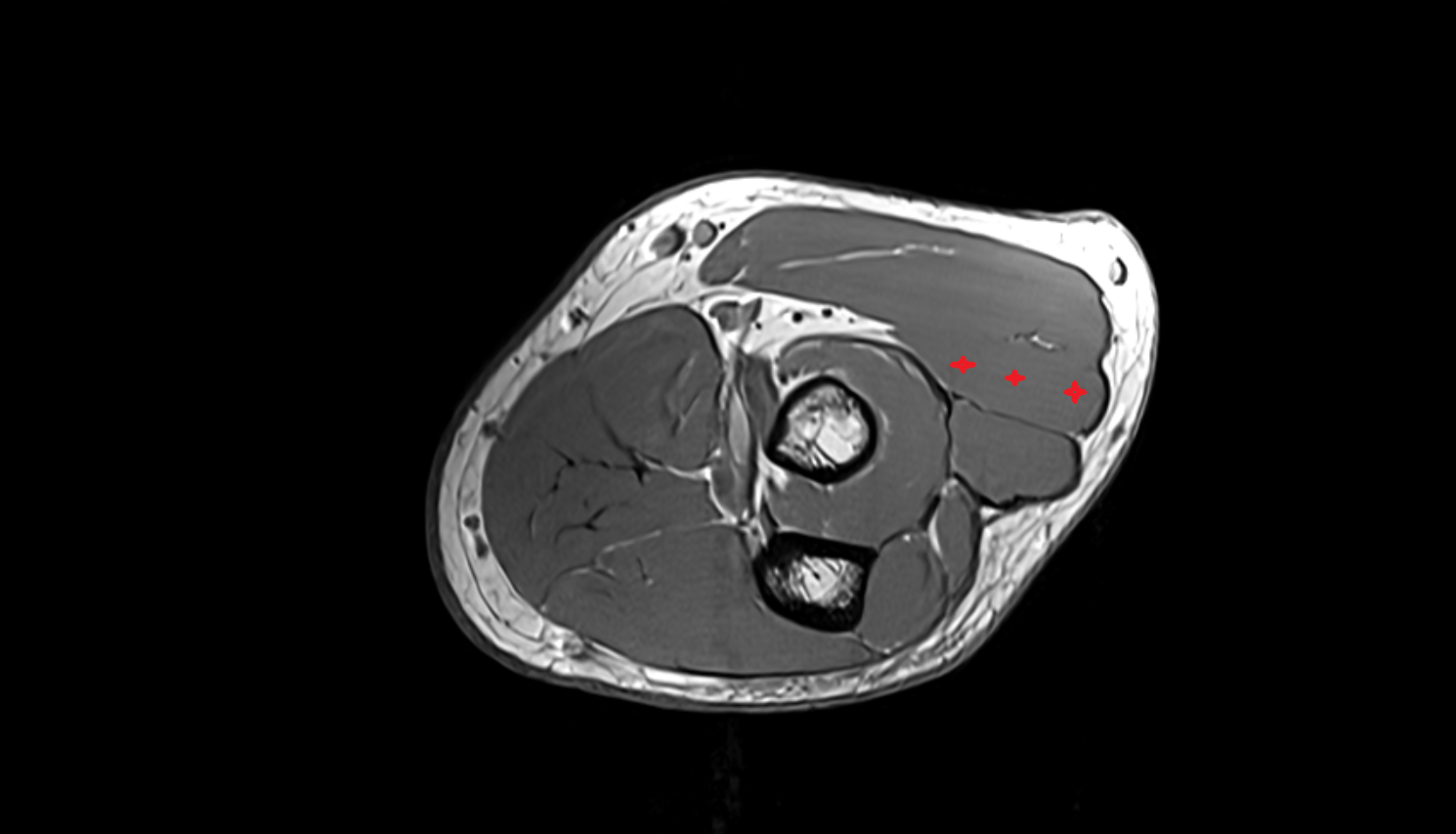

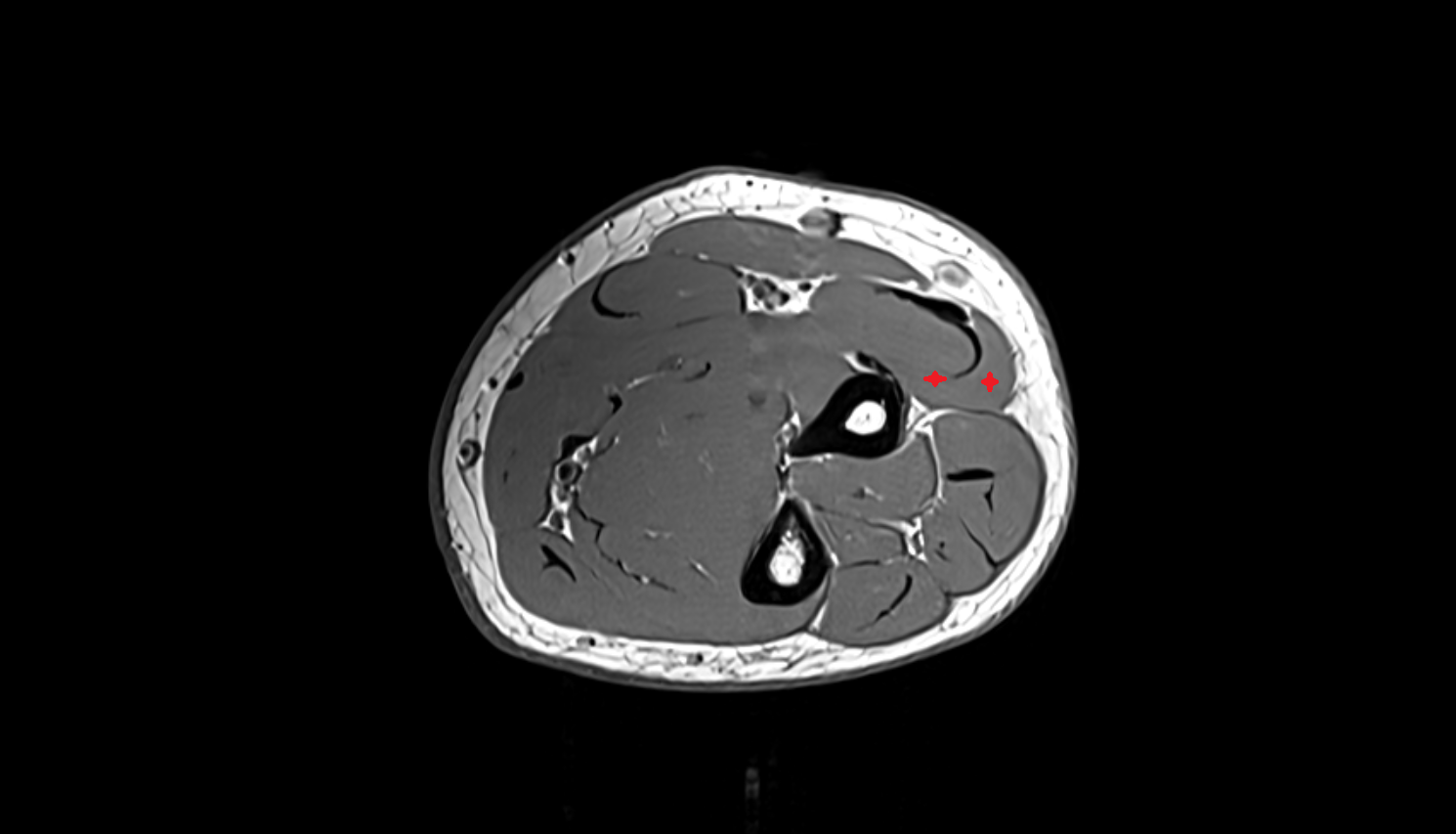

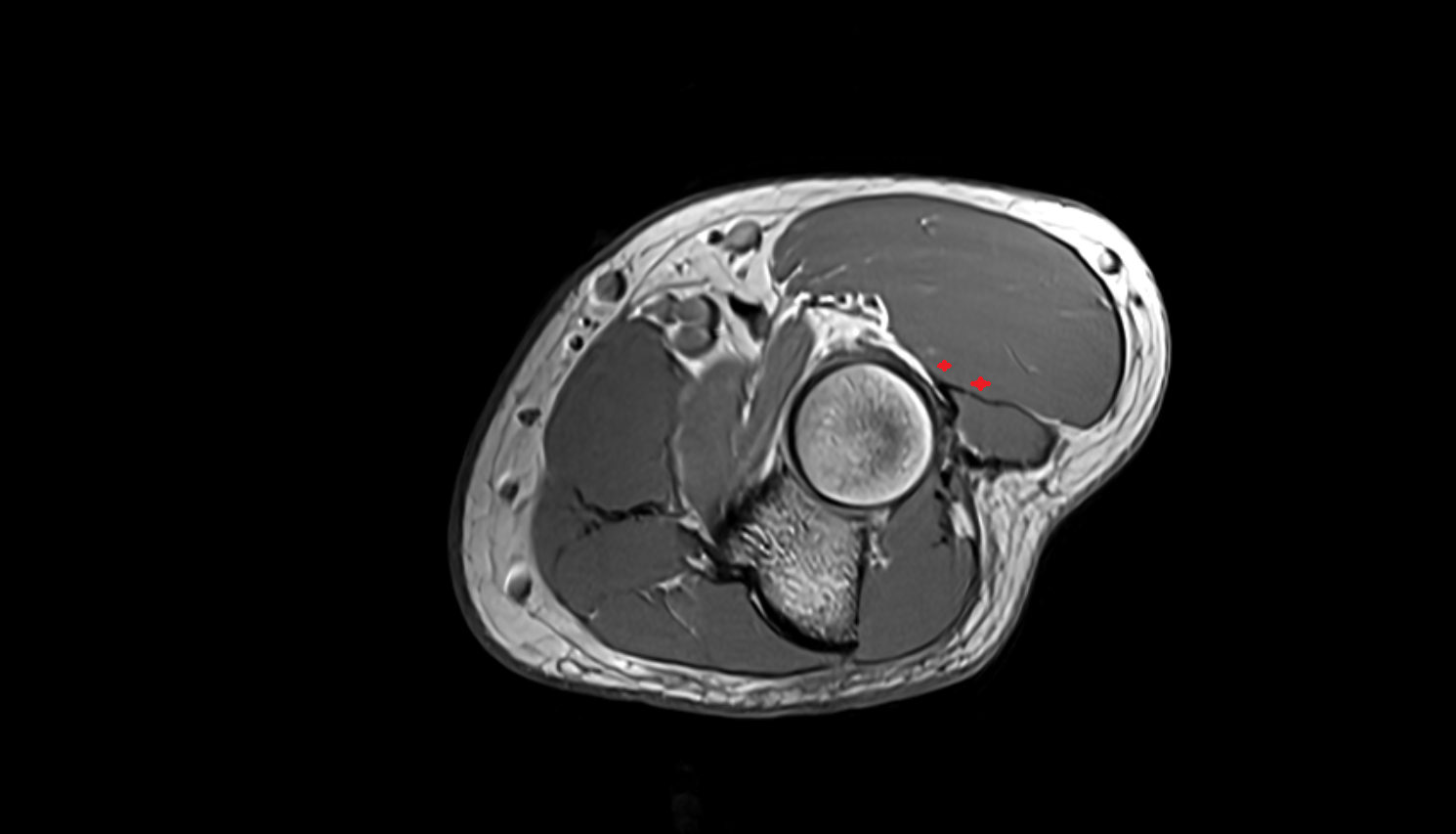

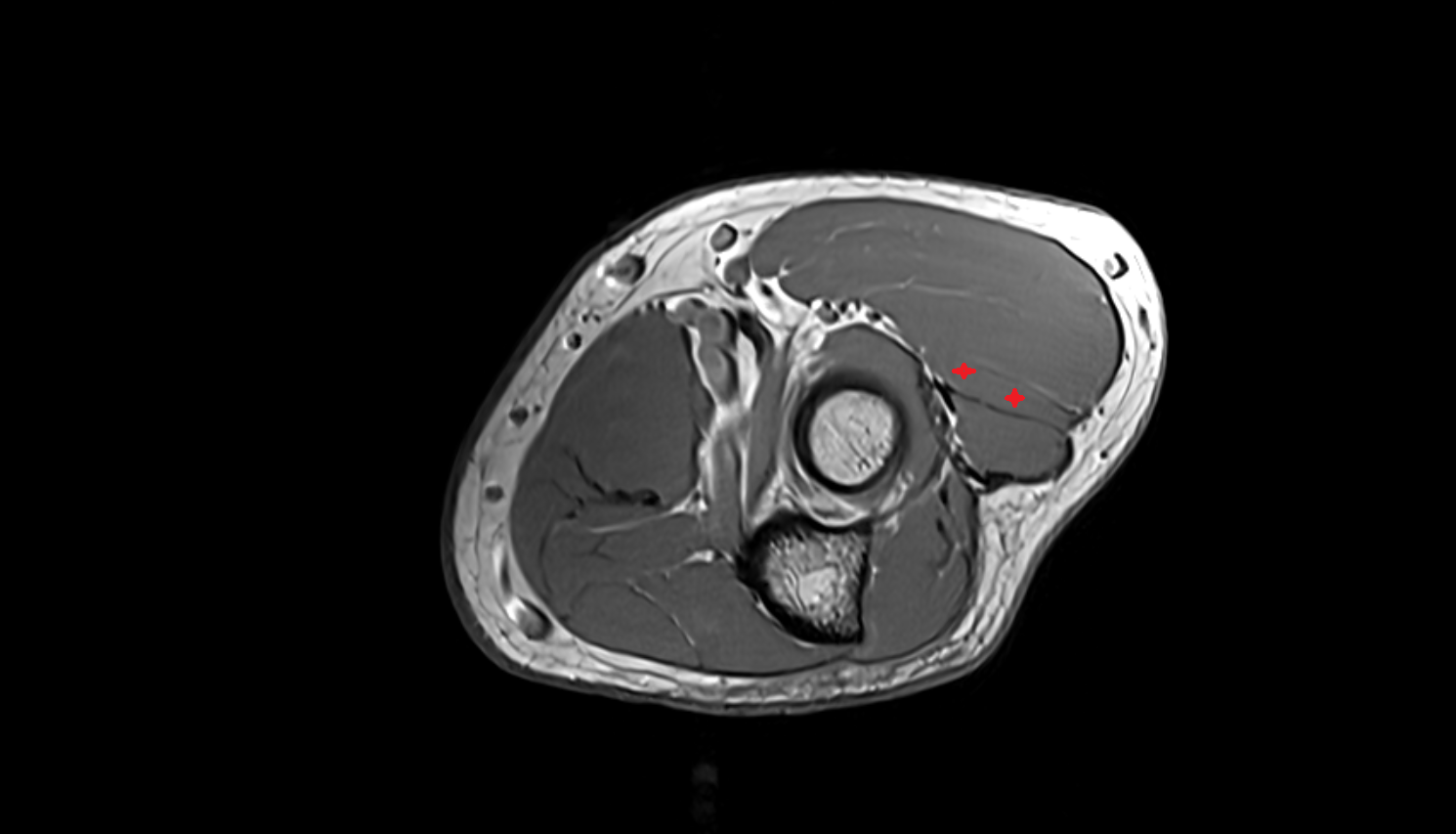

MRI image
