Extensor Carpi Ulnaris Tendon: Anatomy, Function, Clinical Imaging

Topic

Extensor carpi ulnaris tendon

The extensor carpi ulnaris (ECU) tendon is the terminal continuation of the extensor carpi ulnaris muscle, located in the posterior compartment of the forearm. It plays a critical role in wrist extension and ulnar deviation, functioning dynamically during grip, pronation-supination, and load-bearing wrist motions.

The tendon passes through a fibro-osseous tunnel along the ulnar aspect of the wrist, within the sixth dorsal compartment, stabilized by a specialized ECU subsheath that maintains its position over the ulnar groove. Disruption or degeneration of this sheath can lead to ECU tendon instability or tendinopathy — common in athletes and racquet-sport players.

Synonyms

Ulnar wrist extensor tendon
ECU tendon sheath
Sixth dorsal compartment tendon

Origin, Course, and Insertion

Origin: Continuation of the extensor carpi ulnaris muscle, which arises from the lateral epicondyle of the humerus (via the common extensor tendon) and posterior border of the ulna.
Course:
- Descends along the posterior and ulnar aspect of the forearm.
- Passes through the sixth extensor compartment of the wrist beneath the extensor retinaculum.
- Runs in a fibro-osseous tunnel lined by a synovial sheath and stabilized by the ECU subsheath.
Insertion:
- Inserts into the base of the fifth metacarpal on its dorsal and ulnar aspect.
- May send minor slips to the fourth metacarpal or extensor expansions (anatomical variants).

Tendon Attachments

Enclosed within a synovial sheath under the extensor retinaculum.
Stabilized by a fibrous ECU subsheath forming the floor of the sixth dorsal compartment.
The tendon glides within a bony groove on the distal ulna, posterior to the ulnar head.
Insertion provides leverage for wrist extension and ulnar deviation.

Relations

Superiorly: Extensor retinaculum of the wrist
Inferiorly: Ulnar groove of distal ulna
Medially: Flexor carpi ulnaris tendon and ulnar neurovascular bundle
Laterally: Extensor digiti minimi tendon (fifth compartment)
Posteriorly: Skin and subcutaneous tissue
Anteriorly: Ulnar head and joint capsule of the distal radioulnar joint (DRUJ)

Nerve Supply

Supplied by the posterior interosseous nerve (branch of the radial nerve, C7–C8) through its muscular component before continuation as the tendon.

Function

Primary wrist extensor: Extends the wrist, particularly in ulnar direction.
Ulnar deviation: Acts synergistically with flexor carpi ulnaris for controlled ulnar movement.
Dynamic stabilizer: Stabilizes the ulnar side of the wrist and DRUJ during pronation and supination.
Load-bearing role: Resists torsional forces during grip and forearm rotation.

Clinical Significance

Tendinopathy: Overuse or repetitive ulnar deviation causes ECU tenosynovitis, common in tennis, golf, and rowing.
Tendon subluxation/dislocation: Occurs from ECU subsheath tear, leading to snapping or pain at the ulnar wrist.
Partial/complete rupture: Can result from trauma or degenerative changes, causing weakness in wrist extension.
Intersection syndromes: Coexistent inflammation with adjacent tendons (especially extensor digiti minimi).
Post-traumatic instability: Seen in distal radius or ulnar styloid fractures.
Imaging role: MRI and CT used to evaluate tendon integrity, sheath injury, or subluxation.

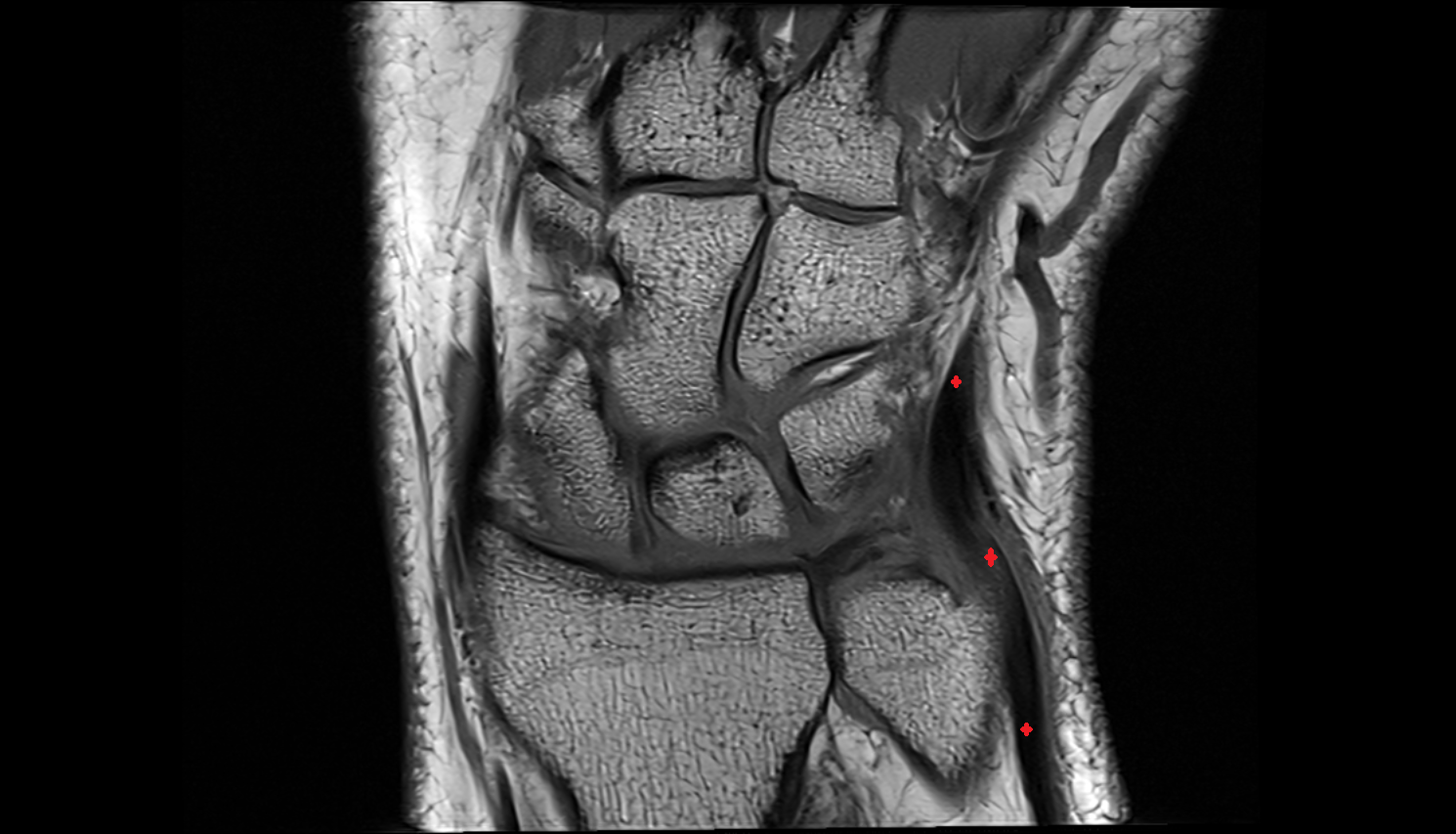

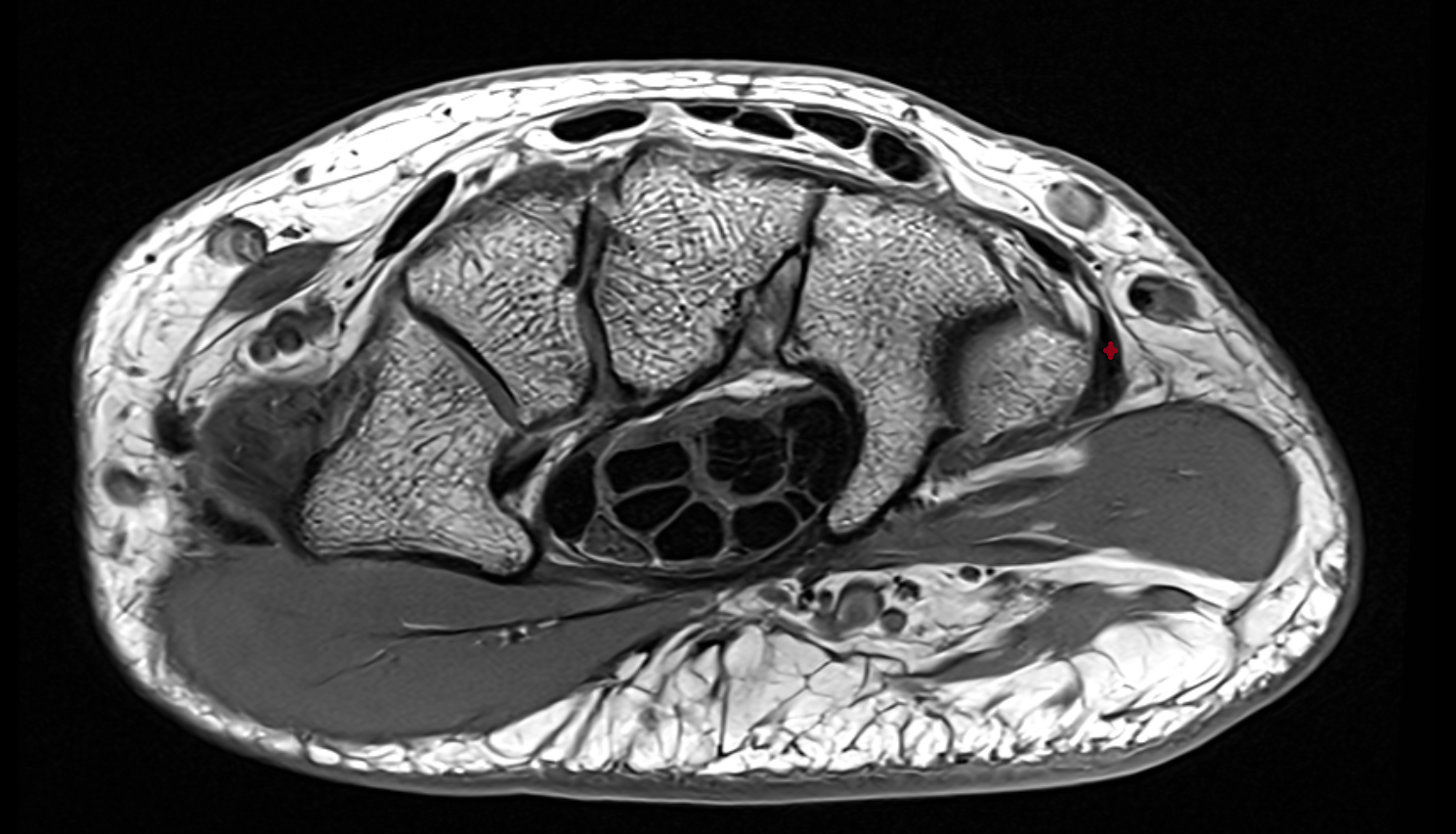

MRI Appearance

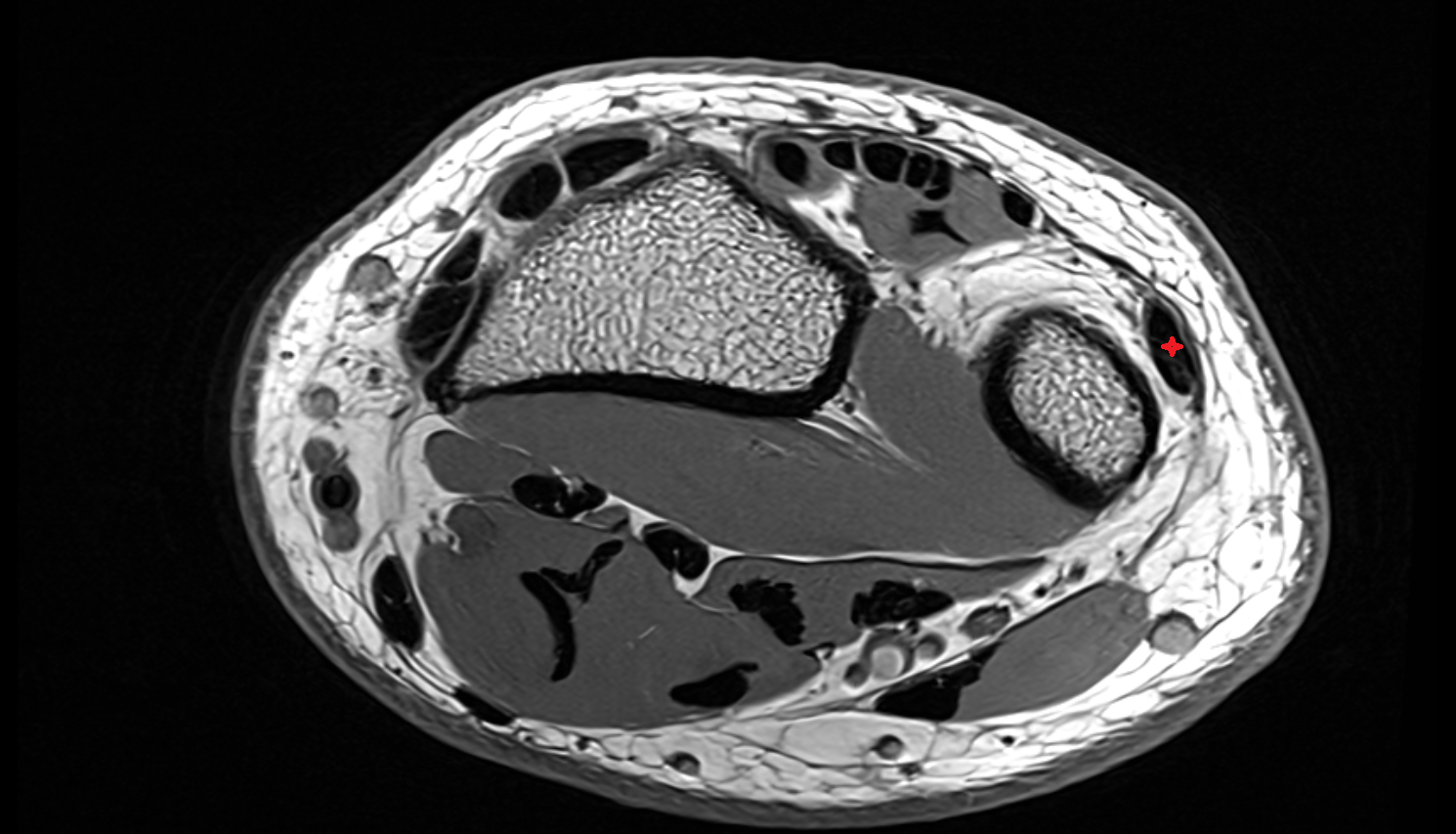

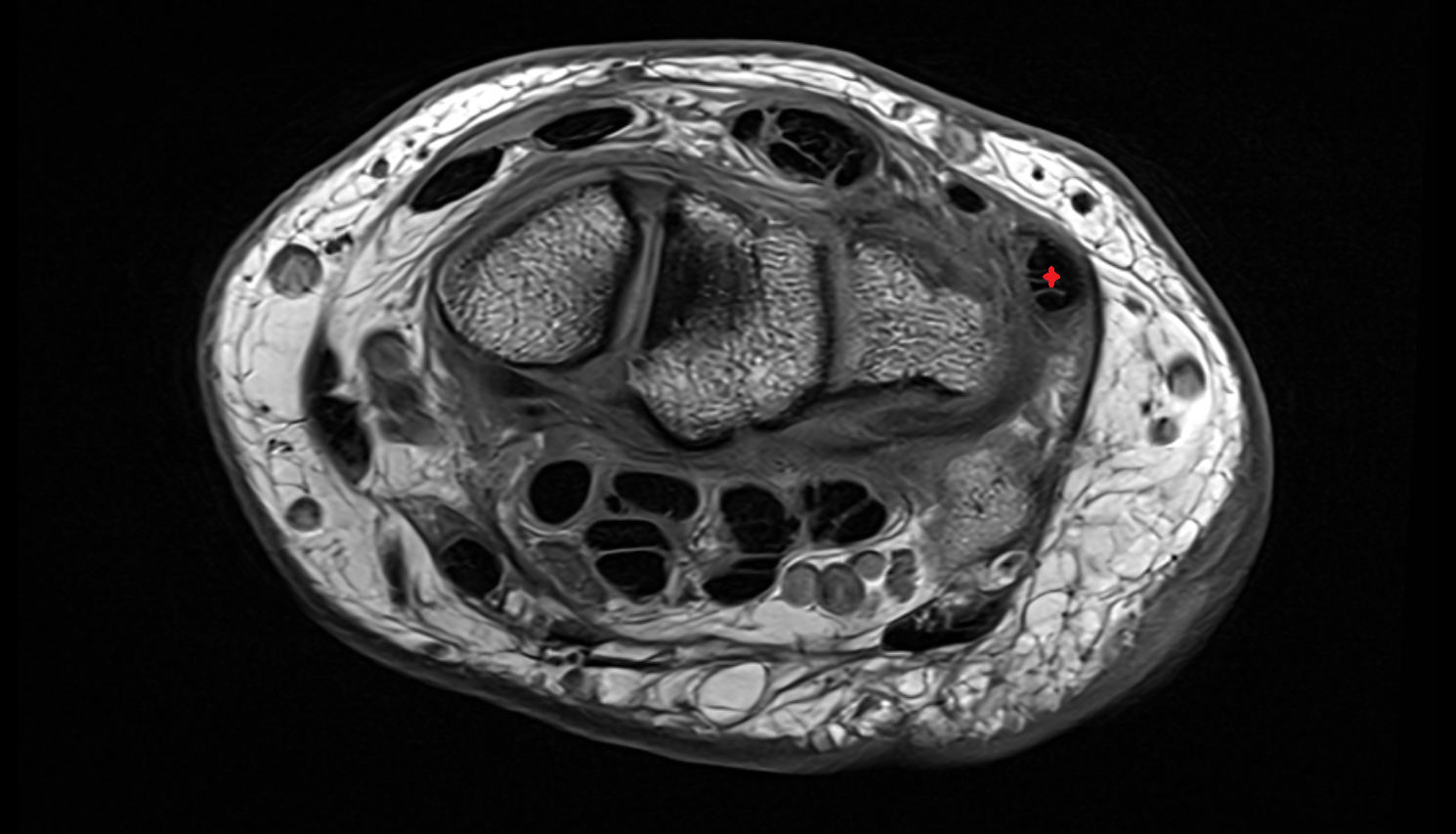

T1-weighted images:
- Tendon: Low signal (dark, linear band).
- Muscle belly: Intermediate signal intensity.
- Fat and subcutaneous tissue: Bright, aiding contrast.
- Pathology: Tendon thickening, discontinuity, or intermediate intratendinous signal indicating partial tear or tendinosis.
- Bony groove: Low-signal cortical outline posterior to ulnar head.
T2-weighted images:
- Normal tendon: Low signal intensity (dark).
- Muscle: Intermediate-to-dark, slightly darker than T1.
- Pathology:
  - Tendinopathy: focal bright signal within tendon.
  - Tear: fluid-bright gap or discontinuity.
  - Tenosynovitis: hyperintense fluid in sheath surrounding tendon.
- Ulnar groove: Hypointense bony margins clearly visible.
STIR:
- Normal tendon: Intermediate-to-dark signal with distinct borders.
- Abnormal: Bright hyperintensity in peritendinous tissues or tendon substance (inflammation, edema, partial tear).
- Excellent for detecting early tenosynovitis and peritendinous edema.
Proton Density Fat-Saturated (PD FS):
- Normal: Uniformly dark tendon with sharply defined margins.
- Pathology:
  - Bright focal signal or irregularity within tendon (tendinopathy).
  - Surrounding hyperintense fluid or synovial thickening in sheath (tenosynovitis).
  - Dislocation: tendon displaced from ulnar groove with fluid signal in the vacant compartment.
T1 Fat-Sat Post-Contrast:
- Normal tendon: Minimal enhancement.
- Inflamed sheath or peritendinous tissue: Enhancing rim or diffuse sheath enhancement.
- Tendinosis: Mild heterogeneous enhancement along degenerated tendon fibers.
- Tear or rupture: Peripheral enhancement around fluid-filled defect.

CT Appearance

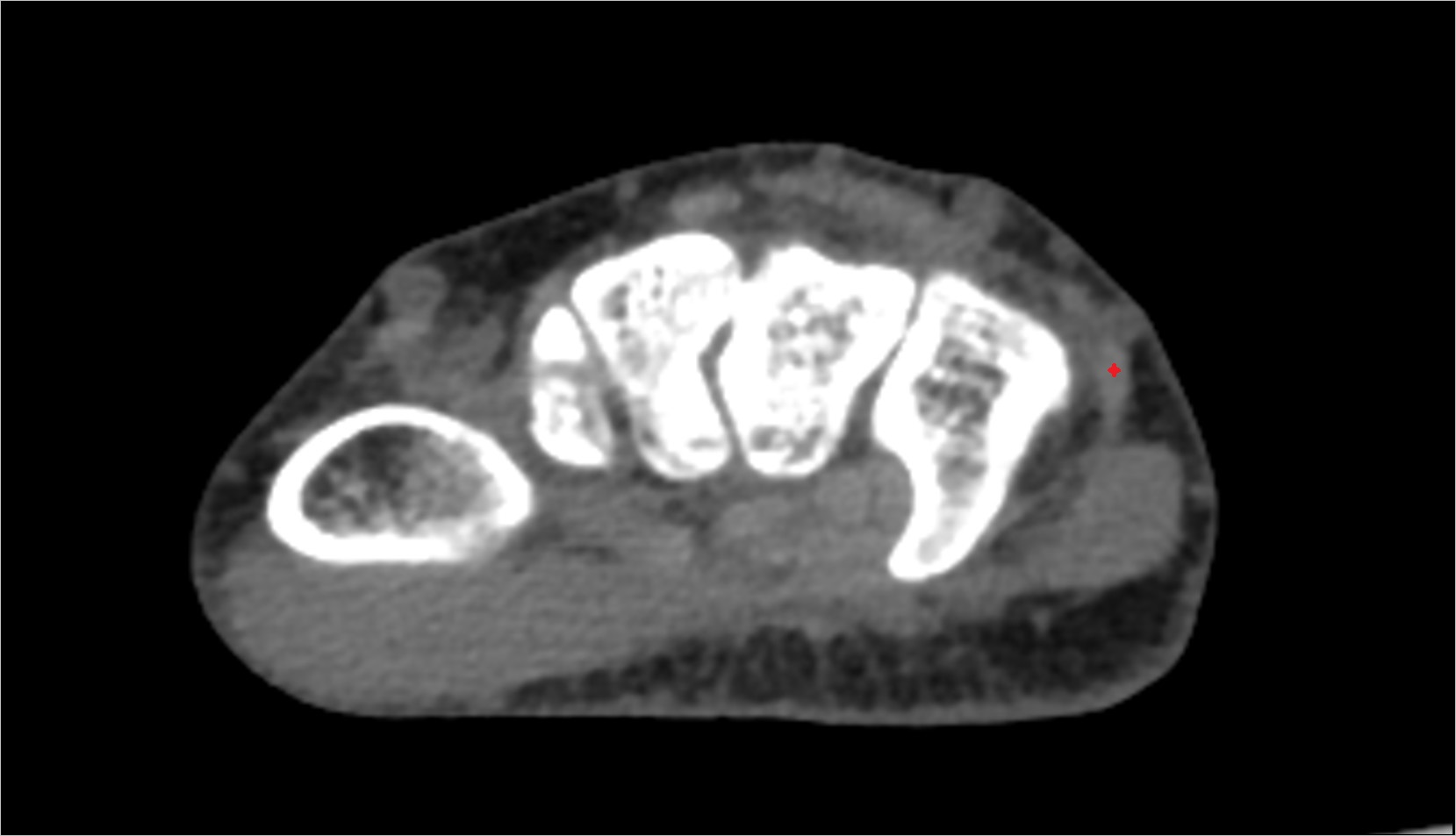

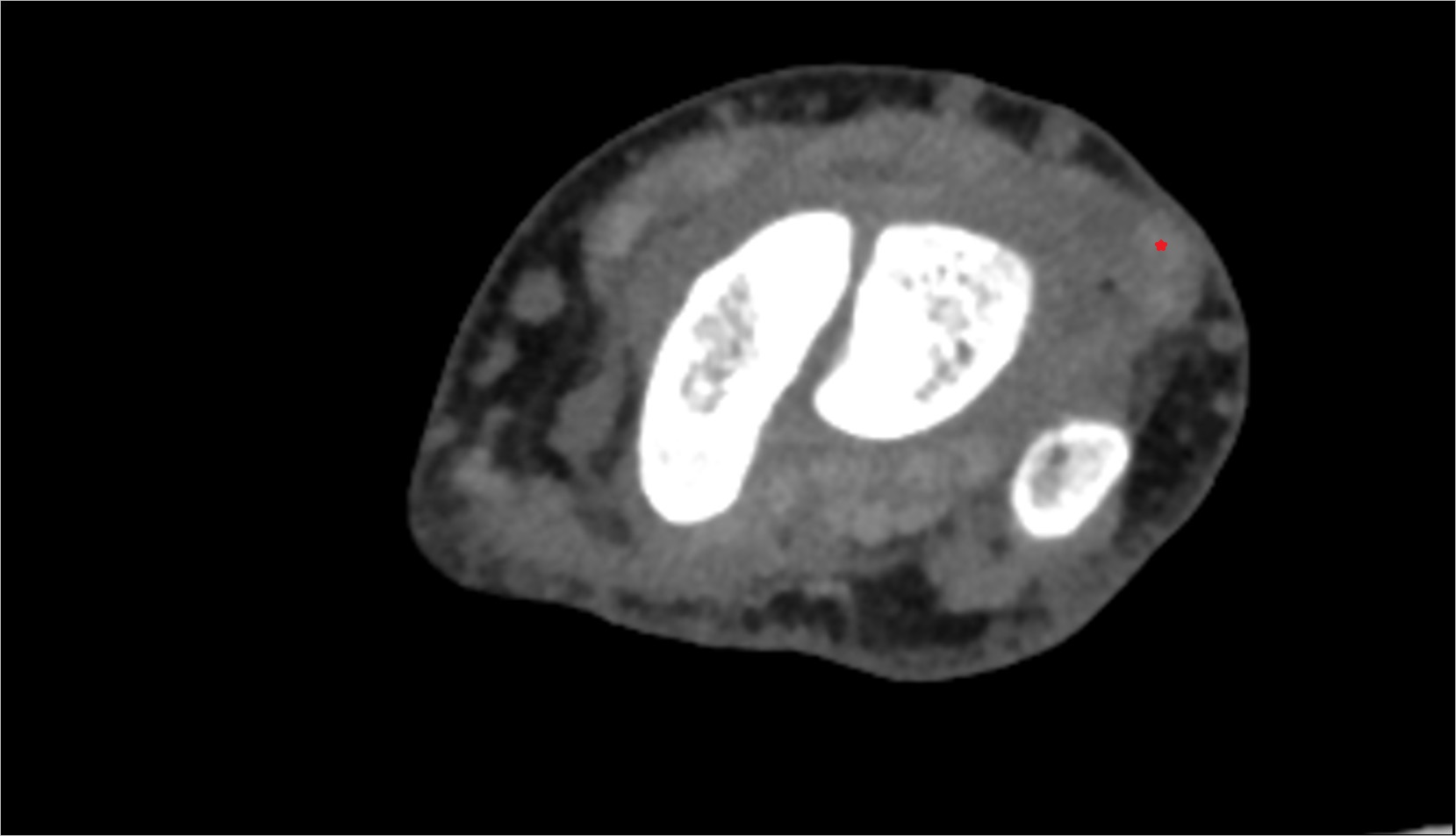

Non-Contrast CT:

Tendon: Linear soft-tissue density structure posterior to ulnar head within bony groove.
ECU groove: Clearly seen on axial images as a shallow depression on distal ulna.
Calcific tendinopathy: Appears as small hyperdense foci within or adjacent to the tendon.
Subluxation/dislocation: Tendon seen displaced medially or volarly from groove.
Associated findings: Ulnar styloid fracture or DRUJ malalignment.

Post-Contrast CT (standard):

Tendon sheath enhancement: Indicates tenosynovitis or post-traumatic inflammation.
Surrounding soft-tissue enhancement: May reflect capsulitis or reactive synovitis near DRUJ.
Useful for identifying chronic fibrotic thickening or postsurgical changes.
