Extensor Digiti Minimi Muscle: Anatomy, Function, Imaging

Topic

Extensor digiti minimi muscle

The extensor digiti minimi (EDM) is a slender, fusiform muscle of the posterior compartment of the forearm. It specifically extends the fifth digit (little finger) and assists the extensor digitorum in extending the wrist and fingers. The EDM provides independent control of the small finger, contributing to fine hand movements such as spreading or separating the digits.

It lies medial to the extensor digitorum and lateral to the extensor carpi ulnaris, and becomes a distinct tendon at the wrist, passing beneath the extensor retinaculum through its own compartment. Its tendon then divides into two slips that insert into the extensor expansion of the little finger.

Synonyms

Extensor digiti quinti proprius
Fifth digit extensor

Origin, Course, and Insertion

Origin: Common extensor tendon from the lateral epicondyle of the humerus, and from the deep fascia of the forearm.
Course: Descends obliquely downward along the posterior forearm, medial to the extensor digitorum; passes beneath the extensor retinaculum within the fifth dorsal compartment of the wrist.
Insertion: Divides into two tendinous slips that join the dorsal digital expansion of the fifth digit, inserting into the middle and distal phalanges via the extensor hood.

Relations

Superficially: Antebrachial fascia and skin of the dorsal forearm
Deeply: Posterior surface of the ulna and the extensor carpi ulnaris tendon
Medially: Extensor carpi ulnaris
Laterally: Extensor digitorum
Distally: Dorsal aspect of the metacarpophalangeal joint and extensor expansion of the little finger

Nerve Supply

Posterior interosseous nerve (continuation of the deep branch of the radial nerve, roots C7–C8)

Arterial Supply

Posterior interosseous artery (branch of the ulnar artery via the common interosseous artery)
Minor contributions from the radial recurrent artery and dorsal carpal arch

Venous Drainage

Posterior interosseous veins, accompanying the arteries
Drains into the radial veins and brachial venous system via deep venous plexuses

Function

Extension of the fifth digit: Extends the little finger at the metacarpophalangeal and interphalangeal joints.
Wrist extension: Assists in extending the wrist with the extensor digitorum and extensor carpi ulnaris.
Independent finger control: Enables separate motion of the fifth digit, essential for grip adjustment and typing.
Synergistic role: Coordinates with intrinsic hand muscles for balanced digital movement.

Clinical Significance

Tendinopathy: Repetitive wrist and finger extension (typing, racket sports) can lead to inflammation at the lateral epicondyle (tennis elbow).
Tendon rupture or laceration: Common in dorsal hand trauma or rheumatoid arthritis.
Snapping EDM syndrome: Tendon subluxation or dislocation from the fifth dorsal compartment, producing pain and snapping at the wrist.
Nerve lesions: Posterior interosseous nerve injury leads to loss of extension of the little finger.
Surgical relevance: Identified during wrist procedures and tendon transfers for finger extension restoration.

MRI Appearance

T1-weighted images:
- Muscle belly: intermediate signal intensity with well-defined margins.
- Tendon: low signal (dark) linear structure beneath the extensor retinaculum.
- Fat planes: bright surrounding the muscle and tendon.
- Atrophy or fatty infiltration (chronic denervation): increased T1 signal.
T2-weighted images:
- Muscle: intermediate-to-low signal, darker than on T1.
- Tendon: low signal, continuous from origin to insertion.
- Tendinopathy or partial tear: bright focal signal within the tendon or peritendinous region.
- Muscle edema or strain: hyperintense areas within the muscle belly.
STIR:
- Normal muscle: intermediate-to-dark signal.
- Pathology (strain, edema, or inflammation): bright hyperintense signal replacing normal fascicular pattern.
Proton Density Fat-Saturated (PD FS):
- Normal: intermediate-to-dark signal within the muscle, smooth low-signal tendon.
- Pathologic: bright hyperintense foci in tendon (tendinitis) or myotendinous junction (strain).
- Excellent for detecting peritendinous fluid and subtle inflammatory changes.
T1 Fat-Sat Post-Contrast:
- Normal: homogeneous mild enhancement.
- Tendinitis or tenosynovitis: shows enhancement along the tendon sheath.
- Chronic tear or scar tissue: minimal or peripheral enhancement with central low-signal fibrosis.

CT Appearance

Non-Contrast CT:

Muscle: soft-tissue density, homogeneous texture.
Tendon: dense fibrous band running across the dorsal forearm and wrist.
Bony landmarks: lateral epicondyle, dorsal ulna, and metacarpal bases clearly visualized.
Useful for detecting calcific tendinopathy or bony avulsions.

Post-Contrast CT (standard):

Muscle: homogeneous enhancement pattern.
Tendon sheath inflammation or post-traumatic changes: enhanced peritendinous soft tissue.
Helps identify tendon ruptures, adhesions, or hypertrophic synovitis.

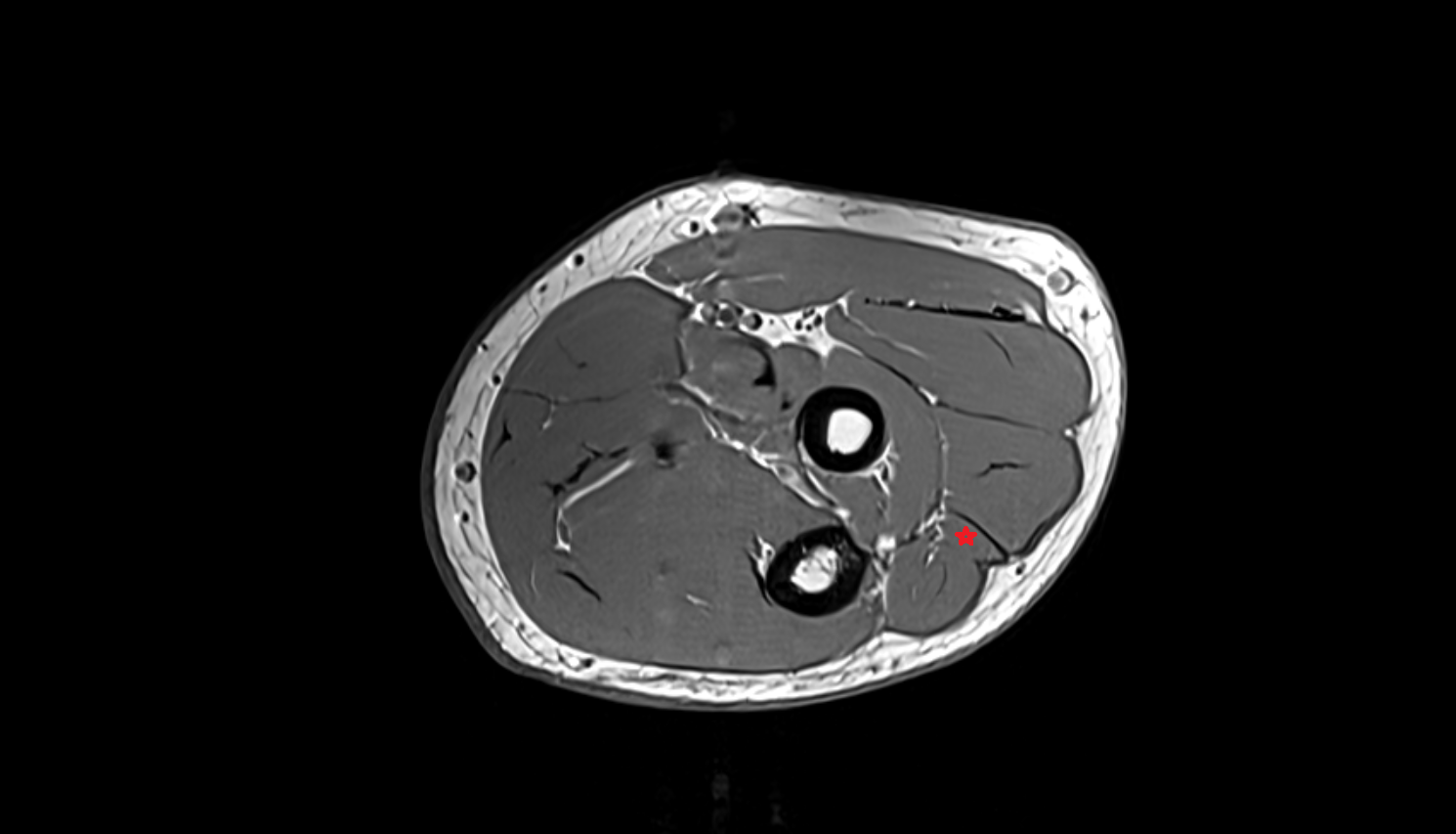

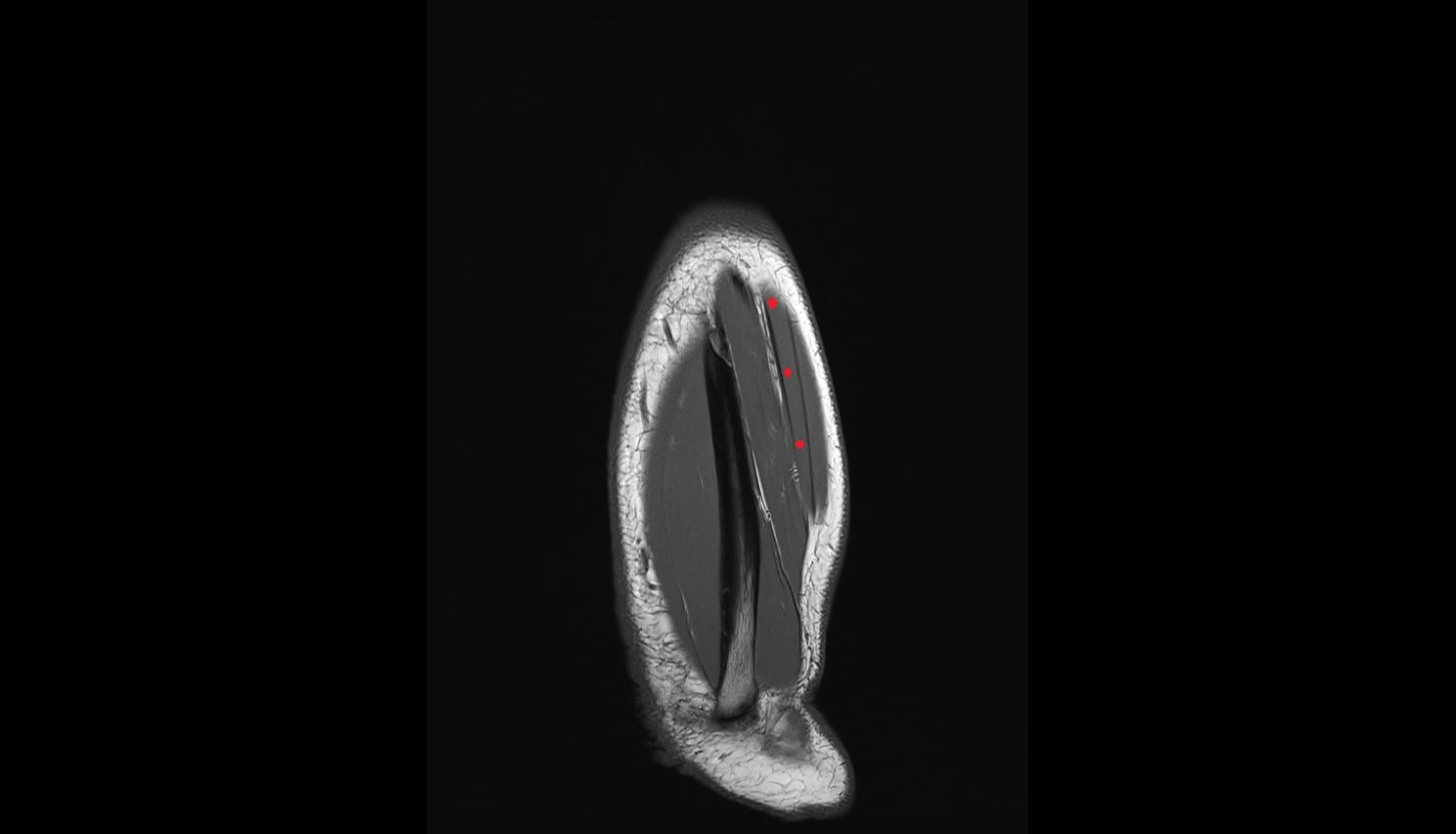

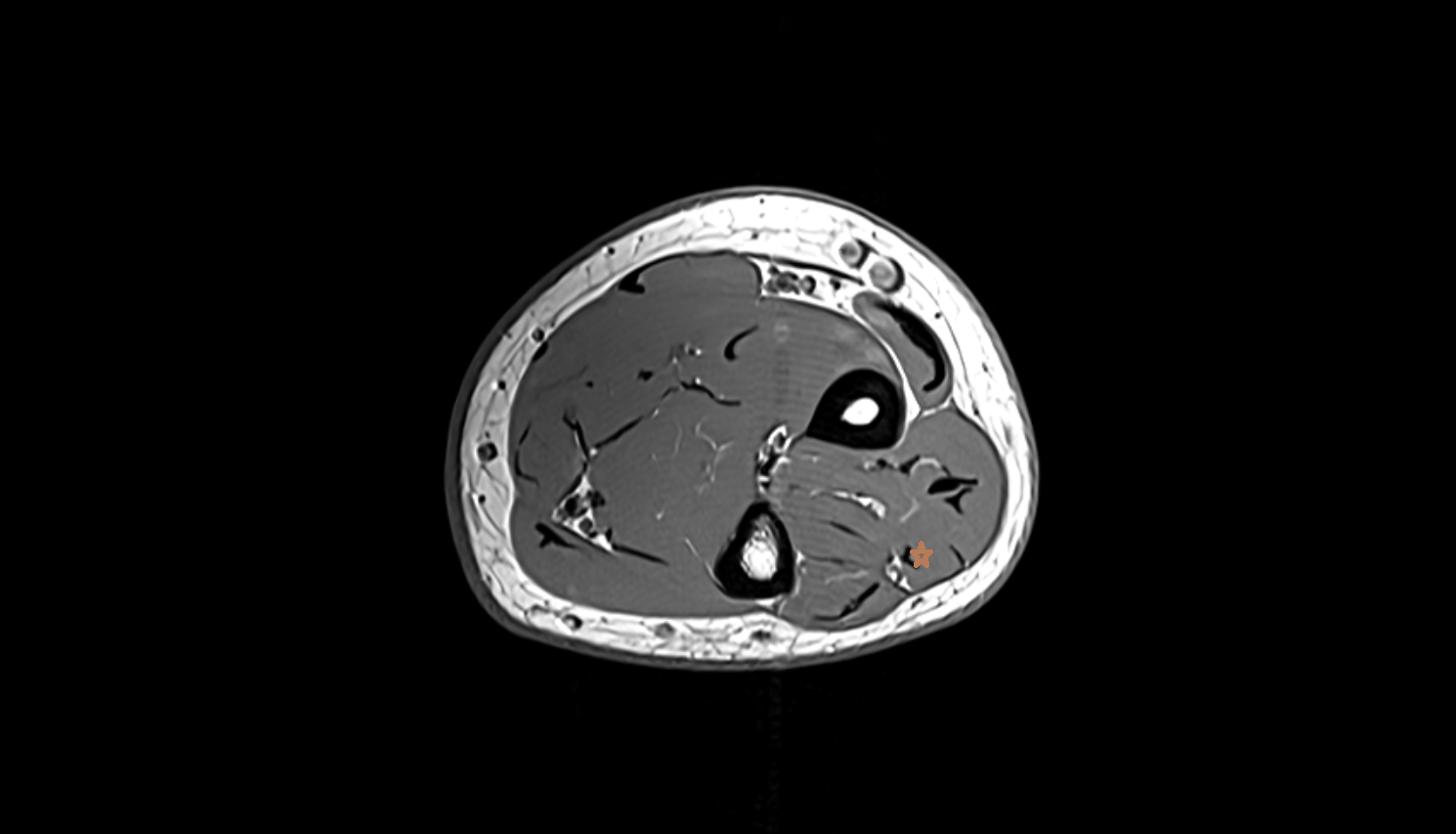

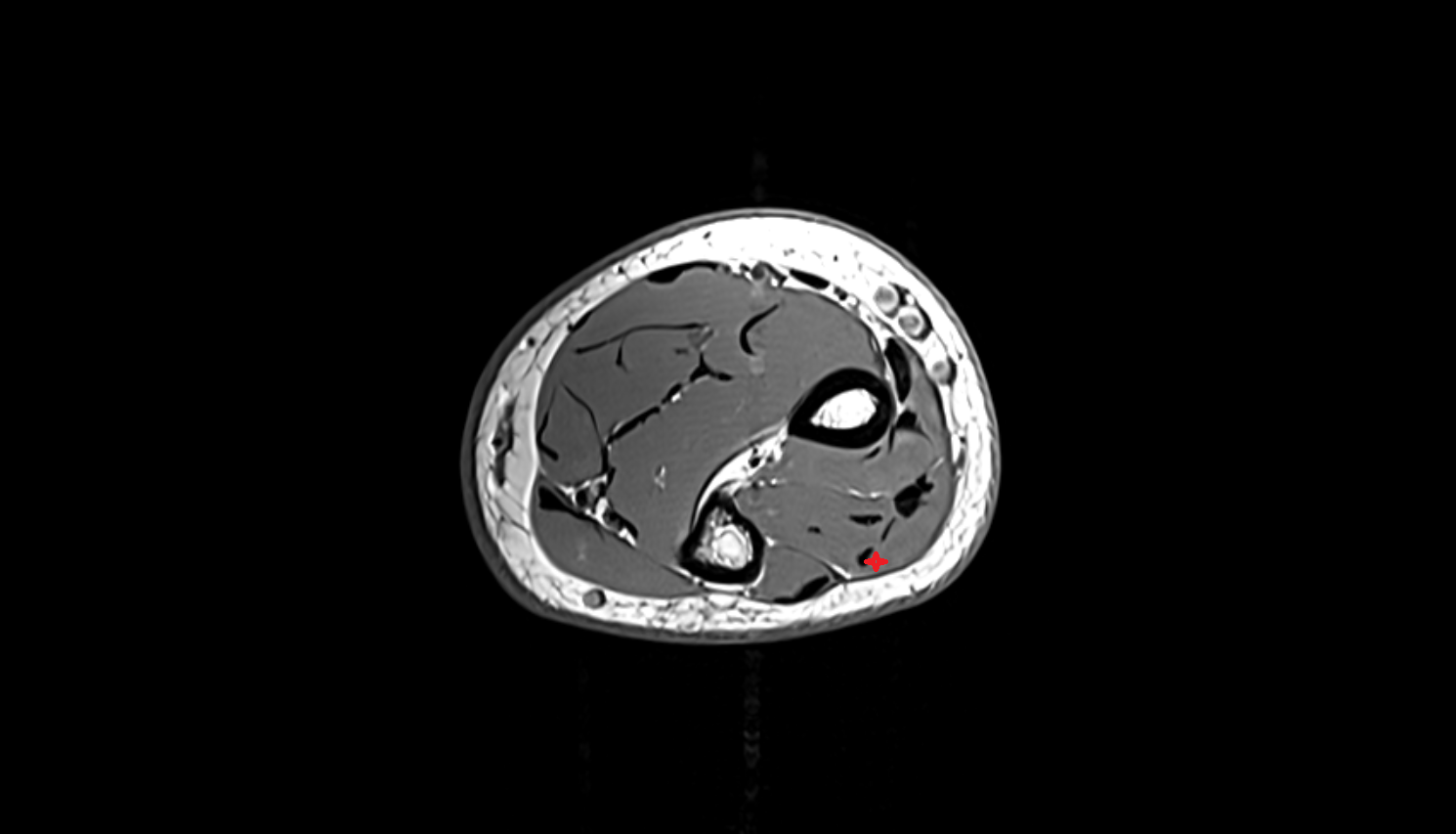

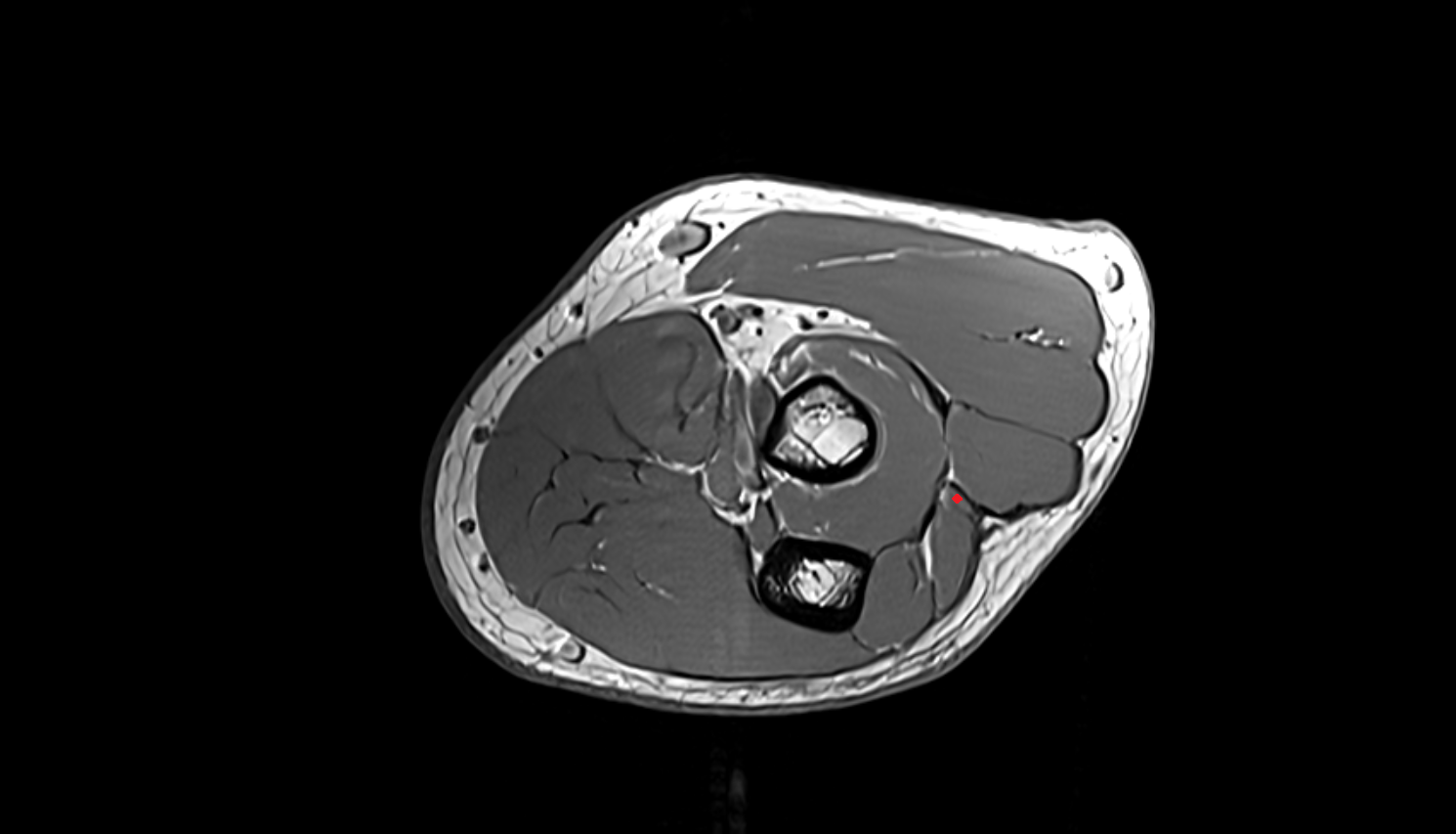

MRI images
