Extensor Digiti Minimi Tendon: Anatomy, Function, Imaging

Topic

Extensor digiti minimi tendon

The extensor digiti minimi (EDM) tendon is a slender tendon of the extensor digiti minimi muscle, located on the dorsum of the forearm and hand. It specifically extends the little finger (fifth digit) at the metacarpophalangeal and interphalangeal joints. The EDM lies in the fifth dorsal compartment of the wrist, accompanied by a distinct synovial sheath that facilitates smooth tendon gliding beneath the extensor retinaculum.

The tendon is clinically significant because of its close relationship with the extensor digitorum communis (EDC) tendons and its role in fifth finger extension and ulnar deviation. Pathologies of this tendon, such as tenosynovitis, subluxation, or rupture, are common in repetitive wrist motion and rheumatoid arthritis.

Synonyms

Extensor proprius digiti quinti tendon
Extensor digiti minimi proprius tendon
Fifth finger extensor tendon

Origin, Course, and Insertion

Origin: The tendon arises from the extensor digiti minimi muscle, which originates from the lateral epicondyle of the humerus via the common extensor tendon.
Course:
- The tendon passes posterior to the distal ulna and enters the fifth dorsal compartment of the wrist, within its own synovial sheath.
- It lies medial to the extensor digitorum communis tendon to the little finger.
- As it crosses the dorsum of the hand, it divides into two slips.
Insertion:
- Both slips join the extensor expansion (dorsal digital expansion) of the fifth finger.
- The distal fibers insert onto the dorsal surfaces of the middle and distal phalanges of the little finger.

Tendon Attachments

Secured beneath the extensor retinaculum in the fifth dorsal compartment, enclosed in a thin synovial sheath.
At the dorsum of the hand, the tendon contributes to the extensor expansion of the little finger, blending with fibers of the lumbricals and interossei.
Distal slips anchor onto the extensor hood and phalangeal bases, enabling coordinated extension of the MCP, PIP, and DIP joints.

Relations

Superficially: Dorsal skin and subcutaneous tissue of the wrist and hand
Deeply: Dorsal capsule of the wrist joint and carpal bones
Medially: Extensor carpi ulnaris tendon
Laterally: Extensor digitorum communis tendon to the fifth finger
Proximally: Extensor retinaculum and ulnar head of radius
Distally: Extensor hood of the fifth digit

Nerve Supply

Posterior interosseous nerve (continuation of the deep branch of the radial nerve, C7–C8)

Function

Extension of the fifth digit: Extends the metacarpophalangeal, proximal, and distal interphalangeal joints of the little finger.
Assists wrist extension: Secondary role in dorsiflexion and ulnar deviation of the wrist.
Digit independence: Provides isolated extension of the little finger, independent of other digits.
Synergistic action: Works with extensor digitorum communis and interossei muscles to stabilize the finger during fine motor tasks.

Clinical Significance

Tenosynovitis: Inflammation of the EDM tendon sheath, often associated with repetitive wrist use or inflammatory arthritis.
Tendon subluxation: May dislocate from its compartment due to rupture of the retinacular septum, commonly seen in rheumatoid arthritis.
Tear or rupture: Causes loss of active fifth finger extension; may follow trauma or attritional injury.
Post-surgical importance: Landmark in dorsal wrist surgery, particularly in approaches to the fifth compartment.
Imaging relevance: MRI accurately assesses tendinopathy, rupture, synovitis, and peritendinous inflammation.

MRI Appearance

T1-weighted images:
- Tendon: low signal (dark), uniform linear structure beneath extensor retinaculum.
- Muscle belly: intermediate signal proximally.
- Peritendinous fat: bright, providing clear contrast.
- Pathology (tear or synovitis): focal intermediate-to-bright signal replacing normal dark tendon.
T2-weighted images:
- Normal tendon: low signal (dark line) due to tightly packed collagen.
- Pathology: bright hyperintense areas within or around tendon (edema, tenosynovitis, partial tear).
- Joint effusion or peritendinous fluid appears bright, surrounding the tendon sheath.
STIR:
- Normal tendon: dark (low signal).
- Pathology: bright hyperintense signal in tendon sheath or within tendon substance, indicating inflammation or edema.
- Sensitive for early tendinitis and peritendinous fluid.
Proton Density Fat-Saturated (PD FS):
- Normal tendon: dark, sharply marginated band.
- Tendinitis or tear: focal bright signal along tendon or sheath.
- Highlights synovial thickening and subtle tears better than T2.
T1 Fat-Sat Post-Contrast:
- Normal tendon: minimal or no enhancement.
- Inflamed synovium: intense linear enhancement surrounding the tendon.
- Partial tear or granulation tissue: heterogeneous enhancement with discontinuity of low-signal fibers.

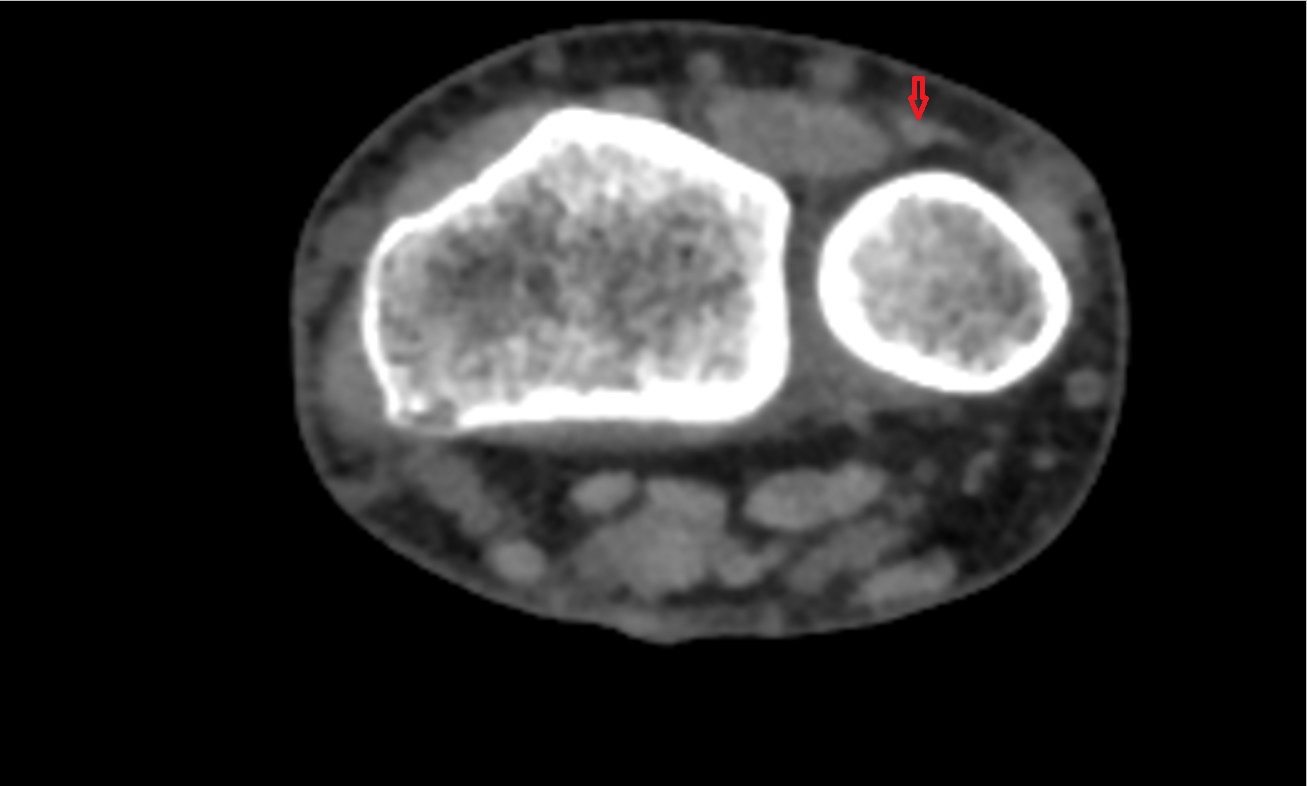

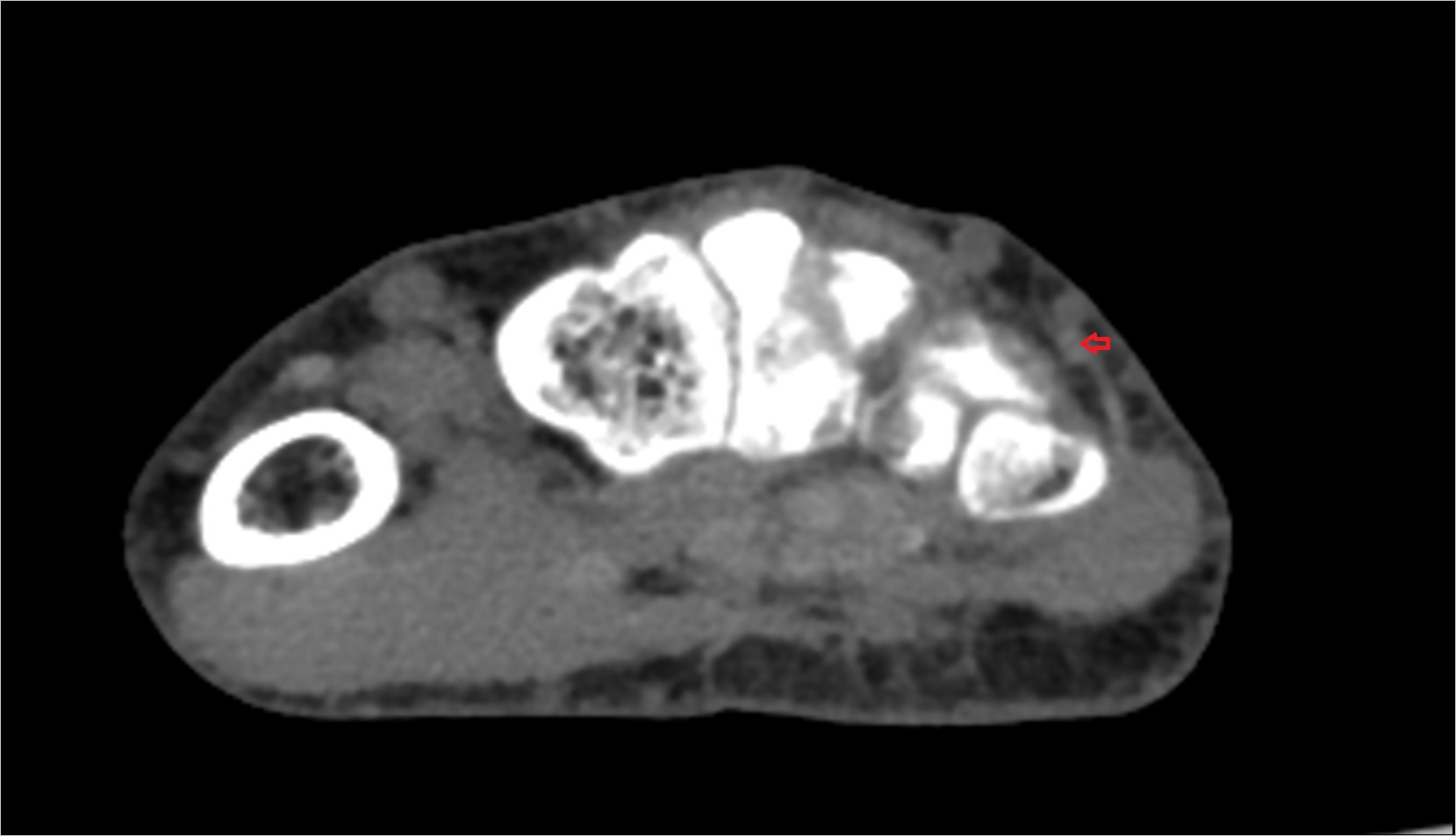

CT Appearance

Non-Contrast CT:

Tendon appears as a fine soft-tissue density band overlying dorsal wrist and hand.
Adjacent bony surfaces (ulna, carpal bones, metacarpals) are well visualized.
Calcific tendinitis: appears as dense focal calcification within or adjacent to the tendon.
Post-traumatic tears: may reveal soft-tissue discontinuity or subcutaneous air if open injury.

Post-Contrast CT (standard):

Normal tendon shows mild enhancement of surrounding soft tissue.
Tendinopathy or tenosynovitis: shows enhancement of the tendon sheath and peritendinous tissues.
Useful for assessing postoperative changes, synovial proliferation, or tendon thickening.

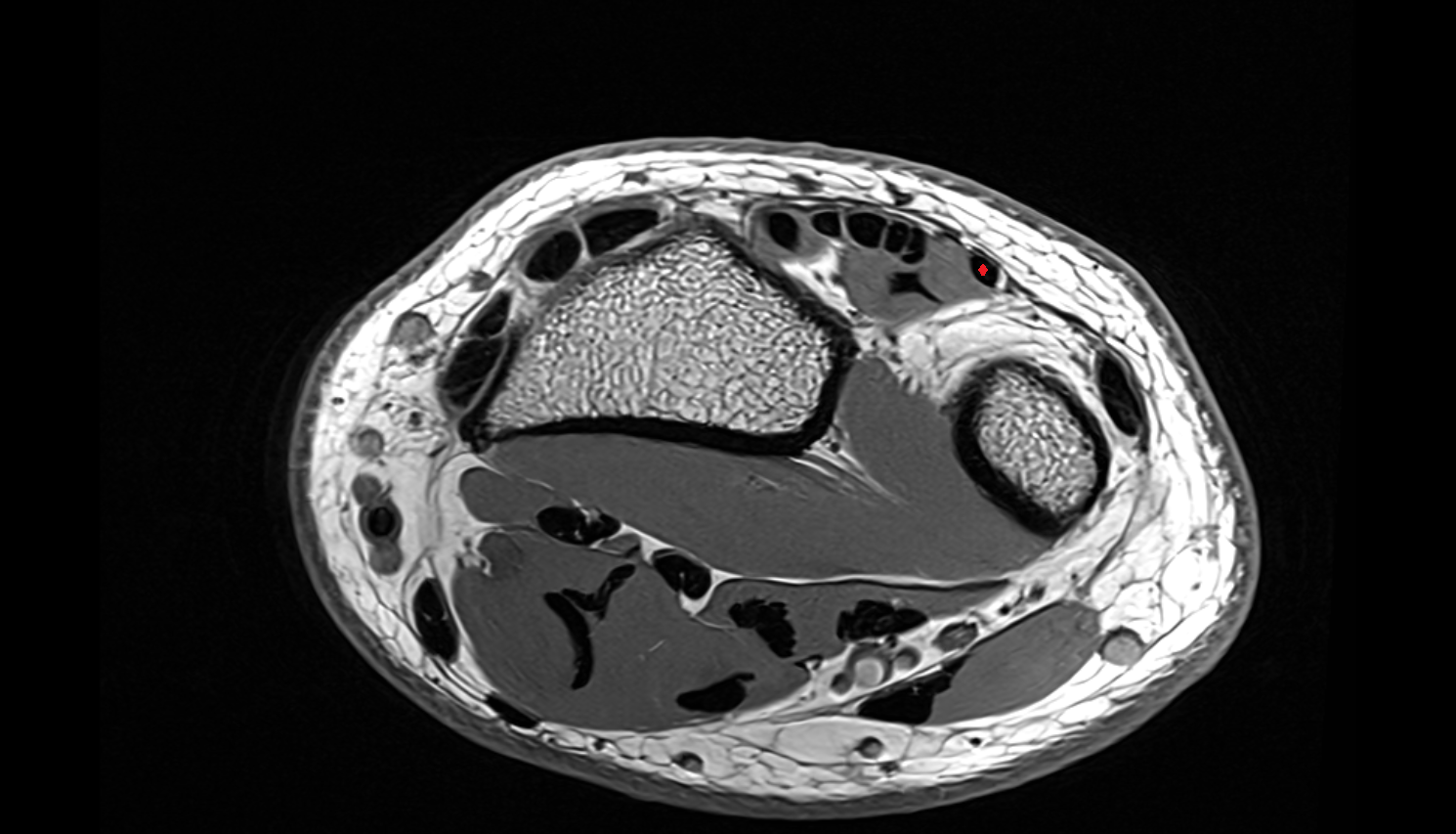

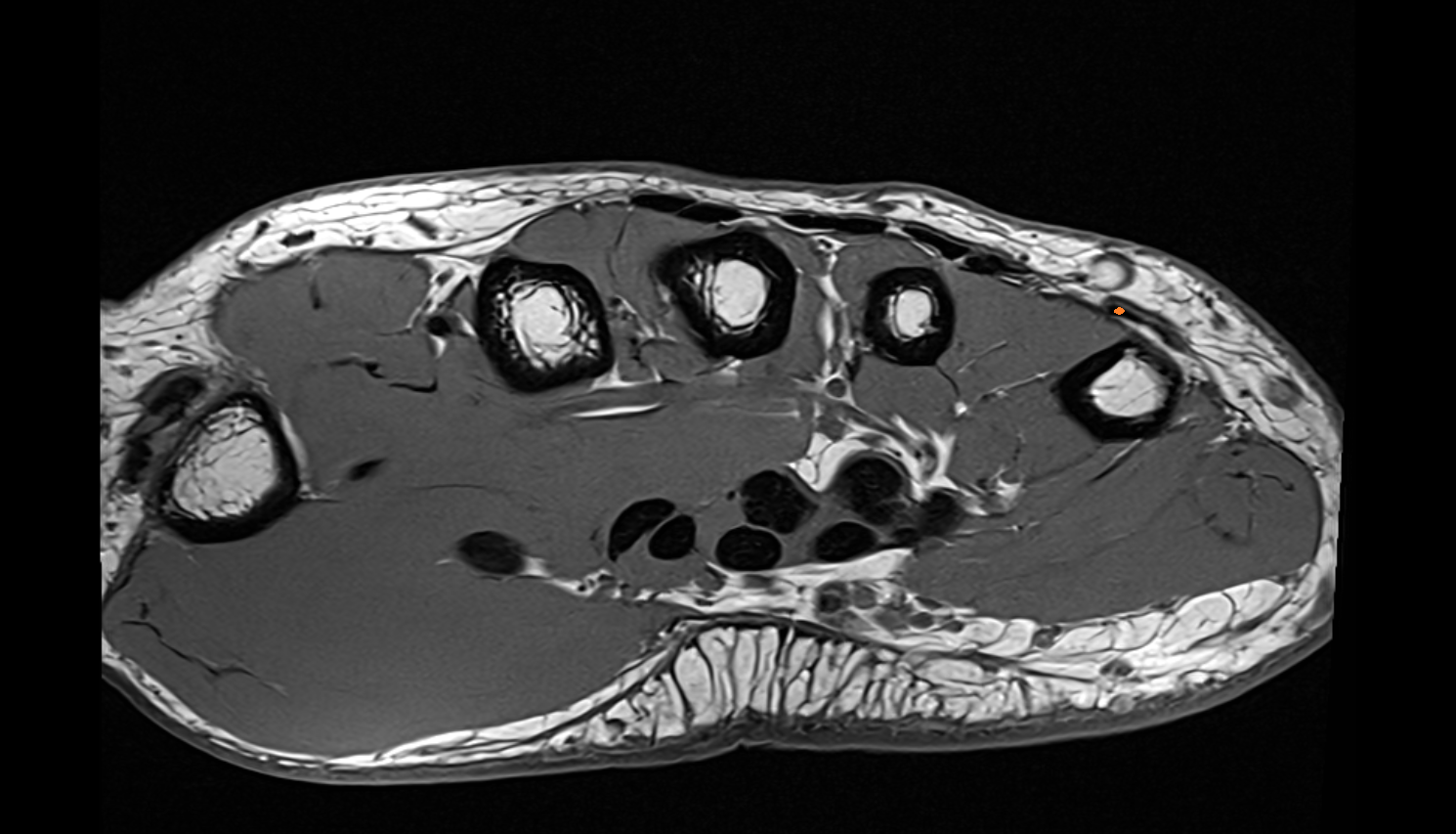

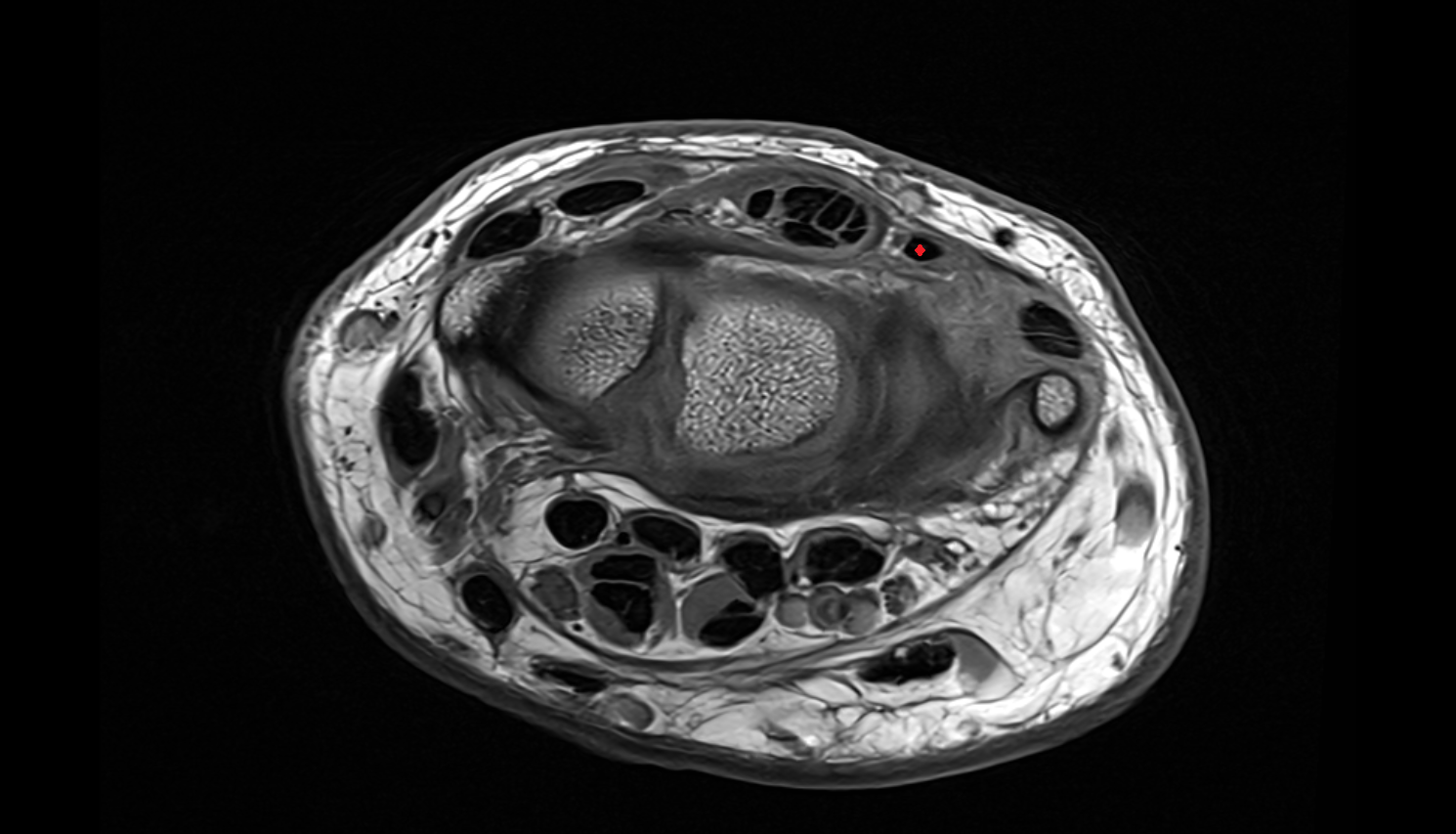

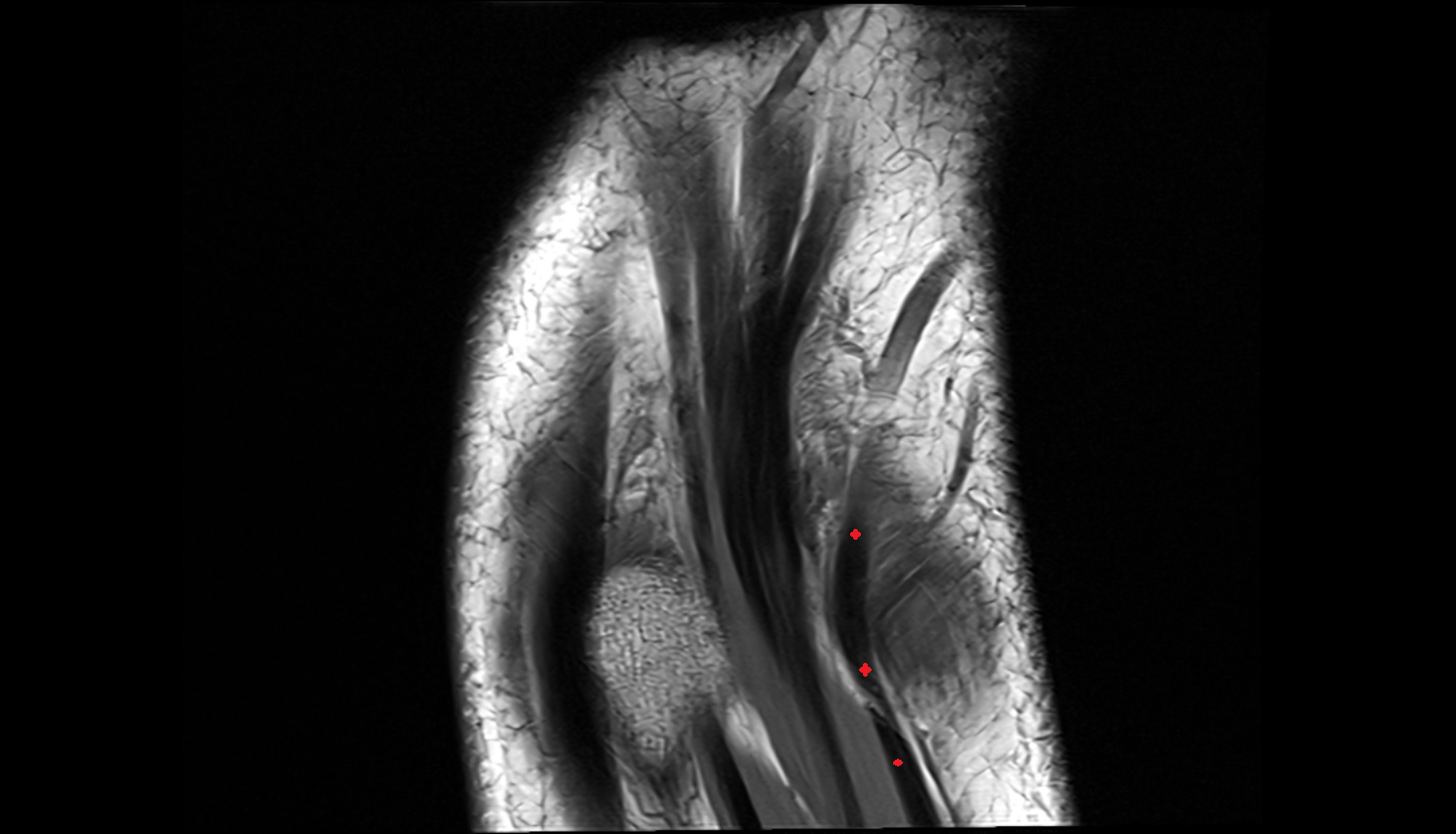

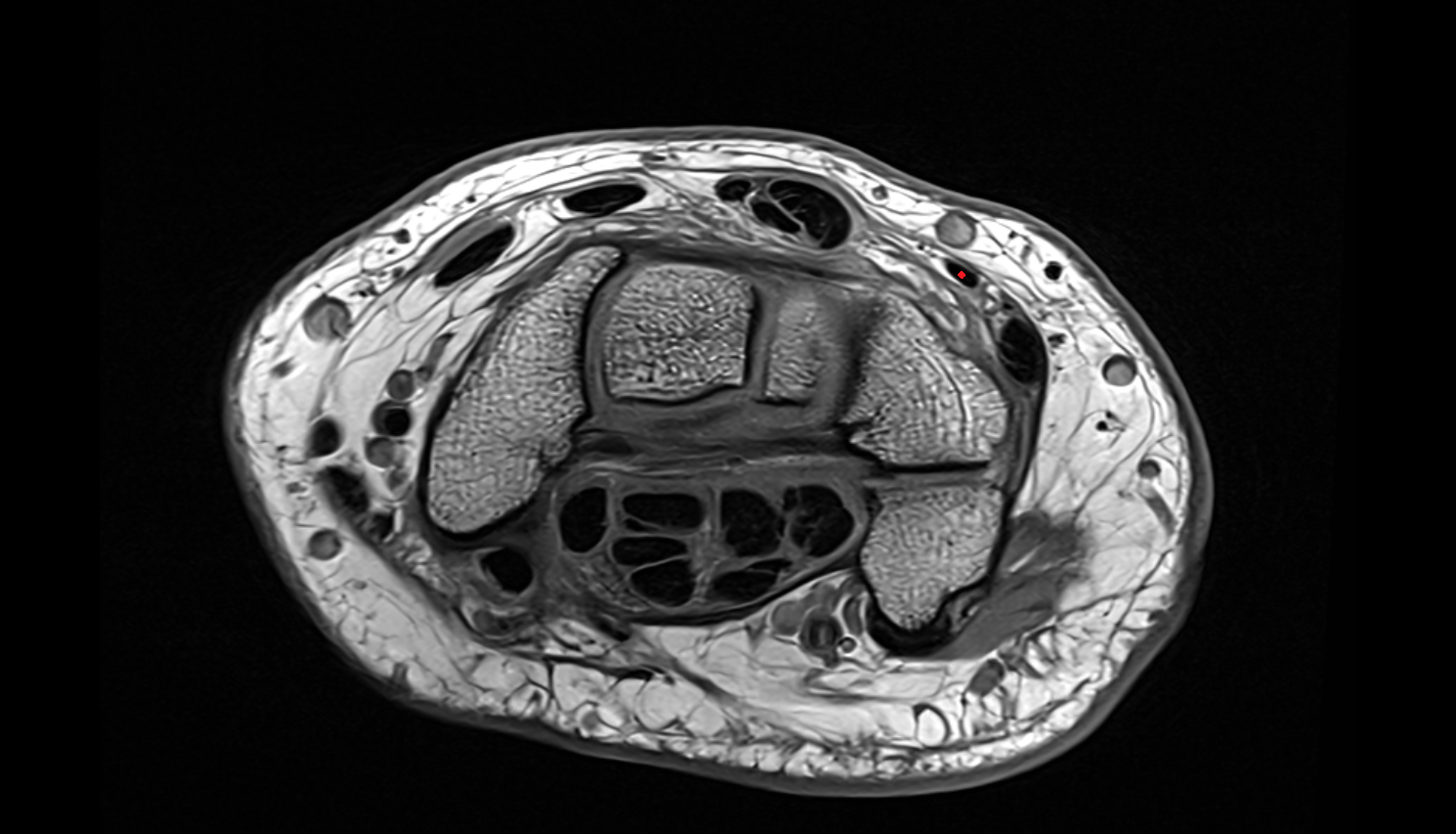

MRI images
