Extensor Digitorum Brevis Muscle: Anatomy, Function, Imaging

Topic

Extensor digitorum brevis muscle

The extensor digitorum brevis (EDB) is a small intrinsic muscle located on the dorsum of the foot. It arises from the calcaneus and extends toward the toes, lying deep to the extensor digitorum longus tendons. It assists in extending the second to fourth toes at the metatarsophalangeal joints and plays an important role in stabilizing the toes during gait.

The EDB is clinically relevant because of its proximity to the deep fibular nerve and dorsalis pedis artery, making it a useful anatomical landmark in surgery. It is also a common site for muscle tears, denervation, and compartment syndromes.

Synonyms

Dorsal extensor of toes (short)
Brevis extensor digitorum muscle

Origin, Course, and Insertion

Origin: Superolateral surface of the calcaneus, dorsal surface of the talocalcaneal ligament, and inferior extensor retinaculum
Course: Fibers run obliquely forward and divide into three tendons
Insertion: Dorsal aponeuroses and extensor expansions of the 2nd, 3rd, and 4th toes (occasionally the 5th)

Tendon Attachments

Divides into three slips, which join the long extensor tendons of toes 2–4
Sometimes an accessory slip extends to the great toe, representing the extensor hallucis brevis

Relations

Superiorly: Extensor digitorum longus tendons
Inferiorly: Dorsal surface of the calcaneus and tarsal bones
Medially: Extensor hallucis brevis (closely associated)
Laterally: Tendons of peroneus tertius and extensor digitorum longus
Deep: Dorsalis pedis artery and deep fibular nerve

Nerve Supply

Deep fibular (peroneal) nerve (L5–S1), branch of the common fibular nerve

Arterial Supply

Dorsalis pedis artery and its branches
Contributions from the lateral tarsal artery

Venous Drainage

Dorsal venous arch of foot → drains into anterior tibial vein

Function

Extension of toes: Extends toes 2–4 at metatarsophalangeal joints
Stabilization: Assists in toe control during walking and running
Synergy: Works with extensor digitorum longus for coordinated extension
Clinical marker: Weakness or atrophy may indicate deep fibular nerve lesion

Clinical Significance

Injury: Muscle tears from overuse, trauma, or ankle sprain
Neuropathy: Atrophy seen in deep fibular nerve palsy or L5 radiculopathy
Surgical relevance: Used as a landmark in dorsalis pedis artery bypass or flap surgeries
Imaging: Important for detecting denervation changes, muscle edema, or mass lesions on MRI

MRI Appearance

T1-weighted images:
- Normal muscle: intermediate signal intensity
- Tendons: low signal (dark)
- Atrophy: increased fat content → bright signal
T2-weighted images:
- Normal muscle: darker than on T1, intermediate-to-low signal
- Tears: focal bright hyperintense areas within muscle belly or tendon
- Edema or inflammation: patchy high signal intensity
STIR (Short Tau Inversion Recovery):
- Normal muscle: intermediate to dark
- Pathology: bright hyperintense signal with edema, tears, or compartment syndrome
Proton Density Fat-Saturated (PD FS):
- Normal muscle: intermediate to dark signal
- Tears: bright hyperintense clefts or edema
- Useful for early tendinopathy or subtle muscle injury
T1 Fat-Sat Post-Contrast:
- Normal: minimal enhancement
- Pathology: enhancement in muscle tears, synovitis, or inflammatory myopathies
- Denervation: diffuse or patchy enhancement in acute phase

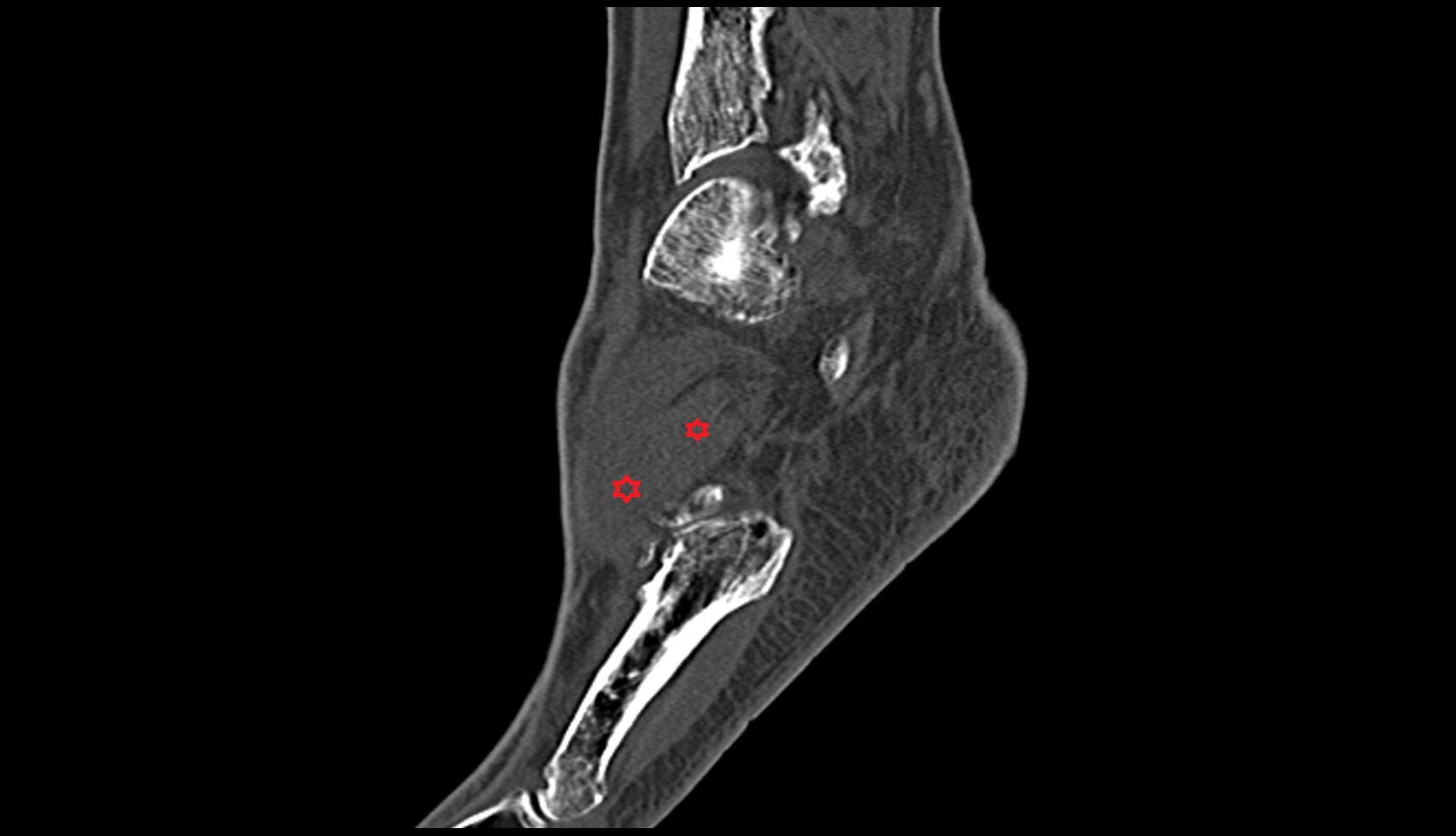

CT Appearance

Non-Contrast CT:

Muscle belly: soft-tissue density, intermediate between fat and bone
Chronic atrophy: reduced bulk with fatty infiltration (low density)
Calcification: may be seen in chronic tendinopathy or myositis ossificans

Post-Contrast CT (standard):

Normal muscle: homogeneous enhancement
Pathology: focal or diffuse enhancement in inflammatory or post-traumatic changes
Tears: irregularity or discontinuity with perimuscular fluid density

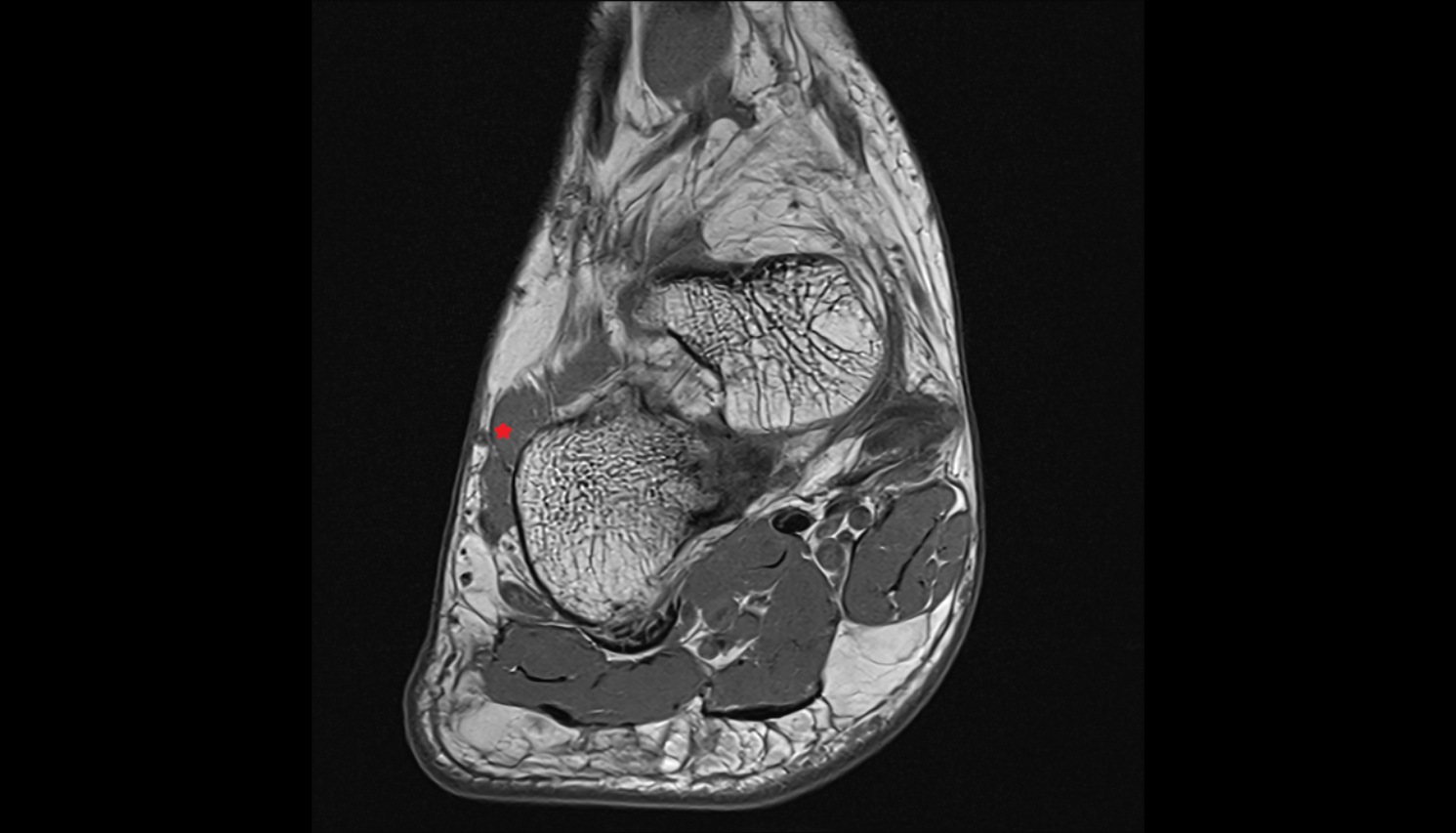

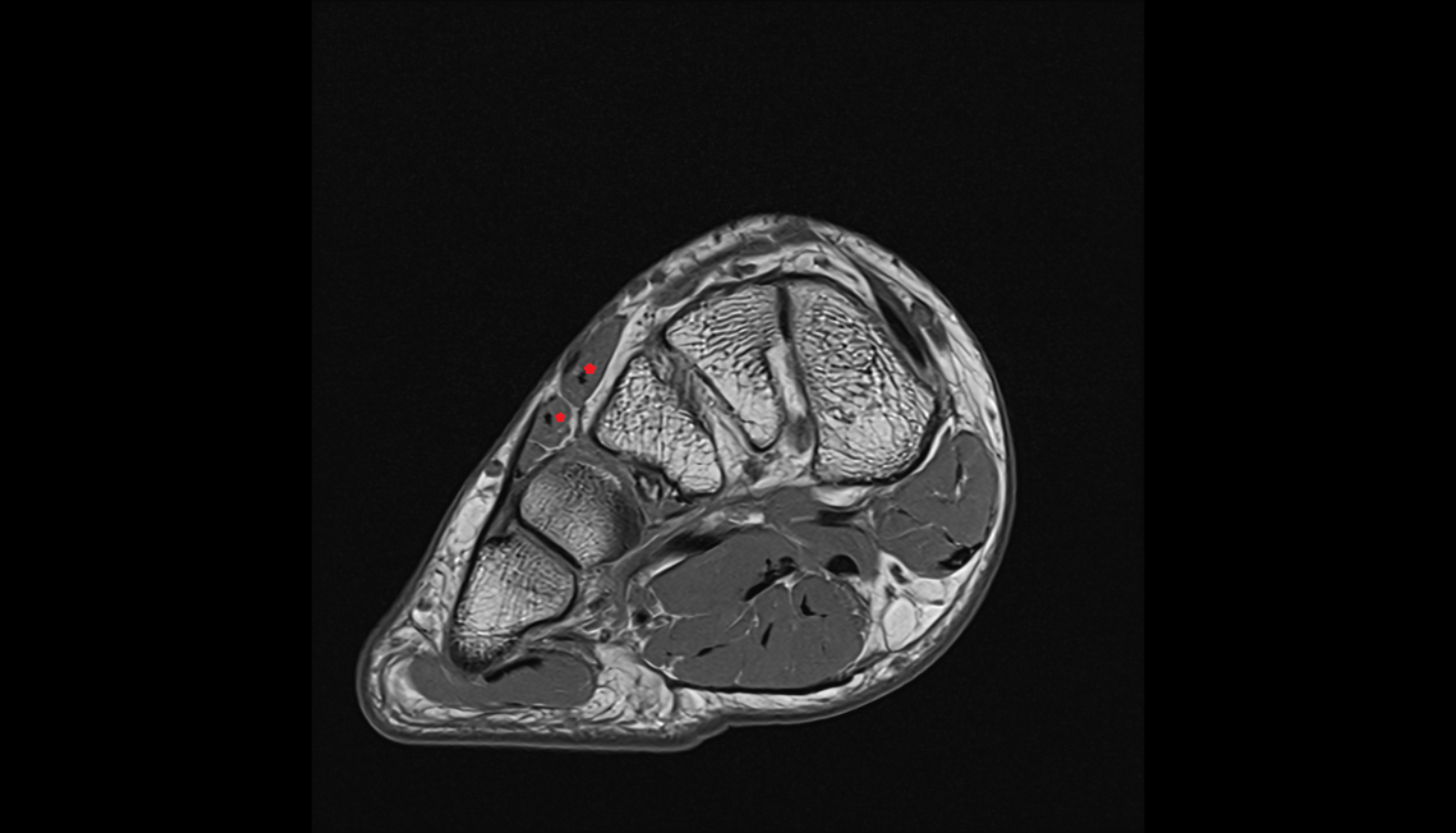

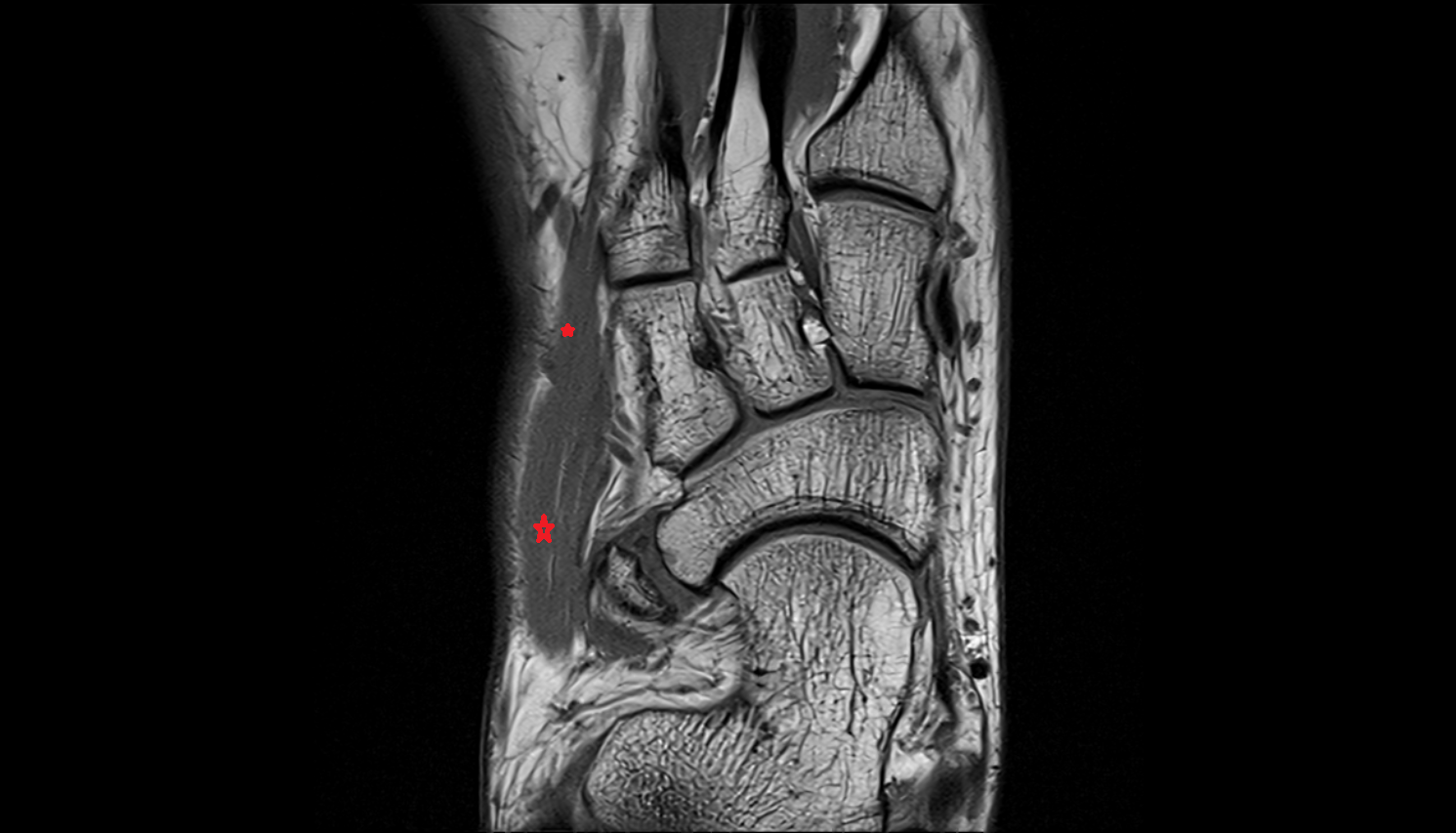

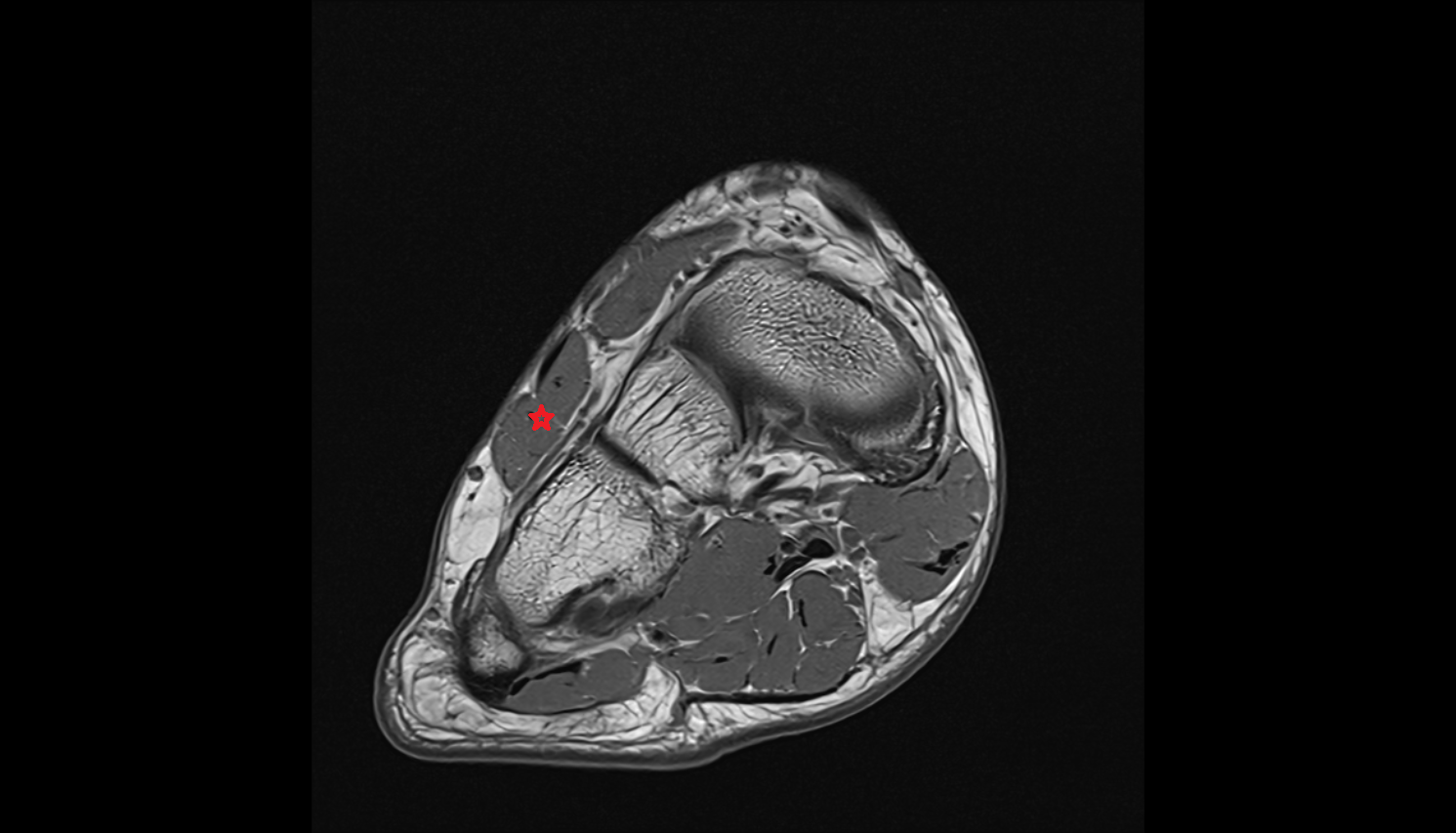

MRI image
