Extensor Digitorum Tendons: Anatomy, Function, and MRI/CT Imaging

Topic

Extensor digitorum tendons

The extensor digitorum tendons (ED tendons) are the terminal extensions of the extensor digitorum muscle, which lies in the posterior compartment of the forearm. These tendons pass along the dorsal aspect of the hand and fingers, forming the main extensor mechanism for the index, middle, ring, and little fingers.

They are essential for coordinated extension of the metacarpophalangeal (MCP) and interphalangeal (IP) joints and play a key role in fine motor control, hand grip balance, and release mechanics. The tendons are interconnected by fibrous juncturae tendinum, which synchronize finger extension.

Synonyms

Tendons of extensor digitorum communis
Dorsal digital extensor tendons
Extensor expansions

Origin, Course, and Insertion

Origin: From the extensor digitorum muscle, which arises from the lateral epicondyle of the humerus via the common extensor tendon.
Course:
- The muscle forms four tendons in the distal forearm.
- These tendons pass deep to the extensor retinaculum within the fourth dorsal compartment of the wrist, accompanied by the extensor indicis tendon.
- On the dorsum of the hand, they diverge toward their respective digits.
- At the metacarpophalangeal joints, they flatten and expand into the dorsal digital expansion (extensor hood).
Insertion:
- Each tendon divides into three slips:
  - Central slip: Inserts into the base of the middle phalanx.
  - Two lateral slips: Reunite and insert into the base of the distal phalanx.
- This configuration forms the extensor mechanism, which coordinates extension across MCP, PIP, and DIP joints.

Tendinous Attachments

Extensor expansion (dorsal digital hood): Receives contributions from the lumbrical and interosseous muscles, enhancing precision and coordinated extension.
Juncturae tendinum: Fibrous intertendinous bands connecting adjacent tendons on the dorsum of the hand, maintaining synchronized motion.
Extensor retinaculum: Forms fibrous tunnels preventing tendon bowstringing during wrist and finger extension.

Relations

Superficially: Dorsal skin and subcutaneous fascia of hand
Deeply: Dorsal capsule of MCP and IP joints, interosseous muscles, and bones
Medially: Extensor digiti minimi tendon (for little finger)
Laterally: Extensor indicis and extensor pollicis longus tendons
Proximally: Posterior surface of radius and interosseous membrane

Nerve Supply

Posterior interosseous nerve (branch of the radial nerve, roots C7–C8)

Function

Extension of fingers: Primary extensor of the four medial digits at MCP joints.
Assisted extension: Aids interossei and lumbricals in extending PIP and DIP joints.
Stabilization: Maintains digital alignment and counteracts flexor pull during grip.
Fine motor control: Essential in coordinated digital extension for typing, playing instruments, and writing.

Clinical Significance

Tendon rupture: Common in rheumatoid arthritis or trauma, resulting in “dropped finger” deformities.
Extensor lag: Partial tendon disruption or imbalance between central and lateral slips.
Sagittal band rupture: Leads to subluxation of tendon at MCP joint (common in ring finger).
Lacerations: Frequent in dorsal hand injuries; surgical repair often required.
Tendinopathy: Chronic overuse (keyboard use, sports) leads to extensor tendinitis.
Surgical relevance: Extensor tendons are used in tendon transfer and grafting procedures for hand reconstruction.

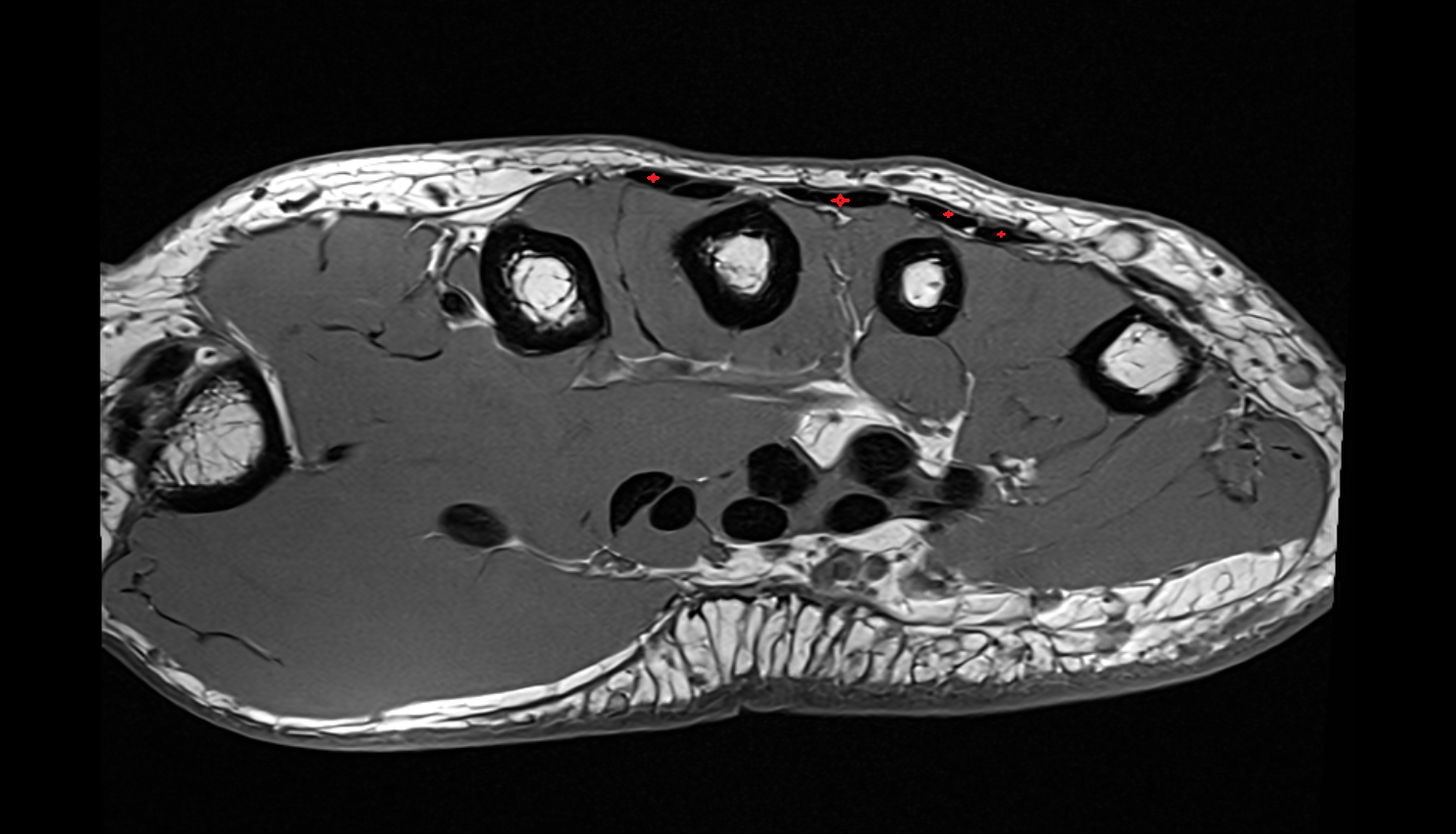

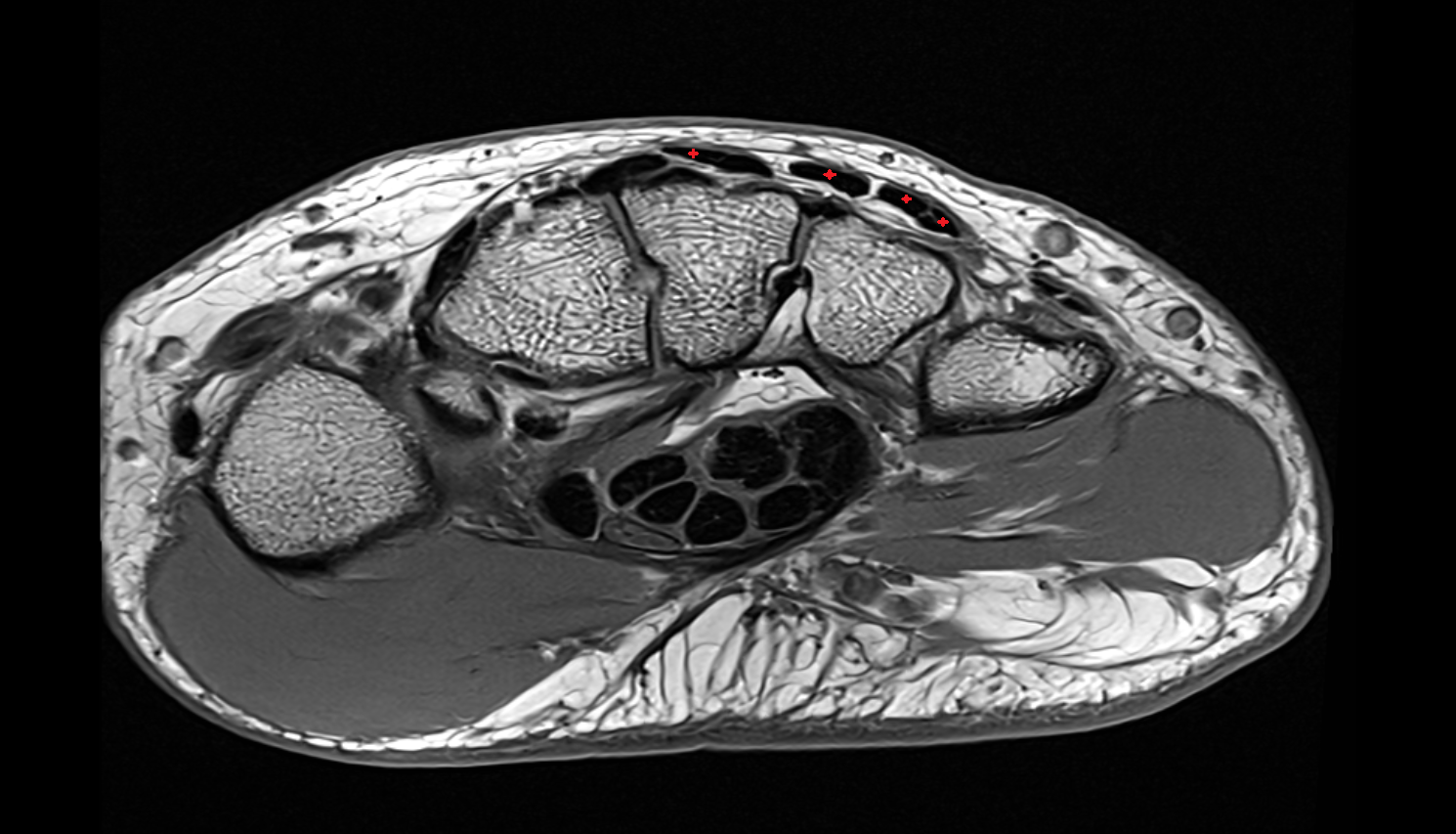

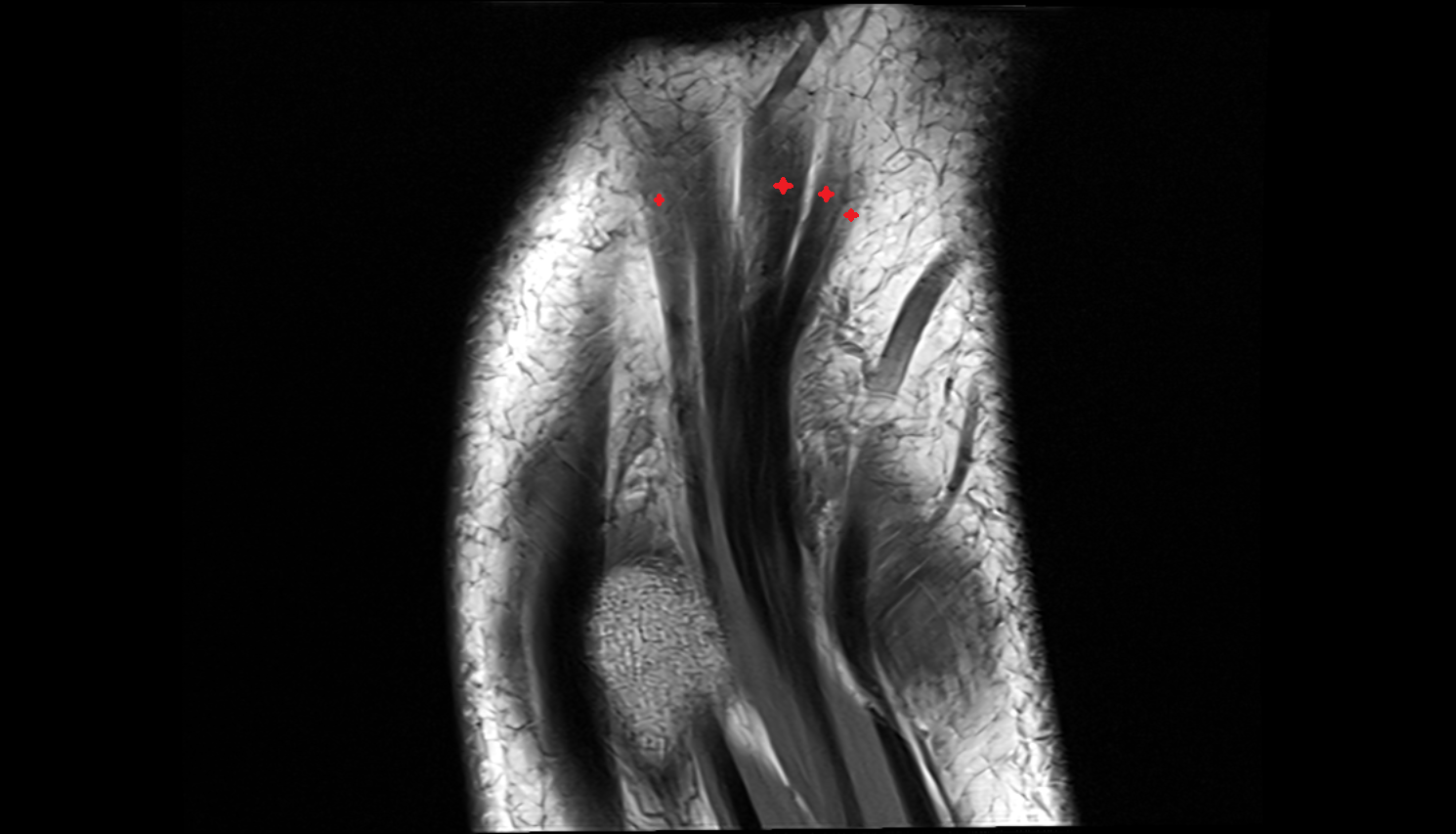

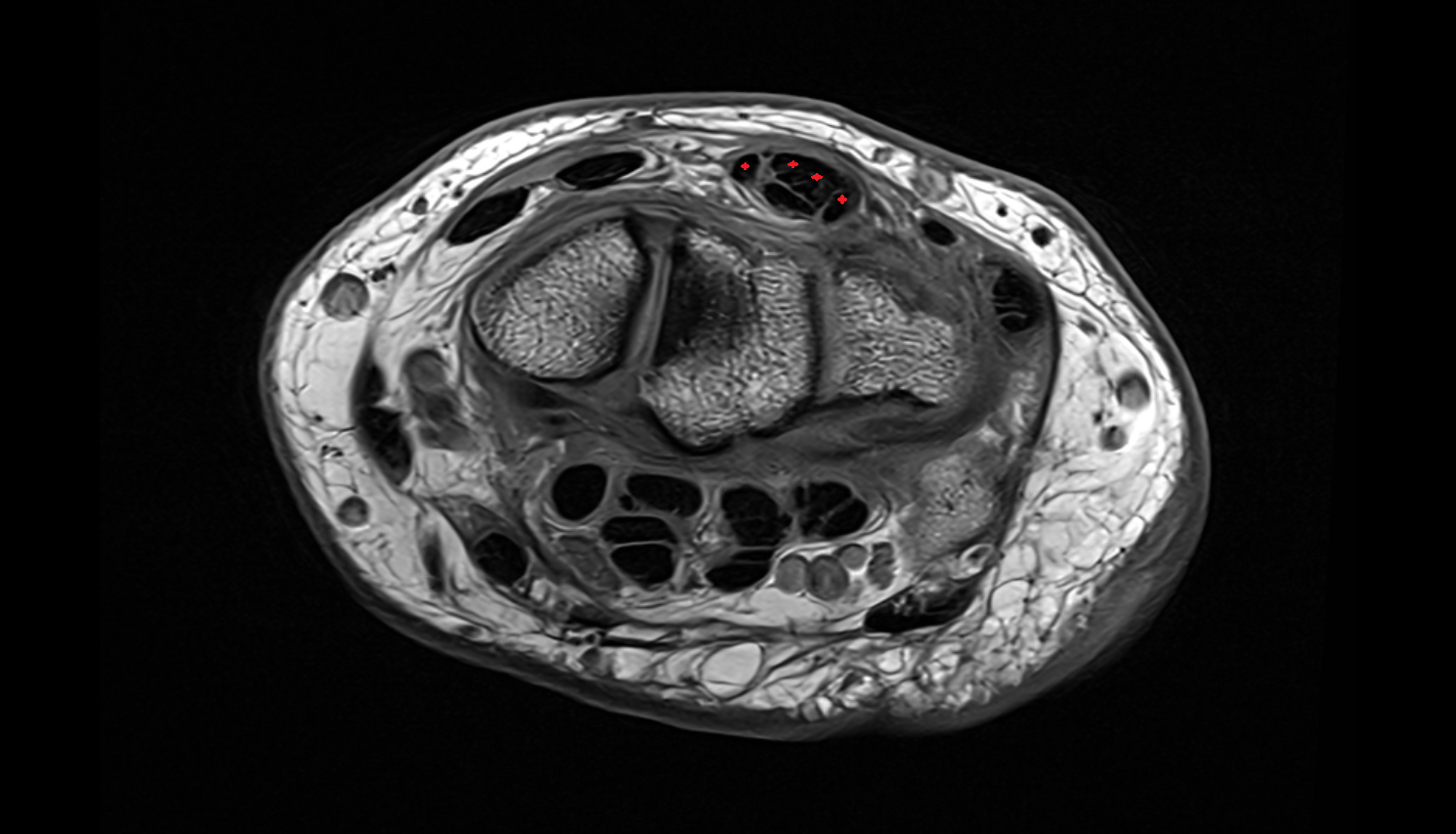

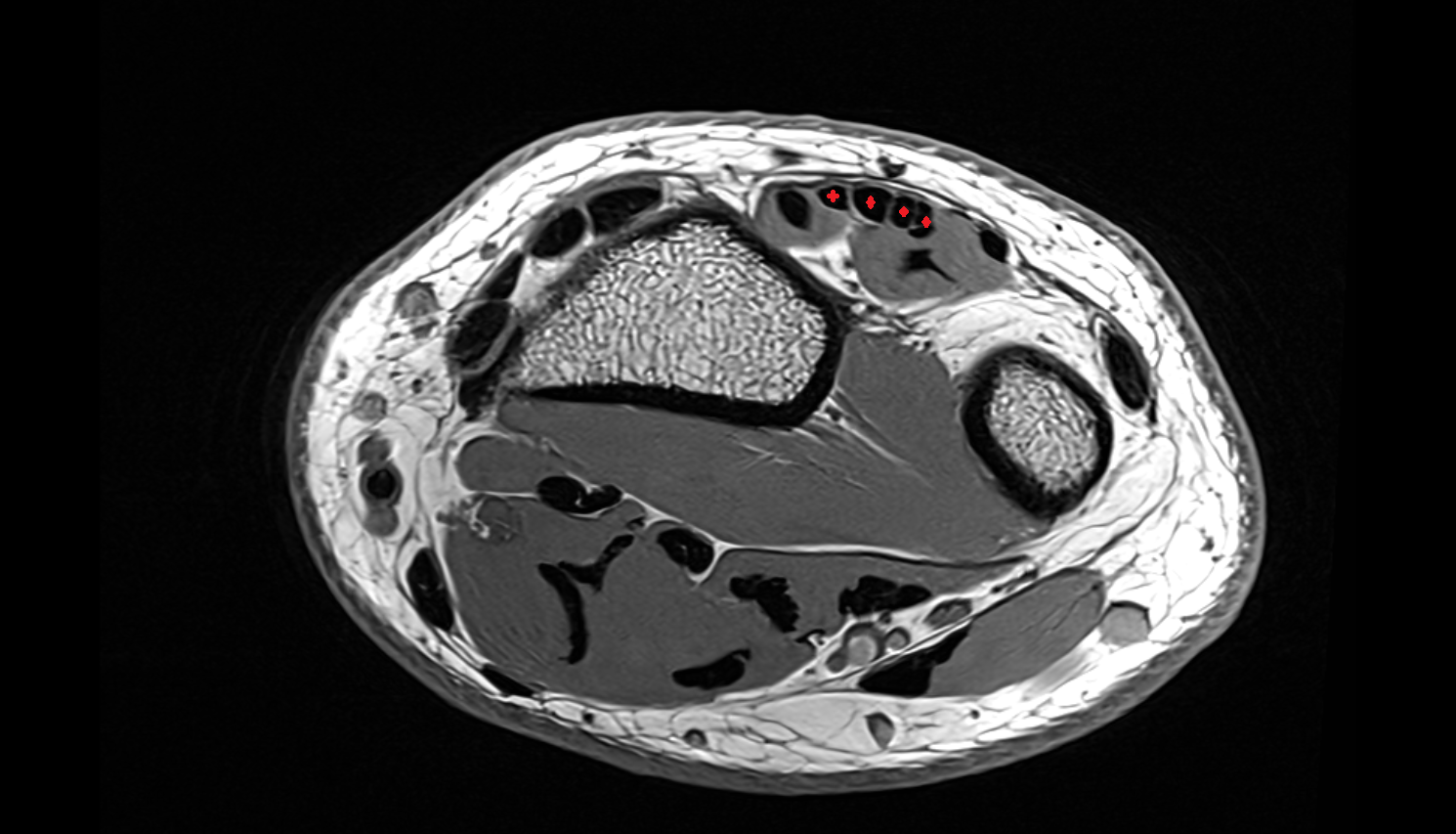

MRI Appearance

T1-weighted images:
- Normal tendon: low signal (dark) due to tightly packed collagen fibers.
- Peritendinous fat: bright, outlining the tendons.
- Chronic tendinopathy: may show intermediate signal thickening.
- Rupture: discontinuity or retraction with adjacent soft-tissue gap.
T2-weighted images:
- Normal tendon: low signal (dark).
- Muscle belly: intermediate signal, darker than on T1.
- Tendinopathy or partial tear: focal bright hyperintense signal within tendon substance.
- Complete tear: discontinuity with high-signal fluid or hematoma at rupture site.
STIR:
- Normal tendon: dark (low signal).
- Pathology: bright hyperintense signal around tendon (edema, tenosynovitis, or inflammation).
- Excellent for identifying early peritendinous edema.
Proton Density Fat-Saturated (PD FS):
- Normal: dark linear tendons with smooth outlines.
- Partial tear or tendinopathy: bright focal signal within or surrounding tendon.
- Ideal for assessing subtle fiber disruption or sheath inflammation.
T1 Fat-Sat Post-Contrast:
- Normal: no enhancement of tendon fibers.
- Tendinitis or synovitis: shows peritendinous enhancement due to inflammation.
- Postoperative or scar tissue: peripheral enhancement with low-signal fibrotic core.

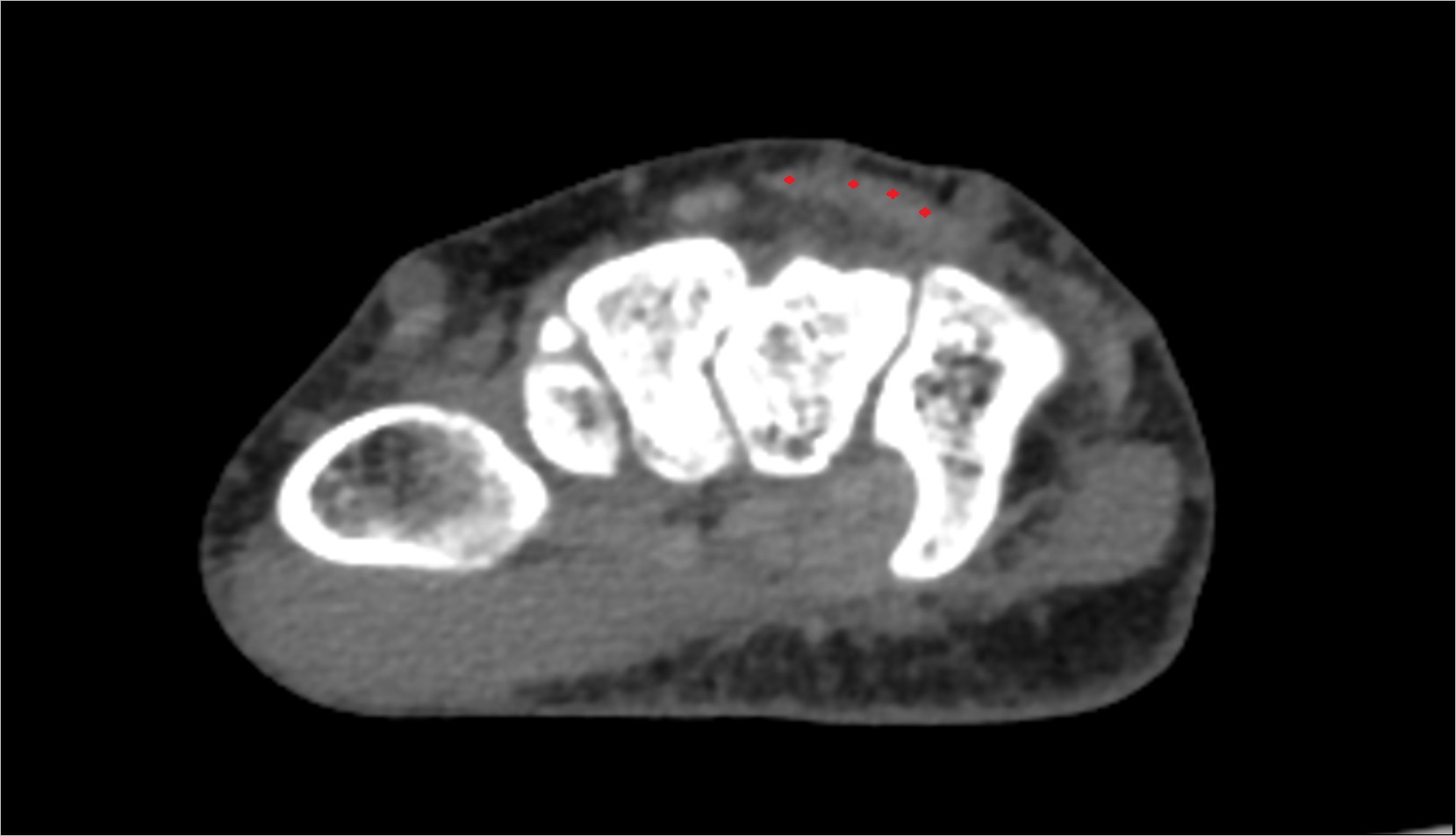

CT Appearance

Non-Contrast CT:

Tendons: seen as linear soft-tissue density bands dorsal to phalanges and metacarpals.
Bone landmarks (phalangeal bases, metacarpal heads) clearly define tendon course.
Mineralization or ossification: high-density foci within or adjacent to tendon (chronic tendinopathy).
Useful for evaluating bony avulsion fragments or post-traumatic calcifications.

Post-Contrast CT (standard):
