Extensor hood of foot

The extensor hood of the foot, also known as the dorsal digital expansion, is a complex aponeurotic structure located on the dorsum of the toes. It forms an expansion of the extensor tendons of the foot and plays a critical role in coordinating extension at the metatarsophalangeal (MTP) and interphalangeal (IP) joints.

The extensor hood integrates tendons from the extensor digitorum longus (EDL), extensor digitorum brevis (EDB), lumbricals, and interossei muscles. It stabilizes the extensor mechanism and balances flexor and extensor forces across the toe joints during gait, particularly in the push-off and swing phases.

Synonyms

  • Dorsal digital expansion

  • Extensor apparatus of the toes

  • Extensor expansion hood

Structure and Composition

  • The extensor hood is a fibrous aponeurotic expansion formed primarily from the tendons of the EDL and EDB.

  • It lies on the dorsum of the toes, covering the dorsal aspects of the proximal and middle phalanges.

  • The central slip attaches to the base of the middle phalanx, while the two collateral slips unite distally and attach to the base of the distal phalanx.

  • Lumbrical and interosseous tendons join the hood at the proximal phalanx, merging into the lateral margins to assist coordinated toe movements.

  • The structure resembles the hand’s extensor expansion but is thinner and less elaborate.

Relations

  • Superficial to: Dorsal skin and subcutaneous tissue of the toes

  • Deep to: Dorsal capsule of the MTP and IP joints

  • Medially and laterally: Collateral ligaments and interosseous muscles

  • Proximal attachment: Dorsal aspect of MTP joint capsule and extensor tendon insertion

  • Distal attachment: Base of the distal phalanx via terminal tendon slip

Attachments

  • Proximal: Dorsal surface of the proximal phalanx and MTP joint capsule

  • Distal: Base of the distal phalanx via terminal extensor tendinous slips

  • Contributing tendons:

    • Extensor digitorum longus (EDL)

    • Extensor digitorum brevis (EDB)

    • Lumbricals (insert into medial side)

    • Dorsal and plantar interossei (insert into lateral margins)

Nerve Supply

  • Deep fibular (peroneal) nerve (L5–S1) via its branches to the EDL and EDB muscles

  • Digital branches of the medial and lateral plantar nerves provide sensory supply to the overlying skin

Function

  • Extension of toes: Extends proximal and distal interphalangeal joints via coordinated tension

  • Stabilization: Maintains alignment and balance between flexors and extensors during toe-off

  • Load modulation: Distributes dorsal tension during gait for smooth toe extension

  • Fine control: Allows graded toe extension in balance and propulsion

  • Synergistic role: Works with flexor tendons to maintain toe alignment

Clinical Significance

  • Tendon injuries: Lacerations or ruptures cause loss of toe extension (“drop toe” deformity)

  • Deformities: Imbalance between flexors and extensors contributes to hammer toe or claw toe

  • Inflammation: Extensor tendinopathy and synovitis affect dorsal foot pain

  • Post-traumatic adhesions: May limit dorsal toe movement after surgery or injury

  • Imaging relevance: MRI assesses integrity, thickness, and inflammation of the extensor apparatus

MRI Appearance

  • T1-weighted images:

    • Extensor hood: Low signal (dark band) over dorsal aspect of phalanges

    • Bone marrow: Bright (fatty) signal in underlying phalanges

    • Surrounding fat: Bright signal delineating tendon margins

    • Pathology: Partial tears or thickening appear as irregular intermediate signal

  • T2-weighted images:

    • Normal tendon/aponeurosis: Low signal, continuous along dorsal toe

    • Inflammation or tear: Bright hyperintense signal indicating edema or disruption

    • Marrow: Bright fatty signal; mild subcortical hyperintensity in reactive changes

    • Joint fluid: Hyperintense, outlining dorsal recesses

  • STIR:

    • Normal extensor hood: Intermediate-to-dark signal

    • Pathology: Bright hyperintense areas in partial tear, tenosynovitis, or surrounding soft-tissue edema

    • Excellent for detecting subtle dorsal swelling and fluid

  • Proton Density Fat-Saturated (PD FS):

    • Normal tendon: Homogeneously dark, sharply defined

    • Inflamed or partially torn hood: Bright focal signal, best appreciated at MTP level

    • Soft-tissue edema: Hyperintense around extensor tendons and dorsal capsule

  • T1 Fat-Sat Post-Contrast:

    • Normal tendon: Minimal to no enhancement

    • Inflammatory or postoperative change: Peripheral or diffuse enhancement along dorsal tendons

    • Synovitis or tendinopathy: Enhancing soft tissue around the hood with preserved tendon continuity

CT Appearance

Non-Contrast CT:

  • Extensor hood: Thin, low-density soft-tissue layer on dorsal aspect of toes

  • Bony landmarks: Metatarsal heads and phalanges clearly visualized

  • Pathology:

    • Mineralized or thickened aponeurosis in chronic inflammation

    • Bony avulsions or dorsal osteophytes near tendon insertions

    • Useful in preoperative mapping of toe deformities

Post-Contrast CT (standard):

  • Enhancing peritendinous tissue: Indicates inflammation or synovitis

  • Post-surgical scarring: Mild irregular enhancement along dorsal capsule

  • Helpful for assessing dorsal soft-tissue infections, tendon integrity, and chronic scarring

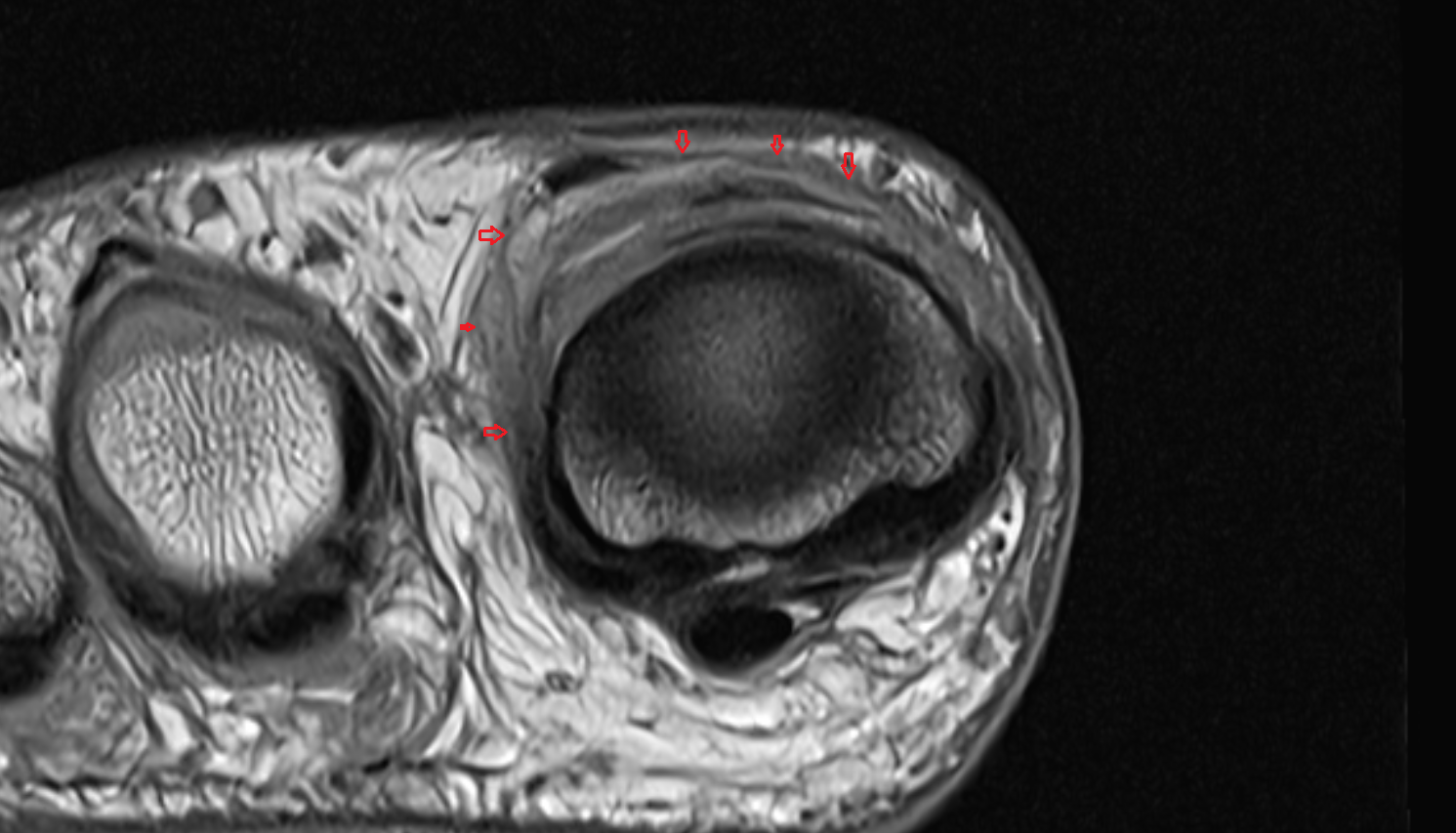

MRI image

Extensor hood of foot axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

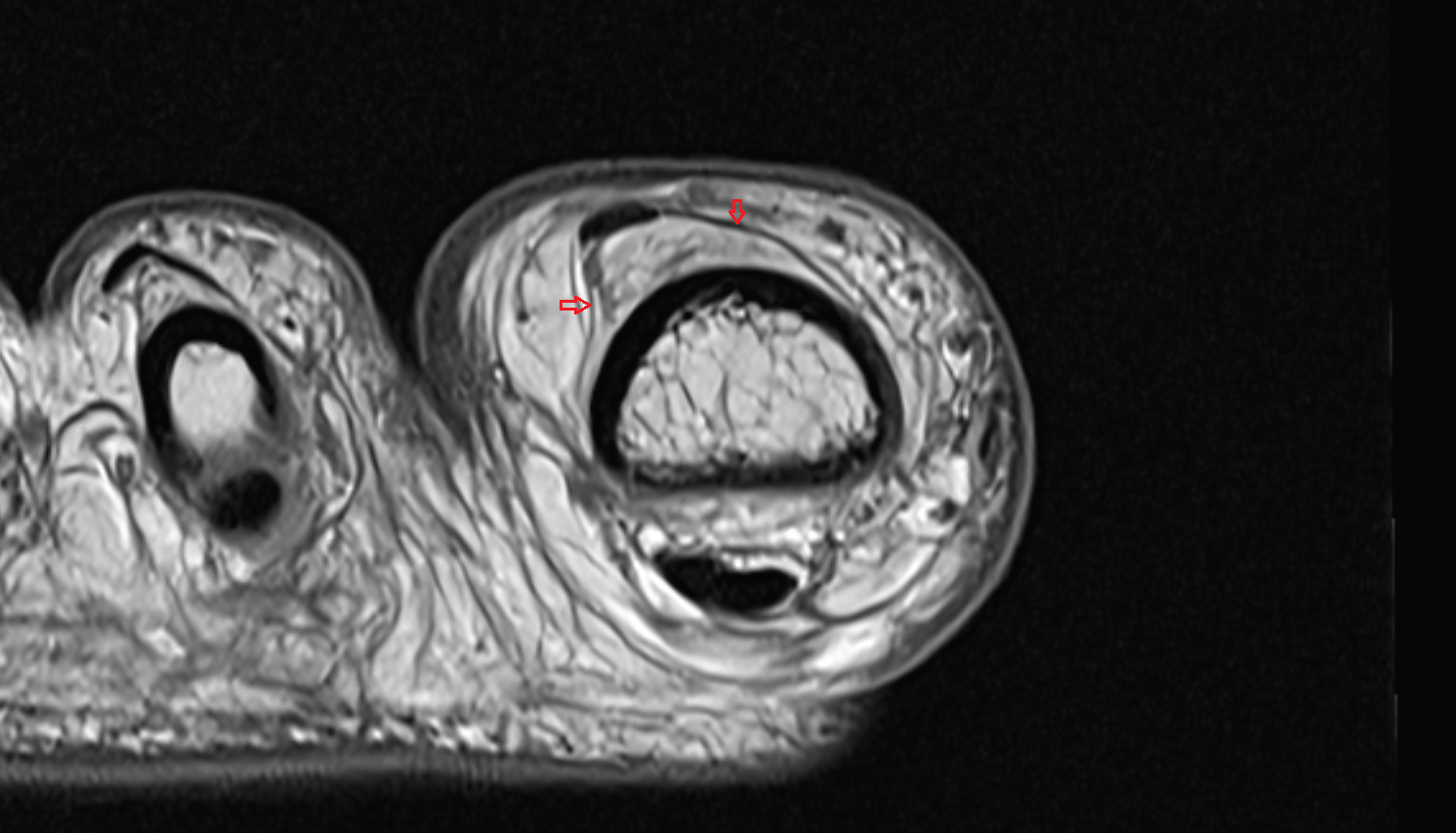

MRI image

Extensor hood of foot axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000_00001
