External spermatic fascia

The external spermatic fascia is the outermost covering of the spermatic cord and testis in males. It is derived from the aponeurosis of the external oblique muscle and its investing fascia. It is acquired by the spermatic cord during its descent through the inguinal canal. This fascia forms part of the protective layers surrounding the spermatic cord structures and testis, and has clinical importance in surgical procedures such as hernia repair and orchiectomy.

Synonyms

  • External layer of spermatic fascia

  • Fascia spermatica externa

  • External covering of spermatic cord

Origin, Course, and Layers

  • Origin: Derived from the aponeurosis of the external oblique muscle at the deep inguinal ring

  • Course:

    • Acquired by the spermatic cord as it passes through the superficial inguinal ring

    • Forms a thin but distinct layer surrounding the spermatic cord and testis

    • Extends downward into the scrotum

  • Layers (spermatic cord coverings):

    1. External spermatic fascia – from external oblique aponeurosis

    2. Cremasteric fascia – from internal oblique muscle

    3. Internal spermatic fascia – from transversalis fascia

Relations

  • Superficial: Continuous with the subcutaneous tissue of the scrotum

  • Deep: Related to the cremasteric fascia

  • Lateral: Superficial inguinal ring and anterior abdominal wall

  • Medial: Encloses spermatic cord structures including vas deferens, pampiniform plexus, testicular vessels, lymphatics, and nerves

Function

  • Provides an outer protective covering to the spermatic cord and testis

  • Helps support and stabilize spermatic cord contents within the scrotum

  • Plays a role in maintaining structural continuity between abdominal wall and scrotal coverings

Clinical Significance

  • Important landmark in inguinal hernia surgery, as hernia sacs may protrude through or around the fascia

  • Involved in hydroceles and scrotal swellings, where fluid may collect within the coverings

  • May be thickened or infiltrated in trauma, infection, or tumor spread

  • Knowledge is crucial in urology, general surgery, and radiology for interpreting scrotal and inguinal imaging

MRI Appearance

T1-weighted images:

  • Appears as a thin, low-signal intensity line encasing the spermatic cord structures

  • Fat surrounding the cord provides bright contrast

T2-weighted images:

  • Appears as a low-signal intensity layer

  • Pathological thickening or edema may appear as higher signal intensity

STIR (Short Tau Inversion Recovery):

  • Normal fascia remains dark

  • Inflammation, edema, or infiltration appears bright

T1 Fat-Sat Post-Contrast:

  • Normal fascia shows minimal or no enhancement

  • Pathological fascia shows focal or diffuse enhancement depending on underlying cause (infection, tumor, inflammation)

3D T2 SPACE / CISS:

  • Fascia appears as a thin hypointense layer surrounding brighter spermatic cord fat and vessels

  • Provides high-resolution delineation of coverings in the inguinal canal and scrotum

CT Appearance

Non-Contrast CT:

  • Not easily visualized as a separate layer; inferred as a thin soft tissue density around spermatic cord structures

  • Surrounded by fat in the inguinal canal and scrotum, providing indirect contrast

Post-Contrast CT:

  • Normal fascia does not enhance significantly

  • Pathological processes may show thickening or enhancement around spermatic cord structures

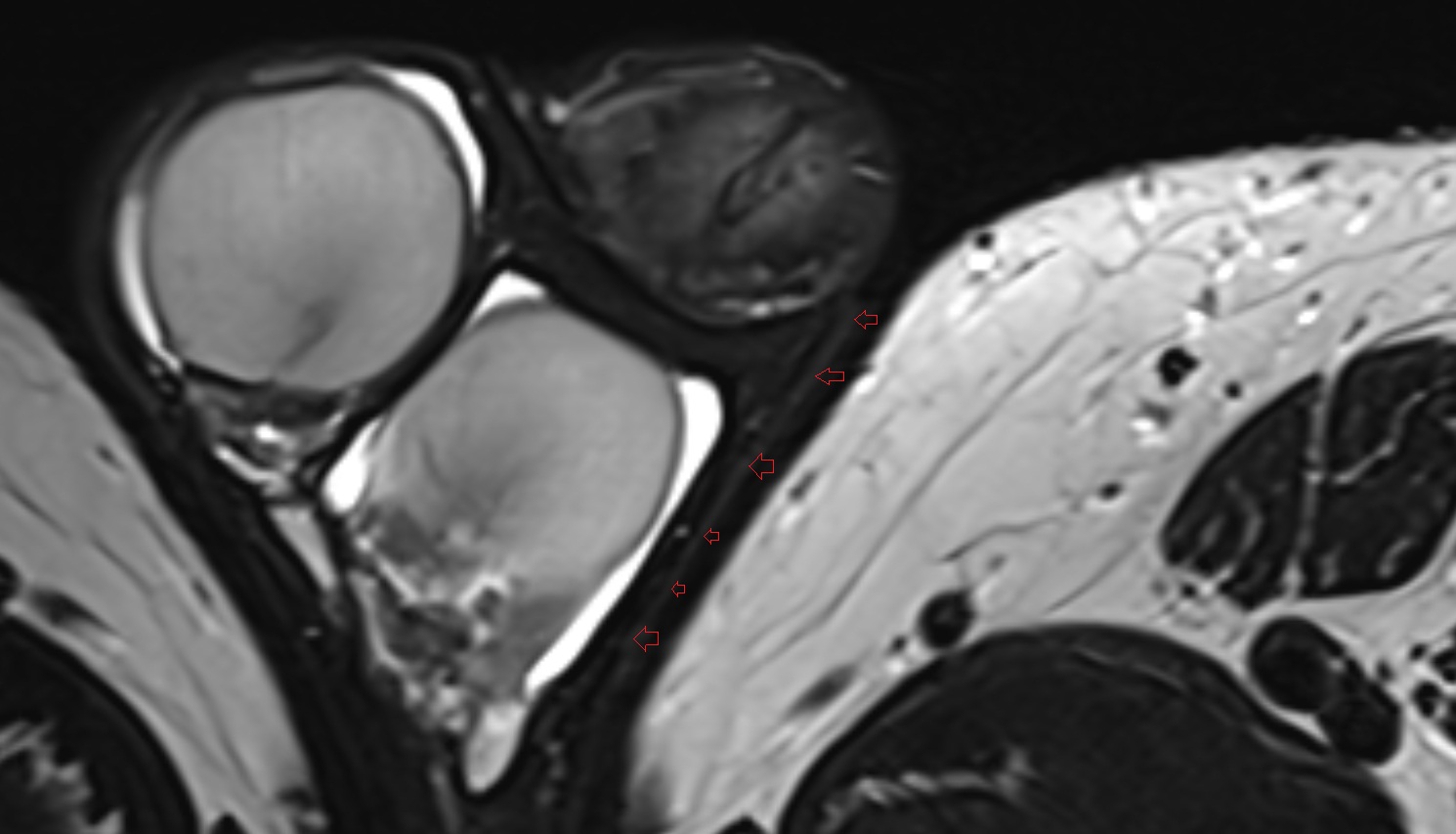

MRI image

External spermatic fascia mri axial anatomy image-img-00000-00000_00001
