Extreme capsule

The extreme capsule is a thin sheet of white matter fibers located in the lateral aspect of the cerebral hemisphere. It lies between the insular cortex and the claustrum and serves as an important association fiber pathway connecting cortical regions, particularly those involved in language, cognition, and auditory processing.

Although slender, the extreme capsule has major functional and clinical significance and is increasingly recognized in advanced neuroimaging and neurosurgical planning.

Synonyms

  • Extreme capsular fiber system

  • Capsula extrema

Location

  • Situated lateral to the claustrum

  • Medial to the insular cortex

  • Lateral to the external capsule

  • Deep to the insular cortex within the opercular region

  • Extends anteroposteriorly along the length of the insula

  • Located between the frontal, temporal, and parietal opercula

Anatomical components

  • Association fibers:

    • Long-range cortico-cortical connections

    • Predominantly fronto-temporal and fronto-parietal fibers

  • Language-related pathways:

    • Ventral language stream fibers

    • Connections between inferior frontal gyrus and superior temporal regions

  • Auditory and semantic networks:

    • Links auditory cortex with higher-order association areas

Relations

Laterally:

  • Insular cortex

Medially:

  • Claustrum

Further medially:

  • External capsule

  • Putamen (separated by external capsule)

Superiorly:

  • Frontal operculum

Inferiorly:

  • Temporal operculum

Fiber connections

  • Frontal lobe:

    • Inferior frontal gyrus (Broca-related regions)

  • Temporal lobe:

    • Superior and middle temporal gyri

  • Parietal lobe:

    • Inferior parietal lobule

  • Functional networks:

    • Language comprehension and semantic processing

    • Auditory association pathways

Function

  • Language processing: Facilitates semantic and syntactic integration

  • Auditory association: Connects auditory cortex to frontal language areas

  • Cognitive integration: Supports higher-order association functions

  • Information transfer: Acts as a ventral pathway complementing dorsal language streams

Clinical significance

  • Language deficits: Lesions may cause aphasia, particularly semantic or receptive disturbances

  • Stroke: Involvement in middle cerebral artery territory infarcts

  • Tumors: Gliomas or metastases in the insular region may infiltrate the extreme capsule

  • Epilepsy surgery: Important landmark during insular and opercular resections

MRI appearance

T1-weighted images:

  • Normal extreme capsule: Thin, linear hypointense band consistent with white matter

  • Adjacent gray matter: Insular cortex appears relatively hyperintense

T2-weighted images:

  • Normal: Low-to-intermediate signal intensity typical of compact white matter

FLAIR:

  • Normal: Low signal compared to surrounding gray matter

  • Pathology: Hyperintense lesions in ischemia, demyelination, or tumor infiltration

Diffusion-weighted imaging (DWI):

  • Normal: No diffusion restriction

Post-contrast T1-weighted images:

  • Normal: No enhancement

CT appearance

Non-contrast CT:

  • Normal: Usually not separately distinguishable from adjacent white matter

Post-contrast CT:

  • Normal: No enhancement

MRI images

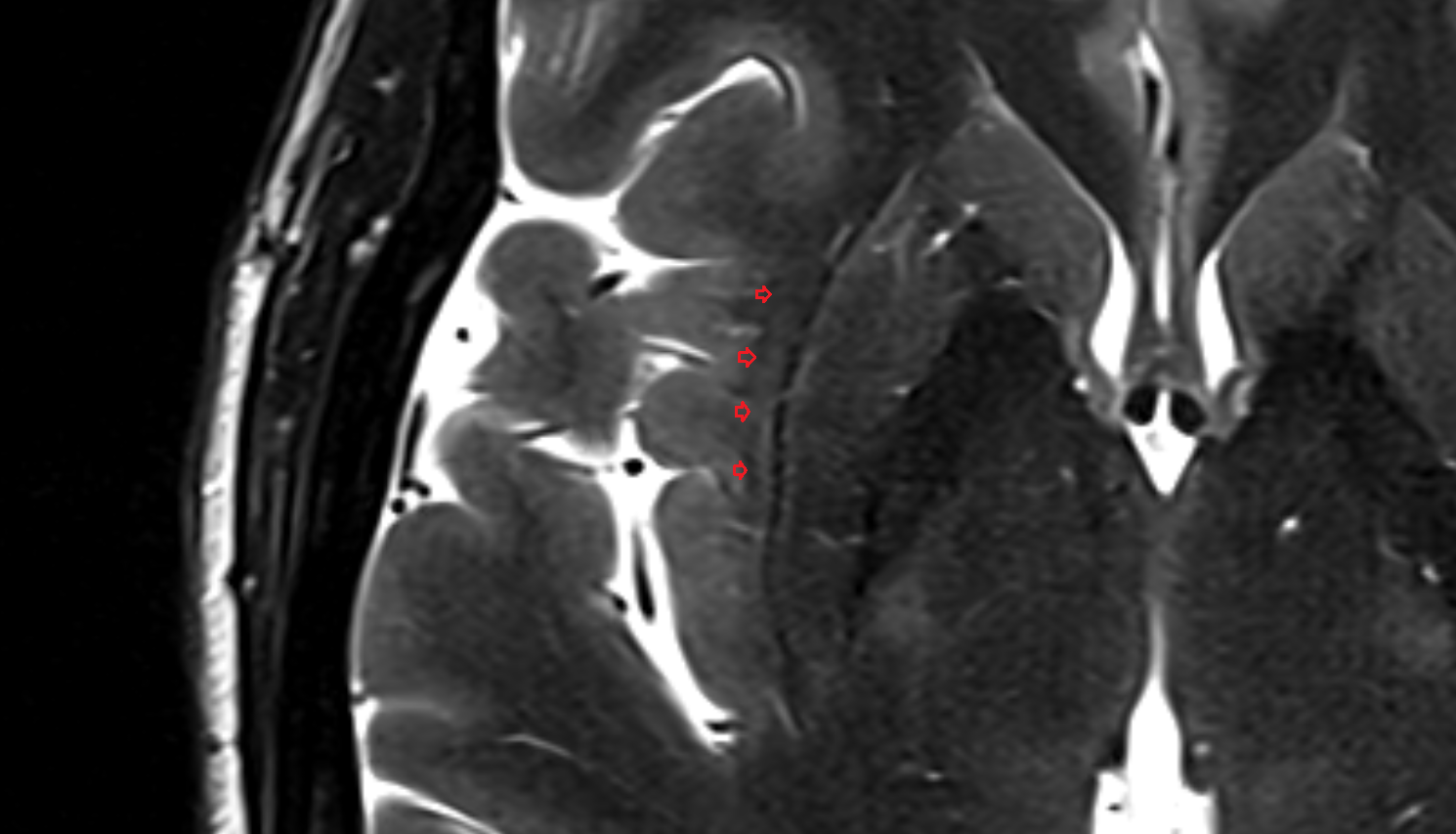

MRI Extreme capsule axial anatomy image -img-00000-00000
