Fetal Heart

The fetal heart is the central organ of the developing circulatory system and is fully formed structurally by the end of the embryonic period. It maintains fetal circulation, which differs significantly from postnatal circulation because of the presence of shunts: the foramen ovale, ductus arteriosus, and ductus venosus.

It develops from the primitive heart tube and undergoes looping, septation, and chamber formation by the end of the first trimester. On imaging, the fetal heart is a key focus because congenital heart disease (CHD) is among the most common congenital anomalies.

Synonyms

  • Prenatal heart

  • Fetal cardiac system

  • Embryonic heart (early stages)

Structure and Development

  • Chambers: Right and left atria; right and left ventricles

  • Great vessels: Aorta, pulmonary trunk, superior/inferior vena cava

  • Fetal circulation shunts:

    • Foramen ovale: Right-to-left shunt between atria

    • Ductus arteriosus: Connects pulmonary trunk to descending aorta

    • Ductus venosus: Shunts oxygenated blood from umbilical vein to inferior vena cava

  • Developmental timeline:

    • Weeks 3–4: Primitive heart tube formation and looping

    • Weeks 5–8: Septation and chamber formation

    • Weeks 9–12: Valves and mature circulation established

Relations

  • Enclosed within the fetal thoracic cavity

  • Surrounded by lungs (immature, fluid-filled)

  • Superior relation to thymus

  • Inferior relation to diaphragm and fetal liver

Function

  • Maintains continuous circulation between fetus and placenta

  • Ensures delivery of oxygenated blood from placenta to vital organs (especially brain and heart)

  • Removes waste products to maternal circulation

  • Regulates distribution of blood through specialized shunts unique to fetal life

Clinical Significance

  • Congenital heart disease (CHD): Most common congenital anomaly; MRI aids in characterization when ultrasound is inconclusive

  • Arrhythmias: Detected prenatally, may impact fetal well-being

  • Hypoplastic left/right heart syndromes: Severe defects requiring early postnatal intervention

  • Twin-to-twin transfusion syndrome (TTTS): May cause cardiac strain in recipient twin

  • Placental/fetal circulation pathology: Directly affects cardiac workload and development

MRI Appearance

T2 HASTE (T2 GRE):

  • Cardiac chambers and myocardium: Appear as low-to-intermediate signal structures with defined walls

  • Blood within chambers and great vessels: very bright hyperintense signal, helping delineate internal anatomy

  • Pericardial fluid (if present): Bright hyperintense rim

  • Motion artifacts: May blur fine wall details due to fetal movement and heart rate, but gross anatomy is preserved

T1 GRE:

  • Myocardium: Appears as intermediate signal

  • Blood in chambers: Low signal intensity (dark)

  • Fatty tissues around the heart (mediastinum, pericardial fat): Brighter on T1, outlining cardiac silhouette

  • Hemorrhage or high-protein pericardial effusion (pathological): Appears as hyperintense foci

MRI image

Fetal Heart MRI axial anatomy image-img-00000-00000

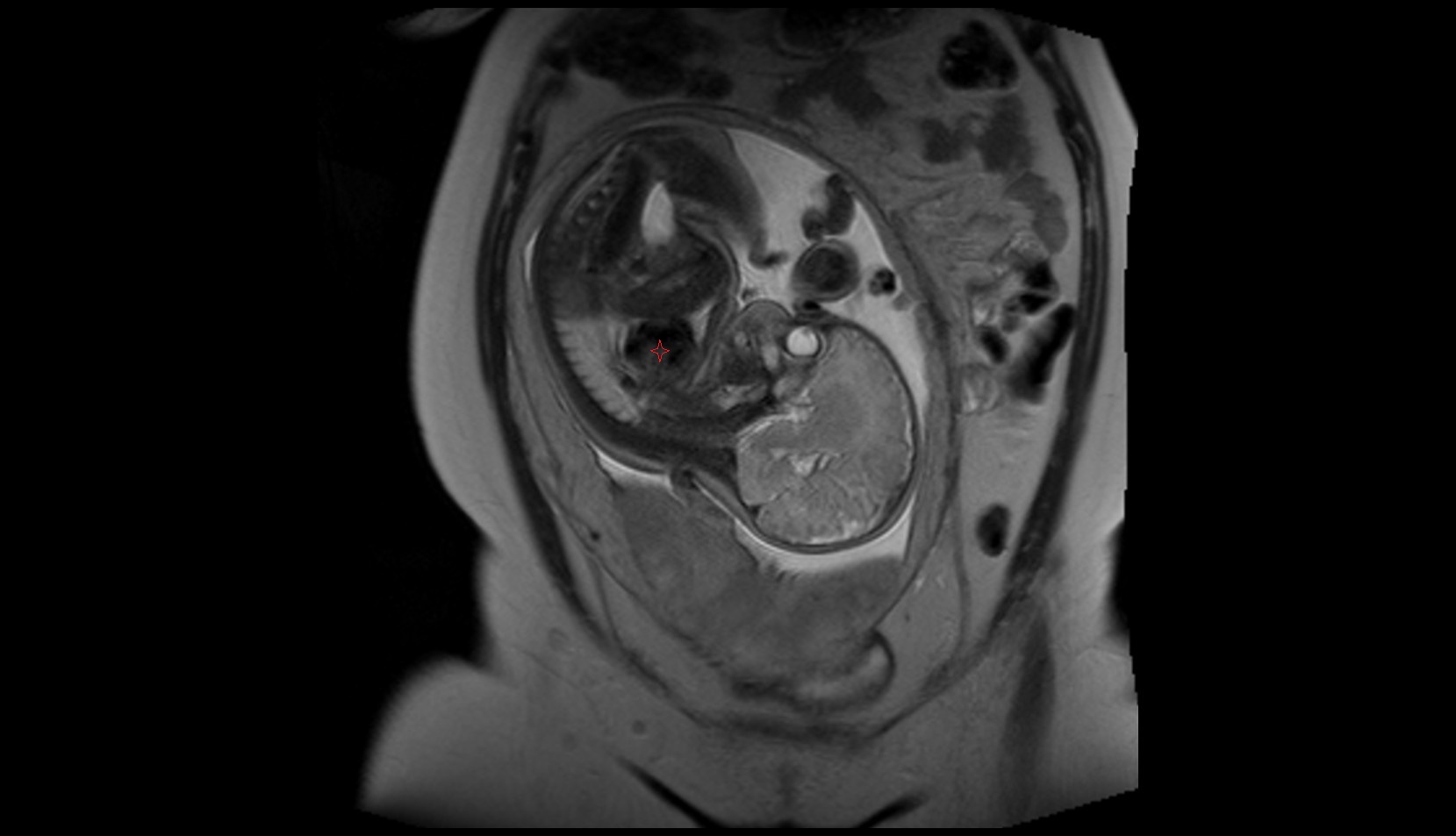

MRI image

Fetal Heart mri sag
