Fetal forearm

The fetal forearm forms the middle segment of the upper limb and consists of the radius, ulna, associated muscles, vessels, and nerves. It plays a critical role in fetal movement patterns such as flexion, extension, and rotation of the wrist and hand.

Ossification centers for the radius and ulna appear during gestation, and their length can serve as a useful parameter for fetal biometry and growth assessment. Muscle bulk increases steadily, and differentiation of flexor and extensor compartments becomes apparent in later gestation.

Synonyms

  • Prenatal forearm

  • Fetal radius and ulna segment

  • Middle fetal arm

Structure and Development

  • Bones: Radius and ulna develop from limb bud mesenchyme; ossification centers appear during the second trimester

  • Muscles: Divided into anterior (flexor) and posterior (extensor) compartments

  • Vessels: Supplied by branches of the brachial artery, forming the radial and ulnar arteries

  • Nerves: Innervation from branches of the brachial plexus — median, ulnar, and radial nerves

  • Growth marker: Forearm length may be measured in advanced imaging, though femur and humerus length are more common biometry indices

Relations

  • Proximally: Articulates with the humerus at the elbow joint

  • Distally: Articulates with carpal bones at the wrist joint

  • Anteriorly: Flexor compartment muscles and neurovascular bundle

  • Posteriorly: Extensor compartment muscles

Function

  • Supports fetal hand movements such as flexion, extension, and rotation

  • Contributes to neuromuscular development and coordination in utero

  • Important for biomechanical practice of limb movements before birth

  • Assessed in imaging for bone growth, joint formation, and muscle development

Clinical Significance

  • Skeletal dysplasias: Abnormal length or bowing of radius/ulna may indicate dysplasia or genetic syndromes

  • Radial/ulnar aplasia: Rare congenital absence or hypoplasia detectable on imaging

  • Growth restriction: May show shortened forearm bones in IUGR or chromosomal anomalies

  • Neuromuscular disorders: Poor muscle development or signal abnormalities may indicate myopathy

  • Fractures or infections: Uncommon but detectable in complicated pregnancies

MRI Appearance

T2 HASTE (T2 GRE):

  • Muscles: Low-to-intermediate signal intensity (darker than amniotic fluid, higher than bone cortex)

  • Radius/ulna cortex: Hypointense; cartilaginous ends appear relatively brighter

  • Marrow: Intermediate signal with predominance of red marrow

  • Fat: Minimal early, progressively hyperintense in later gestation

  • Joint fluid (elbow, wrist): Bright hyperintense signal

T1 GRE:

  • Muscles: Intermediate-to-low signal intensity

  • Bone cortex: Very low signal

  • Marrow: Intermediate, with gradual brightening as ossification/fat deposition progresses

  • Fat: Hyperintense in later gestation

  • Hemorrhage or calcification: Appears as focal hyperintensity

MRI image

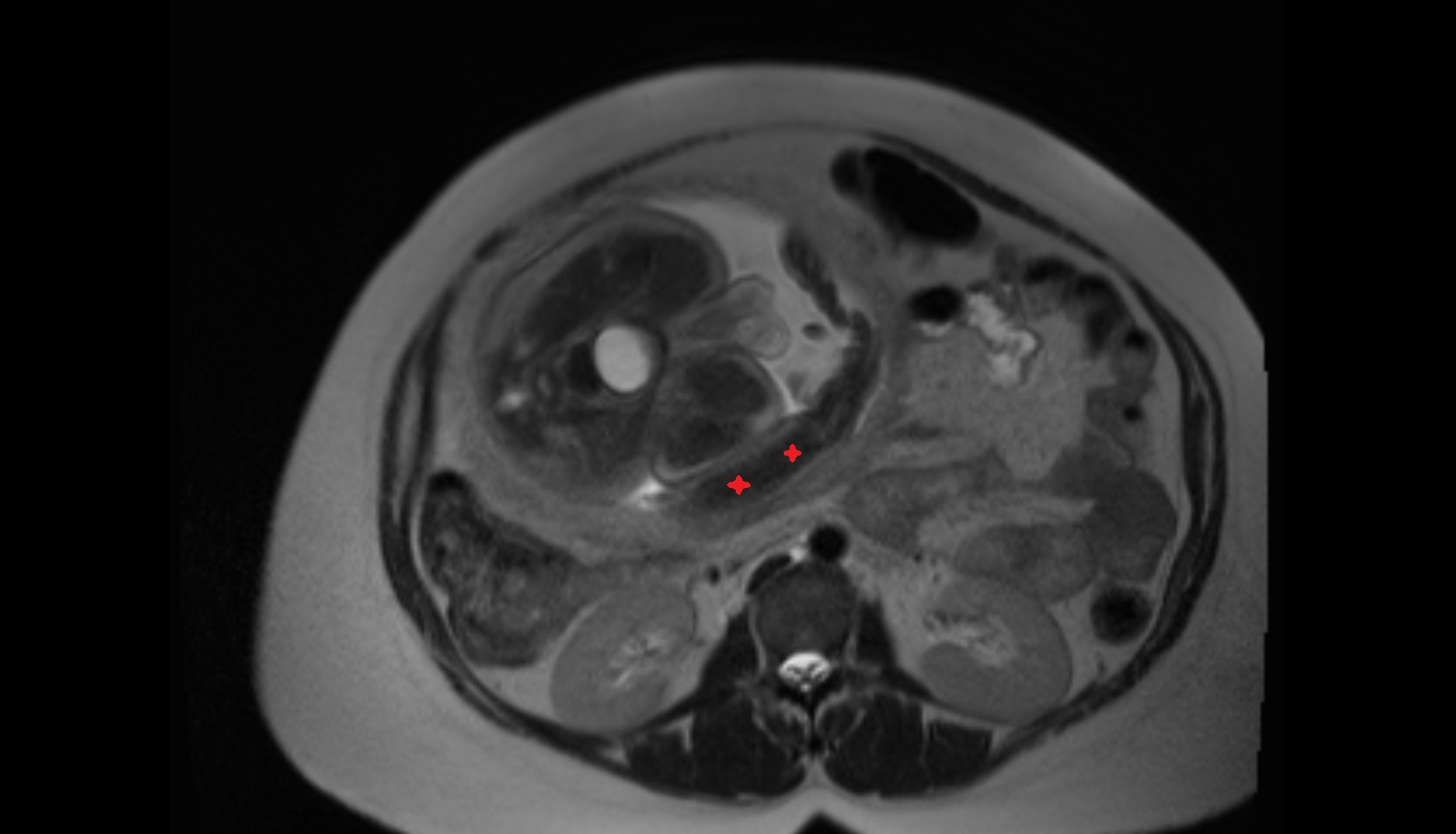

Fetal forearm MRI axial anatomy image-img-00000-00000

MRI image

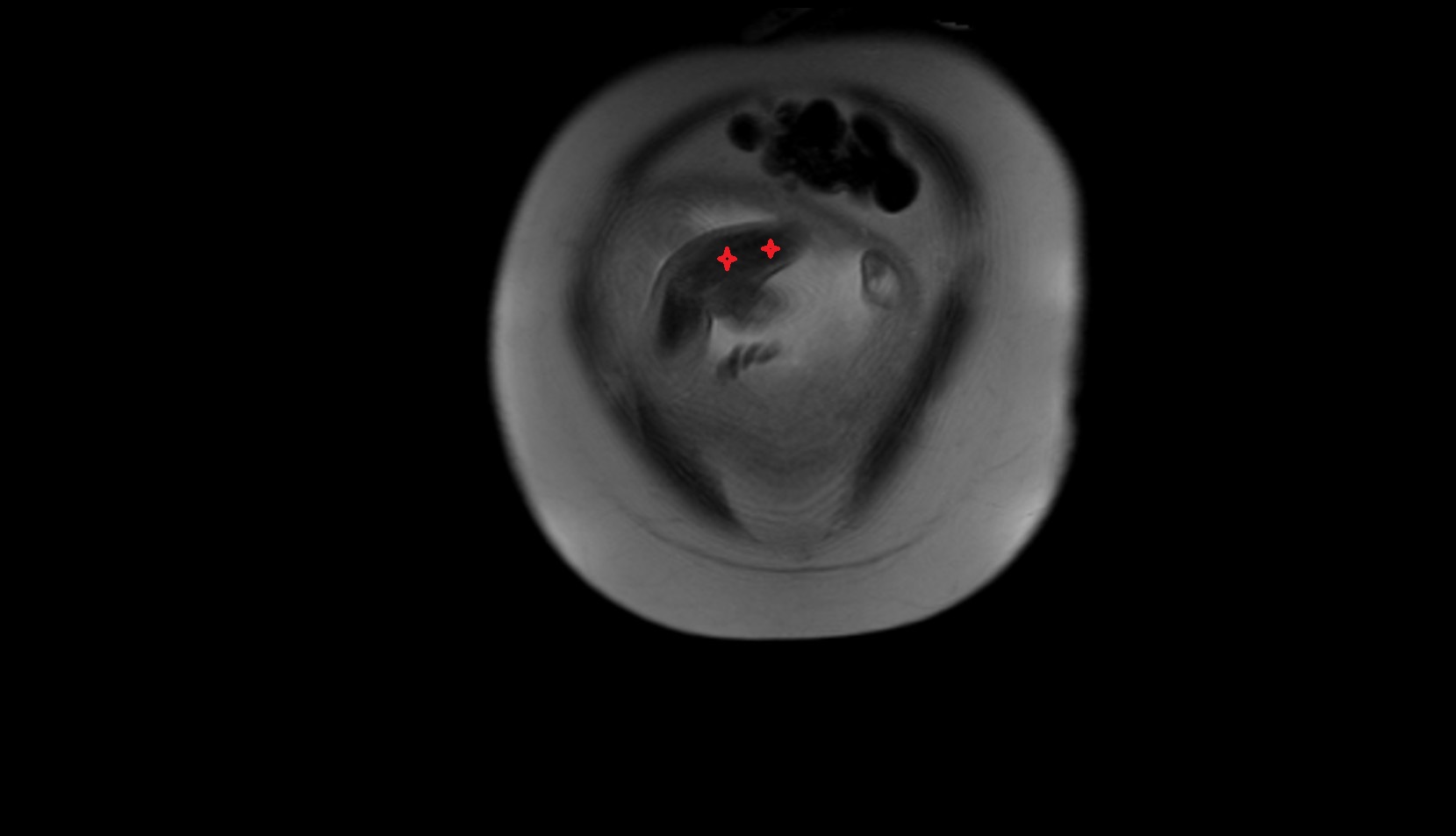

Fetal forearm mri sag image
