Flexor Digitorum Profundus Muscle: Anatomy, Function, Imaging

Topic

Flexor digitorum profundus muscle

The flexor digitorum profundus (FDP) is a deep, powerful muscle of the anterior compartment of the forearm, responsible for flexing the distal interphalangeal (DIP) joints of the fingers. It lies deep to the flexor digitorum superficialis and medial to the flexor pollicis longus, forming part of the deep flexor group along with the pronator quadratus.

The FDP provides strong grip force and fine motor control, contributing to finger flexion, hand grip, and coordination of digital movements. It is the only muscle capable of flexing the distal phalanges of the fingers, making it vital for hand function.

Synonyms

Deep flexor of the fingers
Profundus digitorum flexor

Origin, Course, and Insertion

Origin: Upper three-quarters of the anterior and medial surfaces of the ulna, adjacent interosseous membrane, and deep fascia of the forearm.
Course: Fibers converge into a thick tendon that divides into four tendons, passing deep to the flexor retinaculum within the carpal tunnel. Each tendon travels through the palm and continues along the digits beneath the tendons of the flexor digitorum superficialis.
Insertion: Each tendon passes through the split in the corresponding superficialis tendon and inserts into the palmar surface of the base of the distal phalanx of the index, middle, ring, and little fingers.

Relations

Superficial: Flexor digitorum superficialis, median nerve, and ulnar artery
Deep: Ulna and interosseous membrane
Lateral: Flexor pollicis longus and radial artery
Medial: Flexor carpi ulnaris and ulnar nerve
Distal: Tendons pass through carpal tunnel beneath flexor retinaculum

Nerve Supply

Lateral (radial) half – Index and middle fingers: Anterior interosseous branch of the median nerve (C8–T1)
Medial (ulnar) half – Ring and little fingers: Ulnar nerve (C8–T1)

Arterial Supply

Ulnar artery (via muscular branches)
Anterior interosseous artery (branch of the common interosseous artery)
Radial recurrent and carpal branches may contribute to distal vascularization

Venous Drainage

Deep venous network of the forearm, primarily the venae comitantes of the ulnar and anterior interosseous arteries, draining into the brachial veins

Function

Flexes distal interphalangeal joints of the fingers (digits II–V)
Assists in flexion of the proximal interphalangeal and metacarpophalangeal joints
Aids in wrist flexion when acting with other forearm flexors
Essential for gripping, grasping, and fine motor activities of the hand

Clinical Significance

Tendon injury: May occur due to laceration or avulsion (e.g., jersey finger)
Nerve lesions: Median or ulnar neuropathy can cause weakness or loss of DIP flexion in affected fingers
Tendinopathy: Overuse and repetitive gripping can cause inflammation and pain
Compartment syndrome: Deep flexor muscle affected in forearm ischemic contracture (Volkmann’s ischemia)
Surgical relevance: Important in tendon repair, nerve decompression, and carpal tunnel surgeries

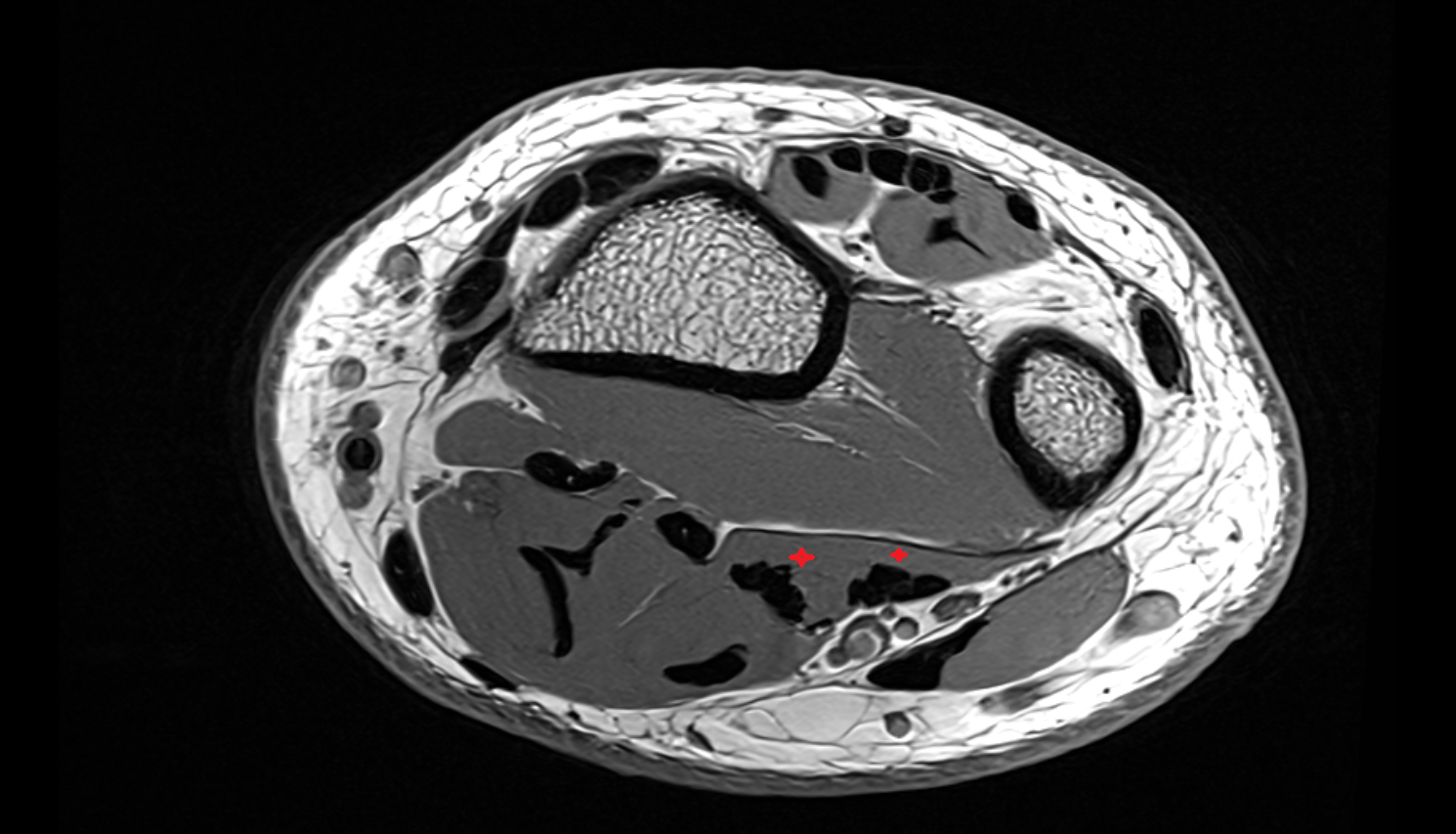

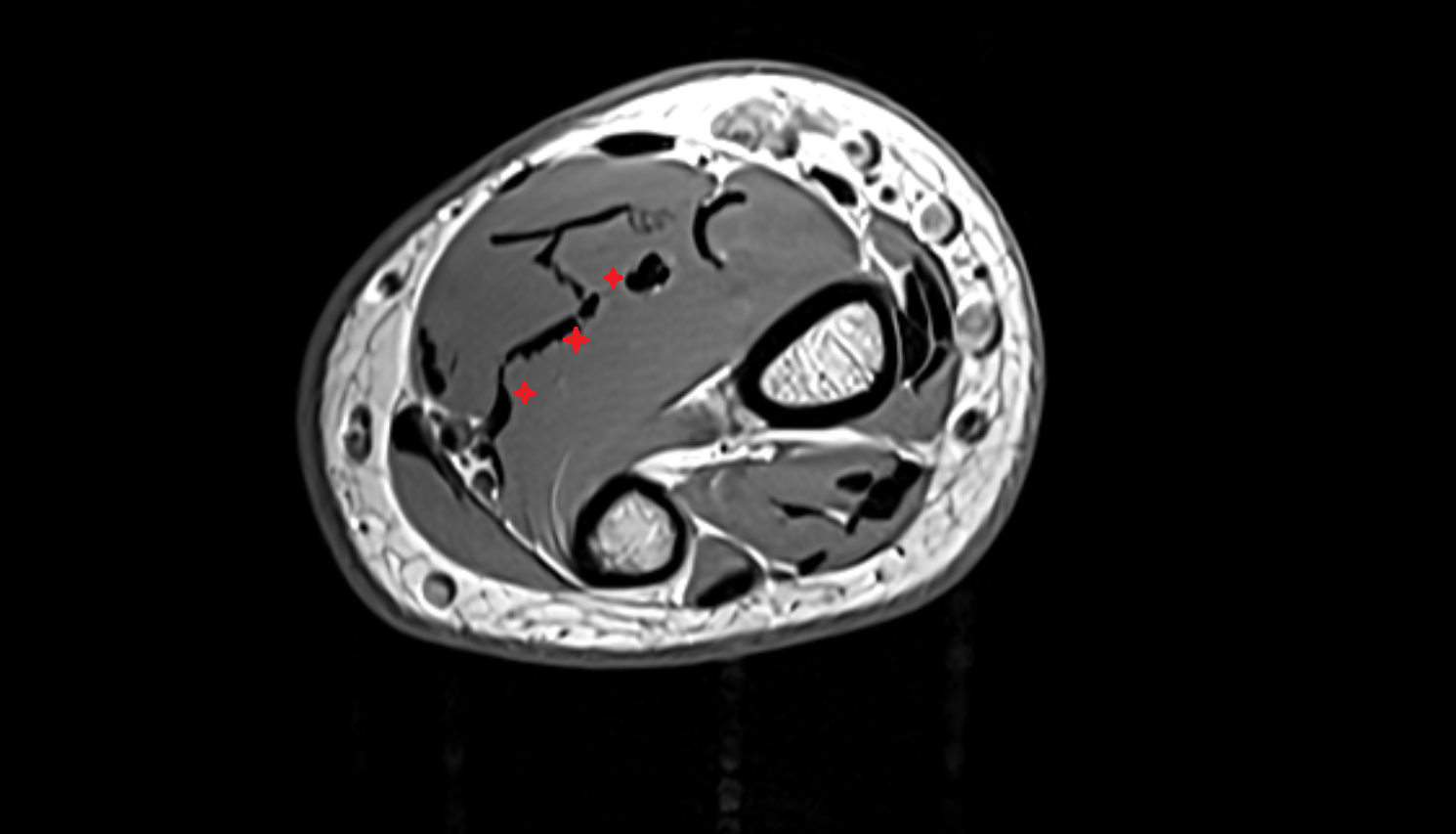

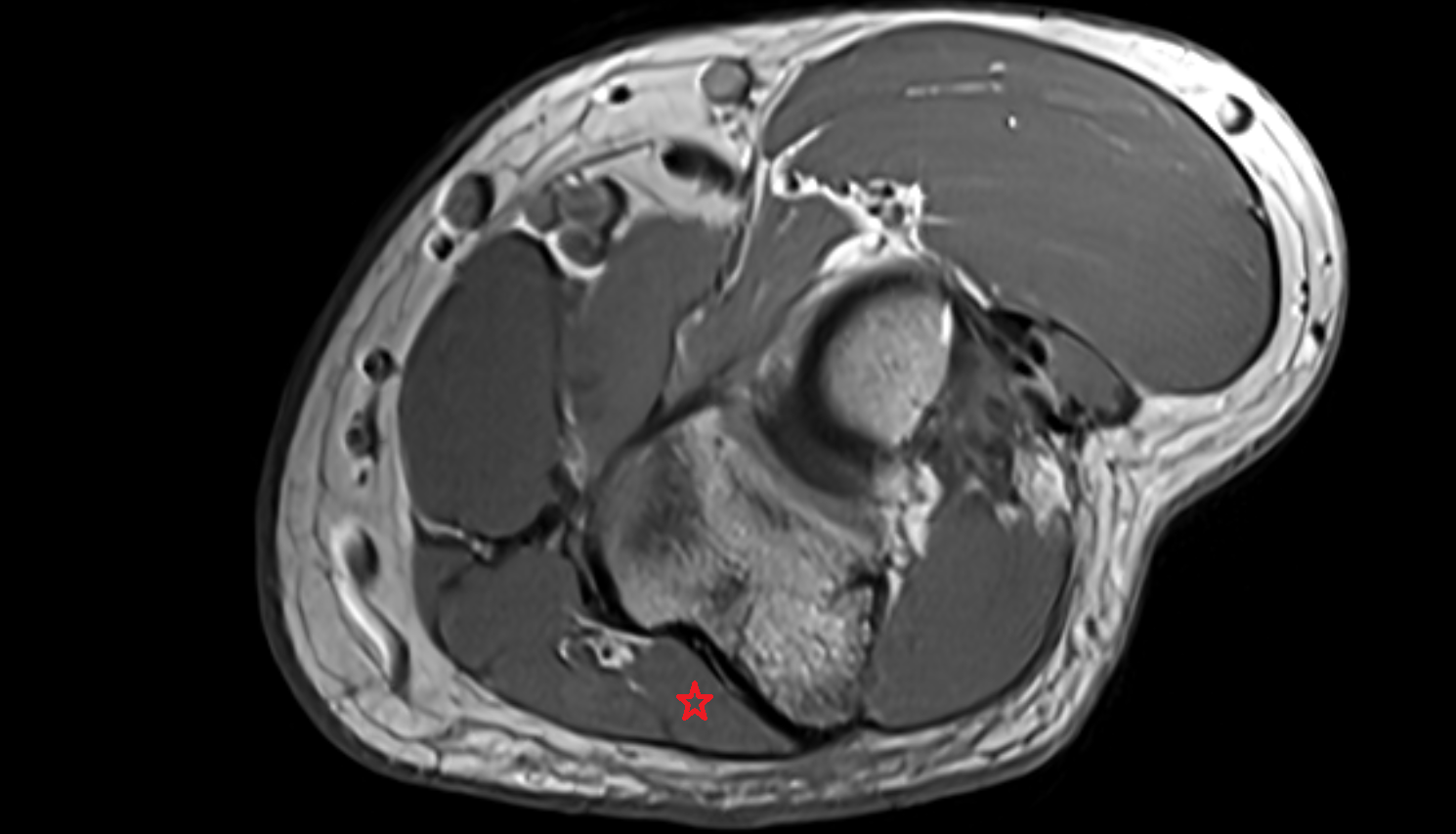

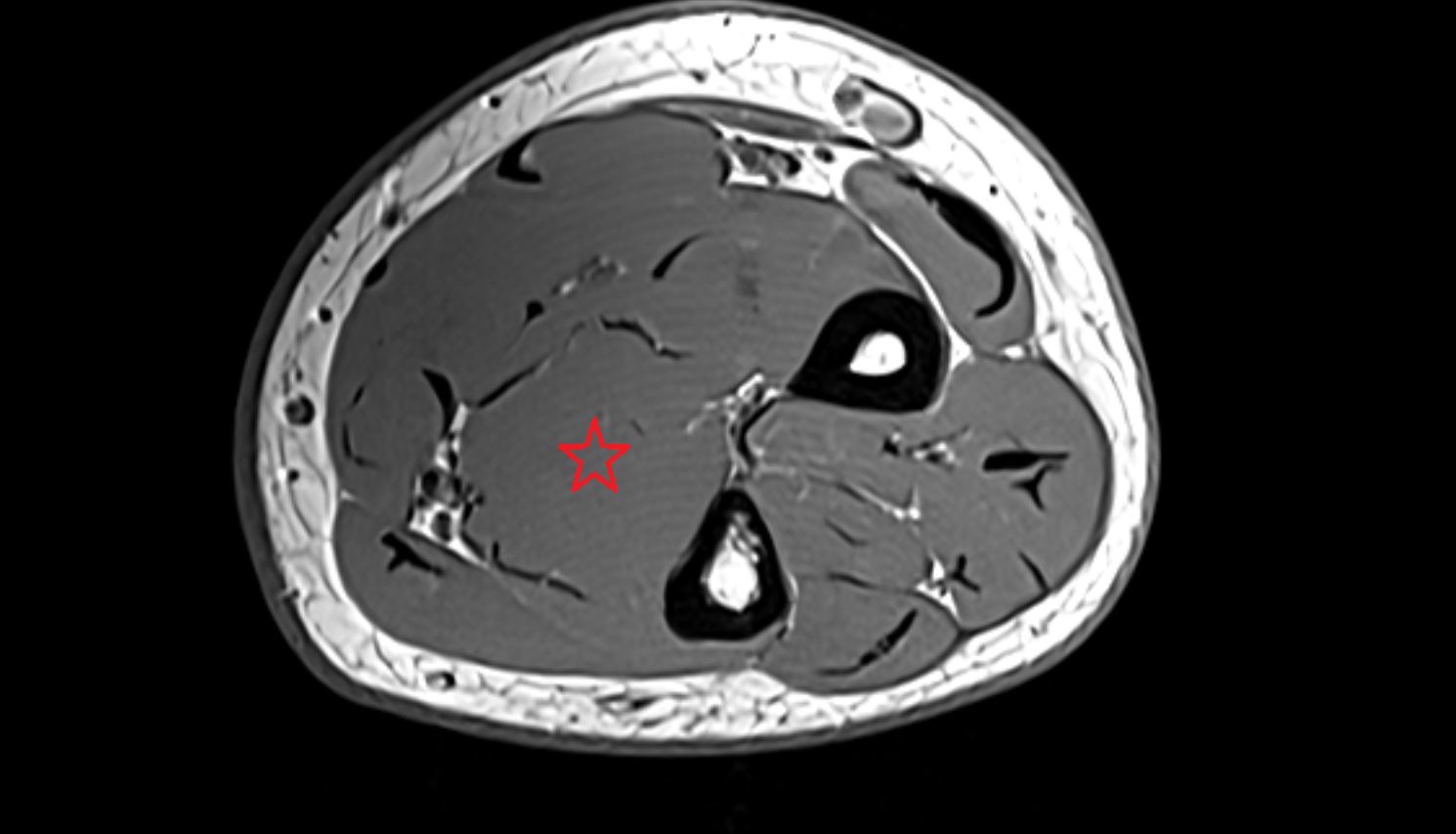

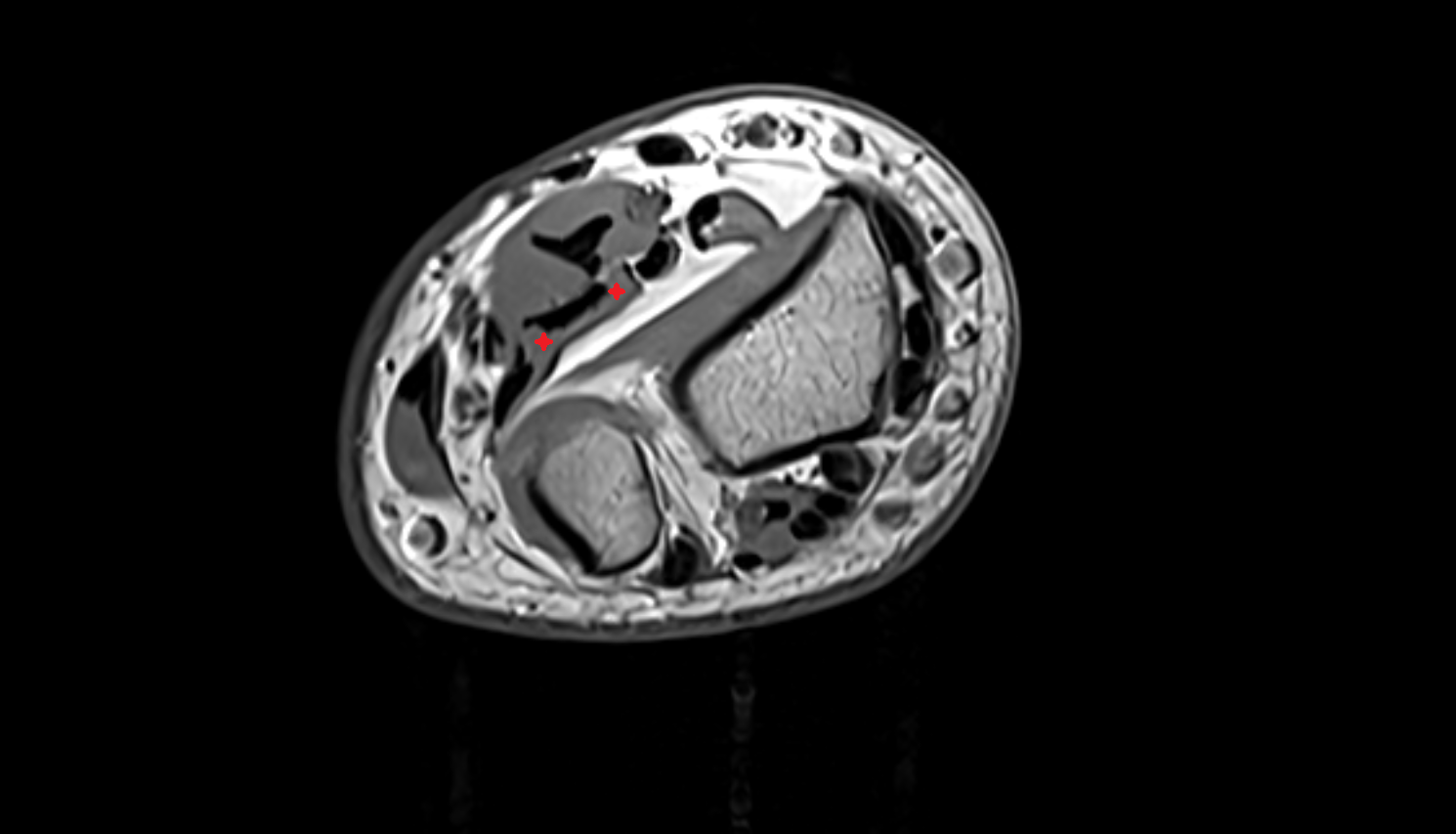

MRI Appearance

T1-weighted images:
- Muscle belly: intermediate signal intensity with distinct fascicular pattern
- Tendons: low signal (dark linear bands) extending through carpal tunnel
- Surrounding fat: bright signal providing contrast
- Chronic atrophy or fatty infiltration: areas of high T1 signal within muscle
T2-weighted images:
- Normal muscle: intermediate-to-dark, slightly darker than on T1
- Normal tendon: low signal (black)
- Pathology: bright hyperintense signal within muscle or tendon in tendinopathy or tear
- Peritendinous edema or synovitis appears hyperintense around tendon sheaths
STIR:
- Normal muscle: intermediate-to-dark signal
- Pathologic muscle: bright hyperintense regions in edema, inflammation, or acute strain
- Useful for detecting subtle myotendinous or fascial injury
Proton Density Fat-Saturated (PD FS):
- Normal: intermediate-to-dark, homogeneous muscle signal
- Pathologic: focal bright hyperintensity at myotendinous junction or along tendon course
- Excellent for evaluating partial tears, tenosynovitis, and edema in carpal tunnel
T1 Fat-Sat Post-Contrast:
- Normal: uniform mild enhancement of muscle
- Inflamed tendon sheath or muscle: focal or diffuse enhancement
- Chronic tendinopathy: peripheral rim enhancement around low-signal fibrotic tissue
- Infective or inflammatory myositis: patchy enhancement with perimuscular fluid

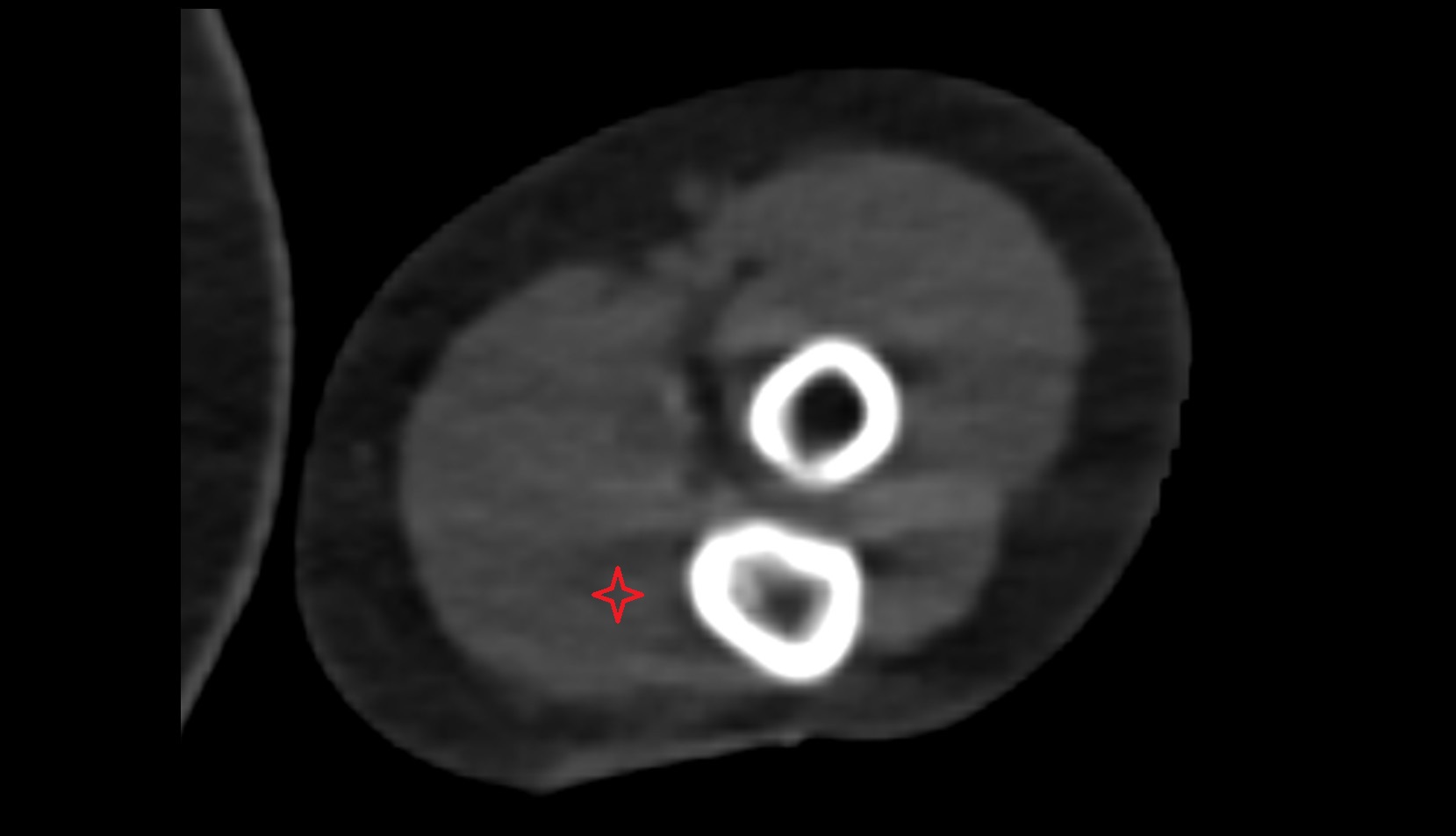

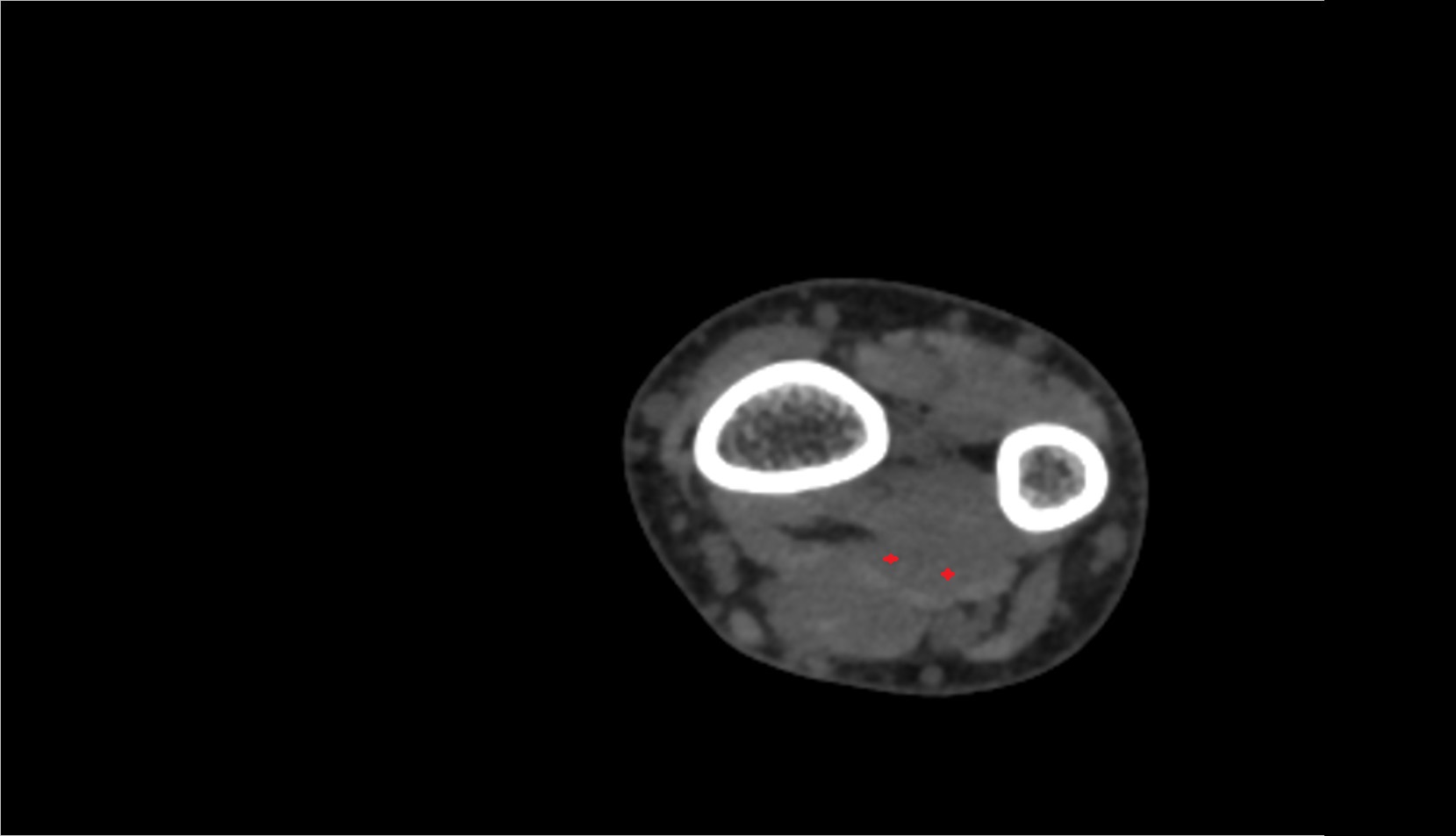

CT Appearance

Non-Contrast CT:

Muscle: homogeneous soft-tissue density within deep anterior compartment
Tendons: slender soft-tissue bands of uniform attenuation coursing through carpal tunnel
Ulna and interosseous membrane provide distinct anatomical landmarks
Pathology:
- Muscle calcification or chronic fibrosis may appear as focal high-attenuation areas
- Carpal tunnel crowding or tendon thickening can be appreciated indirectly
