Head of twelfth rib

The head of the twelfth rib is the posterior end of the twelfth rib, the last and shortest of the “floating ribs.” Unlike typical ribs, the twelfth rib has a single articular facet and articulates only with the body of the T12 vertebra. Its structure is more rudimentary than other rib heads, reflecting its reduced role in thoracic stability but significant role as a musculoskeletal landmark.

The twelfth rib is clinically relevant because of its proximity to the kidneys, diaphragm, and thoracolumbar fascia. It is an important surface landmark in imaging and surgery, particularly in nephrology, urology, and anesthesia.

Synonyms

  • Rib XII head

  • Head of the last rib

  • Costal head of the 12th rib

Origin, Course, and Articulation

  • Origin: Posterior end of the twelfth rib

  • Course:

    • Extends from the costal shaft into the costovertebral junction

    • Directed posteromedially to articulate with the vertebral body

  • Articulation:

    • Articulates with the costal facet of T12 vertebral body via the costovertebral joint

    • Unlike typical ribs, it does not articulate with an intervertebral disc or the vertebral body above

Relations

  • Superiorly: T11 vertebra and intercostal space

  • Inferiorly: Quadratus lumborum muscle and thoracolumbar fascia

  • Anteriorly: Kidney (especially right kidney close to right 12th rib)

  • Posteriorly: Erector spinae muscles and paraspinal soft tissues

  • Laterally: Shaft of the 12th rib extending toward the abdominal wall

Function

  • Provides articulation for the 12th rib with the vertebral column

  • Serves as an attachment point for ligaments and thoracolumbar fascia

  • Provides skeletal support and landmark for muscles of the abdominal wall and back

  • Acts as a surface and radiologic landmark in renal, urologic, and spinal interventions

Clinical Significance

  • Landmark in renal surgery, percutaneous nephrostomy, and anesthetic blocks

  • May be involved in 12th rib syndrome (pain from irritation or impingement)

  • Common site for trauma (fractures), particularly in blunt abdominal injuries

  • Can mimic or obscure pathology in imaging due to its proximity to kidneys and adrenal glands

  • Important reference point in thoracolumbar and retroperitoneal surgery

MRI Appearance

T1-weighted images:

  • Bony cortex: very low signal (dark)

  • Marrow: high signal intensity if fatty; low-to-intermediate if hematopoietic

  • Fat around costovertebral joint: bright signal

  • No joint fluid: joint space is dark

T2-weighted images:

  • Cortex: very low signal

  • Marrow: intermediate to high signal depending on composition

  • Joint fluid (if present): bright

  • No fluid: joint space remains dark

  • Fat around articulation: moderately bright

STIR (Short Tau Inversion Recovery):

  • Cortex: very low signal

  • Marrow: suppressed fat makes it appear low to intermediate

  • Pathology (edema, fracture, inflammation): bright hyperintensity

  • Surrounding fat suppressed (dark)

T1 Fat-Sat Post-Contrast:

  • Cortex: non-enhancing, dark

  • Marrow: mild homogeneous enhancement if normal vascular marrow

  • Pathology (infection, metastasis, fracture): abnormal focal or diffuse enhancement

  • Fat suppressed (dark) to highlight marrow and pericostal changes

3D T2 SPACE / CISS:

  • Head of rib appears as a very dark (low-signal) bony structure

  • Surrounded by bright CSF or fat, delineating cortical margins

  • Useful for high-resolution bone–nerve or bone–soft tissue interface assessment

CT Appearance

Non-Contrast CT:

  • Cortical bone: high attenuation (bright)

  • Marrow: lower attenuation, variable density depending on fat content

  • Costovertebral joint: sharply delineated without fluid

  • Useful for fracture detection and cortical integrity

Post-Contrast CT:

  • Bone itself does not enhance

  • Adjacent soft tissues or pathological lesions may enhance

  • Infection, tumor, or inflammation shows abnormal adjacent enhancement

  • Joint effusion or inflammation visible as soft tissue density changes around articulation

MRI images

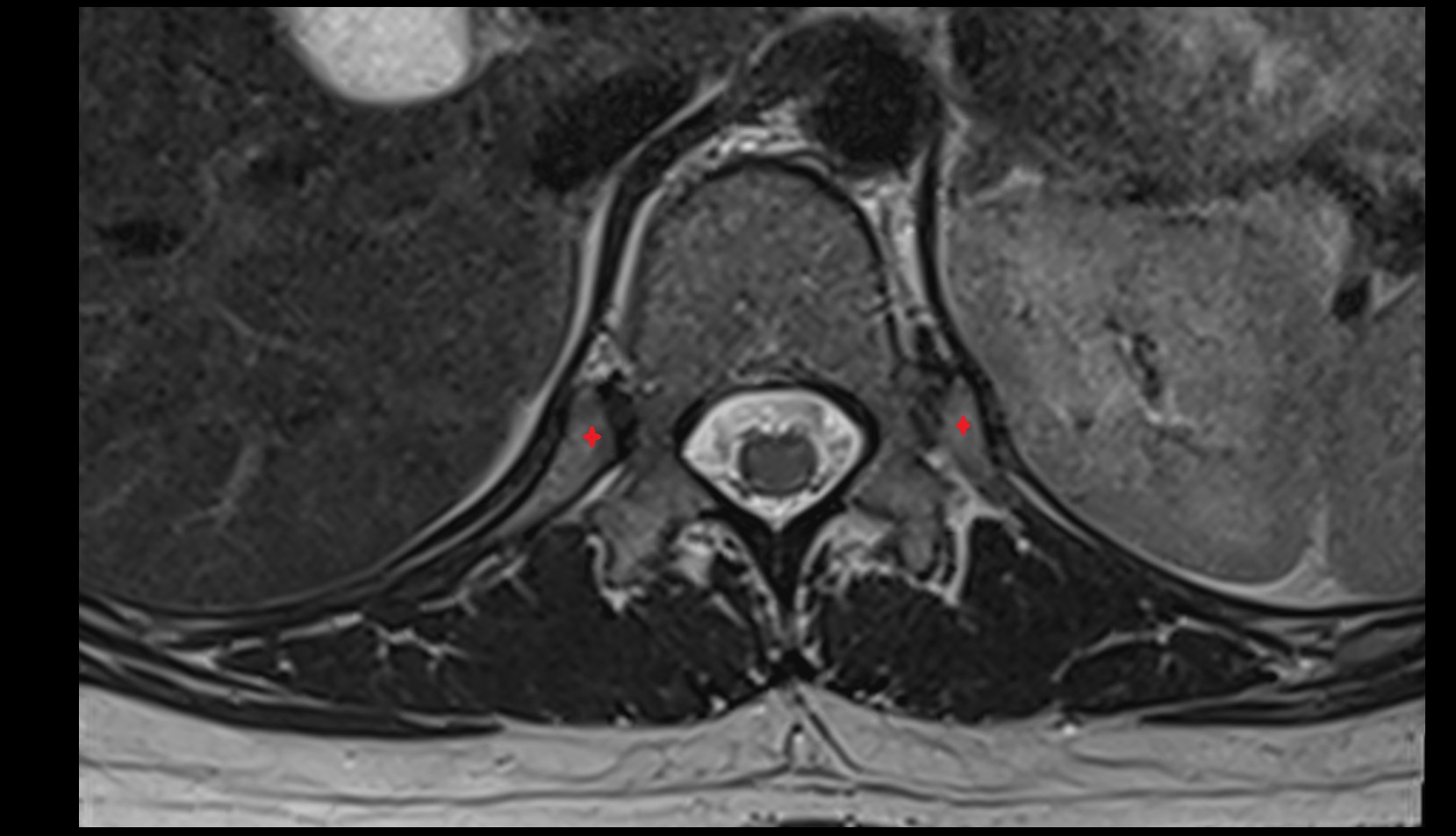

Head of twelfth rib mri axial

CT images

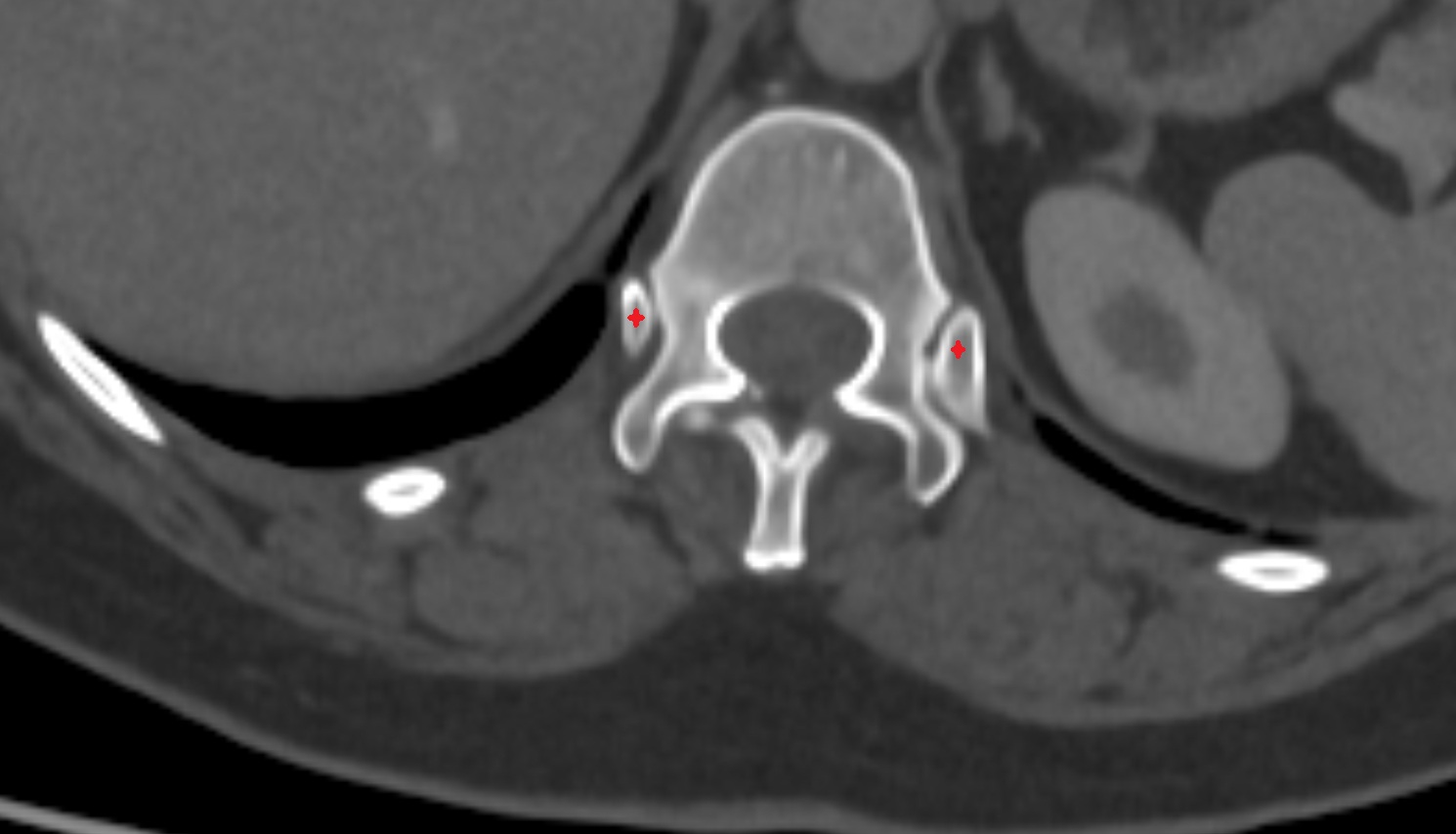

Head of twelfth rib CT AXIAL anatomy image-img-00000-00000
