Inferior alveolar foramen (mandibular foramen)

The inferior alveolar foramen, also known as the mandibular foramen, is an oval or round opening on the medial surface of the mandibular ramus, located slightly above the midpoint of the ramus. It serves as the entry point for the inferior alveolar nerve, artery, and vein into the mandibular canal, providing sensory innervation and blood supply to the lower teeth and surrounding structures. The foramen is typically situated posterior to the lingula, a small bony projection that partially overlies the foramen, which is a critical landmark in surgical procedures such as mandibular nerve blocks or ramus osteotomies. Its size, shape, and exact position can vary among individuals.

Synonyms

  • Mandibular foramen

  • Inferior alveolar nerve foramen

  • Foramen mandibulae

Function

  • Provides a passage for the inferior alveolar nerve, artery, and vein into the mandibular canal

  • Facilitates sensory innervation of mandibular teeth, gingiva, and lower lip

  • Supports vascular supply to mandibular structures

  • Acts as a key landmark for dental anesthesia and oral surgery

MRI Appearance
T1-weighted images:

  • Appears as a small hypointense opening on the medial surface of the mandibular ramus

  • Surrounding bone marrow exhibits intermediate signal, providing contrast

  • Fat within the mandibular canal may appear hyperintense, helping delineate the canal and foramen

  • Pathology such as nerve sheath tumors may appear as localized areas of altered signal

T2-weighted images:

  • Foramen itself remains hypointense due to cortical bone

  • Nerve and surrounding soft tissues appear slightly hyperintense, while marrow and fat provide natural contrast

  • Useful for detecting edema, cysts, or lesions affecting the mandibular canal

STIR (Short Tau Inversion Recovery):

  • Fat suppression highlights soft tissue or nerve pathology within the mandibular canal

  • Normal foramen appears low signal, while inflammatory or neoplastic changes are bright hyperintense

CT Appearance

  • The inferior alveolar foramen appears as a well-corticated, oval or round hypodense opening on the medial mandibular ramus

  • The mandibular canal extends anteriorly from the foramen to the mental foramen

  • Surrounding cortical bone is hyperdense, providing clear contrast with the foramen

  • CT is ideal for evaluating foramen morphology, mandibular fractures, accessory foramina, and surgical planning

MRI images

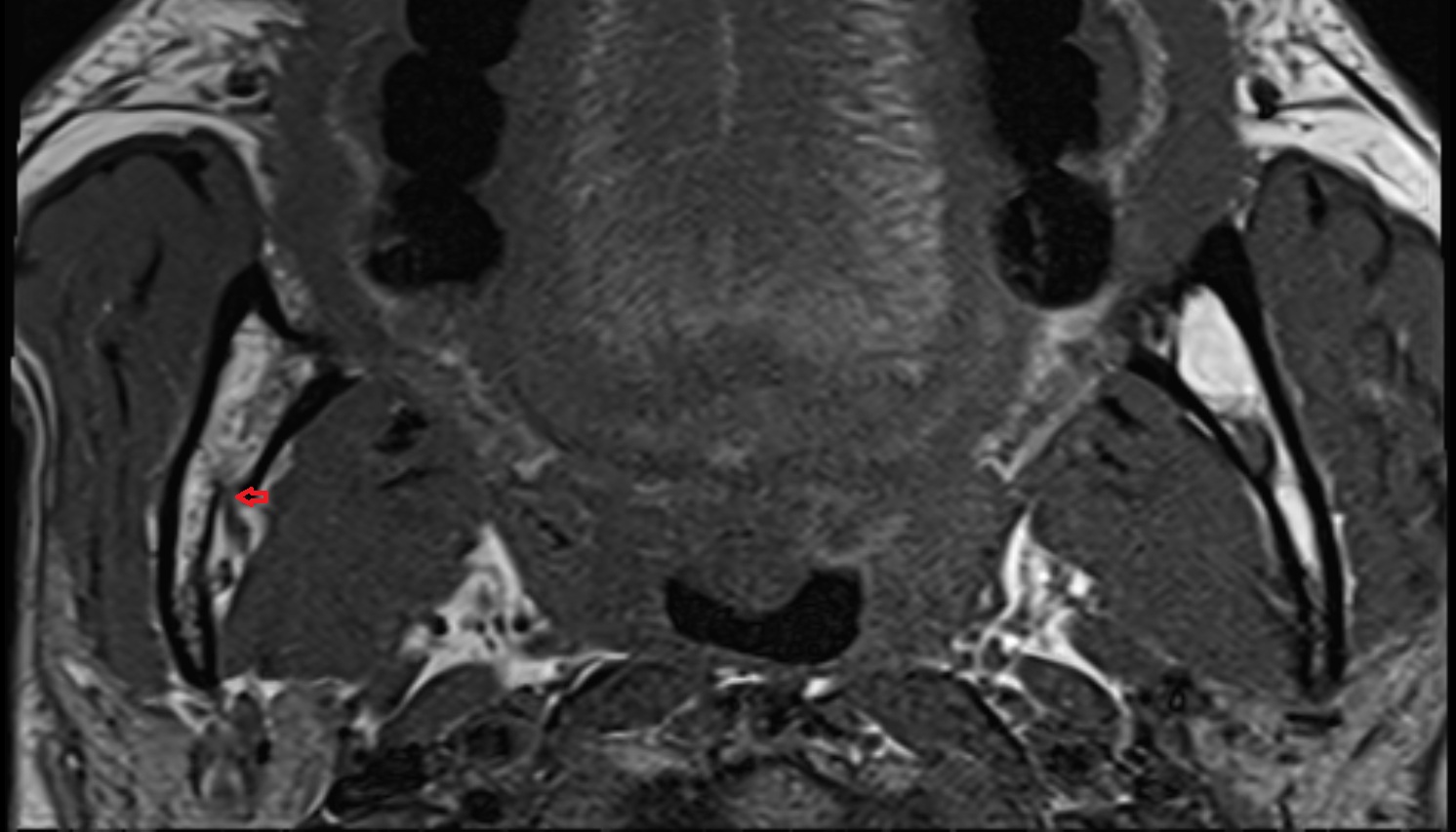

Inferior Alveolar Foramen (Mandibular Foramen) mri axial image -img-00000-00000

MRI images

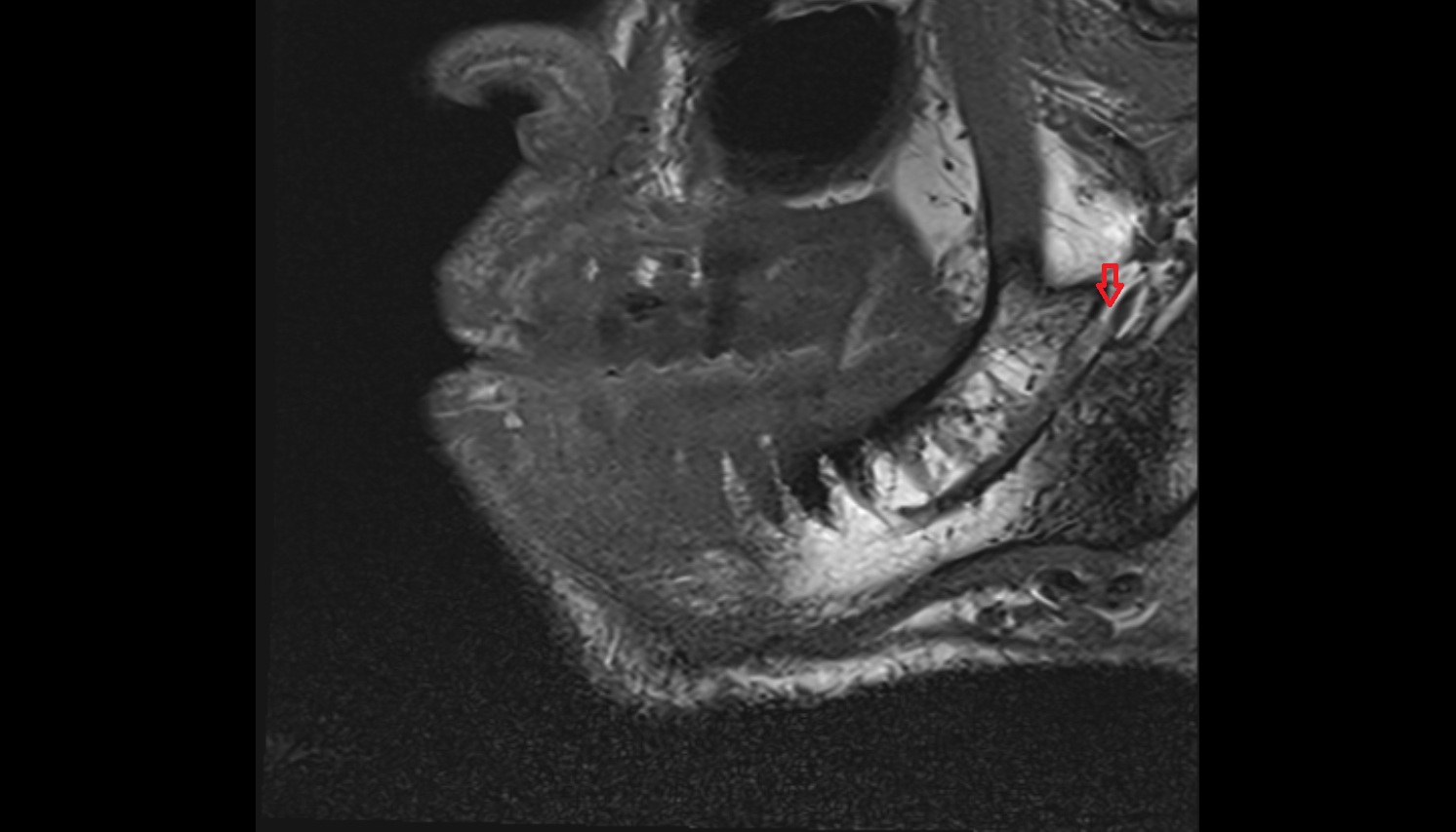

Inferior Alveolar Foramen (Mandibular Foramen) mri sag image -img-00000-00000
