Inferior articular process of L5 vertebra

The inferior articular process of the L5 vertebra is a paired bony projection that extends downward from the lamina and pedicle junction of L5. Together with the superior articular processes of the sacrum (S1), they form the lumbosacral facet joints (zygapophyseal joints), which are crucial in stabilizing the lumbosacral junction. These processes are clinically significant because of their role in weight transmission, spinal stability, and their involvement in degenerative disease, facet joint syndrome, and spondylolysis.

Synonyms

  • L5 inferior facet

  • Inferior articular facet of L5

  • Lumbosacral zygapophyseal joint component

Location and Anatomy

  • Origin: Projects inferiorly from the junction of the pedicle and lamina of the L5 vertebra

  • Course: Descends downward and slightly anteriorly, oriented more coronally compared to upper lumbar vertebrae

  • Articular Surface: Covered by hyaline cartilage, forming the facet joint with the superior articular process of S1

  • Orientation: Oriented almost vertically, allowing flexion and extension while limiting excessive rotation

Relations

  • Superiorly: Continuous with the lamina and pedicle of L5

  • Inferiorly: Articulates with the superior articular processes of S1

  • Anteriorly: Related to the neural foramina and exiting L5 spinal nerve root

  • Posteriorly: Covered by paraspinal muscles and posterior ligaments

  • Laterally: Related to transverse processes and intertransverse ligaments

Function

  • Forms part of the zygapophyseal (facet) joints at the lumbosacral junction

  • Provides stability to L5–S1 articulation, resisting anterior shear forces

  • Helps in weight transfer from lumbar spine to sacrum

  • Guides movement: permits flexion/extension, restricts excessive axial rotation

  • Prevents anterior displacement of L5 on S1 (spondylolisthesis)

Clinical Significance

  • Facet joint arthropathy: Common cause of chronic low back pain

  • Spondylolysis/spondylolisthesis: Weakness or degeneration here can predispose to L5 slipping over S1

  • Nerve compression: Hypertrophy or degenerative changes can narrow foramina and compress the L5 nerve root

  • Surgical landmark: Important in spinal fusion, laminectomy, and nerve decompression procedures

  • Trauma: Can be fractured in high-energy injuries, affecting lumbosacral stability

MRI Appearance

T1-weighted images:

  • Cortical bone appears dark (low signal)

  • Bone marrow inside the process shows intermediate signal

  • Facet joint fat shows bright signal

T2-weighted images:

  • Cortical bone remains dark

  • Articular cartilage and joint fluid appear bright

  • Bone marrow edema (pathology) appears as bright signal

STIR (Short Tau Inversion Recovery):

  • Cortical bone remains dark

  • Bone marrow edema, inflammation, or fracture appear bright hyperintense

T1 Fat-Sat Post-Contrast:

  • Normal cortical bone does not enhance

  • Inflammation, infection, or tumor infiltration shows enhancing marrow or surrounding soft tissue

  • Facet joint synovitis shows rim or capsular enhancement

3D T2 SPACE / CISS:

  • Cortical margins of the articular process appear dark, sharply defined

  • Joint space and CSF appear very bright, providing excellent contrast

  • Useful for evaluating foraminal narrowing and nerve root impingement

CT Appearance

Non-Contrast CT:

  • Cortical bone appears very dense (bright white)

  • Joint space clearly seen; facet arthropathy shows narrowing, sclerosis, and osteophytes

  • Fractures are well delineated

Post-Contrast CT:

  • Bone itself does not enhance

  • Enhancing synovial tissue or soft tissue masses may be seen around the facet joint

  • In infection, rim-enhancing collections may appear around the joint

MRI image

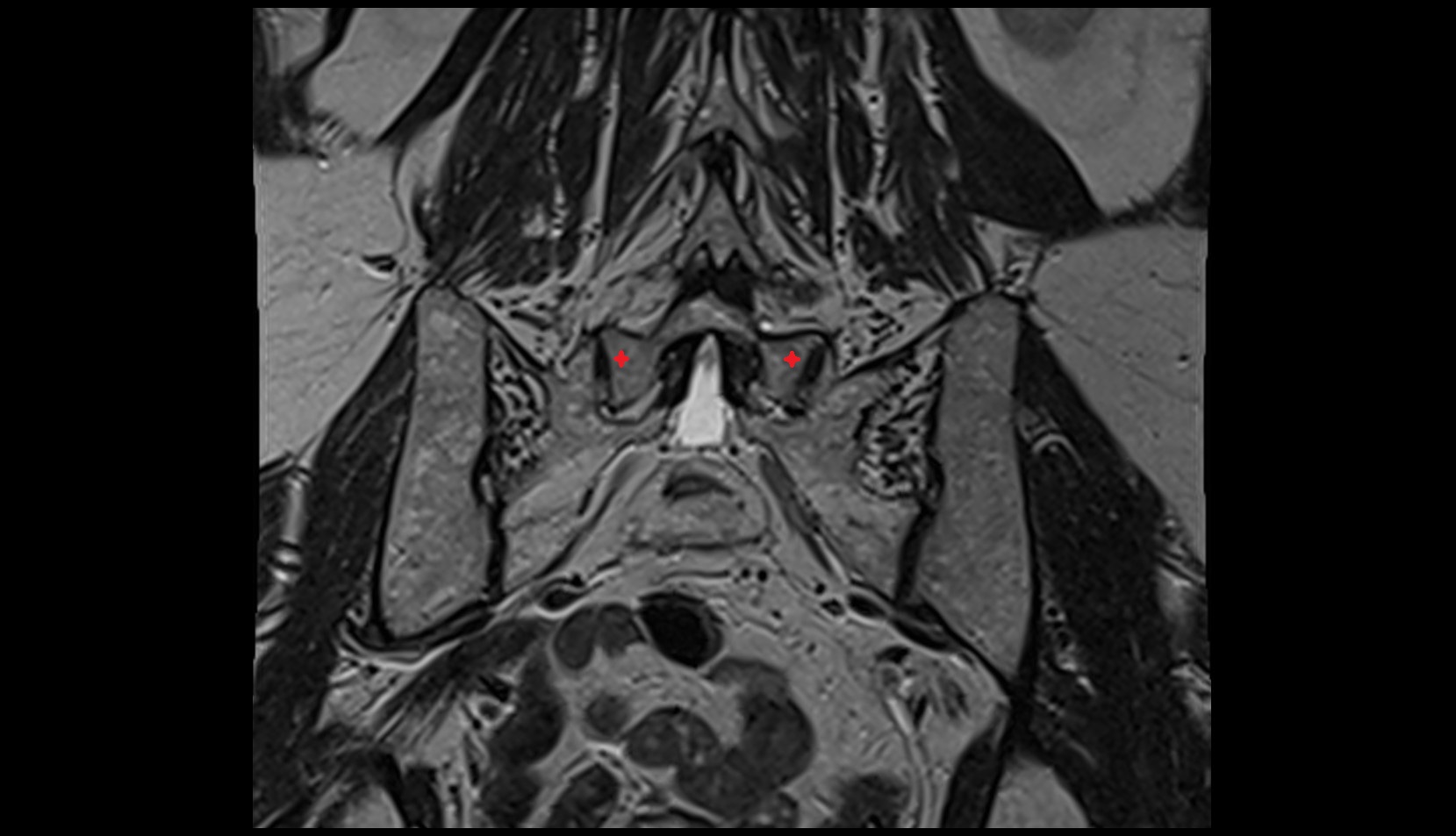

Inferior articular process of L5 vertebra mri coronal image

CT image

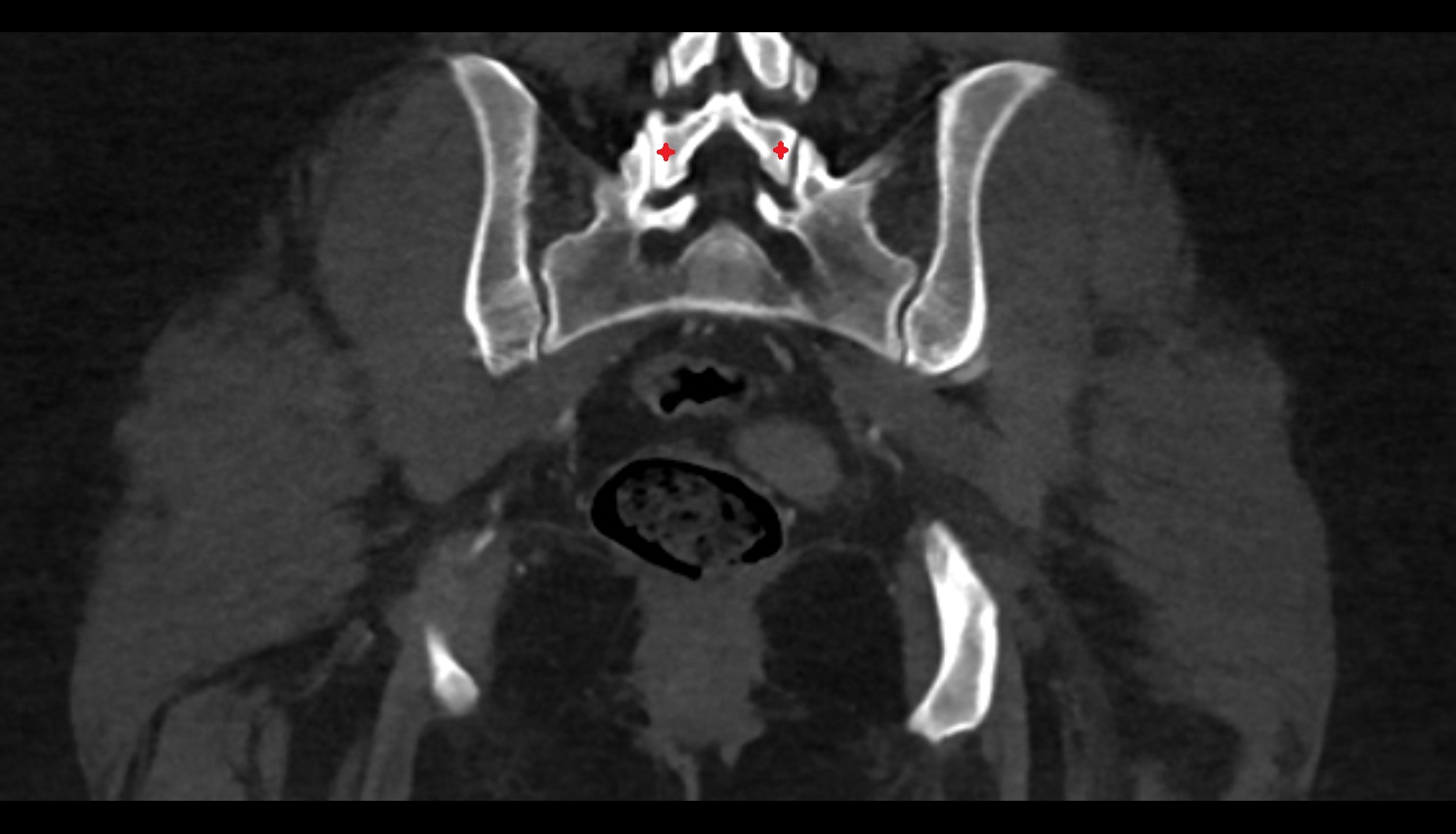

Inferior Articular Process of L5 Vertebra ct coronal anatomy image-img-00000-00000
