Inferior articular process of vertebra

The inferior articular process (IAP) is a bony projection from the posteroinferior aspect of a vertebral arch, forming a synovial facet joint (zygapophyseal joint) with the superior articular process of the vertebra below. It contributes to posterior spinal stability, guiding and restricting spinal motion while transmitting mechanical load during flexion, extension, rotation, and lateral bending.

The IAP consists of a base continuous with the pedicle and lamina, and a facet surface lined with hyaline cartilage that articulates with the superior articular facet below. Ligaments such as the capsular ligament of the facet joint, ligamentum flavum, and interspinous ligaments attach in its vicinity, further stabilizing the segment. Its size and orientation vary along the spinal column: cervical IAPs are smaller and obliquely oriented, thoracic IAPs are vertical, and lumbar IAPs are large and posteromedially directed, reflecting the mechanics of each region.

Function

  • Forms the inferior half of the zygapophyseal (facet) joint

  • Guides and restricts spinal movement

  • Transmits load between adjacent vertebrae

  • Provides attachment points for ligaments, including facet joint capsule and ligamentum flavum

  • Maintains posterior spinal stability and alignment

Synonyms

  • Inferior facet process

  • Inferior zygapophyseal process

  • IAP of vertebra

MRI Appearance

T1-weighted images:

  • Cortical bone of the IAP appears low signal intensity (hypointense)

  • Internal trabecular bone appears intermediate signal, contrasting with surrounding soft tissue

  • Facet cartilage is intermediate to low signal

  • Degenerative changes, such as osteophytes, sclerosis, or facet hypertrophy, show altered signal

T2-weighted images:

  • Cortical bone remains low signal (hypointense)

  • Facet joint cartilage is intermediate signal; joint effusion appears hyperintense, highlighting facet arthropathy or inflammation

  • Useful for detecting facet joint degeneration, synovial cysts, or edema

STIR (Short Tau Inversion Recovery):

  • Cortical bone of IAP remains low signal

  • Bone marrow edema, inflammation, or acute injury appears hyperintense, useful for identifying facet trauma or inflammatory changes

T1 Post-Contrast (Gadolinium-enhanced):

  • Normal IAP shows no significant enhancement

  • Pathological conditions (facet synovitis, tumor, infection) demonstrate enhancement in the joint capsule or surrounding bone marrow

CT Appearance:

  • Cortical bone of the IAP appears hyperdense, while trabecular bone is slightly lower density

  • Excellent for assessing facet joint hypertrophy, osteophytes, fractures, or congenital anomalies

  • Axial and sagittal views clearly show joint orientation, articular surface, and posterior spinal canal relationship

MRI images

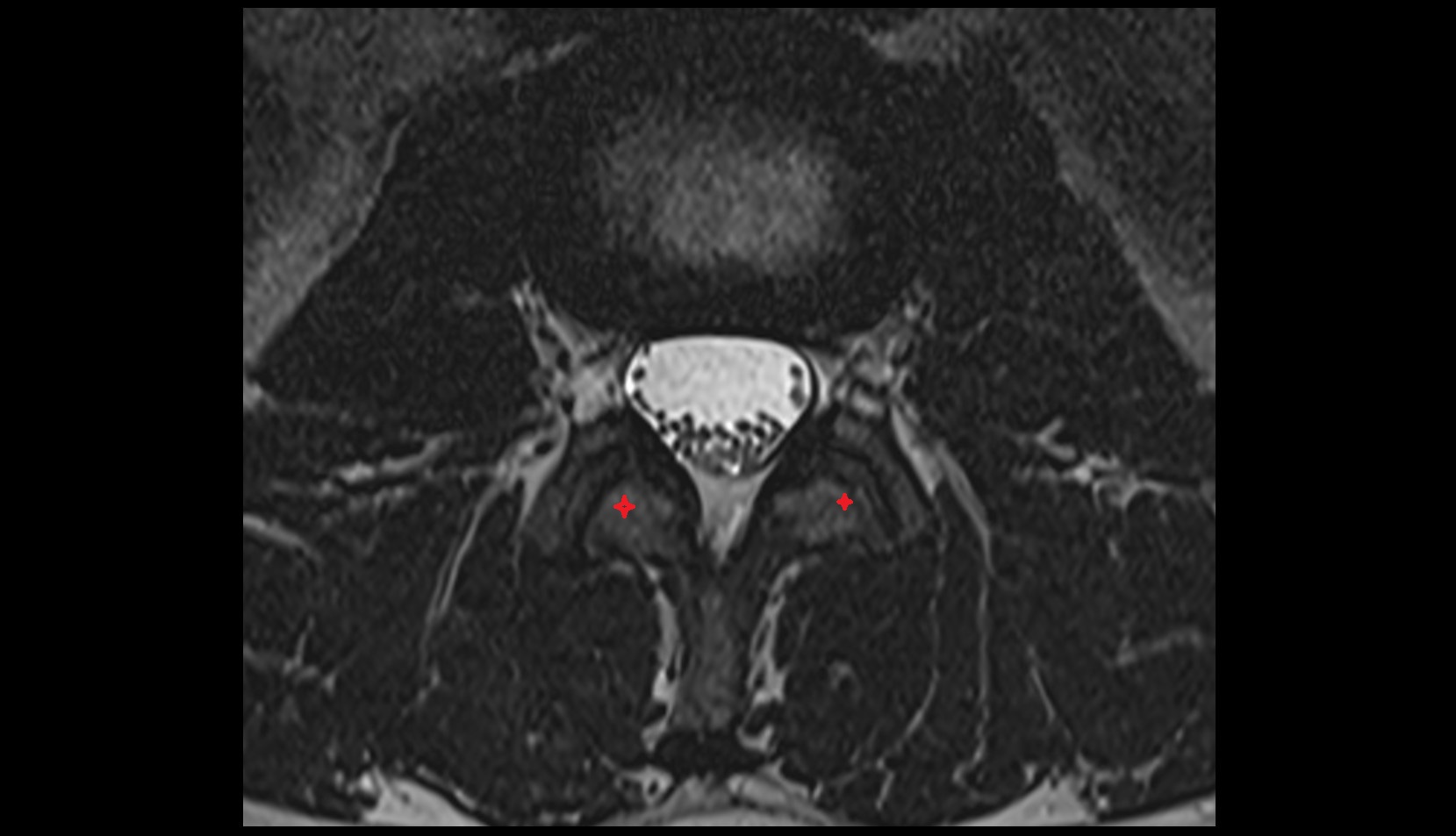

Inferior articular process axial mri image

MRI images

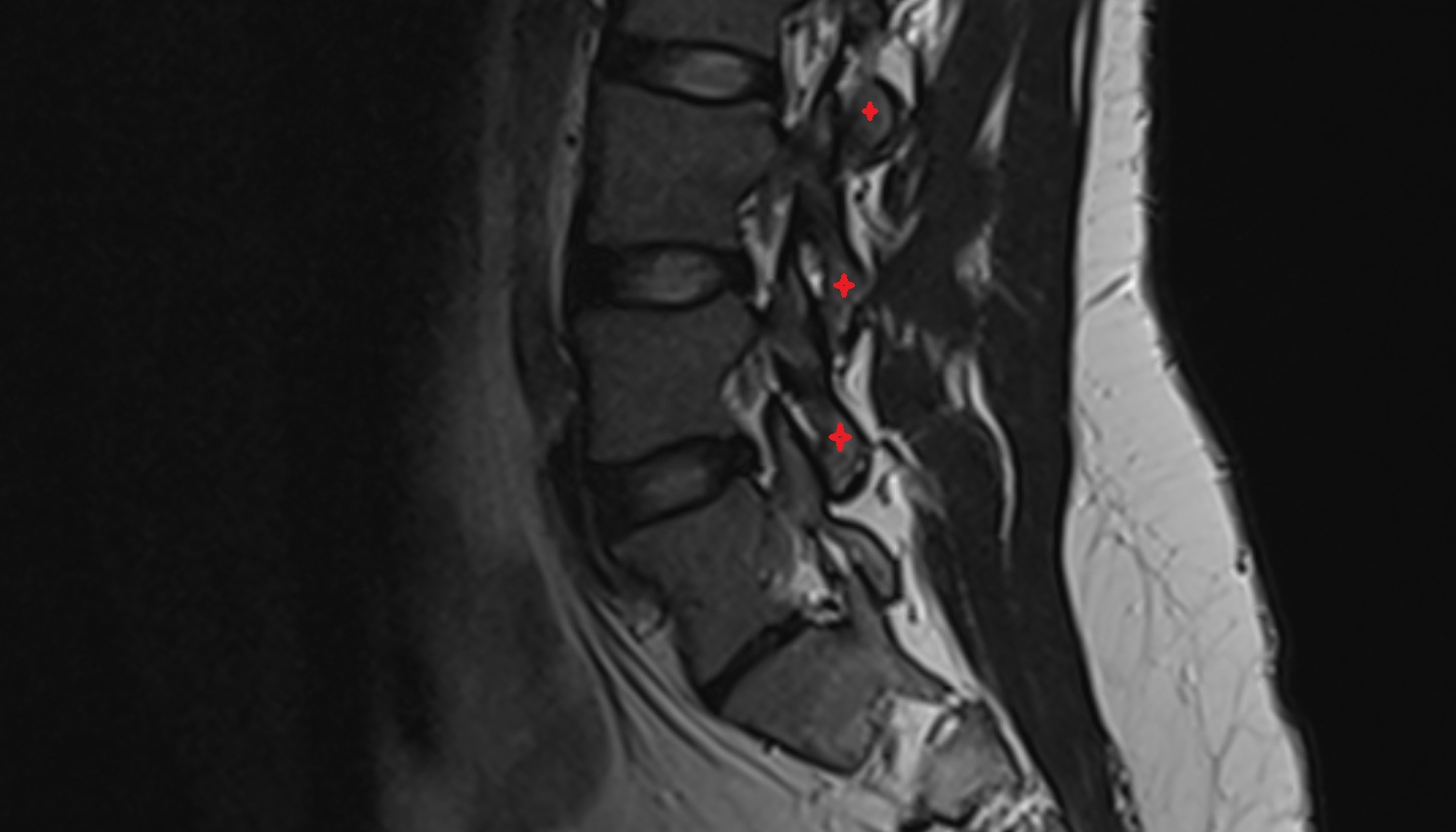

Inferior articular process of vertebra mri sag image -img-00000-00000

CT image

Inferior articular processes of vertebrae ct axial image

CT 3D VRT image

Inferior articular processes of vertebrae ct 3D
