Inferior extensor retinaculum

The inferior extensor retinaculum (IER) is a Y-shaped band of deep fascia located on the anterior aspect of the ankle and dorsum of the foot. It plays a vital role in holding the extensor tendons of the foot in place as they pass over the ankle joint, preventing bowstringing during dorsiflexion.

It is a continuation of the deep fascia of the leg, positioned below the superior extensor retinaculum. The IER stabilizes key tendons including those of the tibialis anterior, extensor hallucis longus, extensor digitorum longus, and fibularis tertius, ensuring smooth and coordinated extension of the toes and dorsiflexion of the ankle.

Synonyms

  • Cruciate crural ligament

  • Inferior annular ligament of extensor tendons

  • Retinaculum musculorum extensorum inferius

Attachments and Structure

  • Lateral attachment: Upper surface of the calcaneus (anterior to the calcaneal sulcus)

  • Medial attachment: Divides into two limbs —

    • Upper limb: Inserts into the medial malleolus

    • Lower limb: Inserts into the deep fascia of the foot and the plantar aponeurosis

  • The retinaculum forms fibrous tunnels (synovial sheaths) for the passage of extensor tendons.

Course and Contained Structures

The IER forms fibrous compartments for:

  • Tibialis anterior tendon (most medial tunnel)

  • Extensor hallucis longus tendon

  • Extensor digitorum longus tendons

  • Fibularis tertius tendon (most lateral tunnel)

Each tendon passes beneath the retinaculum within its own synovial sheath, facilitating low-friction movement.

Relations

  • Superiorly: Continuous with deep fascia of the leg and the superior extensor retinaculum

  • Inferiorly: Blends with the dorsal fascia of the foot

  • Medially: Related to medial malleolus, tibialis anterior tendon, and dorsalis pedis artery

  • Laterally: Overlies extensor digitorum longus and fibularis tertius tendons

  • Deep surface: Closely related to ankle joint capsule and dorsalis pedis artery

Function

  • Tendon stabilization: Holds extensor tendons in place during dorsiflexion and toe extension

  • Mechanical efficiency: Prevents bowstringing and friction against the ankle joint

  • Ankle stabilization: Reinforces the anterior aspect of the ankle and contributes to joint integrity during motion

  • Protection: Shields tendons and neurovascular structures from mechanical stress

Clinical Significance

  • Tenosynovitis: Inflammation of tendon sheaths beneath the retinaculum may cause anterior ankle pain

  • Tendon entrapment: Hypertrophy or fibrosis of the retinaculum can compress extensor tendons or the deep fibular nerve

  • Post-traumatic thickening: May occur following ankle sprain or overuse in athletes

  • Surgical relevance: Serves as a landmark in anterior ankle incisions and tendon repair procedures

  • Imaging importance: Assessed in cases of anterior ankle pain, tendinopathy, and post-surgical fibrosis

MRI Appearance

  • T1-weighted images:

    • Retinaculum appears as a thin, low-signal (dark) band anterior to the ankle joint

    • Adjacent fat planes show bright signal intensity, outlining the structure

    • Thickening or irregularity may indicate fibrosis or hypertrophy

  • T2-weighted images:

    • Normal retinaculum remains low signal (dark) against the higher signal of surrounding fat and muscle

    • Inflammation or edema causes mild hyperintensity or indistinct margins

    • Chronic injury may show focal thickening and low-signal scar tissue

  • STIR:

    • Normal retinaculum: dark linear structure

    • Pathology: bright hyperintense signal beneath or within the band due to edema, inflammation, or synovitis

  • Proton Density Fat-Saturated (PD FS):

    • Normal: thin, sharply defined, low signal band

    • Pathologic thickening or inflammation: bright peritendinous signal around extensor tendons

    • Excellent for detecting tenosynovitis or partial tearing of tendon sheaths

  • T1 Fat-Sat Post-Contrast:

    • Normal retinaculum: minimal enhancement

    • Inflamed or fibrotic retinaculum: enhances due to vascularized granulation tissue

    • Differentiates active tenosynovitis (enhancing) from chronic fibrosis (non-enhancing or low signal)

CT Appearance

Non-Contrast CT:

  • Retinaculum seen as a thin soft-tissue density band anterior to the ankle joint

  • Best delineated when surrounded by fat planes

  • Thickening or calcification may be noted in chronic inflammation or post-traumatic fibrosis

Post-Contrast CT (standard):

  • Normal retinaculum: minimal enhancement

  • Pathologic conditions show enhancement of surrounding soft tissue in tenosynovitis or retinacular inflammation

  • Useful for evaluating calcific changes or post-surgical alterations when MRI is inconclusive

MRI image

Inferior Extensor Retinaculum axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000_00001

MRI image

Inferior Extensor Retinaculum axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000_00002

CT image

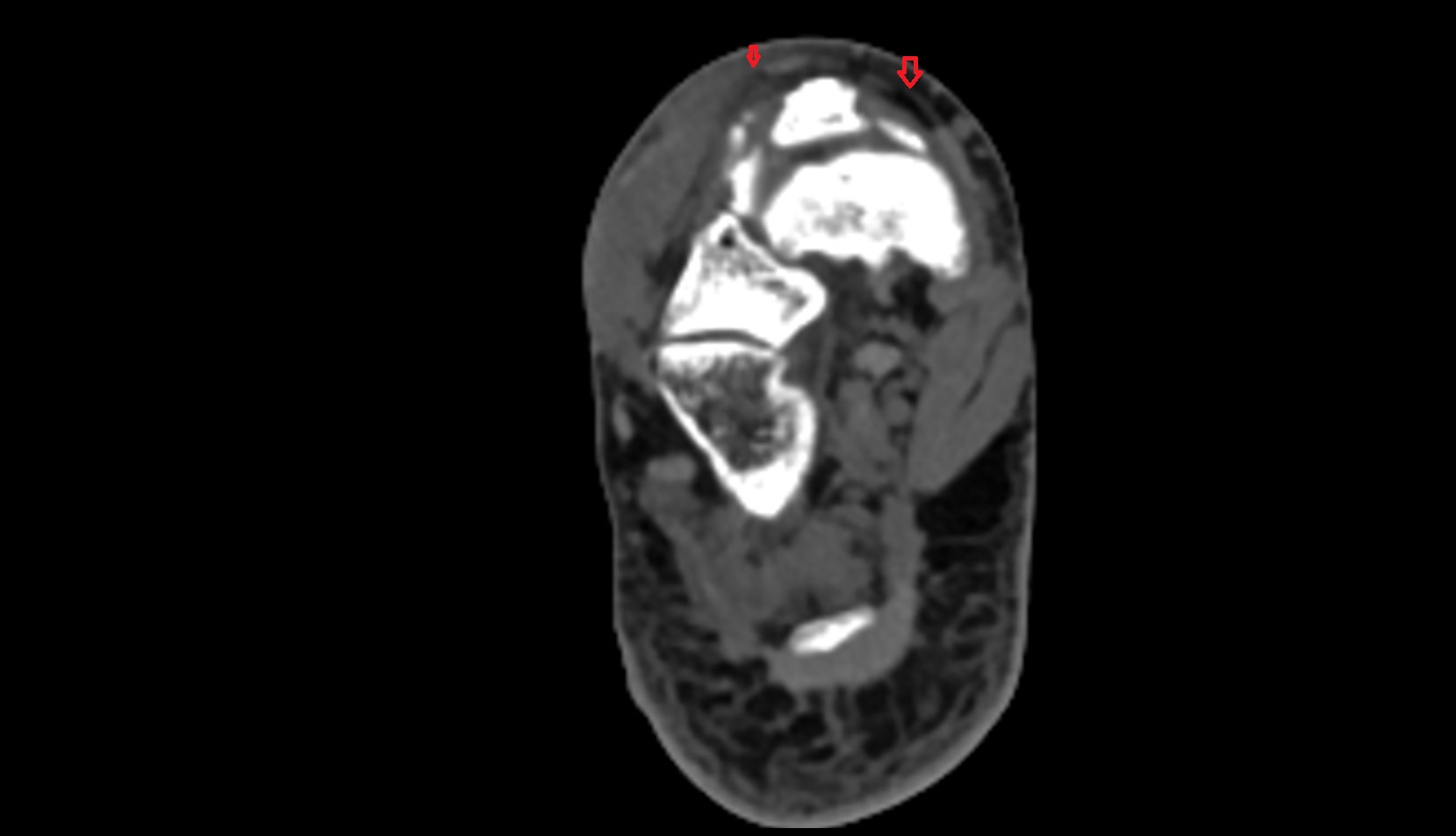

Inferior Extensor Retinaculum ct axial
