Inferior Ulnar Collateral Artery: Anatomy, Course, Function, Imaging

Topic

Inferior ulnar collateral artery

The inferior ulnar collateral artery (IUCA) is a small but significant branch of the brachial artery that arises just above the elbow. It plays a vital role in the periarticular arterial anastomosis around the elbow joint, ensuring continuous blood flow during flexion and extension.

It courses medially and anteriorly toward the medial epicondyle of the humerus, passing deep to the pronator teres and brachialis, where it anastomoses with the anterior ulnar recurrent artery and other nearby branches. The IUCA is one of the key vessels maintaining collateral circulation between the brachial and ulnar arteries, especially when the main brachial flow is reduced or occluded.

Synonyms

Inferior profunda branch of the brachial artery
Inferior humeral collateral artery
Anastomotic branch to the anterior ulnar recurrent artery

Origin, Course, and Termination

Origin: Arises from the brachial artery approximately 5 cm proximal to the elbow joint, usually opposite the origin of the superior ulnar collateral artery.
Course:
- Descends medially, passing anterior to the septum separating the brachialis and triceps muscles.
- Travels deep to the pronator teres and anterior to the medial epicondyle of the humerus.
- Follows the path of the medial intermuscular septum, lying anterior to it.
Termination:
- Ends by anastomosing with the anterior ulnar recurrent artery and small articular branches supplying the medial aspect of the elbow joint.

Relations

Anteriorly: Pronator teres and brachialis
Posteriorly: Medial intermuscular septum and triceps
Medially: Skin, fascia, and medial epicondylar region
Laterally: Brachial artery and median nerve (at origin)
Inferiorly: Elbow joint capsule and anterior ulnar recurrent artery

Branches

Muscular branches: Supply brachialis, pronator teres, and adjacent forearm flexors
Articular branches: Supply the medial aspect of the elbow joint and capsule
Anastomotic branches: Connect with the anterior ulnar recurrent artery, posterior ulnar recurrent artery, and superior ulnar collateral artery, forming part of the arterial network around the elbow

Function

Collateral supply: Maintains perfusion to distal arm and proximal forearm muscles during elbow movement or arterial compression.
Joint perfusion: Contributes to the arterial anastomosis around the elbow, particularly anterior and medial aspects.
Vascular redundancy: Provides an alternate pathway between the brachial and ulnar systems, ensuring limb viability during trauma or surgery.

Clinical Significance

Collateral importance: Integral in maintaining distal perfusion if the brachial artery is occluded or ligated.
Trauma: Can be injured in supracondylar or medial epicondylar fractures, leading to bleeding or ischemia.
Surgical relevance: Important in brachial artery exposures, flap designs, and vascular bypass procedures.
Aneurysm or pseudoaneurysm: May occur after repeated venipuncture or trauma to the medial elbow.
Vasculitis: Involvement leads to segmental narrowing or irregularity on imaging.

MRI Appearance

T1-weighted images:
- Flowing blood: Appears as a signal void (black line).
- Perivascular fat: Bright signal enhancing contrast between vessel and surroundings.
- Thrombosis or slow flow: Intermediate to bright signal within lumen.
T2-weighted images:
- Flowing blood: Maintains dark flow void.
- Vessel wall: Intermediate signal; thickening or inflammation increases intensity.
- Thrombus: Variable, depending on stage—acute thrombus bright, chronic dark.
STIR:
- Normal artery: Dark linear flow void.
- Inflammation or hematoma: Bright perivascular hyperintensity.
Proton Density Fat-Saturated (PD FS):
- Normal lumen: Flow void.
- Abnormal wall or thrombus: Bright signal outlining vessel.
- Useful for differentiating perivascular edema from adjacent muscular signal.
T1 Fat-Sat Post-Contrast:
- Normal vessel: Brisk homogeneous enhancement.
- Stenosis or occlusion: Segmental non-enhancement or abrupt cutoff.
- Vasculitis or perivascular inflammation: Concentric wall enhancement or irregular mural thickening.

MRA (Magnetic Resonance Angiography) Appearance

Normal: The inferior ulnar collateral artery appears as a small, enhancing branch from the brachial artery, coursing anteriorly and medially toward the elbow.
Techniques: Best visualized on contrast-enhanced 3D MRA or TOF sequences in the distal arm.
Pathology:
- Stenosis or occlusion: Segmental loss of signal or non-opacification.
- Collateral flow: Small serpentine channels visible near the medial epicondyle.
- Aneurysm: Focal saccular or fusiform enhancement.
- Vasculitic change: Irregular wall enhancement and narrowing.

CT Appearance

Non-Contrast CT:

Artery not well visualized except if calcified.
Arterial wall calcification: Curvilinear hyperdensity along medial elbow.
Muscles (brachialis, pronator teres) and bony landmarks assist in locating its course.

Post-Contrast CT (standard):

Artery enhances as a small linear or tubular structure anterior to the medial epicondyle.
Differentiates artery from adjacent veins based on early enhancement phase.
Detects vessel wall thickening, aneurysm, or perivascular hematoma.

CTA (CT Angiography) Appearance

Normal:
- The artery is visualized as a contrast-filled vessel branching from the distal brachial artery, coursing medially and anteriorly toward the elbow.
- Seen best in arterial-phase CTA with thin-slice multiplanar reformats.
Pathology:
- Stenosis or occlusion: Abrupt cutoff or narrowing with loss of distal filling.
- Aneurysm: Localized saccular or fusiform dilation with homogeneous contrast enhancement.
- Collateral network: Visible as small tortuous enhancing channels connecting to the anterior and posterior ulnar recurrent arteries.
- Dissection or trauma: Intimal flap or perivascular hematoma surrounding vessel.

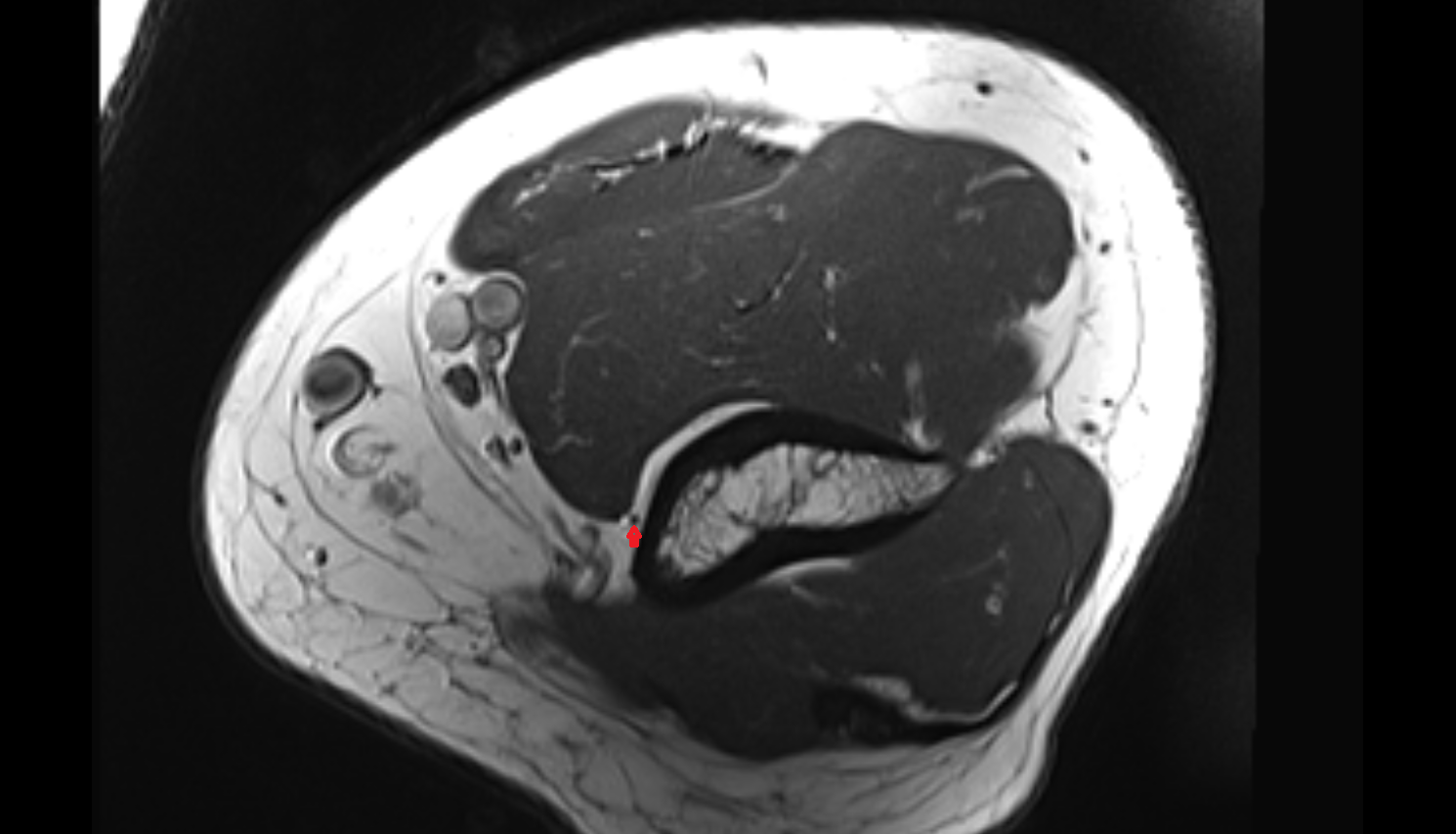

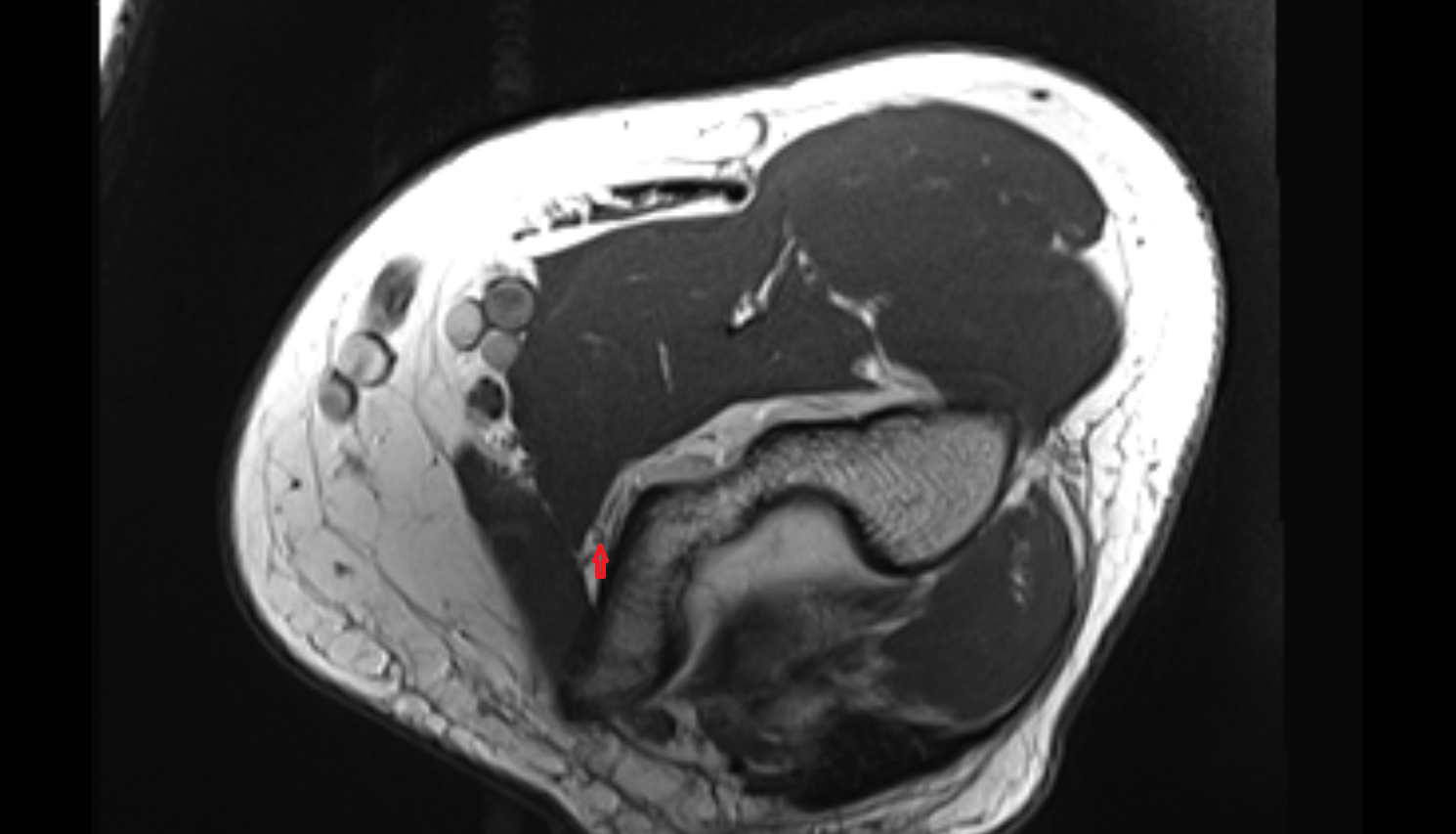

MRI image
