Internal jugular vein

The internal jugular vein (IJV) is the main venous structure responsible for draining blood from the brain, face, and neck back to the heart. It runs bilaterally alongside the carotid artery and vagus nerve within the carotid sheath, extending from the jugular foramen at the skull base down to the brachiocephalic vein in the thorax. The IJV is a crucial structure in both clinical practice and radiologic imaging due to its role in central venous access, assessment of intracranial pressure, and as a landmark in head and neck imaging.

Synonyms

  • Internal jugular vein (IJV)

  • Jugular vein (when context is clear)

  • Vena jugularis interna (Latin term)

  • Principal neck vein (in some texts)

Function

  • Major venous drainage of the brain, face, and neck

  • Returns deoxygenated blood from intracranial and extracranial structures to the superior vena cava

  • Important conduit for central venous access in critical care and anesthesia

  • Involved in cerebrospinal fluid drainage and regulation of intracranial pressure

MRI Appearance

  • T1-Weighted Imaging:

    • IJV appears as a flow void (black) due to fast-moving blood, unless slow flow or thrombus is present.

    • Vessel walls are usually not visible unless there is surrounding pathology or thrombus.

  • T2-Weighted Imaging:

    • Similar to T1, the IJV demonstrates a flow void.

    • Hyperintense signal may indicate slow flow or thrombosis.

  • Phase Contrast 3D (PC 3D) MR Venography:

    • Clearly demonstrates the IJV as a bright, high-signal vessel against a dark background.

    • Used for detailed venous mapping, visualization of flow dynamics, and detection of stenosis or thrombosis.

  • Post-Contrast T1-Weighted Imaging:

    • IJV enhances vividly with gadolinium contrast due to rapid venous filling.

    • Any intraluminal filling defect may indicate thrombus.

    • Walls may appear more distinct; surrounding inflammation or tumor invasion can also be better appreciated.

CT and CTV Appearance

  • Non-Contrast CT:

    • The IJV is seen as a low-density, tubular structure lateral to the carotid artery.

    • May be collapsed in hypovolemia; difficult to delineate without contrast.

  • Contrast-Enhanced CT (CTV):

    • The IJV is opacified, appearing as a well-defined, high-density vessel.

    • Patency, caliber, and any intraluminal filling defects (thrombus) are readily evaluated.

    • Useful for assessing anatomical variants, thrombosis, and tumor invasion.

  • CT Venography (CTV):

    • Provides detailed visualization of the IJV and its relationship with adjacent structures.

    • Filling defects, narrowing, or extrinsic compression can be precisely localized.

MRI images

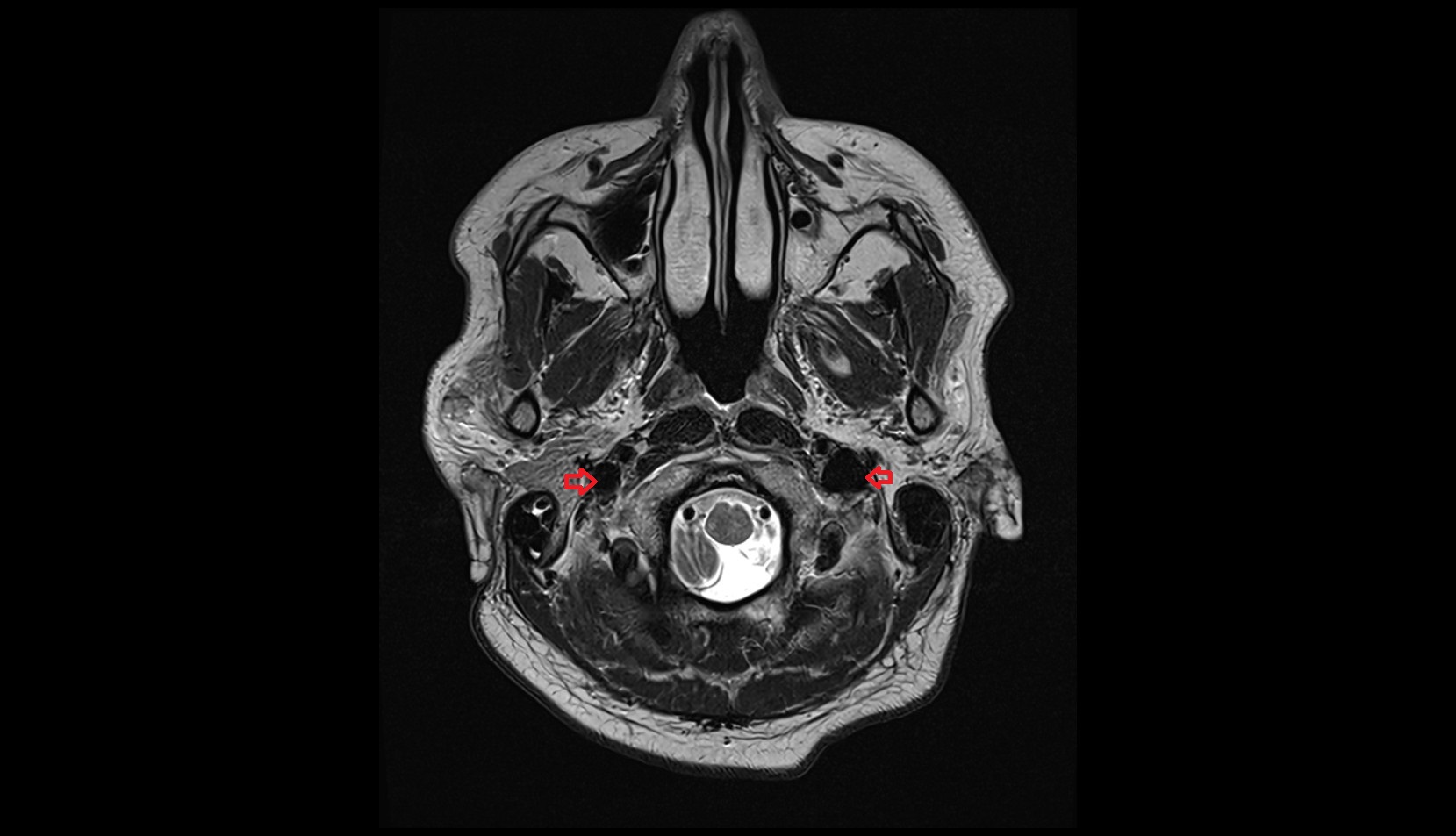

Internal jugular vein MRI 3T axial image

MRI images

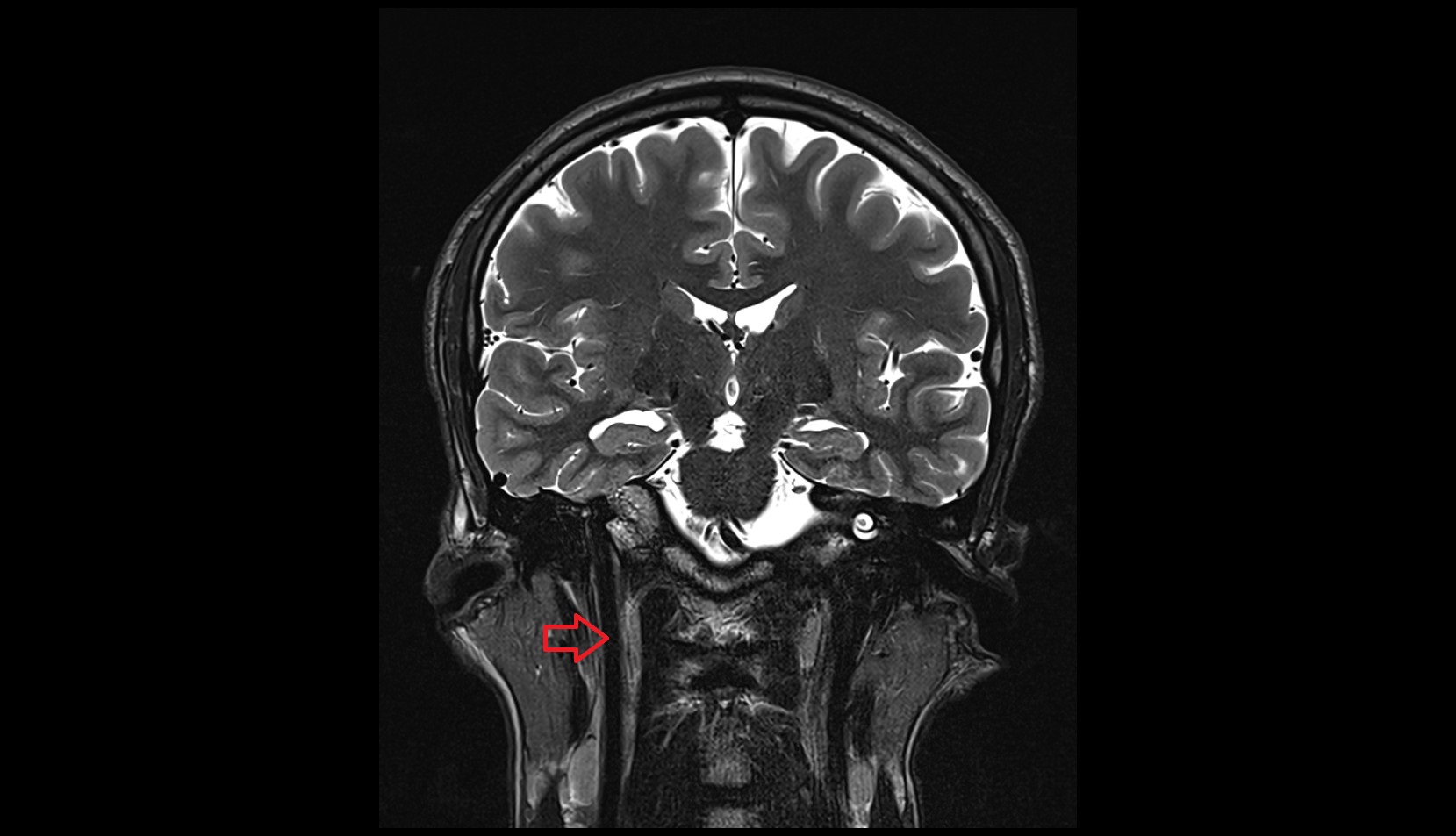

Internal jugular vein MRI 3T coronal image

MRI images

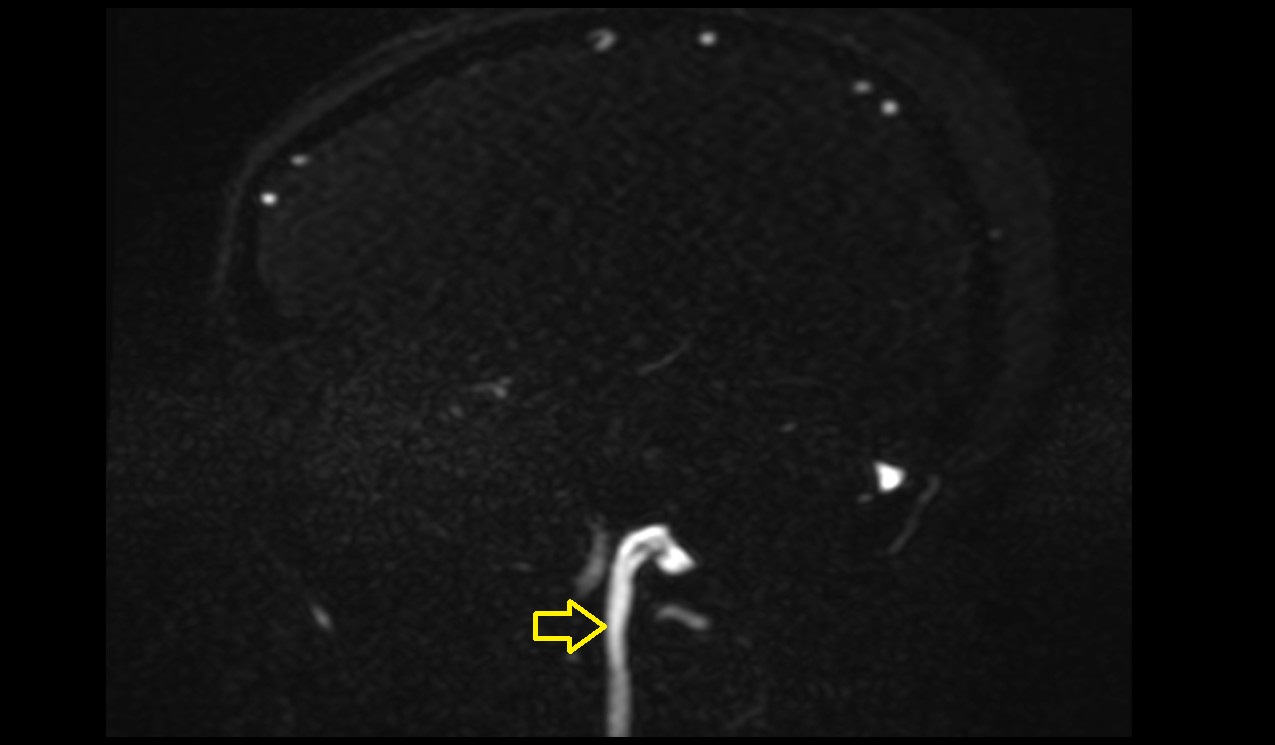

Internal jugular vein sagittal pc 3d image

CT images

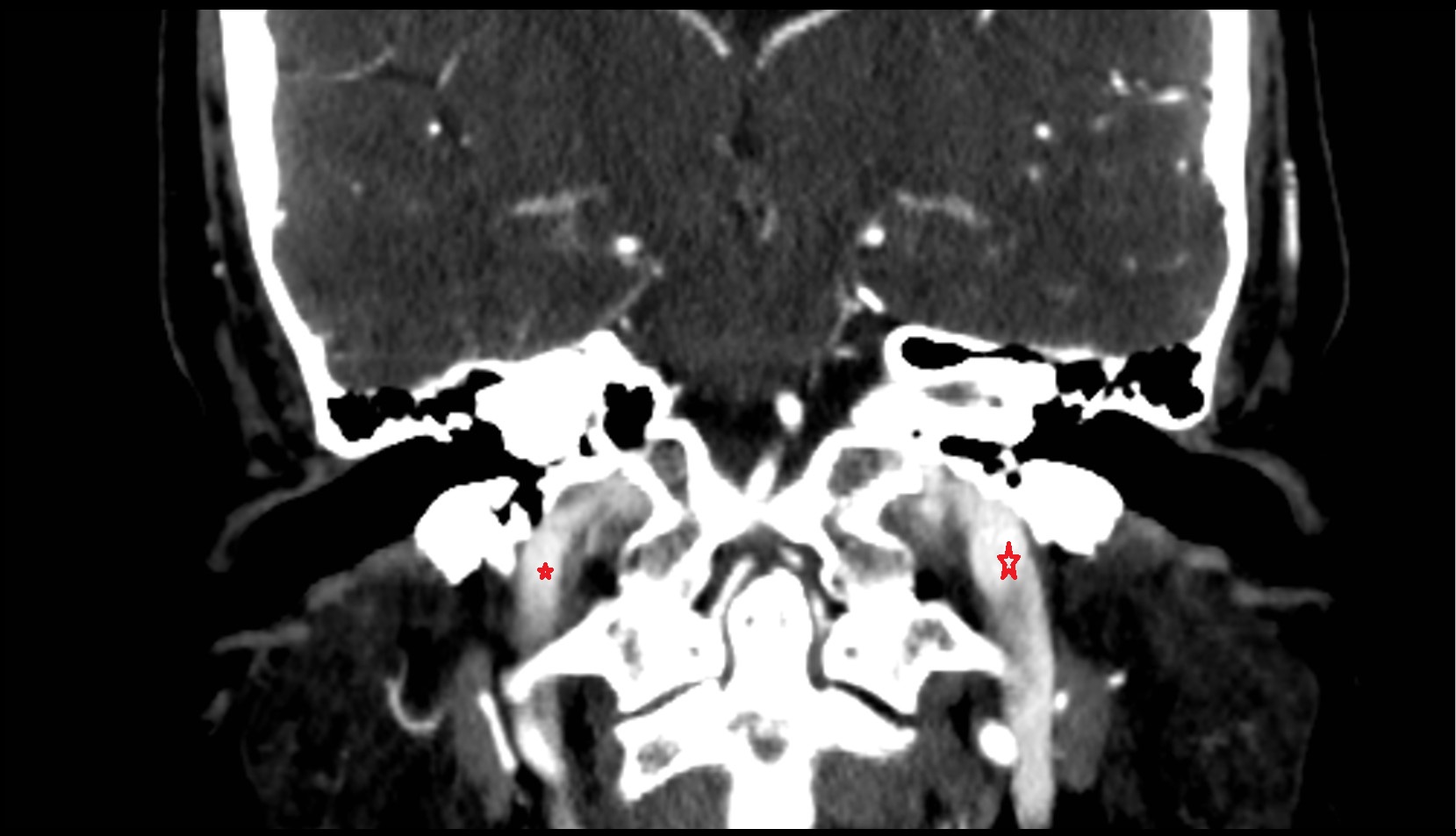

Internal jugular vein CT image

CT image

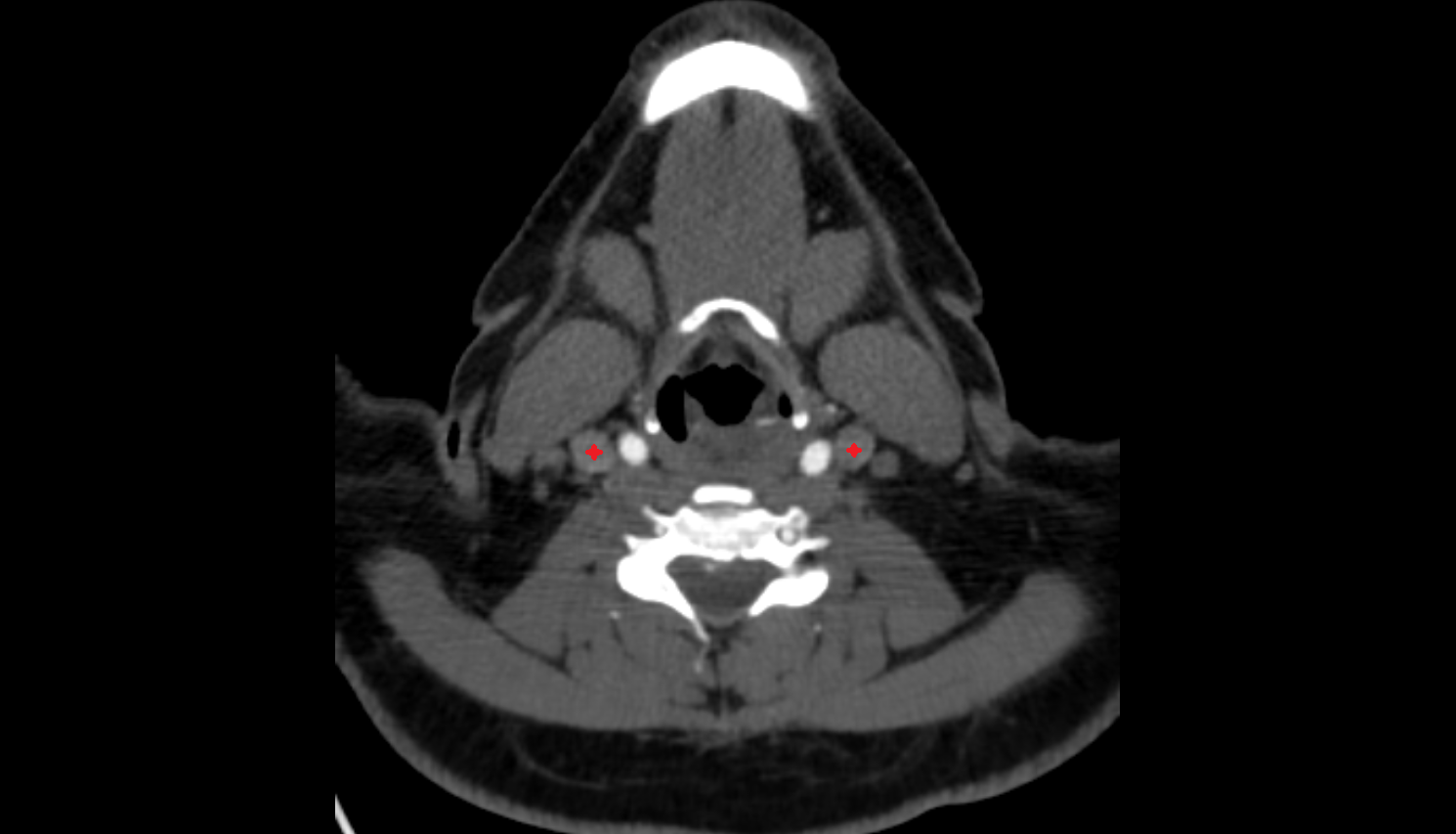

Internal jugular vein CT axial image-img-00000-00000
