Intertrochanteric line

The intertrochanteric line is a prominent bony ridge located on the anterior aspect of the proximal femur, extending from the greater trochanter superiorly to the lesser trochanter inferiorly. Unlike the intertrochanteric crest (posterior), the line is more subtle and flat but serves as a critical landmark for ligament and capsular attachments of the hip joint.

The intertrochanteric line marks the anterior junction between the femoral neck and shaft. It serves as the site of attachment for the iliofemoral ligament (the strongest ligament of the hip), part of the pubofemoral ligament, and the capsule of the hip joint. These structures reinforce the anterior hip joint capsule and play a vital role in resisting hyperextension and stabilizing the femoral head in the acetabulum.

Clinically, the intertrochanteric line is important as the reference point for extracapsular fractures of the proximal femur (intertrochanteric fractures). It is also used in orthopedic surgery, including hip arthroplasty, where implant positioning must respect the anatomy of the line.

Synonyms

  • Linea intertrochanterica

  • Anterior trochanteric ridge

Function

  • Serves as attachment site for the iliofemoral ligament, pubofemoral ligament, and hip joint capsule

  • Reinforces the anterior aspect of the hip joint

  • Acts as a landmark for proximal femoral fractures

  • Guides orthopedic implant positioning in hip surgeries

MRI Appearance

T1-weighted images:

  • Bone cortex: hypointense linear ridge connecting greater and lesser trochanters

  • Bone marrow: intermediate signal

  • Ligament/capsular attachments appear hypointense

T2-weighted images:

  • Cortex: hypointense ridge

  • Marrow: intermediate to hyperintense depending on fat content

  • Detects edema or fracture lines in intertrochanteric fractures

PD Fat-Saturated (Proton Density FS):

  • Bone cortex: remains hypointense

  • Bone marrow edema/fracture: hyperintense signal at intertrochanteric region

  • Highlights subtle fractures and capsular inflammation

STIR:

  • Suppresses fat, making bone marrow edema, occult fractures, or capsular inflammation appear bright

  • Very sensitive for early detection of stress or insufficiency fractures

T1 Post-Gadolinium (with fat saturation):

  • Bone cortex: remains hypointense

  • Marrow/capsule: abnormal enhancement in cases of infection, tumor, or capsular pathology

  • Enhances differentiation between benign marrow edema and pathological infiltration

3D T2-weighted Imaging:

  • Cortex: sharply hypointense line outlining intertrochanteric ridge

  • Provides multiplanar assessment for fracture extent, ligament attachment, and preoperative surgical planning

CT Appearance

Non-contrast CT:

  • Bone cortex: hyperdense ridge seen clearly between greater and lesser trochanters

  • Bone marrow: less dense, cancellous structure

  • Gold standard for fracture evaluation, cortical irregularities, and pre-op planning

CT Post-Contrast:

  • Bone: unchanged, cortex remains hyperdense

  • Soft tissue: enhancement reveals capsular inflammation, hematomas, or tumor involvement

  • 3D CT reconstructions provide detailed fracture mapping and surgical orientation

Clinical Significance

  • Intertrochanteric fractures: extracapsular hip fractures extending along this line, common in elderly osteoporotic patients.

  • Orthopedic landmark: critical for positioning implants in hip arthroplasty and internal fixation.

  • Sports medicine: site of stress reactions and avulsion injuries due to strong ligamentous attachments.

  • Radiological marker: differentiates intra- vs. extracapsular femoral neck fractures.

CT VRT 3D image

Intertrochanteric line 3D CT VRT anatomy image

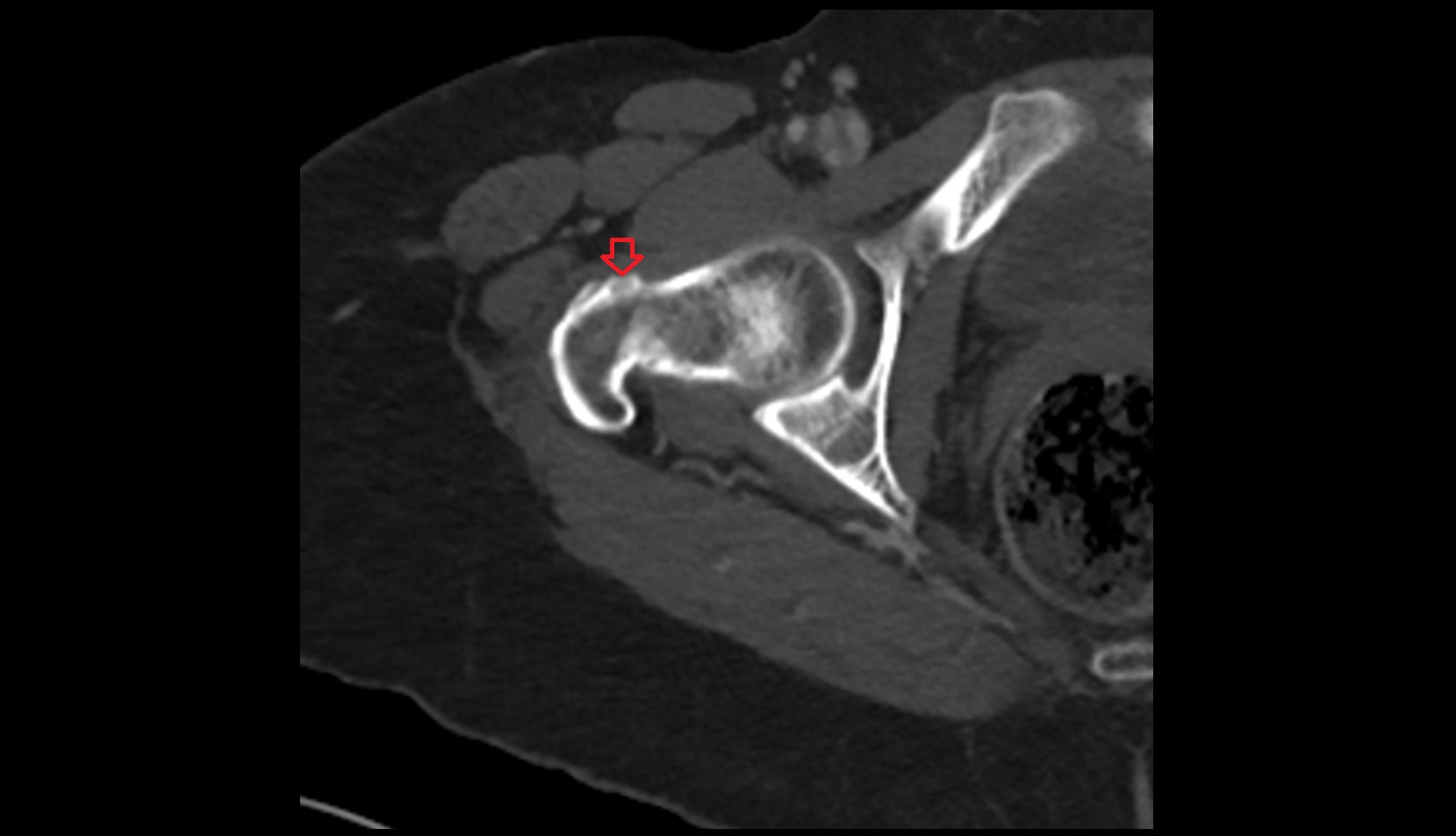

CT image

Intertrochanteric line ct axial image

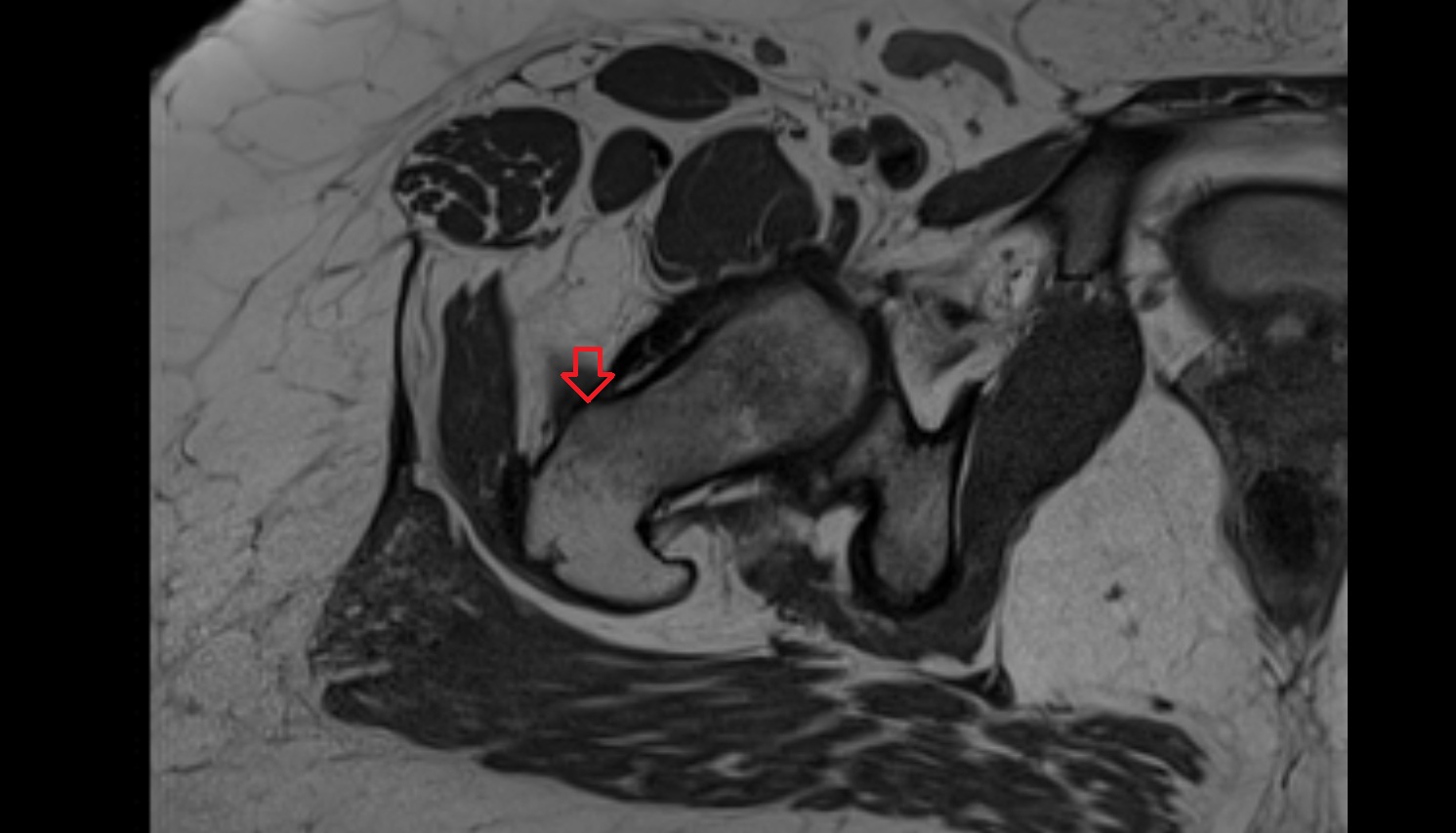

MRI image

Intertrochanteric line MRI axial anatomy image-img-00000-00000
