Intracanalicular part of optic nerve

The intracanalicular optic nerve is the segment of the optic nerve (cranial nerve II) that passes through the optic canal, connecting the orbital and intracranial portions. Encased in meninges and surrounded by cerebrospinal fluid, this segment is protected within the bony canal but is susceptible to compressive lesions, inflammation, or trauma. Accurate knowledge of its anatomy, function, and imaging appearance is essential for radiologists, ophthalmologists, and neurosurgeons.

Synonyms

  • Canalicular segment of the optic nerve

  • Intracanalicular segment of cranial nerve II

  • Optic nerve within the optic canal

  • Orbital-canal segment of optic nerve

Function

  • Transmits visual signals from the retina to the brain

  • Provides a protected passage for optic nerve fibers through the rigid optic canal

  • Supports vascular supply via branches of the ophthalmic artery

  • Maintains structural integrity of the nerve within the bony canal

MRI Appearance
T1-weighted images:

  • Nerve appears isointense to gray matter

  • Surrounded by hypointense CSF, enhancing contrast

  • Pathology such as optic nerve sheath meningioma may appear hyperintense or enhance with contrast

T2-weighted images:

  • Nerve is slightly hypointense relative to surrounding CSF, which appears bright

  • Useful for detecting edema, demyelination, or compressive lesions

STIR (Short Tau Inversion Recovery):

  • Suppresses orbital fat signal to highlight pathology

  • Normal nerve is low signal; inflamed or tumorous nerve shows hyperintensity

CT Appearance

  • Optic nerve appears as soft tissue density, not directly distinguishable without contrast

  • Optic canal bony margins are clearly visible for evaluation of fractures, narrowing, or bony lesions

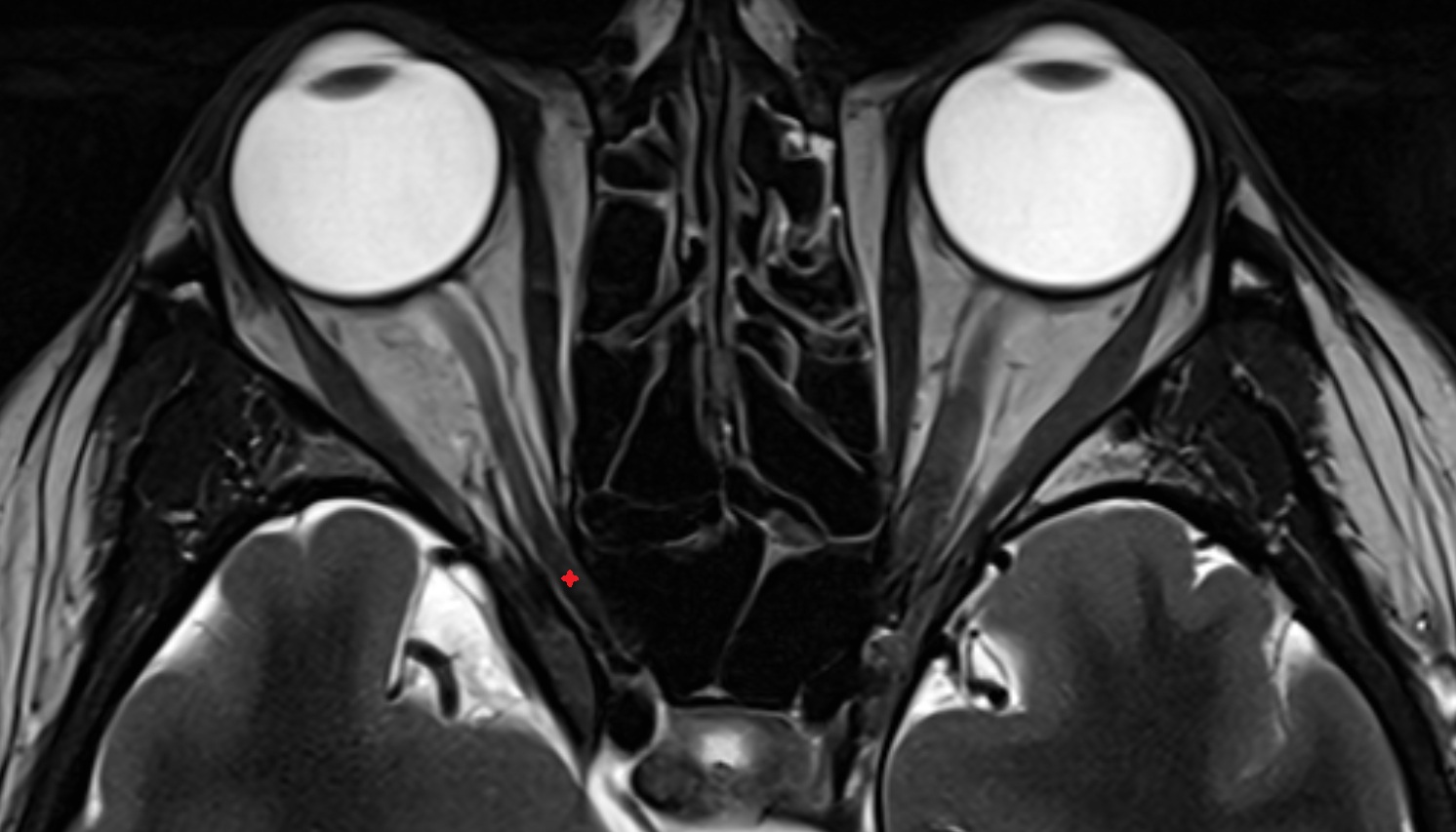

MRI image

Intracanalicular part of optic nerve-img-00000-00000
