Joint capsule of elbow

The joint capsule of the elbow is a strong yet flexible fibrous and synovial envelope that encloses the humeroulnar, humeroradial, and proximal radioulnar joints, forming a single continuous joint cavity. It stabilizes the elbow while allowing smooth flexion, extension, pronation, and supination. The capsule is reinforced by collateral ligaments and is essential in maintaining joint congruency and protecting synovial structures during motion.

It is thinner anteriorly and posteriorly, allowing movement, and thicker medially and laterally, where it blends with the ulnar and radial collateral ligaments. The synovial membrane lines the deep surface of the capsule and extends into the fossae of the humerus (coronoid, radial, and olecranon).

Synonyms

  • Articular capsule of the elbow

  • Capsular ligament of the elbow joint

  • Elbow synovial capsule

Attachments

  • Superiorly: Margins of the articular surfaces of the humerus, enclosing the coronoid, radial, and olecranon fossae

  • Inferiorly:

    • On the ulna, attaches to the coronoid process and margins of the olecranon fossa

    • On the radius, attaches along the neck, below the articular margin of the radial head

  • Anteriorly: Thin fibrous layer attached above the coronoid and radial fossae of the humerus and below to the coronoid process of the ulna

  • Posteriorly: Attached superiorly above the olecranon fossa and inferiorly to the upper margin of the olecranon

Relations

  • Anteriorly: Brachialis muscle, bicipital bursa, and median nerve

  • Posteriorly: Triceps tendon, anconeus muscle, and olecranon bursa

  • Medially: Ulnar nerve and ulnar collateral ligament

  • Laterally: Radial collateral ligament, annular ligament, and supinator muscle

  • Superiorly: Distal humerus (fossae region)

  • Inferiorly: Proximal radius and ulna articulations

Structure

  • Fibrous layer: Dense connective tissue providing mechanical stability, thickened medially and laterally

  • Synovial layer: Lines the inner surface of the capsule, continuous across the humeroradial, humeroulnar, and proximal radioulnar joints

  • Synovial recesses: Extend into coronoid, radial, and olecranon fossae during joint movement, accommodating articular motion and pressure changes

Function

  • Joint stability: Encloses and stabilizes the articulating bones of the elbow

  • Mobility: Allows flexion, extension, pronation, and supination within physiological limits

  • Lubrication: Synovial membrane secretes synovial fluid to reduce friction

  • Protection: Encloses and cushions articular surfaces, tendons, and ligaments

  • Pressure adaptation: Expands through fossae recesses during movement, maintaining smooth motion

Clinical Significance

  • Capsulitis: Inflammation of the capsule, often following trauma or overuse (elbow stiffness and pain)

  • Synovitis: May occur in rheumatoid arthritis, infection, or post-traumatic irritation

  • Effusion: Excess synovial fluid distends the capsule and displaces surrounding fat pads, visible on imaging

  • Post-traumatic contracture: Fibrosis or thickening restricts joint mobility

  • Capsular injury: Associated with dislocation or ligamentous tears

  • Imaging relevance: MRI and CT crucial for detecting effusions, synovial thickening, fibrosis, and bony avulsions

MRI Appearance

T1-weighted images:

  • Capsule: Low signal (thin dark line) encasing the joint cavity

  • Synovial membrane: Thin intermediate-to-low signal

  • Marrow: Bright (fatty signal) in normal distal humerus, radius, and ulna

  • Joint effusion: Low-to-intermediate signal intensity fluid

  • Pathology: Capsular thickening or fibrosis appears as irregular low-signal tissue

T2-weighted images:

  • Capsule: Low signal intensity, smooth outline

  • Synovial membrane: Thin, intermediate signal, seen if inflamed

  • Joint fluid: Bright hyperintense signal delineating capsule boundaries

  • Pathology:

    • Effusion—bright signal distending capsule

    • Synovitis—thickened, irregular, bright synovial lining

    • Fibrosis—low signal with irregular contour

STIR:

  • Normal capsule: Intermediate-to-dark

  • Pathology: Hyperintense signal in capsular edema, synovitis, or periarticular inflammation

  • Effusion: Bright signal expanding joint recesses (olecranon, coronoid fossae)

Proton Density Fat-Saturated (PD FS):

  • Normal capsule: Intermediate-to-dark thin line

  • Effusion: Bright hyperintense signal

  • Thickened capsule or inflamed synovium: Bright, irregular contour

  • Excellent for identifying small joint effusions, adhesive capsulitis, and synovial proliferation

T1 Fat-Sat Post-Contrast:

  • Normal capsule: Smooth mild enhancement of synovium

  • Synovitis or arthritis: Marked enhancement of synovial lining

  • Adhesive capsulitis: Diffuse peripheral capsular enhancement

  • Infection or septic arthritis: Irregular thickening with adjacent soft-tissue enhancement

MRI Arthrogram Appearance

  • Contrast distribution: Outlines joint capsule and synovial recesses

  • Normal: Smooth, symmetric distension of coronoid, radial, and olecranon fossae

  • Pathology:

    • Adhesive capsulitis—restricted contrast filling

    • Capsular tear—contrast extravasation beyond expected margins

    • Synovial hypertrophy—irregular filling defects or nodular outlines

    • Loose bodies—non-enhancing filling defects in dependent recesses

CT Appearance

Non-Contrast CT:

  • Capsule: Not directly visible; delineated by surrounding fat planes and joint outline

  • Effusion: Low-density fluid separating joint margins

  • Calcification or ossification: Seen in chronic capsulitis or post-traumatic fibrosis

  • Bony detail: Excellent visualization of marginal osteophytes, erosions, or avulsion fragments

Post-Contrast CT (standard):

  • Capsule: Enhances faintly if inflamed

  • Synovial enhancement: Indicates active arthritis or infection

  • Effusion: Non-enhancing low-density fluid with enhancing rim

CT Arthrogram Appearance

  • Contrast outlining: Capsule and intra-articular recesses appear well-distended

  • Normal: Smooth capsule contours around trochlea, capitellum, and olecranon

  • Pathology:

    • Capsular tear: Contrast leakage beyond normal limits

    • Synovial hypertrophy: Lobulated or irregular filling pattern

    • Adhesions or fibrosis: Restricted contrast spread with scalloped joint outline

    • Loose bodies: Round or irregular filling defects suspended in contrast column

MRI images

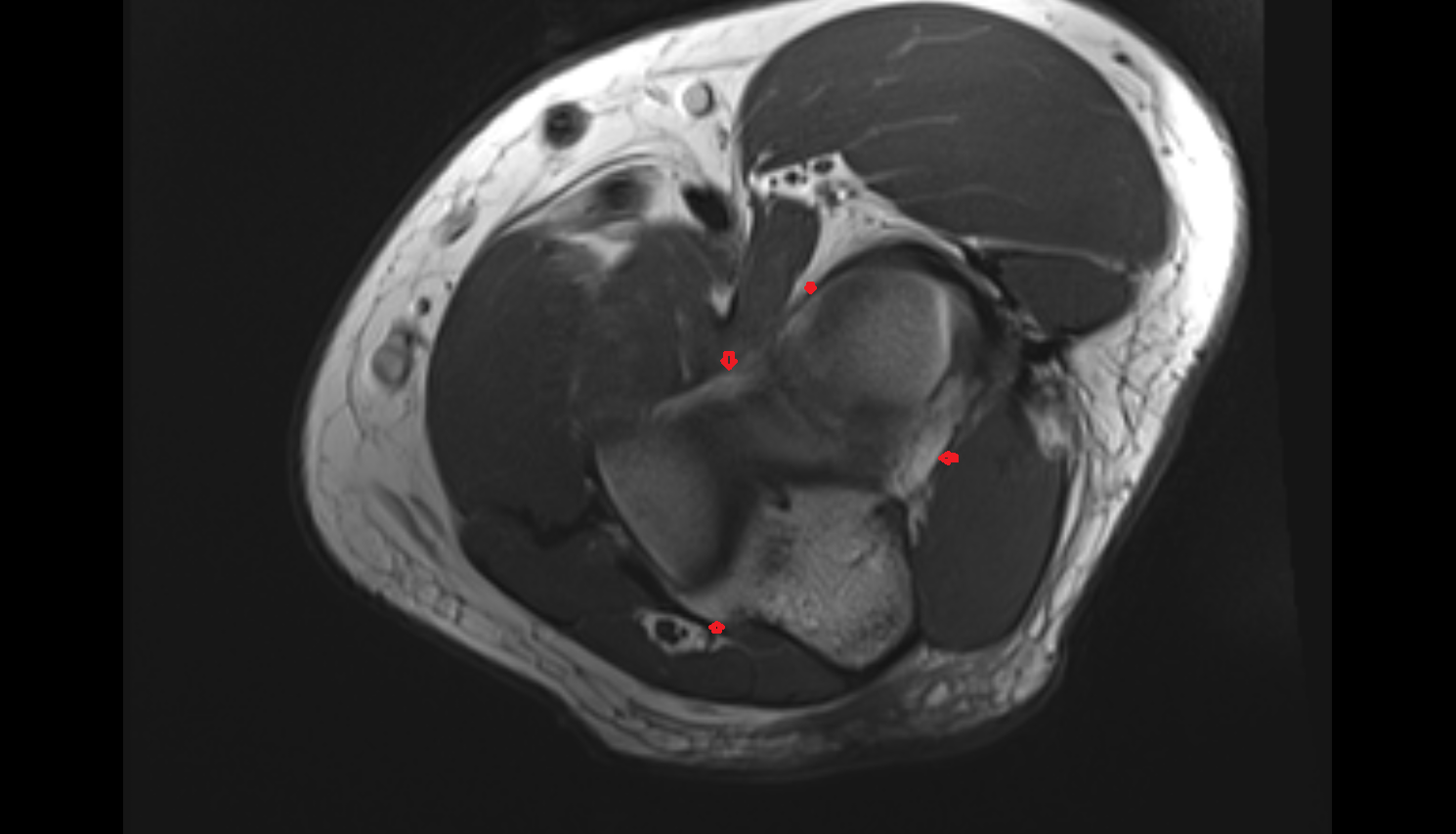

joint capsule of elbow axial cross sectional anatomy 3T MRI AI enhanced radiology image -img-00000-00000

MRI images

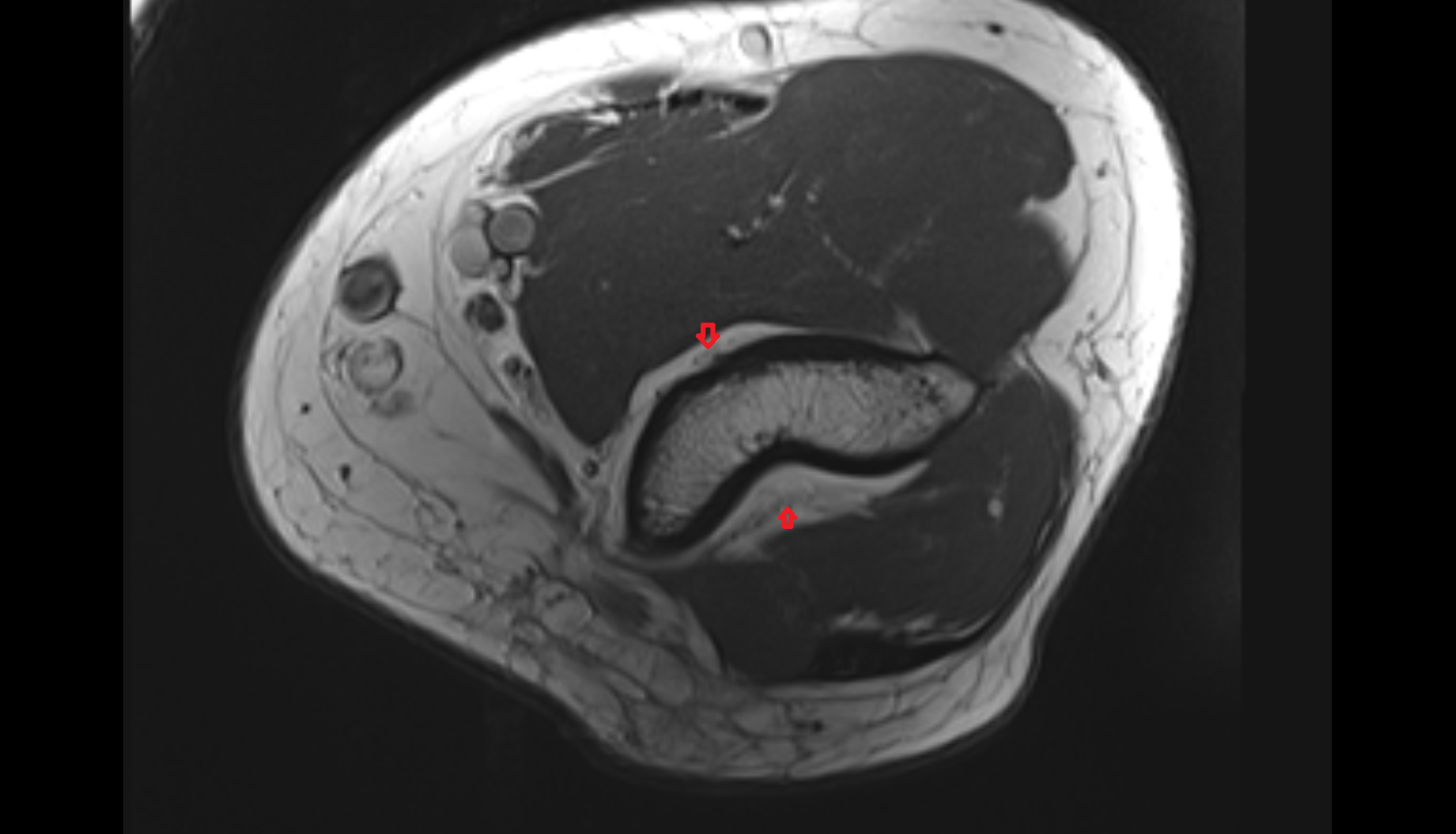

joint capsule of elbow axial cross sectional anatomy 3T MRI AI enhanced radiology image -img-00000-00000_00001

MRI images

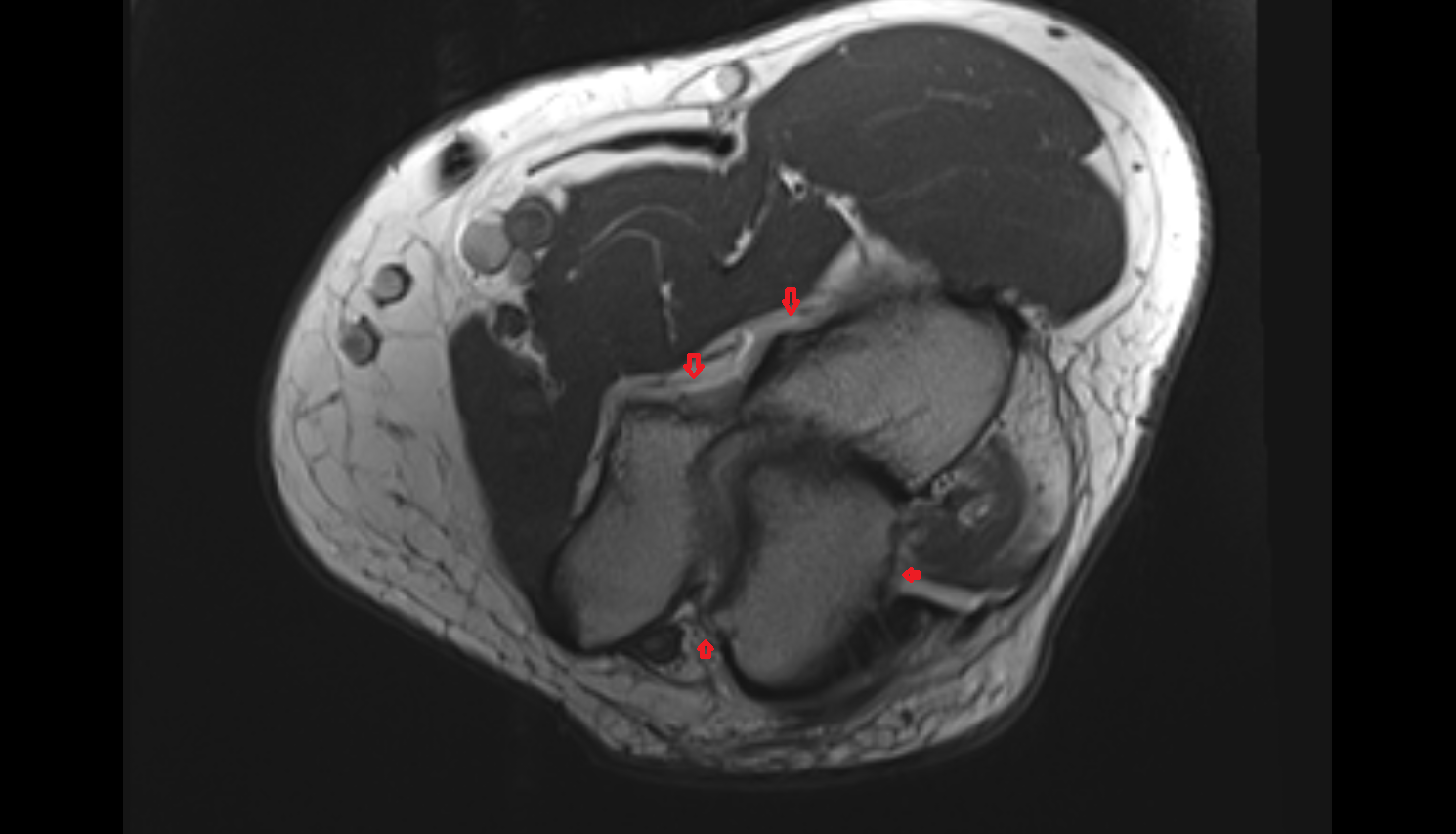

joint capsule of elbow axial cross sectional anatomy 3T MRI AI enhanced radiology image -img-00000-00000_00002
